Iceco VL35 ProS Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
VL
35 45
/
/60 ProS
V7.0
SECOP Compressor
Local Technical
5-Year Warranty
Support

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VL35 ProS and is the answer not in the manual?

Questions and answers

Related Manuals for Iceco VL35 ProS

Summary of Contents for Iceco VL35 ProS

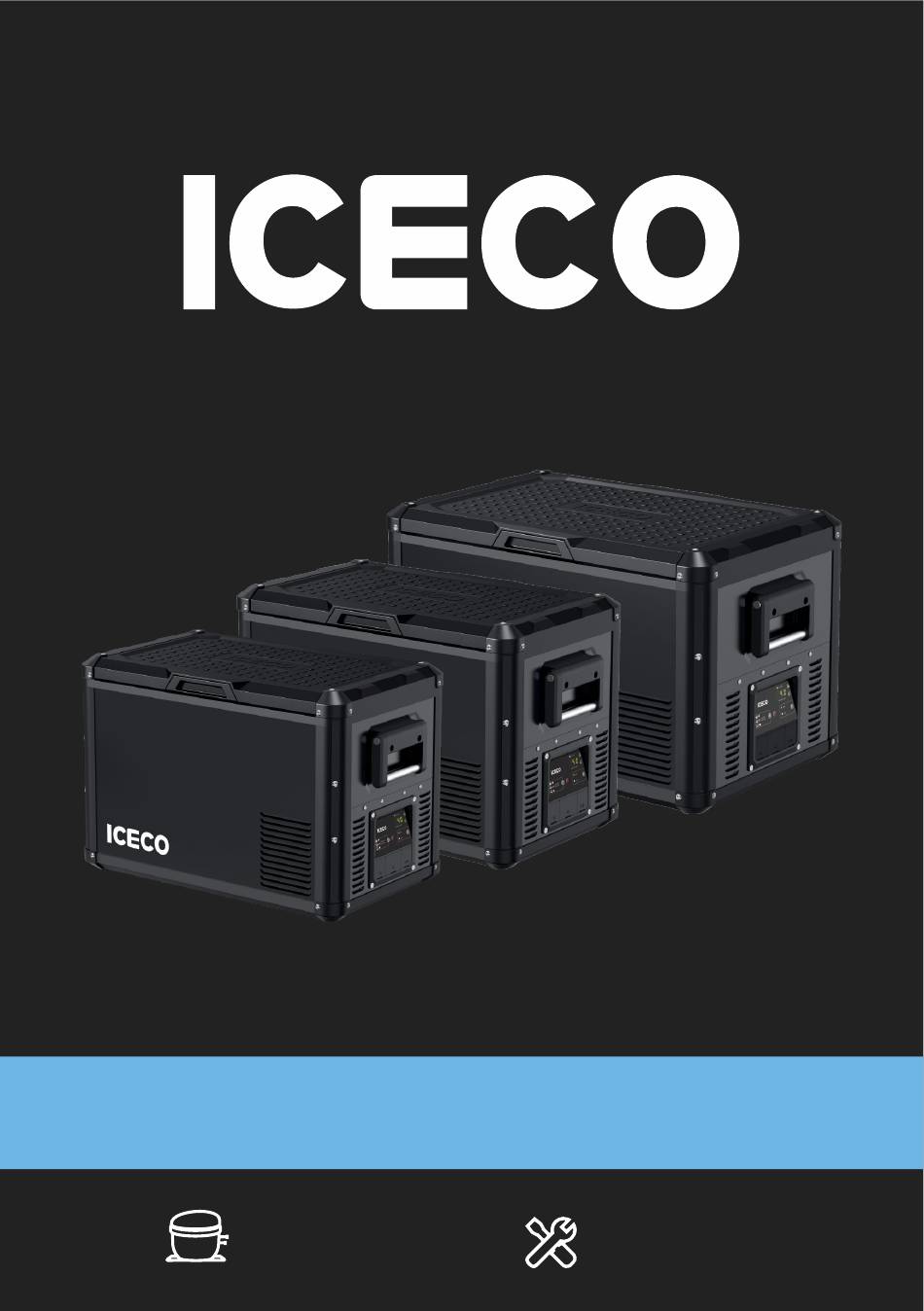

  • Page 1 35 45 /60 ProS V7.0 SECOP Compressor Local Technical 5-Year Warranty Support...

  • Page 3: Table Of Contents

    Catalogue Multi-Directional Lid Opening ..Supply Details ........Operation ................ON/OFF Button ........MAX & ECO Mode ......Switch Between °C to °F ......Setting Temperature ..... Triple Battery Protection Operation ........USB Connector App Control ........Error Code And Solutions ....
  • Page 4 What is the speci cation of the fuse of the ........refrigerator? Warranty & Return Policy ....Safety Instructions ......Accessories (Purchase Separately) ........10.1 Fridge Accessories ......10.2 Power Support Series ....10.3 ICECO Portable Fridge Catalog...

  • Page 5: Multi-Directional Lid Opening

    Multi-Directional Lid Opening Our lid can be opened from either side or fully removed for maximum convenience. Right-Side Opening Left-Side Opening Push the right latch inward Repeat the same steps and lift the lid. on the left side. Full Removal Press both latches inward to completely remove the lid.

  • Page 6: Supply Details

    Supply Details VL35 ProS VL35 ProS Basket x 1 Refrigerator x 1 DC Cigarette AC Wall Outlet Cable x 1 Lighter Plug Cable x 1 *Note: The AC cable is usually used for power bank, vehicles, onboard ships with AC sockets.
  • Page 7 VL45 ProS VL45 ProS Basket x 1 Refrigerator x 1 DC Cigarette AC Wall Outlet Cable x 1 Lighter Plug Cable x 1 *Note: The AC cable is usually used for power bank, vehicles, onboard ships with AC sockets. Extra Supplies Drain Plug Screws Corner Guards...
  • Page 8 VL60 ProS VL60 ProS Basket x 1 Refrigerator x 1 DC Cigarette AC Wall Outlet Cable x 1 Lighter Plug Cable x 1 *Note: The AC cable is usually used for power bank, vehicles, onboard ships with AC sockets. Extra Supplies Drain Plug Screws Corner Guards...
  • Page 9 0°F to 50°F (-18°C to +10°C) Range *Note: Unit can be used with 100-125V~, when connected to an AC cable. If unit is used with 200-240V~, please contact ICECO service team to get another AC cable. The AC cable is usually...

  • Page 10: Operation

    Operation Battery Protection Setting (DC only) Power (Press & Hold to turn on/o ) Compressor Speed (MAX/ECO Mode) Temp. Setting (Up) Temp. Setting (Down)

  • Page 11: On/Off Button

    3.1 ON/OFF Button When power-on, short press the " " button, the system enters the standby mode; In the standby mode, short press the " " button, the system enters the power-on mode. 3.2 MAX & ECO Mode After the fridge turned on (Press & Hold the " "...

  • Page 12: Setting Temperature

    3.4 Setting Temperature After the fridge turned on, the fridge's CURRENT interior temperature reading will appear on the display, as a solid/non- ashing number. To change the fridge's set temperature: Press Temperature Up ( " " Button) to increase the temperature;...

  • Page 13: Usb Connector

    3.6 USB Connector DC power cable NOTICE: USB power port only takes e ect when charging in DC power cord.

  • Page 14: App Control

    App Control Android APP Download and Installation: Android users can nd the "ICECO" app on the Android market, and iPhone users can locate it on the App Store by searching for "ICECO". or Download the app by scanning the QR code above using your mobile phone's QR code scanner.

  • Page 15: Error Code And Solutions

    Error Code And Solutions Error Code And Solutions Description Code The DC Voltage is below the protection settings and the battery protection mode is activated. The cooling fan is over-loaded with more than 1A of current. Repeated switching of the machine or a faulty input voltage causes this motor start error.
  • Page 16 Error Code The DC Voltage is below the protection settings and the battery protection mode is activated. Solutions 1. In case of using in the car, turn the car ignition on and start the refrigerator again; 2. In the case of using the AC cable to connect the electricity at AC socket, you can adjust the battery protection to medium or low mode.
  • Page 17 Error Code Repeated switching of the machine or a faulty input voltage causes this motor start error. The pressure di erence in the refrigeration system is too high. Solutions 1. Make sure to turn o the machine and wait for 5 minutes before turning it on again.
  • Page 18 Error Code Minimum motor speed error, the compressor is over-loaded, and the motor cannot maintain its minimum speed of 1850 rpms. Solutions 1. Make sure to turn o the machine and wait for 5 minutes before turning it on again. If the compressor starts and then stops a few seconds later, it is an E1 fault, and you need to refer to the above E1 troubleshooting method for troubleshooting;...
  • Page 19 Error Code Compressor control module temperature too high or too low protection. (ambient temperature is too high or too low, or the system load is too high, causing the internal temperature of the module/ECU > 212°F or< 14°F) Solutions 1. The compressor will break down at ambient temperatures above 55°C.
  • Page 20 E6/LL Error Code The temperature sensing head is loose or damaged. Solutions 1. Check the temperature sensing head to see if the connection is tight. If it is loose, reconnect it and install it in place. 2. If the sensor head is damaged, replacing the sensor head can solve the problem.

  • Page 21: Cleaning And Maintenance

    Cleaning And Maintenance 6.1 Cleaning Always unplug the fridge before cleaning the fridge. You can clean the interior and exterior of the fridge by using warm water, mixed with a gentle non-abrasive detergent. You may use a soft sponge, or micro ber cloth. When not in use, it’s better to leave the lids open to reduce odors.

  • Page 22: Troubleshooting (Q & A)

    Troubleshooting (Q & A) 7.1 Heat Resistance & Water Resistance Heat Resistance ICECO refrigerators are engineered to operate at an ambient temperature of up to 55°C (131°F). Water Resistance ICECO refrigerators can operate under light rain conditions. Please keep the vents above clear of water, and please add some clearances to the bottom of the fridge if the ground is wet.

  • Page 23: Why Did It Change Back To The Original Temperature After Setting The Temperature

    7.3 Why did it change back to the original temperature after setting the temperature? The Solid/Non-Flashing number on the display is the CURRENT interior temperature. The Flashing number is your SET temperature after adjustment. The compressor will shut o when the SET temperature is reached.

  • Page 24: What Is The Function Of Triple Battery Protection? How Do They Work

    7.6 What is the function of triple battery protection? How do they work? The triple battery protection is designed to prevent over-discharge and battery depletion. When the measured DC voltage is below the set value, the compressor is shut o to prevent battery depletion. VOLTAGE PROTECTION POSITION HIGH...

  • Page 25: What Is The 24 Hours Power Consumption

    0.381 KW·H 0.323 KW·H APL55 JP40 ProS 0.326 KW·H 0.323 KW·H JP30 JP50 ProS 0.452 KW·H 0.405 KW·H JP40 VL35 ProS 0.482 KW·H 0.430 KW·H JP50 VL45 ProS 0.482 KW·H 0.510 KW·H VL45 VL60 ProS 0.348 KW·H 0.548 KW·H VL60 VL75 ProD 0.416 KW·H...

  • Page 26: Warranty & Return Policy

    Please call us: +1 (888) 606 1046 (Mon-Fri 9:00am-6:00pm PT) Please email us: cial@icecofreezer.com (for Amazon/Walmart orders) support@icecofreezer.com for website orders support@iceco-us.com for other orders *Please let us know your order number rst for a quick solution.
  • Page 27 If the product is received damaged or defective during transportation, you will need to contact our customer service within 2 business days. Make sure to provide relevant photos or videos, your order ID number, and your name. A customer service agent will help assist into solving the issue at a timely manner (Return, Exchange, or Discount Compensation).

  • Page 28: Safety Instructions

    Safety Instruction Please read the user manual and safety instructions carefully before using the appliance. By ignoring the safety instructions, the manufacturer cannot be held responsible for the damage. The use of accessories that are not recommended by manufacturer can cause injuries and will invalidate any warranty that you may have.
  • Page 29 Please don't put hot/warm food into the fridge directly without letting it cooling o . Place/arrange the content of your fridge securely when using the refrigerator inside a moving vehicle. To maximize energy savings, please make sure the lid is closed and secure, and only open the fridge when you need to.
  • Page 30 WARNING! Please keep the fridge in a well ventilated area. Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer. Do not use electrical devices inside the food storage compartments of the appliance, unless approved/recommended by the manufacturer.
  • Page 31 Further information is provided on the technical data label inside the product. 1. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  • Page 32 DANGER: Risk of child entrapment. Before you throw away your old refrigerator or freezer: *Take o the doors. *Leave the shelves in place so that children may not easily climb inside.
  • Page 33 FCC warning: Any Changes or modi cations not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 34: Accessories (Purchase Separately)

    Accessories (Purchase Separately) 10.1 Fridge Accessories Insulated Cover Slide Mount Tie Down Kit VL35 ProS/VL45 ProS VL35/45 ProS VL35/45/60 ProS /VL60 ProS /VL60 ProS 10.2 Power Support Series PB250 PB1000 250Wh 1057Wh Battery Solar Panel Magnetic Battery...

  • Page 35: Iceco Portable Fridge Catalog

    10.3 ICECO Portable Fridge Catalog Dual Zone Capacity 21 quarts Cooling Range 0°F to 50°F Consumption 0.433 (KW.H/24H) Product Weight 27.5 lbs GO20 Product dimension 22.4 x 12.6 x 12.4 White/Gray (L*W*H) inches /Other limited colors Single Zone Capacity 31/40/50 quarts Cooling Range -4°F to 68°F...
  • Page 36 Single Zone Capacity 47/78 quarts Cooling Range 0°F to 50°F Consumption 0.4348/0.416 (KW.H/24H) Product Weight 50.6/62.5 lbs Product dimension 27.4 x 15.8 x 19.2/ VL45/74 (L*W*H) 32.3 x 19.4 x 19.6 Green/Other limited colors inches Single Zone Dual Zone Capacity 63/68 quarts Cooling Range 0°F to 50°F...
  • Page 37 Dual Zone Capacity 79/95 quarts Cooling Range 0°F to 50°F Consumption 0.636/0.658 (KW.H/24H) Product Weight 69.6/75.1 lbs VL75/90 Product dimension 36.5 x 18.5 x 18.1/ ProD (L*W*H) 38.3 x 20.7 x 18.1 Black/Other limited colors inches Single Zone/Dual Zone Capacity 21/37 quarts Cooling Range -4°F to 68°F...
  • Page 40 Cooler Than A Cooler +1 (888) 606 1046 (Mon-Fri 9:00am-6:00pm PT) cial@icecofreezer.com (for Amazon/Walmart orders) support@icecofreezer.com (for website orders) support@iceco-us.com (for other orders)
