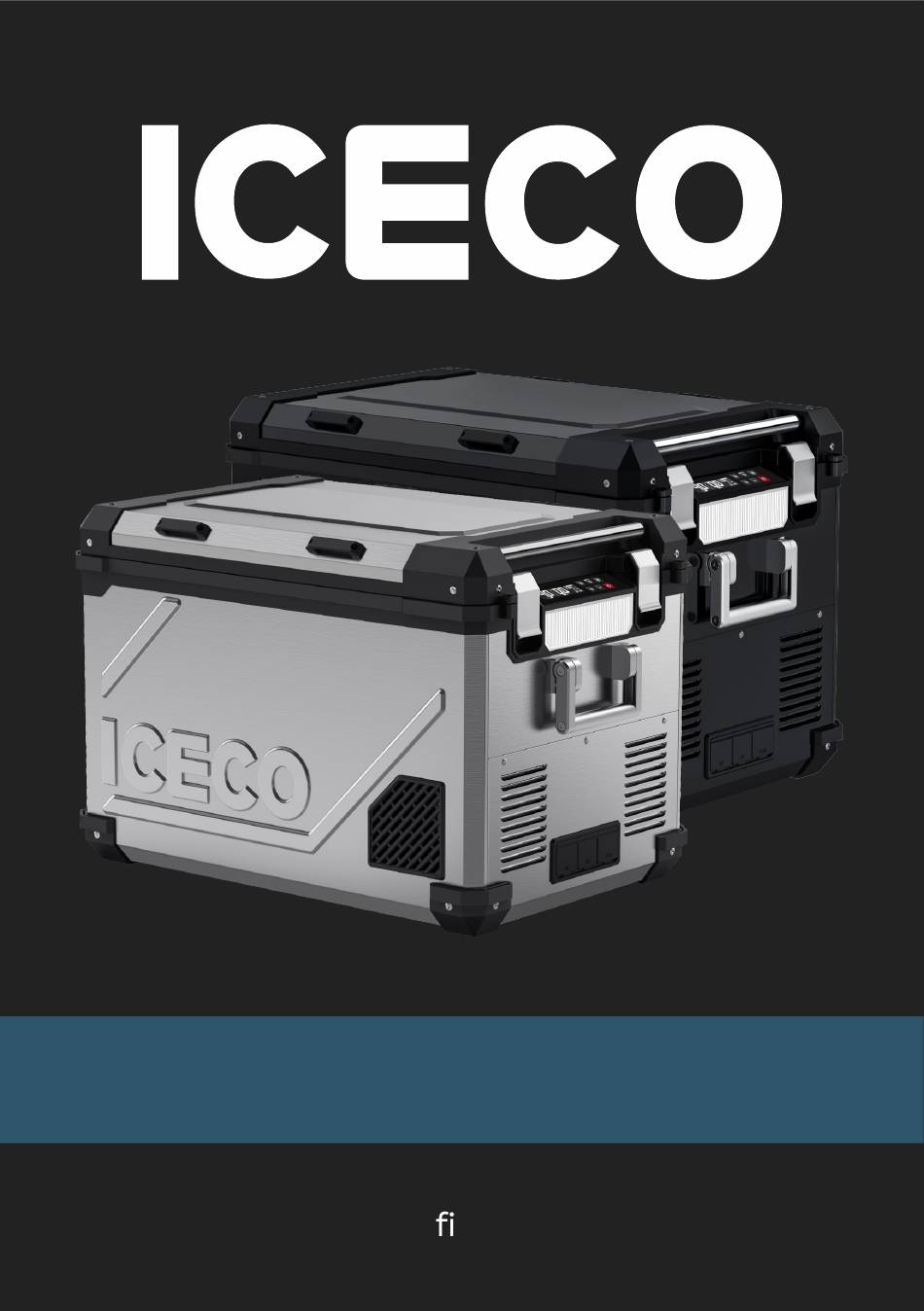

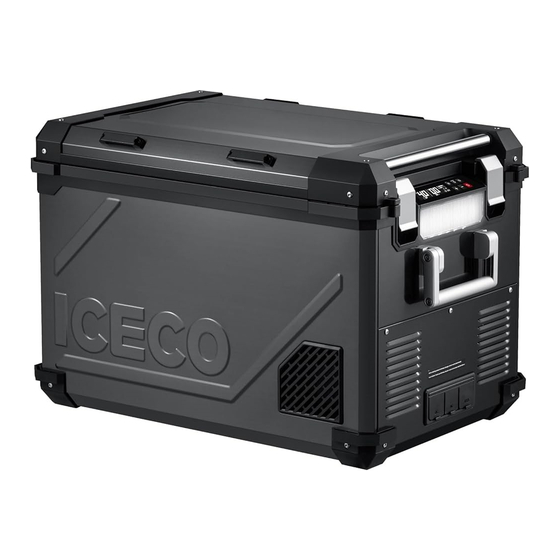

- Page 1 APL55 V3.0 Please email us at: of cial@icecofreezer.com...
- Page 3 Catalogue Supply Details ........Operation ..................2.1 Control Panel ........Screen Brightness ......... Battery Protection ....Change Temperature Scale ........Silence Mode ......... Bluetooth ....Switch With Dual/Single Zone ......Ambient Light Setting ........ MAX/ECO Mode App Control ........
- Page 4 Catalogue Troubleshooting (Q & A) ......Heat Resistance & Water Resistance What should I do if the refrigerator ... is upside down when it is delivered? Why did it change back to the original temperature after setting the temperature? What is the function of triple battery protection? .....
- Page 5 Supply Details Refrigerator x1 Basket x4 DC Cigarette AC Wall Outlet Cable x1 Lighter Plug Cable x1...
- Page 6 R513A App Control Temperature Range -4°F to 68°F (-20°C to +20°C) Note: Unit can be used with 100-125V~, when connected to an AC cable. If unit is used with 200-240V~, please contact ICECO service team to get another AC cable.
- Page 7 Operation...
- Page 8 E F A Power (Short Press to turn on/o ) Setting Mode MAX/ECO Mode Ambient Light Setting Temp. Setting UP Temp. Setting DOWN...
- Page 9 DC Charging Port AC Charging Port USB Power Port...
- Page 10 DC Charging Port USB Power Port Magnetic Battery Area 2.1 Control Panel 2.1.1 ON/OFF Button When power-on, short press the " " button, the system enters the standby mode; In the standby mode, short press the " " button, the system enters the power-on mode. 2.1.2 Setting Mode Press the "...
- Page 11 2.1.3 Temperature Setting Dual zone mode: When turned on the fridge, short press the " " button will into the Setting Mode, select the " " , can control the " " individually. Short press " " or " " button can adjust the set temperature of the selected compartment down or up by 1 degree.
- Page 12 2.2 Screen Brightness 2.2.1 Luminance Level Short press the " " button to choose the " ", then the luminance display bar at the top right of the LCD screen starts ashing, short press " " or " " button can reduce or increase the screen luminance by 1 level.
- Page 13 2.3 Battery Protection Press " " button to enter the Setting Mode, select the Battery Protection Setting " " is ashing, short press the " " button to enter the battery protection setting menu, short press " " or " "...
- Page 14 2.4 Change Temperature Scale Press " " button to enter the Setting Mode, °C °F select to " " " " is ashing, use " " or " " to switch between the Celsius " " or °C °F Fahrenheit " ".
- Page 15 2.6 Bluetooth Press " " button to enter the Setting Mode select to " " sign is ashing, use " " or " " to switch between Bluetooth On or O . " " means On, " " means O . NOTICE: Factory default setting Bluetooth is on.
- Page 16 2.8 Ambient Light Setting Press " " button, the Ambient light will change with following functions： Constant light mode, Breathing light mode, All o mode NOTICE: Factory default ambient light is on. 2.9 MAX/ECO Mode When turned on the fridge, short press the " "...
- Page 17 App Control Android APP Download and Installation: Android users can nd the "ICECO" app on the Android market, and iPhone users can locate it on the App Store by searching for "ICECO". Download the app by scanning the QR code above using your mobile phone's QR code scanner.
- Page 18 Error Code And Solutions Error Code And Solutions Code Description The DC Voltage is below the protection settings and the battery protection mode is activated. The cooling fan is over-loaded with more than 1A of current. Repeated switching of the machine or a faulty input voltage causes this motor start error.
- Page 19 E1 Error Code The DC Voltage is below the protection settings and the battery protection mode is activated. E1 Solutions 1. In case of using in the car, turn the car ignition on and start the refrigerator again; 2. In the case of using the AC adapter to connect the electricity at home, you can adjust the battery protection to medium or low mode.
- Page 20 E2 Solutions If the fan does not start but the compressor does, this is a short-circuited fan. You can x the error code by replacing the fan. E3 Error Code Repeated switching of the machine or a faulty input voltage causes this motor start error.The pressure di erence in the refrigeration system is too high.
- Page 21 2. The input voltage is too low to reach the minimum starting voltage required by the battery protection, resulting in the refrigerator can not start. Reduce the starting voltage gear can solve the problem. E4 Error Code Minimum motor speed error, the compressor is over-loaded, and the motor cannot maintain its minimum speed of 1850 rpms.
- Page 22 2. The compressor will break down at ambient temperatures above 55°C. Try to avoid using the refrigerator at high ambient temperatures. Make sure there is enough space outside the compressor cover to dissipate heat (more than 5cm on the left and right sides and 10cm space on the front air outlet).
- Page 23 E5 Solutions 1. The compressor will break down at ambient temperatures above 55°C. Try to avoid using the refrigerator at high ambient temperatures. Make sure there is enough space outside the compressor cover to dissipate heat (more than 5cm on the left and right sides and 10cm space on the front air outlet).
- Page 24 E6/LL Error Code The temperature sensing head is loose or damaged. E6/LL Solutions 1. Check the temperature sensing head to see if the connection is tight. If it is loose, reconnect it and install it in place. 2. If the sensor head is damaged, replacing the sensor head can solve the problem.
- Page 25 HH Error Code NTC failure (short circuit) HH Solutions 1.Check the temperature sensing head terminals for water ingress. Try replacing the temperature sensing head to see if the refrigerator works properly 2.Check the terminals on the control panel end for shorts.
- Page 26 TIPS: Single zone appeared NTC failure, the system will temperate the failure side. Other zone is normal. If two sides all appeared NTC failure, the whole system will shut o . E3/E4/E5 error code will cause the system restart with 2500r/min. Following setting will same as before you cut the power.
- Page 27 Cleaning And Maintenance 5.1 Cleaning Always unplug the fridge before cleaning the fridge. You can clean the interior and exterior of the fridge by using warm water, mixed with a gentle non-abrasive detergent. You may use a soft sponge, or micro ber cloth.
- Page 28 5.2 Danger Behavior Use pointed objects to scrape, or defrost ice. Use abrasive detergents to clean. Use heavy duty sponges (due to scratching). Clean the fridge with running water or pressure washer. Clean the fridge without power input covers secured. 5.3 USB Connector DC power cable NOTICE: USB power port only takes...
- Page 29 Troubleshooting (Q & A) 6.1 Heat Resistance & Water Resistance Heat Resistance ICECO refrigerators are engineered to operate at an ambient temperature of up to 55°C (131°F). Water Resistance ICECO refrigerators can operate under light rain conditions. Please keep the...
- Page 30 6.2 What should I do if the refrigerator is upside down when it is delivered? Please leave your refrigerator upright for 24 hours to allow the compressor lubricant to resettle before powering on the fridge. Otherwise it may contribute to certain operation abnormalities.
- Page 31 6.4 What is the function of triple battery protection? How do they work? The triple battery protection is designed to prevent over-discharge and battery depletion. When the measured DC voltage is below the set value, the compressor is shut o to prevent battery depletion. PROTECTION VOLTAGE HIGH...
- Page 32 Electrical Electrical Model Model Power Power GO12 JP42 GO20 APL55 JP Series VL Series VL45 ProS VL60 ProS VL75 ProD VL90 ProD JP40 Pro JP50 Pro This data is only suitable for laboratory testing, and the actual...
- Page 33 6.6 Why is there a temperature di erence (between the actual temperature of the refrigerator and the set temperature)? Because of the sinking nature of cold air, the di erent temperatures may exist in di erent locations in the refrigerator (the temperature of the bottom will be the lowest).
- Page 34 6.8 What is the speci cation of the fuse of the refrigerator? The supply line is protected by a 15A fuse located in the refrigerator. If you have any problems or questions about the product Please call us: +1 (888) 606 1046 (Mon-Fri 9:00am-6:00pm PT) Please email us: cial@icecofreezer.com...
- Page 35 Warranty & Return Policy 30 days refund guarantee upon receiving. 5 years warranty on the compressor. warranty for other parts or 1 year accessories. For returns or exchanges, please contact us. Call us: +1 (888) 606 1046 (Mon-Fri 9:00am-6:00pm PT) Email us: cial@icecofreezer.com (for Amazon orders)
- Page 36 If the product is received damaged or defective during transportation, you will need to contact our customer service within 2 business days. Make sure to provide relevant photos or videos, your order ID number, and your name. A customer service agent will help assist into solving the issue at a timely manner (Return, Exchange, or Discount Compensation).
- Page 37 Safety Instruction Please read the user manual and safety instructions carefully before using the appliance. By ignoring the safety instructions, the manufacturer cannot be held responsible for the damage. The use of accessories that are not recommended by manufacturer can cause injuries and will invalidate any warranty that you may have.
- Page 38 Do not leave the refrigerator unattended in uncovered, outdoor areas exposed to the elements. Do not use this appliance near direct heatsources, such as an open ame or radiator. Do not place open containers of liquid inside the fridge. Please don't put hot/warm food into the fridge directly without letting it cooling o .
- Page 39 WARNING! Please keep the fridge in a well ventilated area. Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer. Do not use electrical devices inside the food storage compartments of the appliance, unless approved/recommended by the manufacturer.
- Page 40 Do not touch the compressor or the condenser when the fridge is operating. They may be very hot. When setting up the appliance, ensure the supply cord is not trapped or damaged. Further information is provided on the technical data label inside the product.
- Page 41 3. This appliance is intended to be used in household and similar applications such as *sta kitchen areas in shops, o ces and other working environments; *farm houses and by clients in hotels, motels and other residential type environments; *bed and breakfast type environments; *catering and similar non-retail applications.
- Page 42 FCC warning: Any Changes or modi cations not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
- Page 44 Cooler Than A Cooler...
