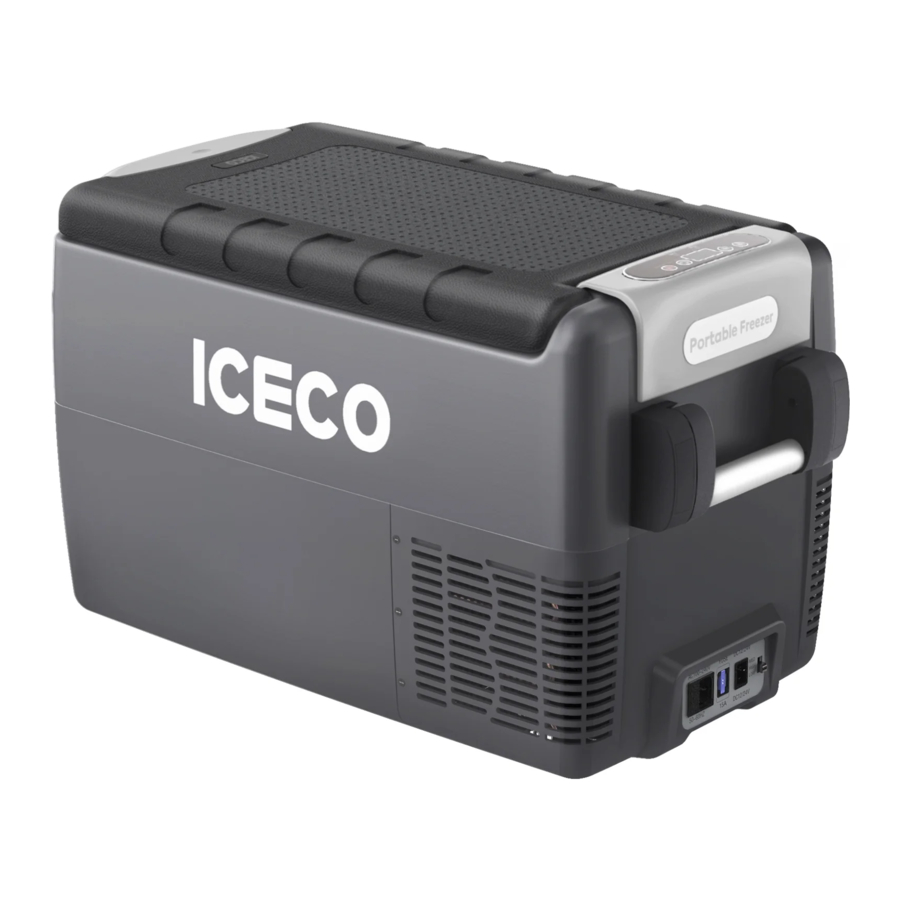

ICECO JP30, JP40, JP50 Manual

HANDLE INSTALLATION

DESCRIPTION

Please read these instructions and the Safety section carefully before using your refrigerator.

Naming Method

For example: JP30#*S #=B or W or G;
—30with mean capacity;
— # = B or W or G; with mean different Appearance Color B (black); G (gray); W (white);
—* = S or D with mean Single Zone or Dual Zone design;
— S = S with mean app; N with mean no app

This appliance contains fluorinated greenhouse gas R134a within an hermetically sealed system and its operations depends on the presence of this gas.

GETTING STARTED

INSTALLATION

• Place the refrigerator on a dry, sheltered, flat surface and away from any edges. The refrigerator must not be used unsheltered, in the open air or exposed to splashing or rain.
• Your refrigerator requires good ventilation, especially around the back of the refrigerator, allow a gap of at least 15 cm around the sides, back and top. Never use your refrigerator in the boot of a car or against.
• Do not install the refrigerator near heat sources, sunlight.
• Should you need to leave the device under the sun for long periods, eg: in a car or in other vehicles, make sure you protect it, to prevent the cover plastic materials from getting damaged or warped
• To fix it inside the car and to avoid damages during transport, we suggest to secure the fridge trough metal brackets placed on the sides.
• Avoid introducing liquids or ice not inserted in containers.
• Do not put hot food items into the refrigerator.
• Avoid using the refrigerator under the rain or in presence of water.

USE

• Plug in the DC or AC power. Press the button "ON/OFF" to run the refrigerator. The LED display on the control panel would be lighted and the interior temperature would be displayed.
• Press the button and to adjust the temperature. Press the button to increase while the button to decrease the temperature. When press the above two buttons at the same time, it would switch the display between oc and OF.
• Press the ECO key to enter the "ECONOMY" operating mode: the ECO light turns on and the compressor runs at minimum speed by keeping a fresh temperature inside the refrigerator. By pressing the ECO key again, the light turns off and the refrigerator enters in MAX mode (mode (maximum number of compressor turns)). MAX light will be switched on until having achieved the temperature set.
• When the appliance is on, press the "+" and - buttons at the same time to switch back and forth between Celsius and Fahrenheit.

TIPS

1. Use the product in MAX mode in these cases:
   • use of the product as refrigerator with high ambient temperature;
   • when the suitable temperature need to be achieved in few time.
2. Use the product in ECO mode in these cases:
   • use of the product as refrigerator and, in particular, with low ambient temperature;
   • when the vehicle is parked for long time (with engine switched off)

USING THE REFRIGERATOR IN A VEHICLE

• Connect the feeding cable to a direct current 12 or 24 V DC power source.
• Make sure the polarity is right.
• The supply line is protected by a 15 A fuse located on the box.
• If connected to an existing cigarette plug, carefully check up that power supply is sufficient.
• If the supplied power cable is not used, see the table containing the information related to the cable section:

USING THE REFRIGERATOR AT HOME

• This model can be fed equally using 12/24V or mains power 110 -120V (100 - 240V)AC.
• It is equipped with 2 sockets to connect the two different cables for DC respectively AC.
• The refrigerator is provided with automatic switch over from one kind of feeding to the other.
• Should both be present at the same time, the device will always set itself on mains power priority feeding by 110 - 120V (100 - 240V) AC.

ELECTRONIC CONTROL

Compressor station
Functions and features.
This is an electronic device which has the function of piloting the motor of the compressor and carrying out all the controls and electrical protection of the system.

Its main features are as follows:

1. Protection of the battery through automatic turning off of the compressor when the feeding voltage reaches the minimum threshold.
2. The compressor will start up again automatically when the voltage goes back to normal values.

Note: these values have been measured at control unit input and/or on the DC socket.

FILLING

Do not put hot food items into the refrigerator. Place the products in such a way as to avoid them hitting against each other or breaking because of the movement of the vehicle.
Make sure that the lid is always well closed and open it for as short a time as possible.

DEFROSTING

Defrosting is needed when the layer of frost is thicker than 4 mm.
To carry out this operation, turn off the refrigerator.
Do not use sharp or cutting tools to remove the layer of frost or ice.
Wait until complete unfreezing and then turn on again.

MAINTENANCE

Before carrying out any maintenance operation on the refrigerator, take the power cable out of its socket.

CLEANING

• Regularly clean the inside and outside of the refrigerator using only warm water and a neutral detergent
• Subsequent to washing, rinse with clean water and dry thoroughly using a soft cloth.
• Do not use the following: special glass and mirror cleaning products, liquid, powder, or spray detergents, alcohol, ammonia or abrasive products.
• If you are not using the refrigerator, we suggest cleaning it well inside and leaving the door ajar to ventilate the interior.

SUGGESTIONS

Should the device fail to work or work badly, before referring to our after-sales service, make sure that:

1. the feeding voltage is not missing;
2. the voltage is the same as the one shown on the plate;
3. the connections and the polarities are right;
4. the airing grids are not covered over;
5. the refrigerator unit is not near any heat source;
6. the fuse of the feeding line is not blown.

GENERAL SAFETY MESSAGES

Failure to obey the following warnings could result in death or serious injury:

• ELECTRICAL SHOCK HAZARD. Do not immerse the product in water, or use it in an area that is excessively muddy.
• Do not use the cooler for any purpose other than as a mobile cooling device.

FALL HAZARD. Do not stand on the cooler. Doing so could damage the unit or cause minor to moderate injury.

NOTICE

Failure to obey the following notices could result in property damage:

• Keep sand or dirt away from the cooling system ventilation area.
• Do not leave the cooler on the deck of a boat for an extended period. Salt water damage to the cooling system, electronics, or metal hardware could occur.
• Do not expose the cooler to extreme heat.
• Only use mild soap and water to clean the cooler.
• Do not use a DC extension cord.
• Do not use a power strip or two-way splitter.
• Do not use power cord adapters of any kind other than those provided by the manufacturer.
• Do not use ice cubes or fill the cooler with water. If ice does accumulate at the bottom of the cooler, defrost the unit and use the drain plug to drain the water.
• Do not modify the unit in any way.
• Do not place hot materials (75ºFor higher) in the cooler. Allow materials to cool (50º F or less) before placing them inside the cooler.
• Do not tip or store the cooler at an angle greater than 300 for extended periods. Compressor oil contamination of the cooling system could occur.
• Allow 2—4 inches of space around the cooler at all times for proper ventilation of the cooling system.
• The cooler must be secured at all times using straps or a mounting plate, especially in mobile applications.

The power supply cable must be replaced only by qualified technical personnel and in any case by an after sales service authorised by the Manufacturer.

ICECO is not liable in any way if you do not comply strictly with all the previsions in this manual.
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

FAULTS

Customer Support

For any technical or warranty inquires please visit our customer service portal at: www.icecofreezer.com

QUESTIONS AND COMMENTS
Please visit us at icecofreezer.com or email us at support@icecofreezer.com

SAFETY INFORMATION

Please read this operating manual carefully before starting the appliance. Keep it in a safe place for future reference. If the appliance is passed on to another person, this instruction manual must be handed over to the user along with it.
The manufacturer cannot be held liable for damage resulting from improper usage or incorrect operation.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be ensured that they do not play with the appliance.
• Cleaning and user maintenance shall not be carried out by children without supervision.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• Do not use this appliance near direct heat sources, for example, a cooker, radiator or exposing it to direct sunlight.
• The appliance shall not be exposed to rain. Place the refrigerator on a dry, protected surface, away from edges.
• Do not use an extension cord.

NOTICE

• No responsible for the damage by ignoring the safety instructions IC ECO.
• The use of accessories that are not recommended by IC ECO can cause injuries and will invalidate any warranty that you may have.
• Place the products so that they do not collide against each other or break when the appliance is in motion.
• If the SUPPLY CORD is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Disconnect the power cable from the plug before carrying out any maintenance.
• Do not place carbonated drinks and gaseous drinks under 0ºC(32ºF) in this appliance.

INTENDED TO USE

This appliance is intended to be used in household and similar applications such as:

• Staff kitchen areas in shops, offices and other working environments;
• Farm houses and by clients in hotels, motels and other residential type environments;
• Bed and breakfast type environments;
• Catering and similar non-retail applications.

• Keep ventilation openings, clear of obstruction in the appliance enclosure or in the built-in structure.
• Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by ICECO.
• Do not place ice or liquids which are not sealed in containers within the refrigerator.
• Do not place hot products or hot food in this appliance.

• Risk of child entrapment.

Before you throw away your old refrigerator or freezer:

• Take off the doors.
• Leave the shelves in place so that children may not easily climb inside.
