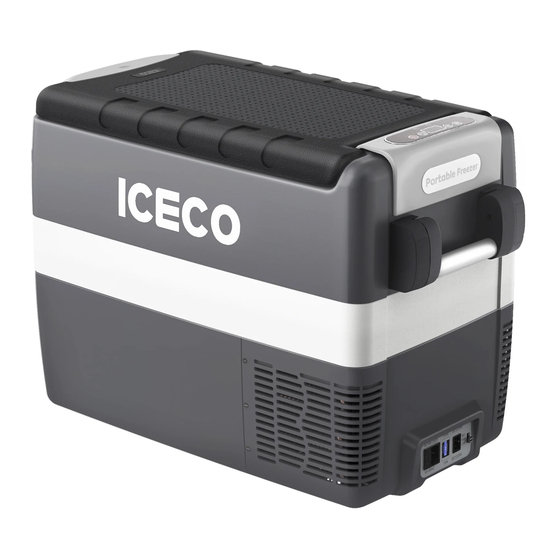

- Page 1 JP30/40/50 If there are any problems, please email us: official@icecofreezer.com...
-
Page 3: Table Of Contents
Catalogue - - - - - - - - - - - - - - - - - - - - - - - What's Inside - - - - - - - - - - - - - - - - - - - - - - - - - - - Operation - - - - - - - - - - - - - - Care And Maintenance... -
Page 4: What's Inside
What's Inside Insulated Protective Refrigerator x1 Cover x1 110V AC Wall Wired Basket x1 Outlet Cable x1 12/24V DC Cigarette 12 Feet Cigarette Lighter Plug Cable x1 Extension Cable x1... -
Page 5: Operation
Operation Power (Press & Hold to turn on/off) Compressor Speed (MAX/ECO Mode) Temp. Setting DOWN Temp. Setting UP... - Page 6 2.1 MAX & ECO Mode With the unit turned on (Press & Hold A / Power Button), you can press the MAX/ECO Button B to toggle between MAX or ECO compressor speed for the fridge. 2.2 Switch Between °C to °F With the unit turned on, press and hold C &...
- Page 7 2.4 Triple Battery Protection Operation Push the triple battery protection button up and down to adjust the HIGH, MED or LOW gear. NOTE: Details of Battery Protection Mode could be found in Page 11.
-
Page 8: Care And Maintenance
Care And Maintenance 3.1 Cleaning Please use a wet cloth and warm water mixed with gentle non-abrasive detergents to clean the interior and exterior of your fridge. 3.2 DOs and DON'Ts Please power off and unplug the unit before cleaning Please use non-abrasive detergent to cleaning the interior/exterior of the fridge Please don't scrap the interior of the fridge to... -
Page 9: Error Codes & Solutions
Error Codes & Solutions Error Code ※ The DC voltage is below the protection setting and the battery protection mode is activated. ※ The cooling fan overloads with more than 1 A of current. Motor start error ※ The motor of compressor is blocked or the pressure difference in the refrigeration system is too high. - Page 10 Solutions If this error code appears when the fridge is operating on 12V DC, please try to lower the battery protection setting and see if the error is resolved. The battery protection mode may be triggered prematurely on certain vehicles due to small wiring imperfections, contributing to a measured DC voltage drop at compressor start-up.
-
Page 11: Warranty & Return Policy
Warranty & Return Policy 30-day money back guaranty upon receiving goods. 5 year Compressor Warranty. 1 year General Warranty. For returns or exchanges, please fill out the following return and exchange registration form in the package as a proof of return. All materials must be returned in the original condition and packaging. -
Page 12: Troubleshooting (Q & A)
Troubleshooting (Q & A) 1. Heat resistance & water resistance Heat resistance ICECO refrigerators are engineered to operate at an ambient temperature of up to 55°C (131°F). Weather Proof ICECO refrigerators can operate under light rain conditions. Please keep the vents... - Page 13 2. How long can the ICECO refrigerator keep the temperature after powering off? The following data only represents the situation when the refrigerator is empty. Due to different samples, it is normal to have differences. Insulation Performance Model Insulation Test Ambient temperature of 25°C (77°F)，...
- Page 14 4. What should I do if the refrigerator is upside down when it is delivered? Please leave your refrigerator upright for 24 hours to allow the compressor lubricant to resettle before powering on the fridge. Otherwise it may contribute to certain operation abnormalities.
- Page 15 6. What is the power draw in max/ fast cooling mode? Electrical Electrical Model Model Power Power GO12 JP42 VL35 GO20 Series JP Series VL Series This data is only suitable for laboratory testing, and the actual power is subject to actual conditions.
- Page 16 7. Why is there a temperature difference (between the actual temperature of the refrigerator and the set temperature)? Because of the sinking nature of cold air, different temperatures may exist in different locations in the refrigerator (the temperature of the bottom will be the lowest). The panel only shows the center temperature of the refrigerator.
-
Page 17: Safety Instructions
Safety Instruction SAFETY INSTRUCTIONS Please read the user manual and safety instructions carefully before using the appliance. By ignoring the safety instructions, the manufacturer cannot be held responsible for the damage. The use of accessories that are not recommended by manufacturer can cause injuries and will invalidate any warranty that you may have. - Page 18 ！ Do not leave the refrigerator unattended in uncovered, outdoor areas exposed to the elements. ！ Do not use this appliance near direct heat sources, such as an open flame or radiator. ！ Do not place open containers of liquid inside the fridge.
- Page 19 WARNING! ！ Please keep the fridge in a well ventilated area. ！ Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer. ！ Do not use electrical devices inside the food storage compartments of the appliance, unless approved/recommended by the manufacturer.
- Page 20 ！ Do not touch the compressor or the condenser when the fridge is operating. They may be very hot. ！ When setting up the appliance, ensure the supply cord is not trapped or damaged. Further information is provided on the technical data label inside the product.
- Page 21 3. This appliance is intended to be used in household and similar applications such as staff kitchen areas in shops, offices and other working environments; farm houses and by clients in hotels, motels and other residential type environments; bed and breakfast type environments; catering and similar non-retail applications.
- Page 24 Cooler Than A Cooler...
