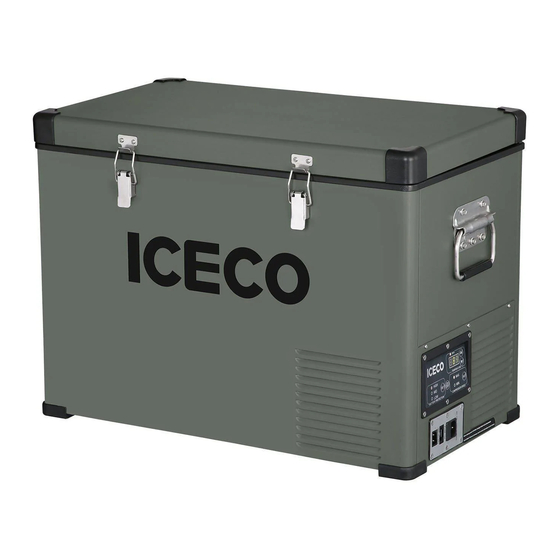

Summary of Contents for Iceco STEEL VL45 Series
- Page 1 STEEL...
- Page 3 Contents OPERATION OF SINGLE ZONE SERIES(VL45/VL60/VL74) OPERATION OF DUAL ZONE SERIES(VL60D/VL65D)
-
Page 4: Safety Information
● No responsible for the damage by ignoring the safety instructions ICECO. ● The use of accessories that are not recommended by ICECO can cause injuries and will invalidate any warranty that you may have. ● Place the products so that they do not collide against each other or break when the appliance is in motion. -
Page 5: Data Sheet
DATA SHEET SINGLE ZONE MODEL VL45 Series MODEL VL60S Series MODEL VL74 Series External dimensions 691x374x447mm 659x374x574mm 790x465x495mm (LxWxH) Net weight 22Kg(48.5lbs) 24Kg(52.9lbs) 28Kg(61.7lbs) Cooling system SECOP BD35F SECOP BD35F SECOP BD50F Installed power Supply voltage DC 12V/24V , AC 110 -120 V ( for US) /AC 100-240V ( for AU & EU） Temperature setting -18℃... -
Page 6: Getting Started
DESCRIPTION Lid Handle Control Panel Carry Handle Power Input Panel 12V/24V DC Power Cable 110-120V(100-240V) AC Power Cable Single Zone Flexi Zone (VL45) (VL60) GETTING STARTED Installation Please check whether the parts of Fridge/Freezer are complete after unpacking. Note: Place the unit in a dry place which is protected against splashing water. Do not place directly adjacent to sources of heat (heating, gas ovens, hot water, pipes or under the blazing sun). - Page 7 simultaneously. The Fridge/Freezer may be used for outdoor, use such as for camping purposes.If you wish to refrigerate medicines, first ensure the Fridge/Freezer’s cooling capacity meets the demands of the respective medicines.The Fridge/Freezer is designed to operate in ambient temperatures from -18℃ to +10℃(0℉to 50℉) in a maximum air humidity of 90%.
- Page 8 12/24V DC Power Requirements If your Fridge/Freezer is cutting out prematurely, it could be due to: 1.The low voltage protection being set too high on the Battery Monitor. 2.DC power cable and/or connections are not suitable to carry the required current. Check the power cable and all connections and adjust the Battery Monitor on the control panel.
-
Page 9: Temperature Controller
OPERATION OF VL45 BATTERY MONITOR The device is equipped with a multi-level battery monitor that protects your vehicle battery against excessive discharging when the appliance is connected to 12/24 V supply. If the appliance is operated when the vehicle ignition switched off, the appliance switches off automatically as soon as the supply voltage falls below a set level. -
Page 10: Energy Saving Tips
When your appliance is first connected to AC or DC input the digital read out will show the current cabinet temperature, to adjust the temperature follow these steps: To increase the cabinet temperature press and to decrease press until the desired level is reached. - Page 11 OPERATION OF VL60S/VL74...
- Page 12 OPERATION OF DUAL ZONE SERIES (VL60/ VL65)
- Page 13 TEMPERATURE CONVERSION OF VL60/ VL65 In the standby mode,press and hold the “Mode” button for 3S to enter the advanced menu settings. After entering the menu, short press the “Mode” button to cycle into F1/F2/F3 (temperature compensation mode), F/C (Celsius Fahrenheit switch mode). After entering the FC function, then press ∧...
-
Page 14: Maintenance
MAINTENANCE Before carrying out any maintenance operation on the refrigerator,take the power cable out of its socket. CLEANING ● Regularly clean the inside and outside of the refrigerator using only warm water and a neutral detergent. ● Subsequent to washing, rinse with clean water and dry thoroughly using a soft cloth. ●... - Page 15 NOTICE Failure to obey the following notices could result in property damage: ● Keep sand or dirt away from the cooling system ventilation area. ● Do not leave the cooler on the deck of a boat for an extended period. Salt water damage to the cooling system, electronics, or metal hardware could occur.
-
Page 16: Questions And Comments
ICECO product comes with a 5-year warranty on the compressor and 1 year warranty on all other parts for your peace of mind. In the unlikely event this product fails when used according to our user guide, we will either repair or replace it. For full warranty terms and conditions on this product, please see the user guide.
