Lanc Zoom Controller with Iris /Focus/Zoom Speed Control
(P-ZC-IF01)
A s s e m b l y M a n u a l

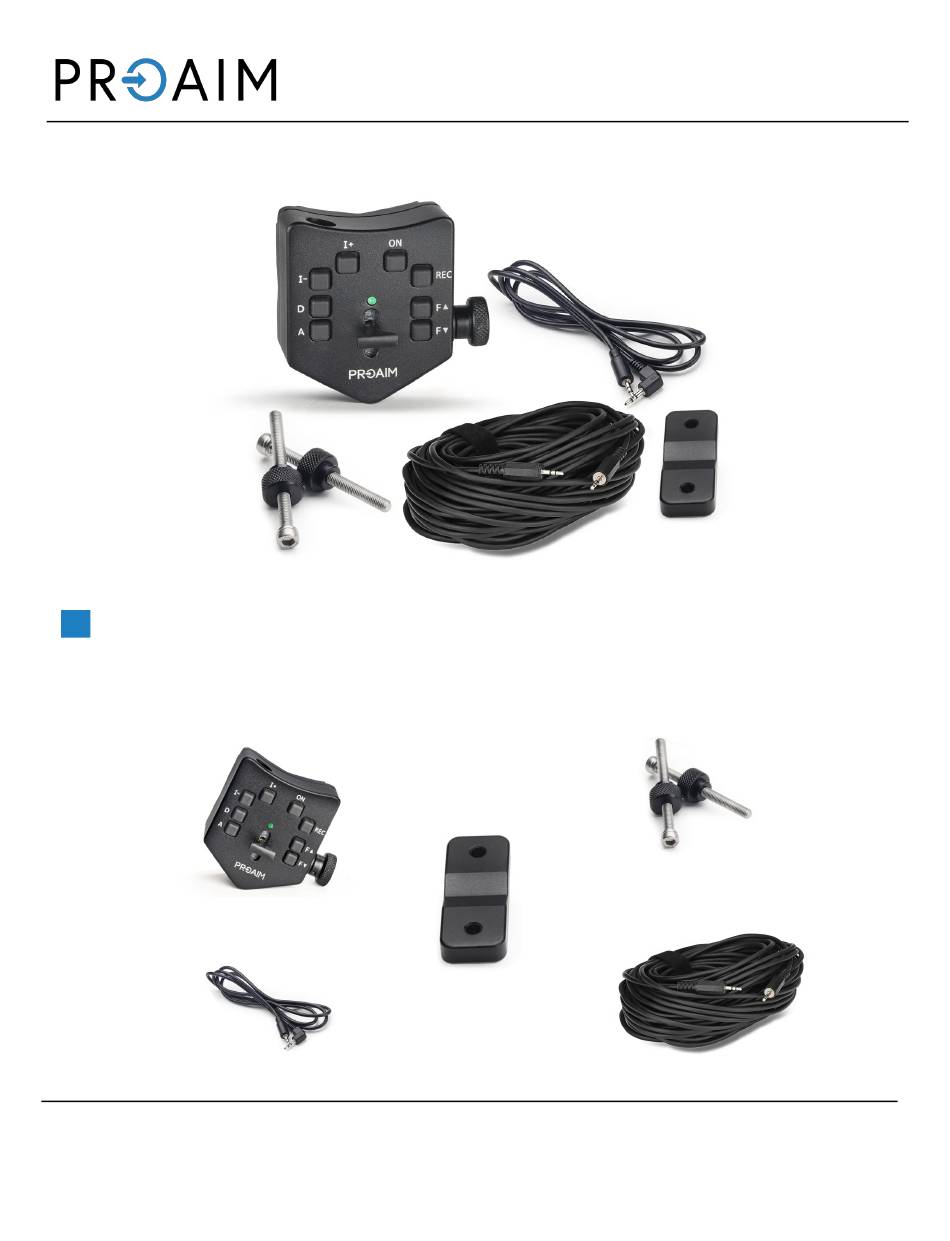

What's In The Box
Please inspect the contents of your shipped package to ensure you have received everything that is listed
below.
2 x Allen Bolts
(Size: 5 x 59mm)
Lanc Zoom Controller
Clamp Plate
1mtr Cable
15mtr Cable
All rights reserved.
No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means,
electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permitted by the applicable copyright
statutes or in writing by the Publisher.
