Panel mounting and installation

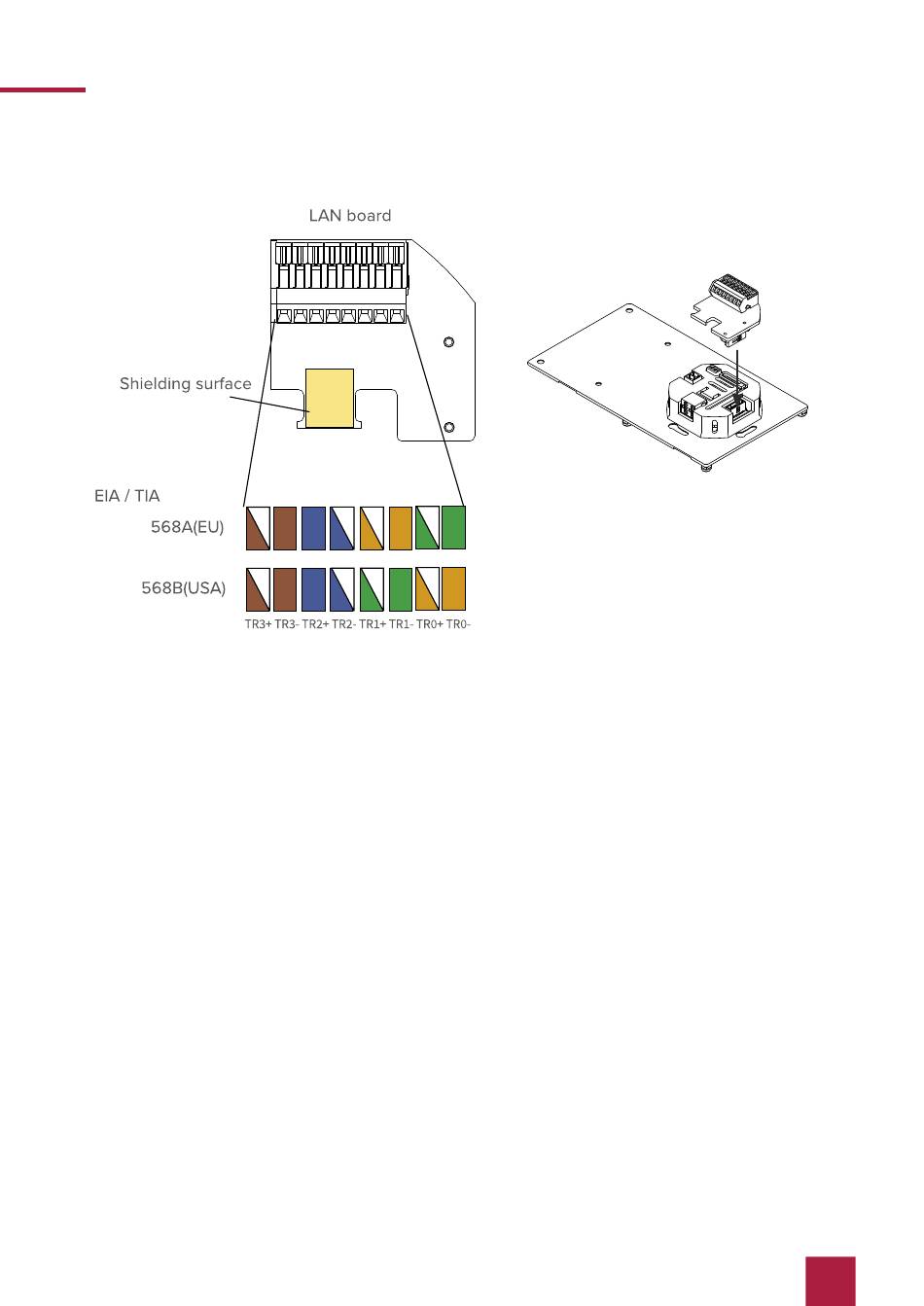

1. Connect the network cable to the LAN board as shown in the picture on the left.
2. Fasten the network cable to the white housing using a cable tie.
− While doing this, clamp the shielding between the cable and the designated area on the
board.
3. Only 24 V variant; PNX13-10001: Connect the cable wires of the power supply unit with the
pluggable screw terminal included in the scope of delivery.
4. Plug the KNX cable with the colors red (+) and black (-) into the pluggable KNX-terminal
Connecting the panel
5. Plug the LAN board onto the LAN connector as shown in the picture on the right.
− PoE variant, PNX13-10002: If PoE power supply is available, the green LED lights up.
6. Push the prepared plugs for
− KNX and
− Power supply (only 24 V variant; PNX13-10001)
into the appropriate connections of the mounting plate, as shown in the following picture.
