Operation
Transfer Switch Manual Operation
DANGER
Electrocution. Do not manually transfer under
load. Disconnect transfer switch from all
power sources prior to manual transfer. Fail-
ure to do so will result in death or serious in-
jury, and equipment damage.
Manually exercise the transfer switch prior to automatic
operation to verify there is no binding or interference with
correct operation of the mechanism. Manual operation of
the transfer switch is required if automatic operation fails.
IMPORTANT NOTE: Always use the applicable trans-
fer switch owner's manual for actual manual transfer
switch operation instructions. The information pre-
sented here describes a transfer switch, which is not
used for 3-phase applications. See specific manual
for 3-phase transfer switch.
Transferring to Generator Power
Proceed as follows to manually transfer to standby power
and start the generator when utility power fails:
1. Press OFF on control panel. A red LED will illumi-
nate to confirm system is in OFF mode.
2. Set generator MLCB (generator disconnect) to
OFF (OPEN).
3. Turn off utility power supply to transfer switch using
means provided (such as a utility MLCB).
4. See Figure 4-3. Use manual transfer handle (A) in-
side transfer switch to move main contacts to
STANDBY (loads connected to standby power
source) (C).

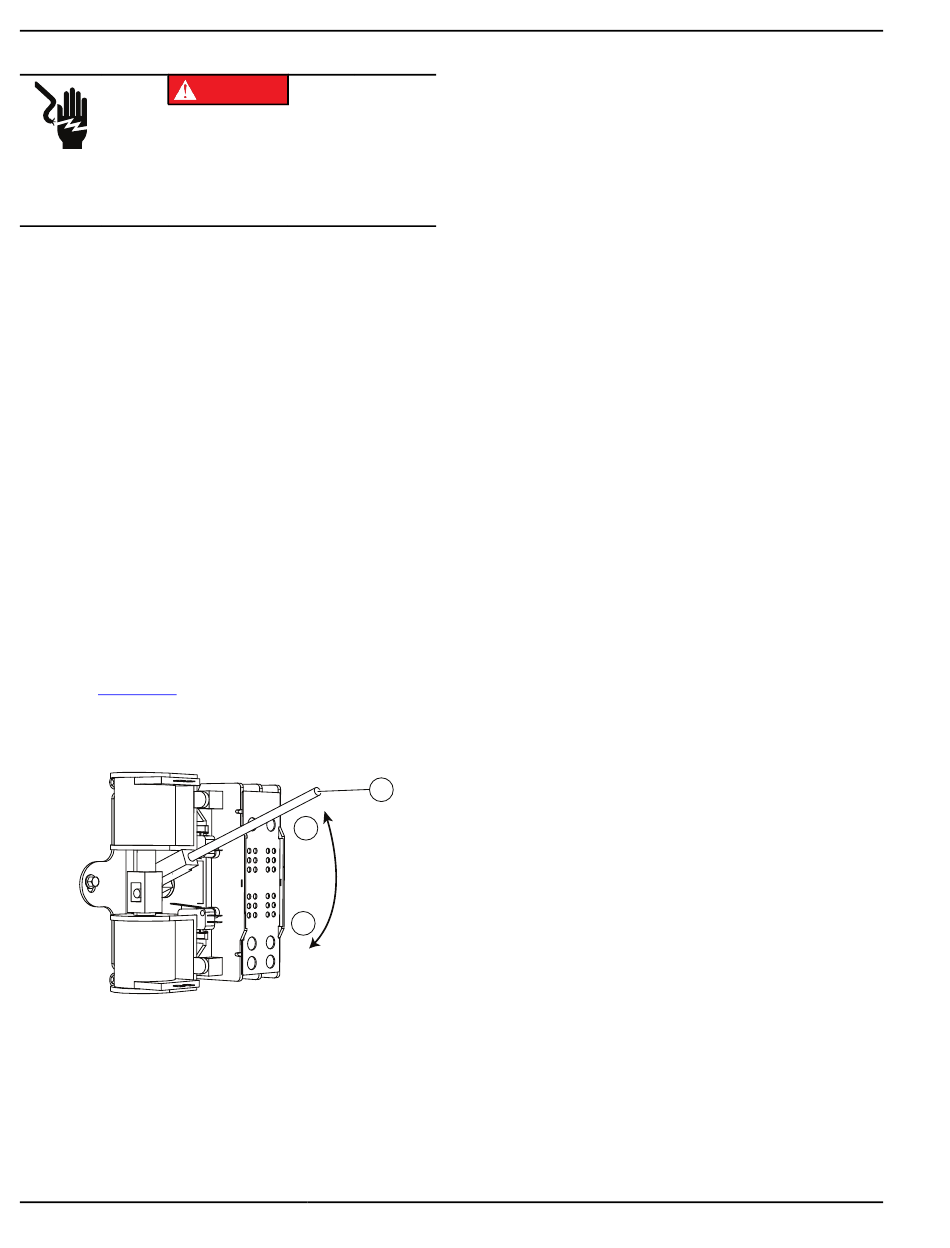

Figure 4-3.
Figure 4-3. Manual Transfer Switch Operation
(Typical)
NOTE: V-style transfer switch not used for 3-phase
applications.
5. Press MANUAL on control panel. The engine will
crank and start.
6. Allow engine to run for two minutes to bring it up to
normal operating temperature.
28
Transferring Back to Utility Power
Proceed as follows to manually transfer back to utility
power and shut down generator when utility power is
restored:
NOTE: Verify utility voltage has returned and is a correct
(D000132)
value.
A
B
C
006375
7. Set generator MLCB (generator disconnect) to ON
(CLOSED).
1. Set generator MLCB (generator disconnect) to
OFF (OPEN).
2. Allow engine to run for two minutes at no-load to
bring it up to normal operating temperature.
3. Press OFF on control panel to shut down engine.
4. Verify utility power supply to transfer switch is
turned off.
5. Use manual transfer handle inside transfer switch
to set main contacts to UTILITY (loads connected
to utility power source) (B).
6. Turn on utility power supply to transfer switch using
means provided (such as a utility MLCB).
7. Press AUTO on control panel. A green LED will illu-
minate to confirm system is in AUTO.
