Section 3: Activation and Startup
Orientation
NOTE: The 2.4L (32 kW) unit is depicted in the artwork
used in this manual. The location and appearance of
some components may vary between engine models.

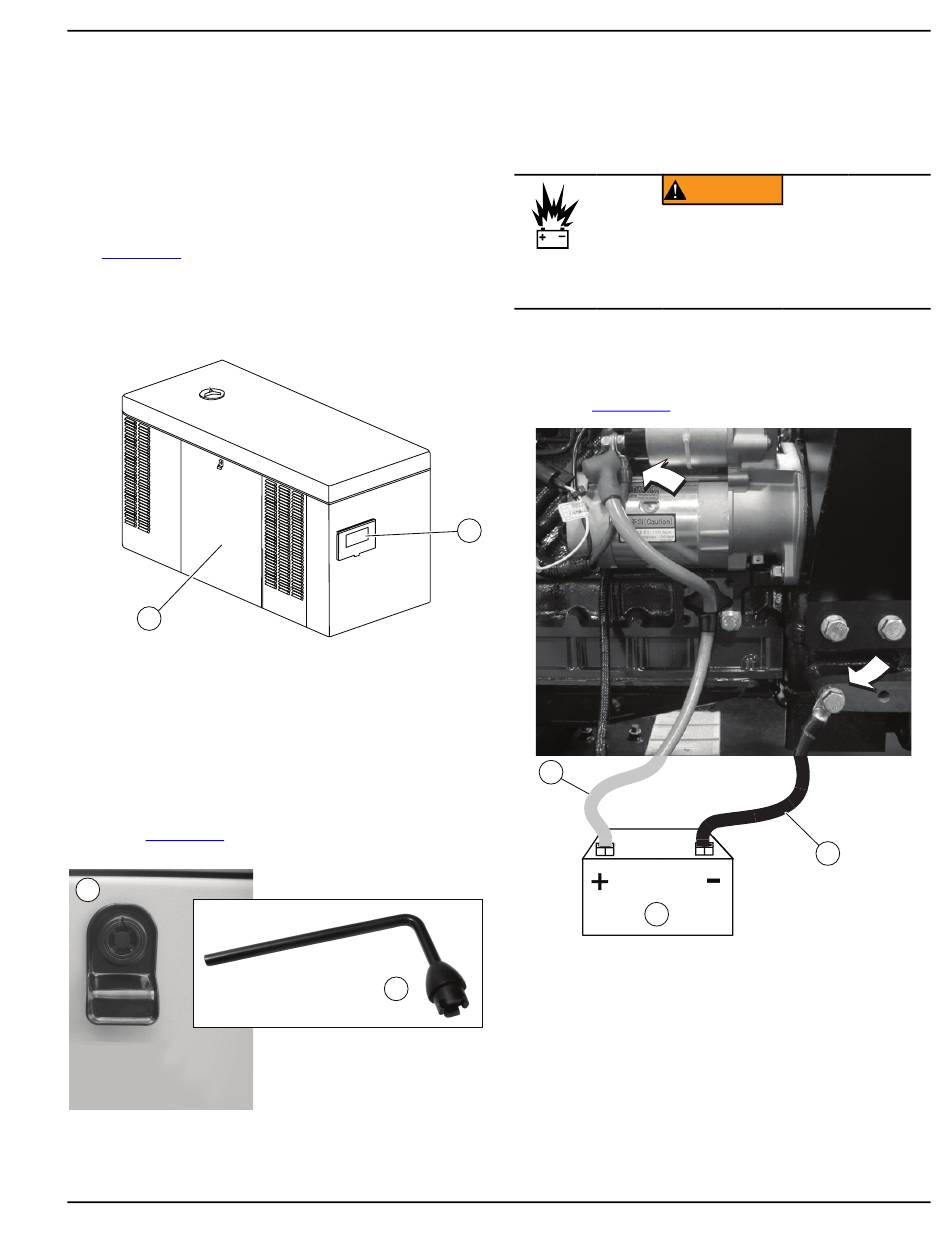

See Figure 3-1. The side of the enclosure with the view-
ing window (A) is identified as the rear of the generator
set. The right and left sides are identified by standing at
the rear and looking towards the front of the unit. The bat-
tery is located on the side of the unit (B).
Figure 3-1.
B
Figure 3-1. Enclosure (Rear Left View)
Removing Side Access Panels
Proceed as follows to remove side access panels:
NOTE: Access panels are located at both the left and
right sides of the enclosure.
1. Remove key from bag attached to door of unit.
2. See Figure 3-2. Insert key (B) into latch (A) and ro-
tate counterclockwise one-half turn.
Figure 3-2.
A
Figure 3-2. Access Panel Key and Latch (Typical)
3. Raise panel using thumb latch.
Spark-Ignited Stationary Generators Owner's Manual
Installing Battery
Proceed as follows to install battery:
1. Loosen the two screws with the nylon washers to
release hold-down clamp from battery tray.
2. See
Figure 3-3.
A
009676
A
3. Install the two screws with the nylon washers to se-
B
cure hold-down clamp to battery tray.
4. Install positive battery cable (red) (A) to positive (+)
battery terminal.
5. Install negative battery cable (black) (B) to negative
(-) battery terminal.
006370
WARNING
Explosion. Batteries emit explosive gases.
Always connect positive battery cable first to
avoid spark. Failure to do so could result in
death or serious injury.
Figure 3-3. Install battery (C) onto tray.
C
Figure 3-3. Battery Cable Connections
Activation and Startup
(W000133)
B
006372
