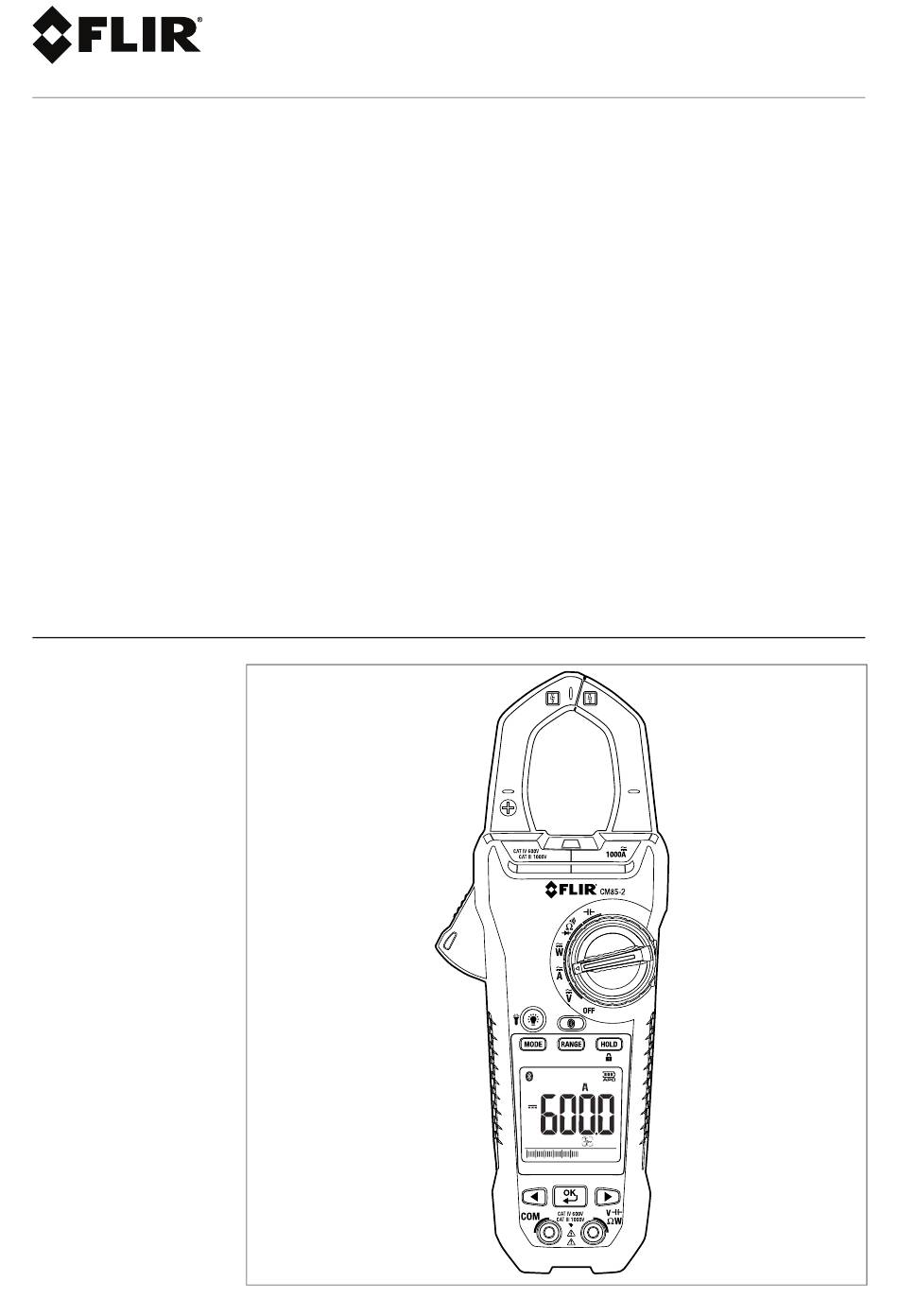

- Page 1 USER MANUAL 1000 A True RMS Power Clamp Meter with Bluetooth ® MODEL CM85–2...
- Page 3 USER MANUAL 1000 A True RMS Power Clamp Meter with Bluetooth® #NAS100153; r. AG/93250/93250; en-US...
-
Page 5: Table Of Contents
Table of contents Advisories ................1 Copyright ..............1 Quality Assurance ............1 Documentation ............1 Disposal of Electronic Waste ......... 1 Safety ................2 Safety Notes.............. 2 Warning and Caution Statements ........2 FCC Compliance ............3 Industry Canada Compliance ........4 Introduction................5 Key Features ............. - Page 6 Table of contents 5.10 Capacitance Measurements ........21 5.11 Continuity Test ............22 5.12 Smart Diode Test ............22 5.13 Streaming Measurements with METERLiNK....23 5.13.1 General ............23 5.13.2 METERLiNK Application Basic Steps ....23 Maintenance ..............24 Cleaning and Storage ..........24 Battery Replacement..........
-
Page 7: Advisories
The documentation must not, in whole or part, be copied, photocopied, repro- duced, translated or transmitted to any electronic medium or machine-read- able form without prior consent, in writing, from FLIR Systems, Inc. Names and marks appearing on the products herein are either registered trademarks or trademarks of FLIR Systems, Inc. -
Page 8: Safety
Safety 2.1 Safety Notes • Before operating the device, read, understand, and follow all safety instructions. • Remove the batteries if the device is not used for an extended period. 2.2 Warning and Caution Statements WARNING Read all safety statements before operating this device. Failure to do so can cause serious injury or death and serious damage to the meter and connected equipment. -
Page 9: Fcc Compliance
Safety This symbol, adjacent to another symbol or terminal, indicates that the user must refer to the manual for further information. This symbol, adjacent to a terminal, indicates that, under normal use, hazardous voltages may be present. Double insulation. 2.3 FCC Compliance This device complies with part 15 of the FCC Rules. -
Page 10: Industry Canada Compliance
Safety WARNING Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 2.4 Industry Canada Compliance This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: This device complies with Industry Canada license-exempt RSS standard(s). -
Page 11: Introduction
Introduction Thank you for selecting the FLIR CM85-2 1000 Amp Power Clamp Meter with Bluetooth. This device is shipped fully tested and calibrated and, with proper use, will provide years of reliable service. 3.1 Key Features • 10,000 digit display •... -
Page 12: Meter Descriptions
Meter Descriptions 4.1 Meter Parts 1. Clamp jaws 2. Clamp trigger 3. Control button area (Section 4.3, Control and Navigation Buttons) 4. Navigation buttons 5. Non-contact voltage detector alert lamp (red) 6. Function switch (Section 4.2, Function Switch) 7. Display (LCD) 8. -
Page 13: Function Switch
Meter Descriptions 4.2 Function Switch Capacitance measurements Diode tests (use MODE button to select) Continuity tests (use MODE button to select) Resistance measurements (use MODE button to select) Ω Power measurements Current clamp measurements Voltage measurements Meter power OFF 4.3 Control and Navigation Buttons Auto-Select mode is the default state. -
Page 14: Display Indicators
Meter Descriptions 4.4 Display Indicators Figure 4.1 Display icons and indicators. Bluetooth communication Auto Select mode. See Section 5.2, Auto and Manual Select Modes Maximum, Minimum, and Average reading icons ( L to R) Peak Maximum and Peak Minimum reading icons (L to R) Auto range Power factor Harmonic distortion... - Page 15 Meter Descriptions AC measured signal DC measured signal AC + DC signal Continuity function Diode test Lock mode active Out-of-range indication VFD mode extended function icon Peak mode extended function icon Minimum, Maximum, and Average reading extended function icon DC zero mode extended function icon Harmonic distortion extended function icon Inrush current extended function icon Frequency extended function icon...
-
Page 16: Operation
Operation CAUTION Before operating the device, you must read, understand, and follow all instructions, dan- gers, warnings, cautions, and notes. When the meter is not in use, the function switch should be set to the OFF position. When connecting the probe leads to the device under test, connect the negative lead be- fore connecting the positive lead. -
Page 17: Auto And Manual Range Modes
Operation 5.3 Auto and Manual RANGE Modes In Auto Range mode, the meter automatically selects the most appropriate measurement scale. In Manual range mode, the desired range (scale) is set manually. Auto range mode is the default mode of operation. When a new function is se- lected with the function switch, the starting mode is Auto range and the indica- tor is displayed To enter Manual range mode, press the RANGE button (the Auto Range icon... -
Page 18: Voltage Measurements
Operation 5.6.1 Voltage Measurements 1. Set the function switch to the V position. 2. To manually select AC, DC, or AC + DC measurement, press the MODE button repeatedly. Refer to Section 5.2, Auto/Manual select mode. 3. To manually select the measurement range (scale), press the RANGE but- ton repeatedly. -
Page 19: Extended Functions
Operation 4. To manually select the measurement range (scale), press the RANGE but- ton repeatedly. Refer to Section 5.3, Auto/Manual Range mode. 5. Press the trigger to open the clamp jaws. Fully enclose one conductor (re- fer to Fig. 5.1). For optimum results, center the conductor in the jaws. 6. - Page 20 Operation Press the OK button to toggle between the display of Peak Maximum and Peak Minimum. In Peak Max mode, the indicator is displayed. In Peak Min mode, the indicator is displayed. Long press the OK button to disable Peak mode. 5.6.3.3 Inrush Current Mode In Inrush current mode, the meter displays the highest current reading in the first 100 ms after the trigger point (current detection threshold, see Fig.
- Page 21 Operation 1. Ensure that there is no conductor in the clamp jaws. 2. Use the navigation buttons to select and enable DC Zero mode. 5.6.3.5 Frequency Measurements In Frequency mode, the meter measures and displays frequency. Frequency mode is available when measuring AC current or voltage in manual Select mode.
-
Page 22: Non-Contact Voltage Detector
Operation 4. Press OK to switch the display between Harmonic Order Indication mode and Percentage mode. 5. Long press OK to exit. 5.6.3.8 VFD Mode (Low Pass Filter) The VFD mode eliminates high frequency noise in voltage measurements us- ing a low-pass filter. The VFD mode is designed for variable frequency drive (VFD) measurements. -
Page 23: Three-Phase Power Measurements
Operation 6. To measure and display the power factor, press the MODE button repeat- edly until the indicator is displayed. 7. Read the power factor value on the display. • If the value is displayed without a sign, the phase of the current signal is lagging the voltage signal (inductive load). - Page 24 Operation Figure 5.4 Three-phase, three-wire test setup. 1. Set the function switch to the W position. 2. If the or the indicator is displayed, press the MODE button re- peatedly until they switch off. 3. Take two measurements of the active power, in accordance with Fig. 5.4. 4.
- Page 25 Operation Figure 5.5 Three-phase, four-wire test setup. 1. Set the function switch to the W position. 2. If the or the indicator is displayed, press the MODE button re- peatedly until they switch off. 3. Take three measurements of the active power, in accordance with Fig. 5.5. 4.
-
Page 26: Phase Rotation
Operation 6. To return to active power measurements, press the MODE button repeat- edly until the indicators switch off. 5.8.3 Phase Rotation With the meter set to Phase rotation mode, it is possible to determine the phase rotation for a three-wire system. Note: The system frequency must be stable. -
Page 27: Resistance Measurements
Operation 6. Move the red test lead to the presumed phase line 2 (L2) immediately, be- fore the L2 display icon switches off. 7. One of the following results is displayed: • 123 indicates clockwise or forward rotation, which means that the pre- sumed phase line 1 (L1) is ahead of the presumed phase line 2 (L2). -
Page 28: Continuity Test
Operation 2. If necessary, use the MODE button to select capacitance measurement mode. The indicator will be displayed. 3. Insert the black probe lead into the negative COM terminal and the red probe lead into the positive terminal. 4. Touch the tips of the probe across the part under test. 5. -
Page 29: Streaming Measurements With Meterlink
APP store (iOS® devices). Refer to the separate METERLiNK user manual for complete information. The user manual is available from the FLIR support site, see the Customer Sup- port section of this manual. The Bluetooth range is 32 ft. (10 m) maximum. -
Page 30: Maintenance
6.2.1 Disposal of Electronic Waste As with most electronic products, this equipment must be disposed of in an environmentally friendly way, and in accordance with existing regulations for electronic waste. Please contact your FLIR Systems representative for more details. #NAS100153; r. AG/93250/93250; en-US... -
Page 31: Specifications
Specifications 7.1 General Specifications Display digits 10,000 maximum Measurement rate 3 readings per second Over-range indication OL or —OL Auto Power Off Approx. 30 minutes Low battery Replace the batteries when the battery status indicator appears indication Power requirement 6 x 1.5 V AAA alkaline batteries Battery life 50 hours (backlight, worklight, and Bluetooth off) Environment... -
Page 32: Electrical Specifications
Specifications 7.2 Electrical Specifications Accuracy is ± (% reading + number of digits (d)) at 73.4℉ ±9℉ (23℃ ±5℃), <80% RH. 7.2.1 Voltage (True RMS) Function Range Accuracy (of reading) 99.99 V ± (0.7% + 2 digits) DC V 999.9 V 99.9 V ±... -
Page 33: Current (True Rms)
Specifications 7.2.2 Current (True RMS) Function Range Accuracy (of reading) 99.99 A ± (2% + 0.5 A) DC A 999.9 A ± (2% + 5d) 99.9 A ± (2% + 5d) 50 to 60 Hz AC A 999.9 A ± (2.5% + 5d) 60 to 400 Hz 99.9 A ±... -
Page 34: Frequency
Specifications 7.2.4 Frequency Function Range Accuracy (of reading) 20.00 to 99.99 Hz Frequency (Hz) ± (0.5% + 3d) 20.0 to 999.9 Hz 0.02 to 9.999 kHz Notes: Overload protection: 1000 V RMS, 1000 A RMS Sensitivity: 10 to 100 V RMS for AC 100 V range. 10 to 100 A RMS for AC 100 A range (>... -
Page 35: Inrush Current
Specifications 7.2.7 Inrush Current Function Range Accuracy (of reading) 99.99 A ± (3.0% + 0.3 A) AC A 999.9 A ± (3.0% + 5d)* * For measured values <1000 digits, add 5 digits to the accuracy. Overload protection: 1000 V RMS, 1000 A RMS. Accuracy is defined for sine waves, AC A ≥... -
Page 36: Resistance, Continuity, And Diode
Specifications Note: Overload protection: 1000 V RMS, 1000 A RMS 7.2.10 Resistance, Continuity, and Diode Function Range Accuracy 999.9 Ω ± (1% + 5d) Resistance 9.999 kΩ ± (1% + 3d) 99.99 kΩ Continuity 999.9 Ω ± (1% + 5d) Diode 0.40 to 0.80 V ±... -
Page 37: Customer Support
CUSTOMER SUPPORT Visit the link below for customer support and documentation downloads. https://support.flir.com #NAS100153; r. AG/93250/93250; en-US... -
Page 38: Warranty
Warranty This meter is protected by the FLIR Limited Lifetime Warranty. To read the warranty document, please visit the site below. www.flir.com/testwarranty #NAS100153; r. AG/93250/93250; en-US... - Page 40 Customer support http://support.flir.com Copyright © 2023, FLIR Systems, Inc. All rights reserved worldwide. Disclaimer Specifications subject to change without further notice. Models and accessories subject to regional market considerations. License procedures may apply. Products described herein may be subject to US Export Regulations.
