Summary of Contents for FLIR CM55

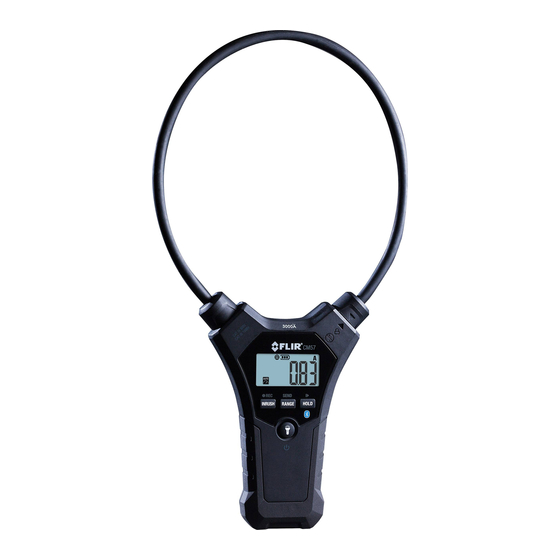

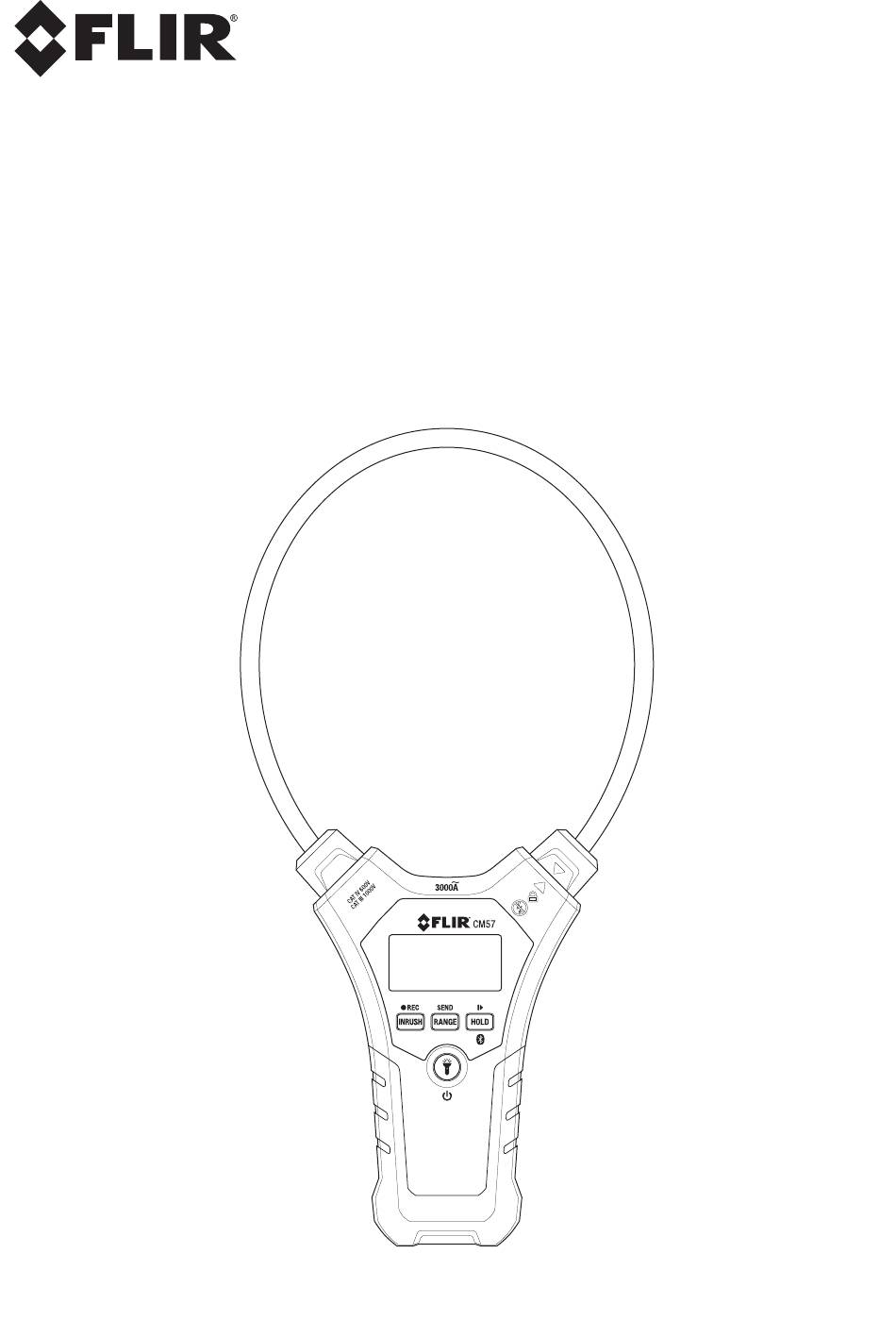

- Page 1 USER MANUAL FLIR MODEL CM55 and CM57 TRUE RMS AC FLEXIBLE CLAMP METERS ...
-
Page 2: Table Of Contents
11 5.1 Powering the Meter 5.2 Work Lights 5.3 Data Hold 5.4 AC Current Measurements 5.5 Data Recording and Bluetooth® Data Transfer 5.5.1 Data Recording 5.5.2 Meter Identification (ID) Number 5.5.3 Transferring Readings Using Bluetooth® 5.5.4 Bluetooth® Communication with FLIR IR Cameras 5.5.5 Bluetooth® IR Camera Pairing 6. MAINTENANCE 16 6.1 Cleaning and Storage 6.2 Battery Replacement 7. SPECIFICATIONS 17 7.1 General specifications 7.2 AC Current Electrical specifications 8. TECHNICAL SUPPORT 19 9. WARRANTIES ... -
Page 3: Disclaimers
1. Disclaimers 1.1 Copyright © 2014, FLIR Systems, Inc. All rights reserved worldwide. No parts of the software including source code may be reproduced, transmitted, transcribed or translated into any language or computer language in any form or by any means, electronic, magnetic, optical, manual or otherwise, without the prior written permission of FLIR Systems. The documentation must not, in whole or part, be copied, photocopied, reproduced, translated or transmitted to any electronic medium or machine readable form without prior consent, in writing, from FLIR Systems. Names and marks appearing on the products herein are either registered trademarks or trademarks of FLIR Systems and/or its subsidiaries. All other trademarks, trade names or company names referenced herein are used for identification only and are the property of their respective owners. 1.2 Quality Assurance The Quality Management System under which these products are developed and manufactured has been certified in accordance with the ISO 9001 standard. FLIR Systems is committed to a policy of continuous development; therefore we reserve the right to make changes and improvements on any of the products without prior notice. 1.3 Documentation To access the latest manuals and notifications, go to the Download tab at: http://support.flir.com. It only takes a few minutes to register online. In the download area you will also find the latest releases of manuals for our other products, as well as manuals for our historical and obsolete products. 1.4 Disposal of Electronic Waste As with most electronic products, this equipment must be disposed of in an environmentally friendly way, and in accordance with existing regulations for electronic waste. Please contact your FLIR Systems representative for more details. FLIR CM55_CM57USER GUIDE Document Identifier: CM55_CM57‐en‐US_AA ... -
Page 4: Safety
2. Safety Safety Notes Before operating the device, you must read, understand, and follow all instructions, dangers, warnings, cautions, and notes. FLIR Systems reserves the right to discontinue models, parts or accessories, and other items, or to change specifications at any time without prior notice. Remove the batteries if the device is not used for an extended period of time. Warning Statements WARNINGS identify hazardous conditions and actions that could cause BODILY HARM or DEATH. Individual protective equipment should be used if HAZARDOUS LIVE parts in the installation where measurements are to be carried out could be accessible. If the equipment is used in a manner not specified by the manufacturer, the protection provided by the equipment may be impaired. To reduce the risk of fire or electric shock, do not expose this product to rain or moisture. Verify the meter operation by measuring a known current. If in doubt, have the meter serviced. Do not apply more than the rated voltage/current as marked on the meter. To avoid false readings that can lead to electric shock and injury, replace battery as soon as the low battery indicator appears. Do not use the meter in or around explosive gas or vapor. Do not use a flexible current sensor if the inner copper wire of the flexible cord is visible. De‐energize the installation under test or wear suitable protective clothing when placing or removing the flexible current probe from a test setup. Do not apply/remove the flexible current probe to/from UNINSULATED HAZARDOUS LIVE ... - Page 5 Cautions Do not use the device for a procedure that it is not made for. This can cause damage to the protection. This symbol, adjacent to another symbol, indicates the user must refer to the manual for further information. Do not apply or remove clamp from HAZARDOUS LIVE conductors Equipment protected by double or reinforced insulation Battery symbol Conforms to EU directives Do not discard this product in household trash. AC measurement Earth ground UL listing is not an indication or a verification of the accuracy of the meter FLIR CM55_CM57USER GUIDE Document Identifier: CM55_CM57‐en‐US_AA ...
-
Page 6: Fcc Compliance
2.1 FCC Compliance This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference. This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. CAUTION Exposure to Radio Frequency Radiation. To comply with FCC/IC RF exposure compliance requirements, a separation distance of at least 20 cm must be maintained between the antenna of this device and all persons. This device must not be co‐located or operating in conjunction with any other antenna or transmitter. WARNING Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. FLIR CM55_CM57USER GUIDE Document Identifier: CM55_CM57‐en‐US_AA ... -
Page 7: Industry Canada Compliance
2.2 Industry Canada Compliance This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: This device complies with Industry Canada license‐exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. CAUTION Exposure to Radio Frequency Radiation. To comply with RSS 102 RF exposure compliance requirements, for mobile configurations, a separation distance of at least 20 cm must be maintained between the antenna of this device and all persons. This device must not be co‐located or operating in conjunction with any other antenna or transmitter. FLIR CM55_CM57USER GUIDE Document Identifier: CM55_CM57‐en‐US_AA ... -
Page 8: Introduction
3. Introduction Thank you for choosing the FLIR AC Flexible Clamp meter that can measures up to 3000A AC rms. The CM57 is the 18” (45.7cm) clamp version and the CM55 is the 10” (25.4cm) clamp version, otherwise both meters are the same. These devices are professional CAT IV 600V CAT III 1000V instruments that offer Data Recording, Bluetooth®, Auto Power OFF, Data Hold, Display backlight, and high power Work Light features. These meters are shipped fully tested and calibrated and, with proper use, will provide years of reliable service. 3.1 Key Features 3000A AC True RMS Current Measurements Convenient Flexible Clamp with locking mechanism 0.3” (7.5mm) coil diameter for measuring in tight spaces Auto ranging 3000 count large scale backlit LCD display Bluetooth® communication and Data Recording Data Hold Auto Power OFF Battery status icon and Battery status power on alert High power work lights Long life battery power FLIR CM55_CM57USER GUIDE Document Identifier: CM55_CM57‐en‐US_AA ... -
Page 9: Descriptions
4. Descriptions 4.1 Meter Description 1. Work Lights 2. Flexible Current Clamp 3. Display 4. INRUSH / REC (Record) button 5. Power / Work Light button 6. RANGE / SEND button 7. HOLD / Start‐Stop Record / Bluetooth® button 8. Clamp Lock mechanism Note that battery compartment is located on the back of the meter FLIR CM55_CM57USER GUIDE Document Identifier: CM55_CM57‐en‐US_AA ... -
Page 10: Display Icon Description
4.2 Display Icon Description Bluetooth® Display Hold Amperes Battery status Inrush Current Auto Power Off Data Transmission Memory Mode Auto Range 4.3 Control buttons Momentary press to access INRUSH mode Press and hold to access the Record Memory mode Momentary presses step through the ranges manually Press and hold to Send data via Bluetooth Momentary press to access the Data Hold mode Press and hold to activate/deactivate Bluetooth® communication While in Record mode, momentary press to Pause/Resume Press and hold to switch power ON/OFF When powered, press to activate/deactivate work light FLIR CM55_CM57USER GUIDE Document Identifier: CM55_CM57‐en‐US_AA ... -
Page 11: Operation
5. Operation Note: Before operating the device, please read and understand all Warning and Caution statements and follow all instructions and notes. 5.1 Powering the Meter The meter is powered by two (2) AAA 1.5V batteries (located in the compartment on the back of the meter). Press and hold the Power button for > 2 seconds to switch the device ON or OFF. 5.1.1 Auto Power OFF (APO) The meter switches OFF automatically after an approximately 10‐minute period of inactivity. Several seconds before the meter automatically switches OFF the meter beeps several times to alert the user. To disable the Auto Power OFF feature: With the meter power OFF, press and hold the Power and HOLD buttons for >2 seconds. The display shows ‘AoFF’ while it powers up. The APO feature is now disabled and the meter will not shut off automatically. Note that the next time the meter is powered up, the APO function will be re‐enabled and the user must repeat the APO disable instructions to disable this function. When Auto Power OFF is active, the APO icon appears on the display 5.1.2 Low Battery Indication When the displayed battery icon appears empty and flashing, or if the meter does not power up, the batteries must be replaced immediately. Refer to the battery replacement procedure in the maintenance section. Note that measurement accuracy is maintained even while low battery alerts are displayed. 5.2 Work Lights With the unit powered up, press the Work Light button to switch the high power Work Lights ON or OFF. Note that excessive use of the Work Lights will shorten battery life. 5.3 Data Hold Press the HOLD button with the meter ON to freeze the displayed reading. The HOLD icon (H) will appear along with the held reading. Press the HOLD button again to release the HOLD feature. The HOLD icon will switch OFF and the meter will revert to displaying real time readings. FLIR CM55_CM57USER GUIDE Document Identifier: CM55_CM57‐en‐US_AA ... -
Page 12: Ac Current Measurements
5.4 AC Current Measurements WARNING: Ensure that power to the device under test is OFF before starting this procedure. Switch power to the device under test ON only after the clamp has been safely attached to the device under test. CATUTION: Do not move fingers above the LCD at any time during a test. Switch the meter OFF and switch power to the device under test OFF. Turn the knurled clamp lock mechanism counter‐clockwise to release the flexible clamp. Fully enclose only one conductor of the device under test with the flexible clamp probe (see accompanying diagrams). Re‐secure the clamp lock mechanism after clamping around conductor. Do not attempt to measure current higher than the specified current limit. Switch the meter ON and then switch power to the device under test ON. Never move fingers above the display area when running a test. Read the current value in the display; ‘OL’ will display if the measured signal exceeds the range. The meter defaults to the Auto Range mode; the Auto Range icon is visible on the display. The meter will automatically select the appropriate range when in the Auto Range mode. To manually select the range, use the RANGE button to step through the available ranges (30.00 / 300.0 / 3000A). FLIR CM55_CM57USER GUIDE Document Identifier: CM55_CM57‐en‐US_AA ... - Page 13 For the 30A range the minimum triggering current threshold is 0.5A For the 300A range the minimum triggering current threshold is 5.0A For the 3000A range the minimum triggering current threshold is 50A 1. Press and hold the INRUSH button for > 2 seconds to access the Inrush Current mode. 2. The display will show the Inrush icon and the display digits will switch to all dashes. 3. The meter now simply waits for a current signal to exceed the threshold. 4. When ready, take a current measurement. The meter will capture the highest reading detected during a 100ms window. Note that the 100ms window does not open until the minimum triggering current is detected. 5. To exit the Inrush mode at any time, press any button. The Inrush icon will switch OFF. Inrush Button Press Measured Inrush Current Sample time trigger Threshold 100ms Sample Window Start Stop FLIR CM55_CM57USER GUIDE Document Identifier: CM55_CM57‐en‐US_AA ...
-
Page 14: Data Recording And Bluetooth® Data Transfer
5.5 Data Recording and Bluetooth® Data Transfer 5.5.1 Data Recording When prompted, this meter can store readings into its internal memory automatically for later transfer over Bluetooth® (real‐time data streaming over Bluetooth® is also possible as explained below). The maximum number of records that can be stored is 20,000 and the fixed sampling (recording) interval is 1 minute. Press the REC button >2 seconds to enter/exit the Data Record Mode. The display will show the Memory icon. Use the Start/Stop button to Start/Stop Recording. The Memory icon will flash when the meter is recording and will stop flashing when recording is stopped. The display digits will show the measured reading. Note that after one (1) start and stop cycle, stored data is erased when a new data recording session is started. To transfer all of the stored readings in one bulk data dump or to data stream in real‐ time over Bluetooth® please refer to the following sections. Note that Data Recording cannot be accessed while the meter is in the Inrush mode. 5.5.2 Meter Identification (ID) Number A unique numerical ID (01‐20) can be assigned to the meter so that, when multiple meters are used over Bluetooth®, each can be specifically addressed. With the meter OFF, press both the POWER and RANGE buttons simultaneously to access the ID number. The display will show ‘Idxx’. Use the RANGE button to increment the ID number. When the desired number is shown, press the button to save the ID number to memory. Power the meter down and then power back up. The meter will now be recognized by its unique ID number on Bluetooth® receiving devices. FLIR CM55_CM57USER GUIDE Document Identifier: CM55_CM57‐en‐US_AA ... -
Page 15: Transferring Readings Using Bluetooth
® 5.5.3 Transferring Readings Using Bluetooth To transfer bulk logged readings from the meter’s internal memory to a Bluetooth® paired Bluetooth device please read the steps below. Note that the range is 32’ (10m) maximum. Press and hold the Bluetooth button until the Bluetooth icon appears flashing Press and hold the REC button until the Memory icon appears Press and hold the SEND button until the percent (%) symbol appears The data is now being transmitted. The percentage shown is the percentage of data transmitted. All data is transferred when 100% is shown. Press the SEND button at any time to cancel the transmission. RANGE and INRUSH modes are inactive during data transmission. To stream real‐time readings over Bluetooth®, simply press and hold the Bluetooth button until the Bluetooth icon appears. The readings are now transmitted over Bluetooth® as they are taken. 5.5.4 Bluetooth Communication with FLIR IR Cameras ® Some IR cameras from FLIR Systems support Bluetooth® communication and, to those cameras, streaming of measurement data from the meter is possible. The data is then merged into the result table in the IR image. Streaming measurement data is a convenient way to add important information to an IR image. For example, when identifying an overheated cable connection, you may want to know the current in that cable. Note that this meter is compatible with FLIR TOOLS software. The Bluetooth range is 32’ (10m) maximum. 5.5.5 Bluetooth® IR Camera Pairing Pair the IR camera with the instrument. Refer to the camera manual for information on how to pair it with Bluetooth® devices. Turn on the camera. Turn on the meter. Press and hold the button on the meter to enable Bluetooth® (the Bluetooth® icon will appear flashing on the meter’s display). Choose the variable to measure (current). Results from the meter will now automatically be displayed in the result table in the top left corner of the IR camera screen. -
Page 16: Maintenance
6. Maintenance 6.1 Cleaning and Storage Clean the meter with a damp cloth and mild detergent; do not use abrasives or solvents. If the meter is not to be used for an extended period, remove the batteries and store them separately. 6.2 Battery Replacement CAUTION: Remove the meter from the conductor under test and switch the meter OFF before opening the battery compartment. With a Phillips screwdriver, remove the battery compartment screw on the back of the meter. Remove the battery compartment cover. Replace the 2 ‘AAA’ 1.5V batteries observing correct polarity. Re‐attach the battery compartment cover. Secure the compartment cover with the Phillips head screw. 6.2.1 Disposal of Electronic Waste As with most electronic products, this equipment must be disposed of in an environmentally friendly way, and in accordance with existing regulations for electronic waste. Please contact your FLIR Systems representative for more details. FLIR CM55_CM57USER GUIDE Document Identifier: CM55_CM57‐en‐US_AA ... -
Page 17: Specifications
Operating Humidity Max 80% up to 95°F (35°C) decreasing linearly to 60% at 113°F (45°C) Storage Temperature ‐4~140F (‐20~60C) without batteries Storage Humidity 80% RH maximum Temperature Coefficient 0.2 x specified accuracy / C, < 64.5F (18C), > 82.4F (28C) Altitude Maximum operating altitude 6562’ (2000m) Battery Two “AAA” 1.5V batteries Battery life 200 hours with alkaline batteries Auto power OFF After approx. 10 minutes of inactivity Dimensions (W x H x D) CM55: 4.7 x 11.0 x 1.0” (120 x 280 x 25 mm) CM57: 5.1 x 13.8 x 1.0” (130 x 350 x 25 mm) Weight CM55: 7.1 oz. (200g) / CM57: 6.0 oz. (170g) Safety Standards For indoor use and in accordance with the requirements for double insulation to EN61010‐1, EN61010‐2‐032, EN61326‐1; CAT IV 600V, CAT III 1000V, Pollution Degree 2 Shock Vibration Sinusoidal vibration MIL‐PRF‐28800F (5‐55 Hz, 3g max.) Drop Protection 6.6’ (2m) drop onto hardwood or concrete flooring Water Protection IP53 FLIR CM55_CM57USER GUIDE Document Identifier: CM55_CM57‐en‐US_AA ... -
Page 18: Ac Current Electrical Specifications
33.00 A AC 0.01A ±(3.0% + 5 digits) AC Current 300.0A AC 330.0 A AC 0.1A ±(3.0% + 5 digits) 3000 A AC 3300 A AC 1A ±(3.0% + 5 digits) Notes: Accuracy is given as ± (% of reading + least significant counts) at 23C ±5C with relative humidity lower than 80%. Accuracy is specified for a period of one year after calibration. Position Error of Clamp: Accuracy and position error assumes centralized primary conductor at optimum position, no external electrical or magnetic field, and within operating temperature range. Function CM55 Range CM55 Error CM57 Range CM57 Error Distance from 15 2.0% 35 1.0% optimum position 25 2.5% 50 1.5% (mm) 35 3.0% 60 2.0% LCD displays ‘0’ counts when the reading is < 10 counts. ... -
Page 19: Technical Support
8. Technical Support Main Website http://www.flir.com/test Technical Support Website http://support.flir.com Technical support Email TMSupport@flir.com Service/Repair Support Email Repair@flir.com Support Telephone number +1 855‐499‐3662 (toll‐free) 9. Warranties 9.1 FLIR Global Limited Lifetime Warranty A qualifying FLIR Test and Measurement product (the “Product”) purchased either directly from FLIR Commercial Systems Inc and affiliates (FLIR) or from an authorized FLIR distributor or reseller that Purchaser registers on‐line with FLIR is eligible for coverage under FLIR’s Limited Lifetime Warranty, subject to the terms and conditions in this document. This warranty only applies to purchases of Qualifying Products (see below) purchased and manufactured after April 1, 2013. PLEASE READ THIS DOCUMENT CAREFULLY; IT CONTAINS IMPORTANT INFORMATION ABOUT THE PRODUCTS THAT QUALIFY FOR COVERAGE UNDER THE LIMITED LIFETIME WARRANTY, PURCHASER’S OBLIGATIONS, HOW TO ACTIVATE THE WARRANTY, WARRANTY COVERAGE, AND OTHER IMPORTANT TERMS, CONDITIONS, EXCLUSIONS AND DISCLAIMERS. 1. PRODUCT REGISTRATION. To qualify for FLIR’s Limited Lifetime Warranty, Purchaser must fully register the Product directly with FLIR on‐line at http://www.flir.com within Sixty (60) DAYS of the date the Product was purchased by the first retail customer (the “Purchase Date”). Qualifying PRODUCTS THAT ARE NOT REGISTERED ON‐LINE WITHIN SIXTY (60) DAYS OF THE PURCHASE DATE WILL HAVE A LIMITED ONE YEAR WARRANTY FROM DATE OF PURCHASE. 2. QUALIFYING PRODUCTS. Upon registration, Test and Measurement products that qualify for coverage under FLIR’s Limited Lifetime Warranty are: MR7x, CM5x, CM7x, CM8x, DMxx, VP5x not including accessories which may have their own warranty. 3. WARRANTY PERIODS. For purposes of the The Limited Lifetime Warranty, Lifetime is defined as seven years (7) after the product is no longer manufactured, or ten years (10) from date of purchase, whichever is greater. This Warranty is only applicable to the original owner of the Products. Any Product that is repaired or replaced under warranty is covered under this Limited Lifetime Warranty for one hundred eighty days (180) days from the date of return shipment by FLIR or for the remaining duration of the applicable Warranty Period, whichever is longer. 4. LIMITED WARRANTY. In accordance with the terms and conditions of this Limited Lifetime Warranty, and except as excluded or disclaimed in this document, FLIR warrants, from the Purchase Date, that all fully registered Products will conform to FLIR’s published Product specifications and be free from defects in materials and workmanship during the applicable Warranty Period. PURCHASER’S SOLE AND EXCLUSIVE REMEDY UNDER THIS WARRANTY, AT FLIR’S SOLE DISCRETION, IS THE REPAIR OR REPLACEMENT OF DEFECTIVE PRODUCTS IN A MANNER, AND BY A SERVICE CENTER, AUTHORIZED BY FLIR. IF THIS REMEDY IS ADJUDICATED TO BE INSUFFICIENT, FLIR SHALL REFUND PURCHASER’S PAID PURCHASE PRICE AND HAVE NO OTHER ... - Page 20 MANUALS, FUSES, OR DISPOSABLE BATTERIES. FLIR FURTHER EXPRESSLY DISCLAIMS ANY WARRANTY COVERAGE WHERE THE ALLEGED NONCONFORMITY IS DUE TO NORMAL WEAR AND TEAR, OTHER ALTERATION, MODIFICATION, REPAIR, ATTEMPTED REPAIR, IMPROPER USE, IMPROPER MAINTENANCE, NEGLECT, ABUSE, IMPROPER STORAGE, FAILURE TO FOLLOW ANY PRODUCT INSTRUCTIONS, DAMAGE (WHETHER CAUSED BY ACCIDENT OR OTHERWISE), OR ANY OTHER IMPROPER CARE OR HANDING OF THE PRODUCTS CAUSED BY ANYONE OTHER THAN FLIR OR FLIR’S EXPRESSLY AUTHORIZED DESIGNEE. THIS DOCUMENT CONTAINS THE ENTIRE WARRANTY AGREEMENT BETWEEN PURCHASER AND FLIR AND SUPERSEDES ALL PRIOR WARRANTY NEGOTIATIONS, AGREEMENTS, PROMISES AND UNDERSTANDINGS BETWEEN PURCHASER AND FLIR. THIS WARRANTY MAY NOT BE ALTERED WITHOUT THE EXPRESS WRITTEN CONSENT OF FLIR. 6. WARRANTY RETURN, REPAIR AND REPLACEMENT. To be eligible for warranty repair or replacement, Purchaser must notify FLIR within thirty (30) days of discovering of any apparent defect in materials or workmanship. Before Purchaser may return a Product for warranty service or repair, Purchaser must first obtain a returned material authorization (RMA) number from FLIR. To obtain the RMA number Owner must provide an original proof of purchase. For additional information, to notify FLIR of an apparent defect in materials or workmanship, or to request an RMA number, visit http://www.flir.com. Purchaser is solely responsible for complying with all RMA instructions provided by FLIR including but not limited to adequately packaging the Product for shipment to FLIR and for all packaging and shipping costs. FLIR will pay for returning to Purchaser any Product that FLIR repairs or replaces under warranty. FLIR reserves the right to determine, in its sole discretion, whether a returned Product is covered under Warranty. If FLIR determines that any returned Product is not covered under Warranty or is otherwise excluded from Warranty coverage, FLIR may charge Purchaser a reasonable handling fee and return the Product to Purchaser, at Purchaser’s expense, or offer Purchaser the option of handling the Product as a non‐warranty return. 7. NON‐WARRANTY RETURN. Purchaser may request that FLIR evaluate and service or repair a Product not covered under warranty, which FLIR may agree to do in its sole discretion. Before Purchaser returns a Product for non‐warranty evaluation and repair, Purchaser must contact FLIR by visiting http://www.flir.com to request an evaluation and obtain an RMA. Purchaser is solely responsible for complying with all RMA instructions provided by FLIR including but not limited to adequately packaging the Product for shipment to FLIR and for all packaging and shipping costs. Upon receipt of an authorized non‐warranty return, FLIR will evaluate the Product and contact Purchaser regarding the feasibility of and the costs and fees associated with Purchaser’s request. Purchaser shall be responsible for the reasonable cost of FLIR’s evaluation, for the cost of any repairs or services authorized by Purchaser, and for the cost of repackaging and returning the Product to Purchaser. Any non‐warranty repair of a Product is warranted for one hundred eighty days (180) days from the date of return shipment by FLIR to be free from defects in materials and workmanship only, subject to all of the limitations, exclusions and disclaimers in this document. 9.2 FLIR Test and Measurement Limited 2 Year Warranty A qualifying FLIR Test and Measurement product (the “Product”) purchased either directly from FLIR Commercial Systems Inc and affiliates (FLIR) or from an authorized FLIR distributor or reseller that Purchaser registers on‐line with FLIR is eligible for coverage under FLIR’s Limited Warranty, subject to the terms and conditions in this document. This warranty only applies to purchases of Qualifying Products (see below) purchased and manufactured after April 1, 2013. PLEASE READ THIS DOCUMENT CAREFULLY; IT CONTAINS IMPORTANT INFORMATION ABOUT THE PRODUCTS THAT QUALIFY FOR COVERAGE UNDER THE LIMITED WARRANTY, PURCHASER’S OBLIGATIONS, HOW TO ACTIVATE THE WARRANTY, WARRANTY COVERAGE, AND OTHER IMPORTANT TERMS, CONDITIONS, EXCLUSIONS AND DISCLAIMERS. 1. PRODUCT REGISTRATION. To qualify for FLIR’s Limited Warranty, Purchaser must fully register the Product directly with FLIR ...
- Page 21 Any Product that is repaired or replaced under warranty is covered under this Limited Warranty for one hundred eighty days (180) days from the date of return shipment by FLIR or for the remaining duration of the applicable Warranty Period, whichever is longer. 4. LIMITED WARRANTY. In accordance with the terms and conditions of this Limited Warranty, and except as excluded or disclaimed in this document, FLIR warrants, from the Purchase Date, that all fully registered Products will conform to FLIR’s published product specifications and be free from defects in materials and workmanship during the applicable Warranty Period. PURCHASER’S SOLE AND EXCLUSIVE REMEDY UNDER THIS WARRANTY, AT FLIR’S SOLE DISCRETION, IS THE REPAIR OR REPLACEMENT OF DEFECTIVE PRODUCTS IN A MANNER, AND BY A SERVICE CENTER, AUTHORIZED BY FLIR. IF THIS REMEDY IS ADJUDICATED TO BE INSUFFICIENT, FLIR SHALL REFUND PURCHASER’S PAID PURCHASE PRICE AND HAVE NO OTHER OBLIGATION OR LIABILITY TO BUYER WHATSOEVER. 5. WARRANTY EXCLUSIONS AND DISCLAIMERS. FLIR MAKES NO OTHER WARRANTY OF ANY KIND WITH RESPECT TO THE PRODUCTS. ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE (EVEN IF PURCHASER HAS NOTIFIED FLIR OF ITS INTENDED USE FOR THE PRODUCTS), AND NON‐INFRINGEMENT ARE EXPRESSLY EXCLUDED FROM THIS AGREEMENT. THIS WARRANTY EXPRESSLY EXCLUDES ROUTINE PRODUCT MAINTENANCE, SOFTWARE UPDATES, AND REPLACEMENT OF FUSES, OR DISPOSABLE BATTERIES. FLIR FURTHER EXPRESSLY DISCLAIMS ANY WARRANTY COVERAGE WHERE THE ALLEGED NONCONFORMITY IS DUE TO NORMAL WEAR AND TEAR, OTHER ALTERATION, MODIFICATION, REPAIR, ATTEMPTED REPAIR, IMPROPER USE, IMPROPER MAINTENANCE, NEGLECT, ABUSE, IMPROPER STORAGE, FAILURE TO FOLLOW ANY PRODUCT INSTRUCTIONS, DAMAGE (WHETHER CAUSED BY ACCIDENT OR OTHERWISE), OR ANY OTHER IMPROPER CARE OR HANDING OF THE PRODUCTS CAUSED BY ANYONE OTHER THAN FLIR OR FLIR’S EXPRESSLY AUTHORIZED DESIGNEE. THIS DOCUMENT CONTAINS THE ENTIRE WARRANTY AGREEMENT BETWEEN PURCHASER AND FLIR AND SUPERSEDES ALL PRIOR WARRANTY NEGOTIATIONS, AGREEMENTS, PROMISES AND UNDERSTANDINGS BETWEEN PURCHASER AND FLIR. THIS WARRANTY MAY NOT BE ALTERED WITHOUT THE EXPRESS WRITTEN CONSENT OF FLIR. 6. WARRANTY RETURN, REPAIR AND REPLACEMENT. To be eligible for warranty repair or replacement, Purchaser must notify FLIR within thirty (30) days of discovering of any apparent defect in materials or workmanship. Before Purchaser may return a Product for warranty service or repair, Purchaser must first obtain a returned material authorization (RMA) number from FLIR. To obtain the RMA number Owner must provide an original proof of purchase. For additional information, to notify FLIR of an apparent defect in materials or workmanship, or to request an RMA number, visit http://www.flir.com. Purchaser is solely responsible for complying with all RMA instructions provided by FLIR including but not limited to adequately packaging the Product for shipment to FLIR and for all packaging and shipping costs. FLIR will pay for returning to Purchaser any Product that FLIR repairs or replaces under warranty. FLIR reserves the right to determine, in its sole discretion, whether a returned Product is covered under Warranty. If FLIR determines that any returned Product is not covered under Warranty or is otherwise excluded from Warranty coverage, FLIR may charge Purchaser a reasonable handling fee and return the Product to Purchaser, at Purchaser’s expense, or offer Purchaser the option of handling the Product as a non‐warranty return. 7. NON‐WARRANTY RETURN. Purchaser may request that FLIR evaluate and service or repair a Product not covered under warranty, which FLIR may agree to do in its sole discretion. Before Purchaser returns a Product for non‐warranty evaluation and repair, Purchaser must contact FLIR by visiting http://www.flir.com to request an evaluation and obtain an RMA. Purchaser is solely responsible for complying with all RMA instructions provided by FLIR including but not limited to adequately packaging the Product for shipment to FLIR and for all packaging and shipping costs. Upon receipt of an authorized non‐warranty return, ...
- Page 22 Corporate Headquarters FLIR Systems, Inc. 2770 SW Parkway Avenue Wilsonville, OR 97070 USA Telephone: +1 503‐498‐3547 Customer Support Technical Support Website http://support.flir.com Technical Support Email TMSupport@flir.com Service and Repair Email Repair@flir.com Customer Support Telephone +1 855‐499‐3662 (toll free) Publication Identification No.: CM55_CM57‐en‐US Release Version: AA Release Date: 2015 February Language: en‐US ...
