Summary of Contents for Fortis FAT

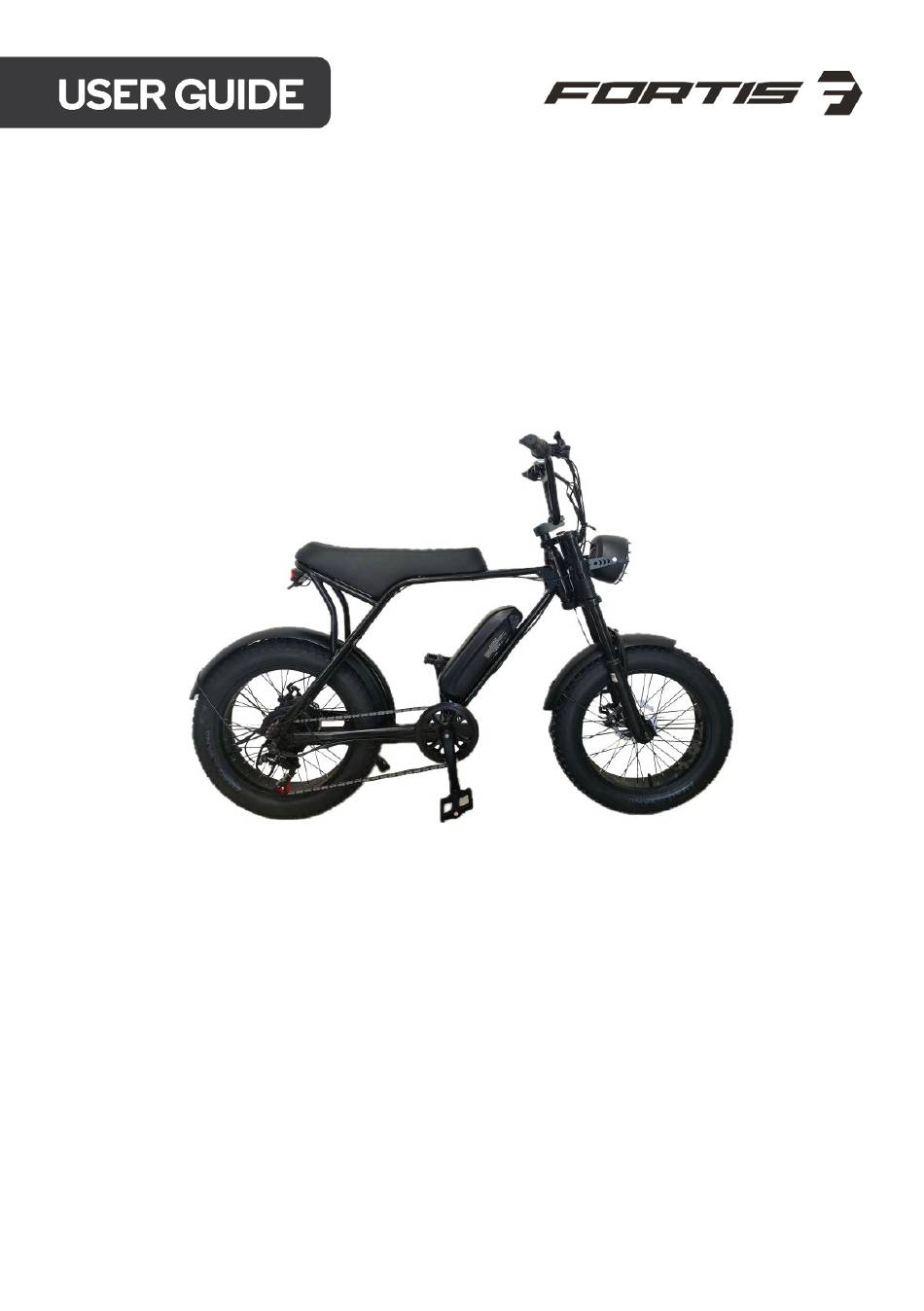

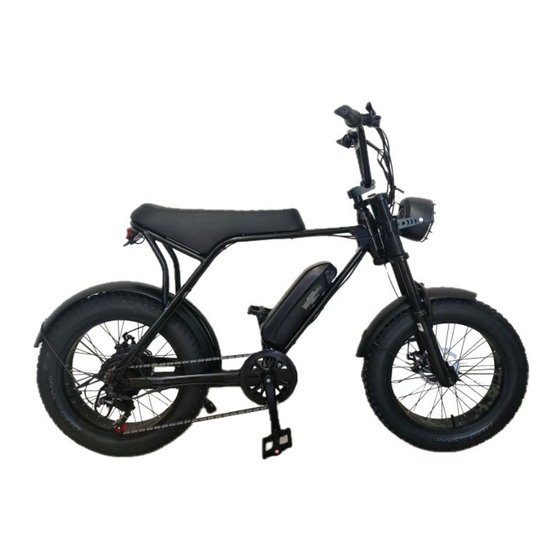

- Page 1 48V 10.4AH FAT TYRE ELECTRIC MOTOR BIKE FSMOTEBIKEA...
-
Page 2: Table Of Contents
Safety & Warnings Overview Assembly Operation Cleaning & Care Specifications Troubleshooting Notes... -
Page 3: Safety & Warnings
SAFETY & WARNINGS Safety Notes • Read all safety instructions before first use, even if you are familiar with this product. Keep this user guide for future reference. Do not skip, modify, or substitute any steps or procedures as this could result in injury or damage to the product. •... - Page 4 • Always check the battery charge level before riding. Fully charge the battery before first use. • To extend battery life, avoid partial charging and adjust your ride length based on the remaining battery level. • Battery performance varies based on terrain, rider weight, and the level of motor assistance used.
- Page 5 • The charger is intended for indoor use only. Keep it away from water and avoid using it in damp or combustible environments. Always unplug the charger by pulling the metal body, not the cord. • Avoid riding in poor weather conditions or when you are fatigued for your safety. Important Notes on Electric Bike Use •...
- Page 6 Pre-Riding Safety Checklist Before every riding and after every 40-72km, it is recommended to follow the pre-ride safety checklist below. Safety Check Basic Steps • Ensure front and rear brakes work properly • Check brake pads for wear and ensure they are not over-worn •...
- Page 7 • Ensure pedals are securely tightened to the cranks Cranks and Pedals • Ensure the cranks are securely tightened and are not bent • Check that the derailleur is adjusted and functioning properly • Ensure shifter and brake levers are attached to the handlebar Derailleurs securely •...
- Page 8 • Ensure all reflectors are properly fitted and not obscured • Ensure all other fittings on bike are properly secured and functioning • Inspect helmet and other safety gear for signs of damage • Ensure rider is wearing helmet and other required riding safety gear •...
- Page 9 • Wear appropriate safety gear and do not ride alone in remote areas. Check local rules and regulations if off-road E-bike riding is allowed. Engaging in extreme riding is extremely dangerous and should be avoided. Failure to do so can lead to bring seriously injured or killed.
-
Page 10: Overview
OVERVIEW Display Handlebar Bike Frame Rear Light Seat LED Headlight Front fender Rear fender Disc brake rotor Tyre Bike motor Derailleur Battery Crank Chain Front Fork Pedals Gear adjustment On/Off Mode Increase/Decrease assistance Gear adjustment... - Page 11 Display Head Lamps Cruise control Error Speed Battery Mode Odometer Gear position Icon Explain Headlamps Long press to turn headlights on/off When the battery level drops to 1 bar, an error will appear, and the Battery display will start flashing. This indicates that the battery is nearly depleted and needs to be recharged The error indicator turns on when there are errors in the vehicle and Error...
-
Page 12: Assembly
ASSEMBLY The following assembly steps are a general guide to assist in assembling your electric bike and are not a comprehensive manual covering all aspects of assembly, maintenance, and repair. It is recommend consulting a certified bike mechanic for assistance with assembly, repair, and maintenance of your bike. - Page 13 Remove out the accessories and tooling kit. Use the M5 Allen key to loosen the screw on the handlebar stem. Release the screw and remove the trim cover. Remove the fork retainer.
- Page 14 Align the forks so they are facing straight and forwards. Install the retainer and top cover and tighten all screws. Loosen the screws and remove the handlebar stem cover. 10. Install the handlebar, replace the stem cover and tighten all the screws.
- Page 15 Remove the wheels and accessories. 12. Attach the front wheel to the front forks. Ensure the brake rotor is aligned with the slot in the brake calliper. 13. Tighten the fasteners on both sides. 14. Attach the front fender and tighten all the fasteners.
- Page 16 15. ‘R’ marks the Right Pedal, and ‘L’ marks the Left Pedal. 16. Install the correct pedal on the corresponding side and tighten the fastener. Note: The pedals are side-specific and cannot be installed on the wrong side. Installing them incorrectly may damage the pedals or threads. 17.
- Page 17 19. Connect the cables connectors according to the direction of arrow. 20. Press and hold power button for 3 seconds to turn on the bike. Note: Inspect all fasteners on the bike frame. If any are loose, tighten them using the tool kit.
-
Page 18: Operation
OPERATION Battery Charging Information • Always charge your battery in temperatures between 10°C and 25°C. Ensure that both the battery and charger are not damaged before charging. If you notice anything unusual during charging, cease use immediately and contact help.Kogan.com for support. - Page 19 Charging Remove the rubber cover from the charging port located on the opposite side of the battery from the key switch. With the battery either attached or detached from the bike, place the charger on a flat, secure surface. Plug the charger into the wall outlet first, then into the charging port on the battery.
- Page 20 Gear Operation Multi-speed bicycles can use either internal or derailleur gear systems. Warning: Improper shifting may cause the chain to jam or derail, which could result in a loss of control or a crash. Always ensure the chain is fully engaged in the desired gear before pedalling hard.
-
Page 21: Cleaning & Care
CLEANING & CARE Basic Bike Care To ensure safe riding conditions and maintain the performance of your electric bike, follow these basic guidelines. Regularly consult a certified, reputable bike mechanic to ensure your bike remains safe and fun to ride. Battery Maintenance: Keep the battery fully charged between rides if the bike will be •... - Page 22 Periodic Maintenance Monthly: • Check the condition of tyres, brakes, and lights. • Inspect the battery for any signs of wear or damage. • Clean and lubricate the chain and other moving parts. Every 3 Months: • Check and tighten all bolts and fasteners. •...
-
Page 23: Specifications
SPECIFICATIONS Bike Dimensions 170 x 68 x 118cm Packing Dimensions 145 x 27 x 85cm Colour Black Frame Material Steel Net Weight 38kg (83.77lb) Gross Weight 46kg (101.41lb) Maximum Load Capacity 120kg (264.55lb) Max Speed 25KM/H Inner Tyre Pressure 20PSI / 140KPA Charger AC-DC 54.6V 2A 100-240V AC DC5.5X2.1 Battery... -
Page 24: Troubleshooting
TROUBLESHOOTING Symptoms Possible Causes Most Common Solutions • Charge the battery • Insufficient battery power • Clean and repair • Faulty connections connectors • E-bike will not turn Battery not fully seated in • Install battery correctly tray • Turn on bike with proper •... - Page 25 • Damaged motor bearings Wheel or motor Contact help.Kogan.com for • Damaged wheel spokes or makes abnormal support noises • Damaged motor wiring • • Sensor loose Adjust the connections Sensor Issue Contact help.Kogan.com • • Sensor or cable broken damaged for support •...
-
Page 26: Notes
NOTES... - Page 28 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com...
