Summary of Contents for Fortis FS36V16EBKA

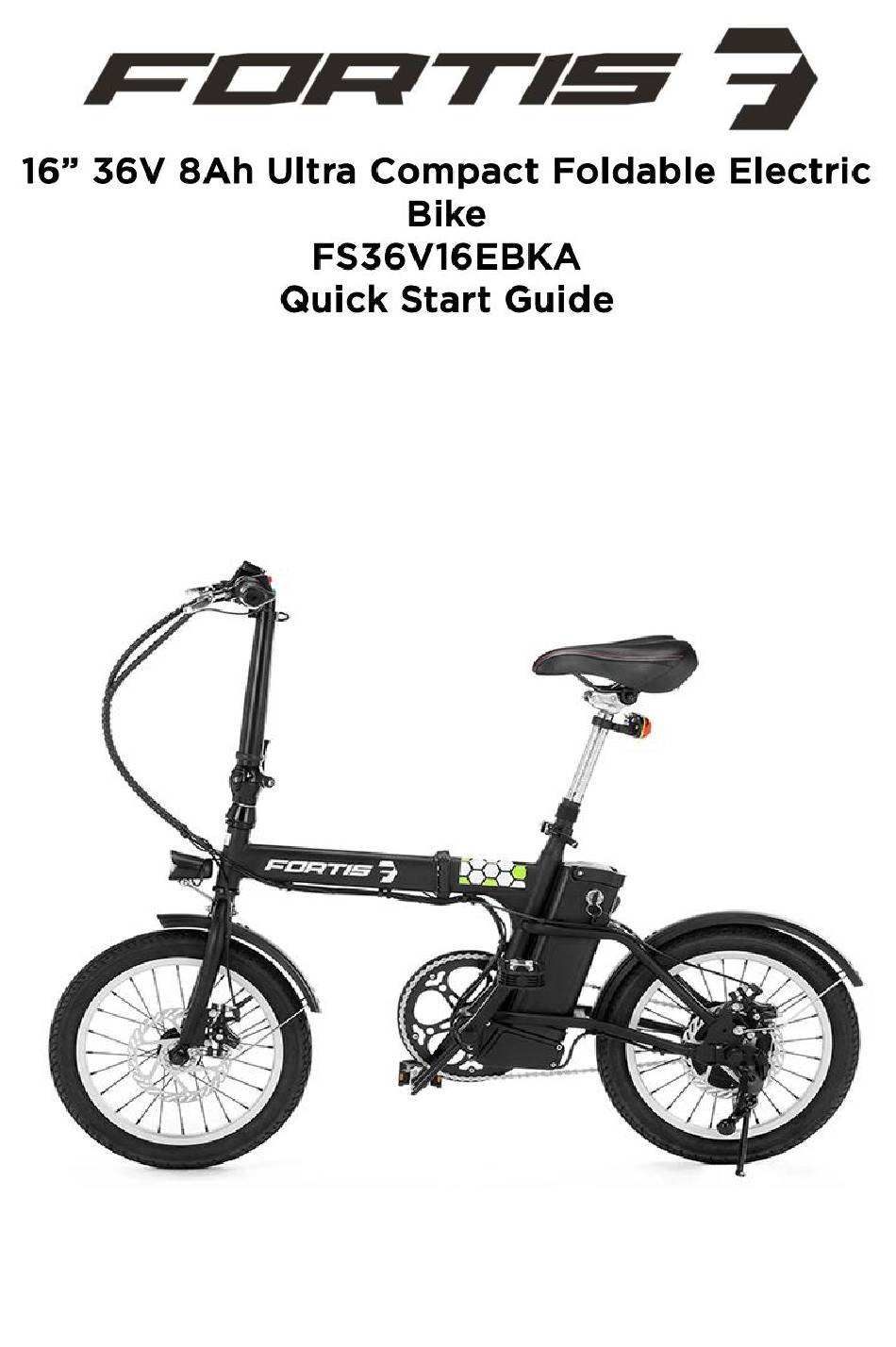

- Page 1 CAUTION READ THIS MANUAL BEFORE USING YOUR EQUIPMENT...
-
Page 2: Table Of Contents
CONTENTS 1.Safety Introduction………………………………………1-6page 2.E BIKE Introduction…………………………………………7pages 2.1.Parts diagram of Ebike 2.2.Ebike Specification 3.Battery Introduction…………………………………………8pages 4.Displayer Introduction………………………………………9pages 5.Battery Protection………………………………………… 10page 6.E BIKE Ridding Operation………………………………… 11page 7.Installation Of Ebike Parts…………………………… 12-15pages 7.1.Parts In Carton 7.2.How To Fold The Ebike 7.3.The Handlebar Stem Installation 7.4.The Saddle Installation 7.5.The Pedal Installation... - Page 3 1.SAFETY AND WARNING 1.1 Safety 1. Thank you for purchasing the FORTIS E-BIKE. The E-BIKE features the most recent innovation in technology. 2. For Safety reasons, it is most important that you read this user’s manual before you operate the bike. Improper handling can reduce its riding performance and most importantly, cause danger to your safe and healthy.
- Page 4 community. Do not wear loose clothing that can become tangled in the moving parts of the Electric Bike. Wear sturdy shoes and eye protection. Check your state laws concerning other protective wear that may be required when riding the Electric Bike. Know Your Electric Bike Your new Electric Bike incorporates many features and functions that have never been built...
- Page 5 Take it slow until you are familiar with conditions that you encounter. Be very careful in wet conditions as traction can be greatly reduced and brakes become less effective. Never ride faster or beyond your riding abilities. Remember that alcohol, drugs, fatigue and inattention can significantly reduce your ability to make good judgments and ride safely.
- Page 6 the bicycle frame, while the rider straddles the bicycle with both feet flat on the ground. The ideal clearance will vary depending on the type of bicycles and rider preference. This makes straddling easier when off the seat and safer in situations such as sudden stops.
- Page 7 • The rated output capacity of the battery is measured at 25°C. Any variation in this temperature will alter the performance of the battery and shorten its expected life. High temperatures especially reduce overall battery life and run time. • Always be sure to turn the bike power switch to “OFF”...
- Page 8 applicable laws, including properly equipping yourself and your bike as the law requires. Bicycle safety helmet should always be worn while riding your bicycle. The correct helmet should: • Be comfortable • Be lightweight • Have good ventilation • Fit correctly •...
-
Page 9: E Bike Introduction
2.E BIKE INTRODUCTION 2.1 Parts Diagram of E BIKE 2.2 E BIKE Specification Model No:16”skylark Charging time:4-6hours Frame :Steel Max Loading:110KG Motor:36V 250W Brushless W/G.W:20KG/22KG Battery:36V 8AH Lithium... - Page 10 3.BATTERY DETAILS 3.1 Battery Charging Plug in the charger, When the light is red, it’s charging, When the light is green, the battery is fully charged. Red light show 3.2 Charger Green light show Adaptor Connector with battery Australia standard plug...
-
Page 11: Displayer Introduction
4.DISPLAYER INTRODUCTION 4.1 The details for displayer Displayer off Displayer on Voltage for showing the power level for battery Three assist levels, the biggest one third level, add the assist level by press the button “up”, “down” button for decreasing assist level Speed for showing the current speed by pedal assist : Mileage for recording the distance which ebike covers, when it... -
Page 12: Battery Protection
5.Battery Protection For maximizing the life of your battery and protection,please read the following instructions in this guide. ▲ Charging the battery 100% fully at first time for the new e bike before ridding, the time should not more than 12hours ▲... -
Page 13: E Bike Ridding Operation
6.E BIKE RIDDING OPERATION A: Insert the key to the battery and turn on to power up the battery, turn to “ON” status, then long press the middle botton of displayer to switch on power. Key status The button on display B: Pedal one circle and half by feet to start the motor. -
Page 14: Installation Of Ebike Parts
7.INSTALLATION OF E BIKE PARTS 7.1 After open the carton, take out all the parts Saddle pedal handlebar stem charger tools All parts together... - Page 15 7.2 How to Fold the Bike 1. Turn the key switch to OFF. 2. Unlock the handlebar quick release lever (A, Picture 1) and push down the handlebar to the lowest position, then lock the handlebar quick release lever. 3. Unlock the handlebar quick release lever (A, Picture 2) and rollover the handlebar.
- Page 16 7.3 The Handlebar Stem Installation A: Take up the handlebar stem into the frame B: Lifting the quick-release then close to lock it. 7.4 The Saddle Installation A: Insert the seat post into the seat post tube B: Rotate the quick-release latch by hand and tight...
- Page 17 7.5 The Pedal installation A: Pedals are a pair with “R” & “L” ,“R” for right, “L” for left. B: Rotate the pedals into pedal arm. C: Tighten by wrench. Left pedal and right pedal Rotate the pedal into pedal arm Rotate to front to fasten the pedal...
