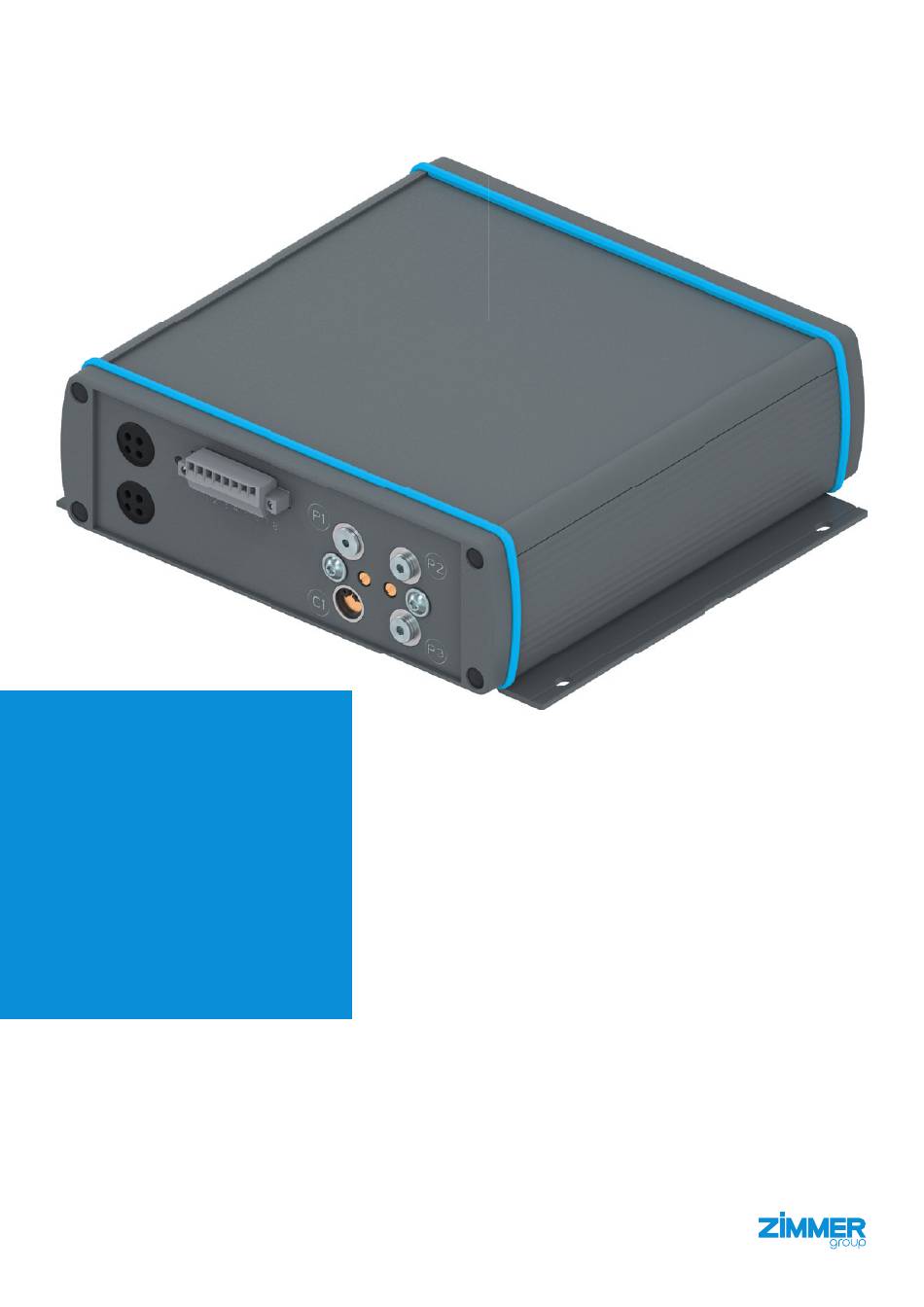

- Page 1 INSTALLATION AND OPERATING INSTRUCTIONS Unit, electro-pneumatic AEPN DDOC01693 THE KNOW-HOW FACTORY www.zimmer-group.com...
-
Page 2: Table Of Contents
11.1 Checking operational readiness .......................................14 12 Maintenance ....................................15 13 Decommissioning/disposal ..............................15 14 RoHS declaration ..................................16 15 Declaration of Conformity ................................. 17 16 Declaration of Conformity ................................. 18 Zimmer GmbH • Im Salmenkopf 5 • 77866 Rheinau, Germany • +49 7844 9138 0 • www.zimmer-group.com... -
Page 3: Supporting Documents
Ö The warning symbols are assigned according to the type of danger. INFORMATION This category contains useful tips for handling the product efficiently. Failure to observe these tips will not result in damage to the product. This information does not include any information relevant to health or workplace safety. Zimmer GmbH • Im Salmenkopf 5 • 77866 Rheinau, Germany • +49 7844 9138 0 • www.zimmer-group.com... -
Page 4: Safety Notices
• Use of the product under extreme conditions, such as aggressive fluids or abrasive dusts • Additional drilled holes or threads Ö Zimmer GmbH shall accept no liability for any damage caused by improper use. The operator bears sole responsibility. ► Make sure that the power supply is disconnected before you mount, modify, maintain or repair the product. -
Page 5: Personnel Qualification
Persons who work with the product must be familiar with the valid safety regulations and laws as well as the standards, guidelines and laws listed in this document. Personnel who work with the product must have facility-issued authorization to commission, program, configure, operate, maintain and also decommission this product. Zimmer GmbH • Im Salmenkopf 5 • 77866 Rheinau, Germany • +49 7844 9138 0 • www.zimmer-group.com... -
Page 6: Product Description
Article number Confirmation number INFORMATION ► Do not remove the type plate on the product. ► Do not modify the type plate on the product. Ö Zimmer GmbH shall accept no liability for possible damage or complaints about a product with a modified or removed type plate. Zimmer GmbH • Im Salmenkopf 5 • 77866 Rheinau, Germany • +49 7844 9138 0 • www.zimmer-group.com... -
Page 7: Functional Description
The runtime limitation and the temperature sensors switch the product off in case of overload to prevent the product from overheating. Various statuses as well as the available system pressure can be read via pins 7 and 8. Ventilation Pneumatic connection LED display Quick exhaust valve Jumper Bleed connection Electrical connection Optional connection Zimmer GmbH • Im Salmenkopf 5 • 77866 Rheinau, Germany • +49 7844 9138 0 • www.zimmer-group.com... -
Page 8: Led Status Display
30 minutes, contact Customer Service. 8x flashing • Motor operating time ► Please contact Customer 24 V DC Service. Error Continuous light • Undervoltage ► Check the supply voltage. 24 V DC Zimmer GmbH • Im Salmenkopf 5 • 77866 Rheinau, Germany • +49 7844 9138 0 • www.zimmer-group.com... -
Page 9: Technical Data
8 Accessories/scope of delivery INFORMATION If any accessories not sold or authorized by Zimmer GmbH are used, the function of the product cannot be guaranteed. Zimmer GmbH accessories are specifically tailored to the individual products. ► For optional accessories and those included in the scope of delivery, refer to our website. -
Page 10: Installation
• The mounting screws are not included in the scope of delivery. ► Install the product on an appropriate mounting surface in accordance with the flatness specifications. ► Make sure that the mounting piece is sufficiently rigid. ► Ensure the cleanliness of the connection surfaces. ► Please note the permitted tightening torques of the mounting screws at www.zimmer-group.com/en/td. 10.1 Installing the product WARNING Risk of injury caused by inadequate installation materials If unsuitable mounting elements are used or if the number of mounting elements is insufficient, the product may tear off as a result of the load. -
Page 11: Installing The Energy Supply
► Mount an additional quick exhaust valve in proximity to the consumer for quick bleeding of the consumer connected to the P2 pneumatic connection. ► Keep the hose length as short as possible for a quick air supply and bleeding. Zimmer GmbH • Im Salmenkopf 5 • 77866 Rheinau, Germany • +49 7844 9138 0 • www.zimmer-group.com... -
Page 12: Setting The Pressure Range
► Secure the electrical supply lines to be mounted with a suitable strain relief to prevent the uncontrolled removal of the pins. ► Connect the product according to its assignment diagram. Electrical connection Zimmer GmbH • Im Salmenkopf 5 • 77866 Rheinau, Germany • +49 7844 9138 0 • www.zimmer-group.com... - Page 13 16, 18, 20, 22, 24, 26, 28, 30 Cable size [mm 0.05 – 1.31 INFORMATION ► Refer to the technical data sheet on our website for the connection diagram. Zimmer GmbH • Im Salmenkopf 5 • 77866 Rheinau, Germany • +49 7844 9138 0 • www.zimmer-group.com...
-
Page 14: Commissioning
► Make sure that all cable connections were mounted corresponding to the pin assignment. ► Make sure that there is no warning or fault signal. ► Check whether the LED lights up green and the product is ready for operation. Zimmer GmbH • Im Salmenkopf 5 • 77866 Rheinau, Germany • +49 7844 9138 0 • www.zimmer-group.com... -
Page 15: Maintenance
Perform a regular visual inspection of the product to check for any damage or contamination. Ö Dismantling and reassembling the product without authorization may result in complications, as special installation equipment is required in some cases. Zimmer GmbH accepts no liability for any resulting malfunctions or damage. 13 Decommissioning/disposal INFORMATION When the product reaches the end of its operational phase, it can be completely disassembled and disposed of. -
Page 16: Rohs Declaration
Michael Hoch Rheinau, Germany, 2022-09-06 Authorized representative for the (Place and date of issuance) Martin Zimmer compilation of relevant technical (Legally binding signature) documents Managing Partner Zimmer GmbH • Im Salmenkopf 5 • 77866 Rheinau, Germany • +49 7844 9138 0 • www.zimmer-group.com... -
Page 17: Declaration Of Conformity
A full list of applied standards can be obtained from the manufacturer. Michael Hemler Rheinau, Germany, 2022-09-06 Authorized representative for the (Place and date of issuance) Martin Zimmer compilation of relevant technical (Legally binding signature) documents Managing Partner Zimmer GmbH • Im Salmenkopf 5 • 77866 Rheinau, Germany • +49 7844 9138 0 • www.zimmer-group.com... -
Page 18: Declaration Of Conformity
A full list of applied standards can be obtained from the manufacturer. Michael Hemler Rheinau, Germany, 2022-09-06 Authorized representative for the (Place and date of issuance) Martin Zimmer compilation of relevant technical (Legally binding signature) documents Managing Partner Zimmer GmbH • Im Salmenkopf 5 • 77866 Rheinau, Germany • +49 7844 9138 0 • www.zimmer-group.com...
