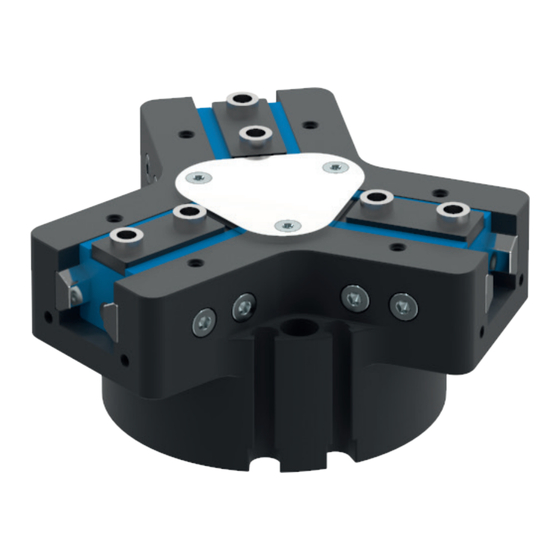

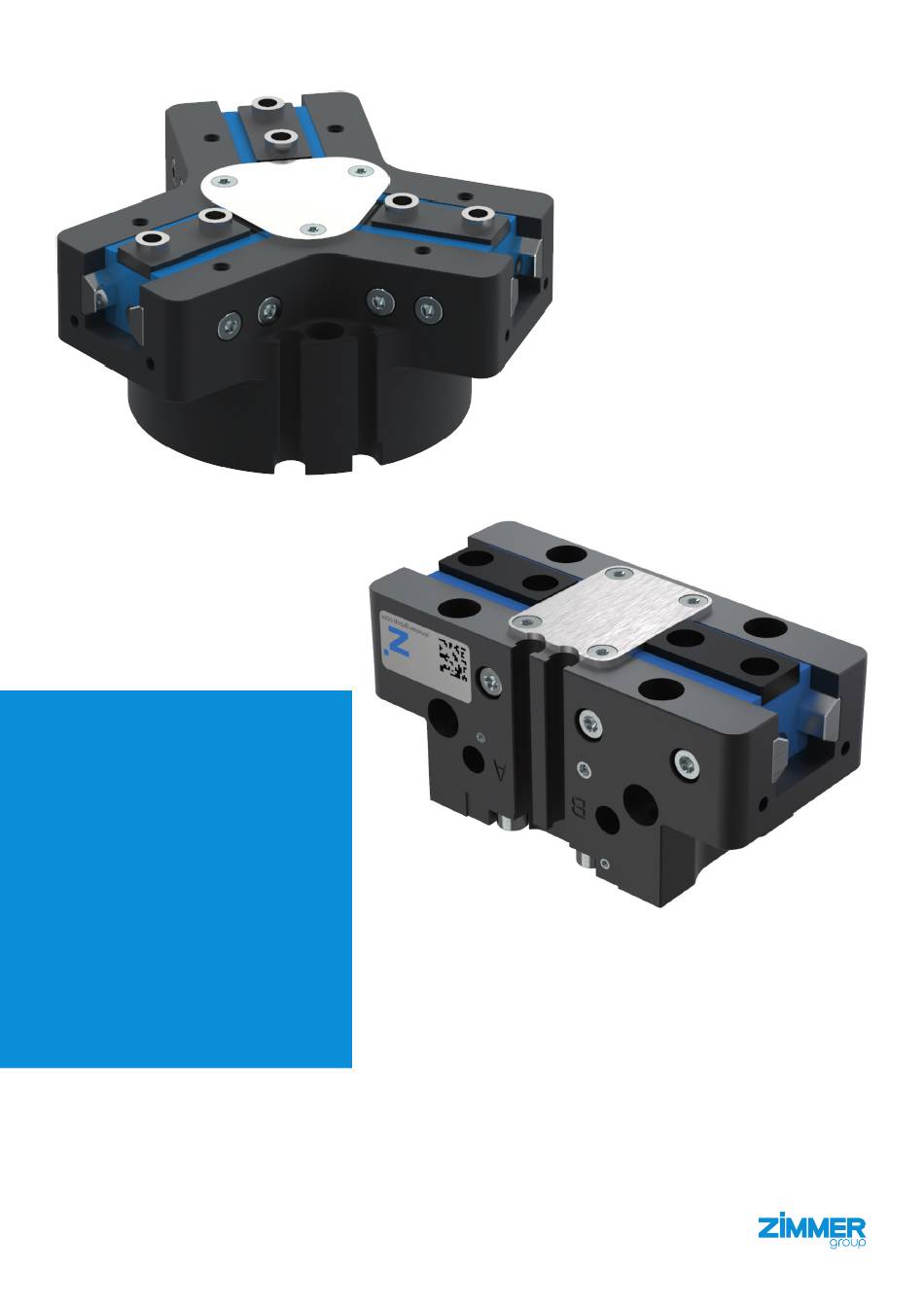

- Page 1 INSTALLATION AND OPERATING INSTRUCTIONS 2-jaw parallel gripper, pneumatic GPP5000 3-jaw concentric gripper, pneumatic GPD5000 DDOC00196 THE KNOW-HOW FACTORY www.zimmer-group.com...
-
Page 3: Table Of Contents
10.4.2 Setting the inductive sensors .....................................13 10.5 Installing the gripper fingers ......................................14 10.6 Installing the support structure ......................................15 10.7 Installing accessories ........................................15 11 Maintenance ....................................16 12 Decommissioning/disposal ..............................17 13 Declaration of Incorporation ..............................18 Zimmer GmbH • Im Salmenkopf 5 • 77866 Rheinau, Germany • +49 7844 9138 0 • www.zimmer-group.com... -
Page 4: Supporting Documents
Ö The warning symbols are assigned according to the type of danger. NOTICE General notices contain usage tips and valuable information, but no warnings of dangers to health. INFORMATION This category contains useful tips for handling the product efficiently. Failure to observe these tips will not result in damage to the product. This information does not include any information relevant to health or workplace safety. Zimmer GmbH • Im Salmenkopf 5 • 77866 Rheinau, Germany • +49 7844 9138 0 • www.zimmer-group.com... -
Page 5: Safety Notices
• Use of the product under extreme conditions, such as aggressive fluids or abrasive dusts • Additional drilled holes or threads Ö Zimmer GmbH shall accept no liability for any damage caused by improper use. The operator bears sole responsibility. ► Make sure that the power supply is disconnected before you mount, adjust, modify, maintain or repair the product. -
Page 6: Proper Use
► Operate the product only when it is in a technical condition that corresponds to the guaranteed parameters and operating conditions. Ö Zimmer GmbH shall accept no liability for any damage caused by improper use. The operator bears sole responsibility. -
Page 7: Product Description
For products with gripping force retention, this supports the grip force, acting in the force-transfer direction. GPP5000 GPD5000 Gripper jaw 7 Technical data INFORMATION ► You can find the information in the technical data sheet on our website. This data varies within the series, depending on the specific design. ► Please contact Zimmer Customer Service if you have any questions. Zimmer GmbH • Im Salmenkopf 5 • 77866 Rheinau, Germany • +49 7844 9138 0 • www.zimmer-group.com... -
Page 8: Accessories/Scope Of Delivery
8 Accessories/scope of delivery INFORMATION If any accessories not sold or authorized by Zimmer GmbH are used, the function of the product cannot be guaranteed. Zimmer GmbH accessories are specifically tailored to the individual products. ► For optional accessories and those included in the scope of delivery, refer to our website. -
Page 9: Installation
Risk of injury due to uncontrolled movements Risk of injury in the event of uncontrolled movement of the product when the power supply is connected. ► Switch off the power supply to the machine before carrying out any work. ► Secure the power supply against being switched on unintentionally. ► Check the machine for any residual energy that may be present. CAUTION Risk of injury from impact When the gripper jaws are opening, there is a risk of impact in the guide area. NOTICE Installation may only be carried out by qualified personnel in accordance with these installation and operating instructions. ► Switch off the power supply before any assembly, installation or maintenance work. Zimmer GmbH • Im Salmenkopf 5 • 77866 Rheinau, Germany • +49 7844 9138 0 • www.zimmer-group.com... -
Page 10: Installing Gpp5000
► Position the product on the mounting piece using centering sleeves. ► Mount the product on the mounting piece using the appropriate mounting screws. Mounting screw Centering Disc Zimmer GmbH • Im Salmenkopf 5 • 77866 Rheinau, Germany • +49 7844 9138 0 • www.zimmer-group.com... -
Page 11: Installing Gpd5000
► Use the straight pins to position the product on the mounting piece. ► Mount the product on the mounting piece using the appropriate mounting screws. Mounting screw Straight pins Zimmer GmbH • Im Salmenkopf 5 • 77866 Rheinau, Germany • +49 7844 9138 0 • www.zimmer-group.com... -
Page 12: Installing The Energy Supply
► The authorized connections that are available can be found in the accessories list on our website. The necessary ordering information can also be found there. ► Use compressed air in accordance with DIN ISO 8573-1 [4:4:4]. ► Insert the screw fittings into the provided connections. Connector INFORMATION Multiple alternative connections are available. No screw fittings have to be installed in the alternative connections. Zimmer GmbH • Im Salmenkopf 5 • 77866 Rheinau, Germany • +49 7844 9138 0 • www.zimmer-group.com... -
Page 13: Installing The Sensors
► Move the gripper jaws into the desired position. ► Adjust the switch cam using the set screw until the function display on the sensor illuminates. Gripper jaw Adjusting screw Clamping screw Mounting block Inductive sensor Zimmer GmbH • Im Salmenkopf 5 • 77866 Rheinau, Germany • +49 7844 9138 0 • www.zimmer-group.com... -
Page 14: Installing The Gripper Fingers
10.5 Installing the gripper fingers NOTICE ► Before installing the gripper fingers, check whether their length is suitable for use with the selected variant. ► You can find information on our website. ► Please contact Zimmer Customer Service if you have any questions. Assembly requirements Strength class (DIN EN ISO 4762) GPP5000 GPD5000 12.9 Mounting screw Gripper finger Centering Disc Zimmer GmbH • Im Salmenkopf 5 • 77866 Rheinau, Germany • +49 7844 9138 0 • www.zimmer-group.com... -
Page 15: Installing The Support Structure
For installing a support structure, there are additional fits under the cover plate. Dimension B Dimension A Cover plate 10.7 Installing accessories NOTICE ► Before installing an accessory, make sure it is suitable for use with the selected variant. ► You can find information on our website. ► Please contact Zimmer Customer Service if you have any questions. Zimmer GmbH • Im Salmenkopf 5 • 77866 Rheinau, Germany • +49 7844 9138 0 • www.zimmer-group.com... -
Page 16: Maintenance
Material damage due to leaking lubricant Excessive lubrication can cause moving machine parts to leak lubricant. This can contaminate the machine, object being gripped or workpiece. ► Only use approved or recommended lubricants. ► Observe the manufacturer information for use of specific lubricants. ► Adhere to the lubrication interval. ► Avoid excessive lubrication. ► Remove leaking lubricant immediately and thoroughly. ► Replace damaged seals. Zimmer GmbH • Im Salmenkopf 5 • 77866 Rheinau, Germany • +49 7844 9138 0 • www.zimmer-group.com... -
Page 17: Decommissioning/Disposal
► Have maintenance work be performed by Zimmer Customer Service whenever possible. Ö Dismantling and reassembling the product without authorization may result in complications, as special installation equipment is required in some cases. Zimmer GmbH accepts no liability for any resulting malfunctions or damage. 12 Decommissioning/disposal INFORMATION When the product reaches the end of its operational phase, it can be completely disassembled and disposed of. -
Page 18: Declaration Of Incorporation
Machinery and an EC Declaration of Conformity has been drawn up in accordance with Annex II 1 A. Kurt Ross Rheinau, Germany, 2020-10-08 Authorized representative for the (Place and date of issuance) Martin Zimmer compilation of relevant technical (Legally binding signature) documents Managing Partner Zimmer GmbH • Im Salmenkopf 5 • 77866 Rheinau, Germany • +49 7844 9138 0 • www.zimmer-group.com...
