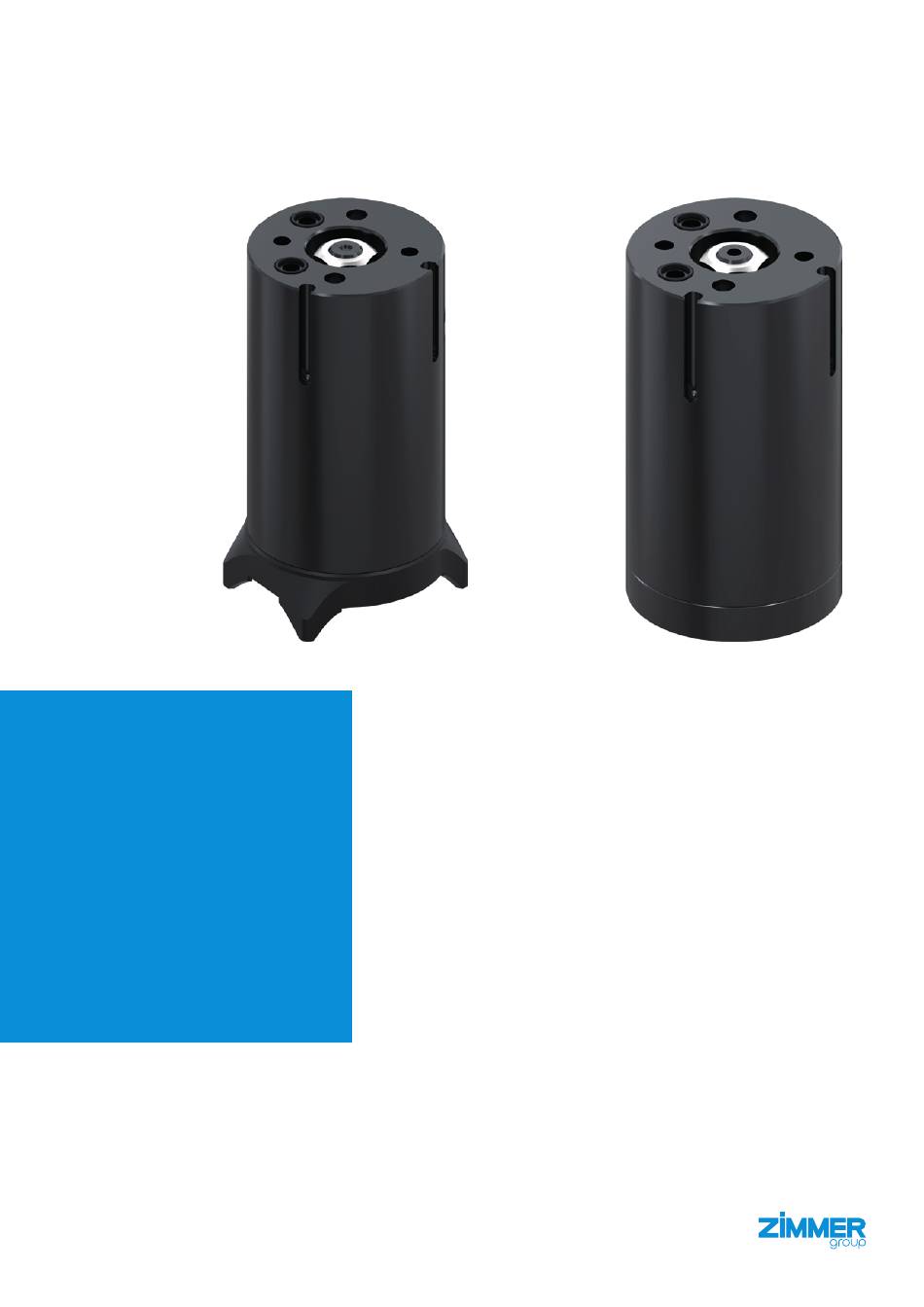

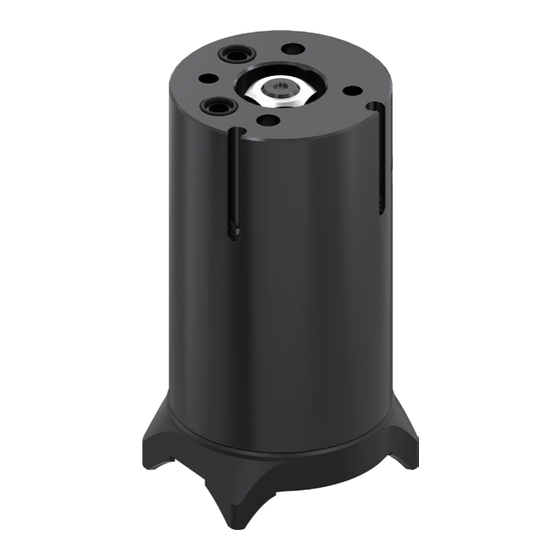

- Page 1 INSTALLATION AND OPERATING INSTRUCTIONS Magnetic gripper HPM2000 DDOC02086 THE KNOW-HOW FACTORY www.zimmer-group.com...
-
Page 3: Table Of Contents
11 Commissioning ..................................13 12 Maintenance ....................................14 12.1 Replacing the cover ...........................................15 13 Decommissioning/disposal ..............................15 14 Declaration of Incorporation ..............................16 15 Declaration of Conformity ................................. 17 Zimmer GmbH • Im Salmenkopf 5 • 77866 Rheinau, Germany • +49 7844 9138 0 • www.zimmer-group.com... -
Page 4: Supporting Documents
► You absolutely must comply with the described measures for avoiding these dangers! Ö The warning symbols are assigned according to the type of danger. INFORMATION This category contains useful tips for handling the product efficiently. Failure to observe these tips will not result in damage to the product. This information does not include any information relevant to health or workplace safety. Zimmer GmbH • Im Salmenkopf 5 • 77866 Rheinau, Germany • +49 7844 9138 0 • www.zimmer-group.com... -
Page 5: Safety Notices
• Use of the product under extreme conditions, such as aggressive fluids or abrasive dusts • Additional drilled holes or threads Ö Zimmer GmbH shall accept no liability for any damage caused by improper use. The operator bears sole responsibility. ► Make sure that the power supply is disconnected before you mount, adjust, modify, maintain or repair the product. -
Page 6: Proper Use
► Operate the product only when it is in a technical condition that corresponds to the guaranteed parameters and operating conditions. Ö Zimmer GmbH shall accept no liability for any damage caused by improper use. The operator bears sole responsibility. -
Page 7: Product Description
Other variants can be made upon request. 5.2 Type plate A type plate is attached to the housing of the product. The article number and the confirmation number are shown on the type XX-XXXXXX plate. Article number Confirmation number Zimmer GmbH • Im Salmenkopf 5 • 77866 Rheinau, Germany • +49 7844 9138 0 • www.zimmer-group.com... -
Page 8: Functional Description
The sensor detects that the cylindrical cell has been gripped. When the cylindrical cell is removed, the plunger is moved back to the starting position via a spring. 7 Technical data INFORMATION ► You can find the information in the technical data sheet on our website. This data varies within the series, depending on the specific design. ► Please contact Customer Service if you have any questions. Zimmer GmbH • Im Salmenkopf 5 • 77866 Rheinau, Germany • +49 7844 9138 0 • www.zimmer-group.com... -
Page 9: Accessories/Scope Of Delivery
HPM2000 8 Accessories/scope of delivery INFORMATION If any accessories not sold or authorized by Zimmer GmbH are used, the function of the product cannot be guaranteed. The accessories from Zimmer GmbH are specifically tailored to the individual products. ► Please note that the sensors are not part of the scope of delivery. -
Page 10: Installation
• The mounting screws are not included in the scope of delivery. ► Install the product on an appropriate mounting surface in accordance with the flatness specifications. ► Make sure that the mounting piece is sufficiently rigid. ► Ensure the cleanliness of the connection surfaces. ► Please note the permitted tightening torques of the mounting screws at www.zimmer-group.com/de/td. Zimmer GmbH • Im Salmenkopf 5 • 77866 Rheinau, Germany • +49 7844 9138 0 • www.zimmer-group.com... -
Page 11: Installing The Product
► Position the product on the mounting surface using the straight pins. ► Mount the product on the mounting piece using the appropriate mounting screws. Mounting screw Straight pins O-ring Zimmer GmbH • Im Salmenkopf 5 • 77866 Rheinau, Germany • +49 7844 9138 0 • www.zimmer-group.com... -
Page 12: Installing The Energy Supply
► Mount the screw fittings in the provided connections. Screw fitting Hold Release 10.3 Installing accessories NOTICE Non-compliance may result in material damage. ► Before installing an accessory, make sure it is suitable for use with the selected variant. ► You can find information on our website. ► Please contact Customer Service if you have any questions. Zimmer GmbH • Im Salmenkopf 5 • 77866 Rheinau, Germany • +49 7844 9138 0 • www.zimmer-group.com... -
Page 13: Adjusting The Magnetic Field Sensors
Reduced holding force can lead to personal injury or material damage because the components can no longer be securely gripped and transported. ► Do not stand or walk underneath suspended loads. NOTICE Malfunction in case of non-compliance ► Do not handle any workpieces that generate a magnetic field themselves or act as permanent magnets. Zimmer GmbH • Im Salmenkopf 5 • 77866 Rheinau, Germany • +49 7844 9138 0 • www.zimmer-group.com... -
Page 14: Maintenance
Ö Dismantling and reassembling the product without authorization may result in complications, as special installation equipment is required in some cases. Zimmer GmbH accepts no liability for any resulting malfunctions or damage. Zimmer GmbH • Im Salmenkopf 5 • 77866 Rheinau, Germany • +49 7844 9138 0 • www.zimmer-group.com... -
Page 15: Replacing The Cover
► Disconnect the product completely from the power supply. ► Dispose of the components properly according to the material groups. ► Comply with the locally applicable environmental and disposal regulations. Zimmer GmbH • Im Salmenkopf 5 • 77866 Rheinau, Germany • +49 7844 9138 0 • www.zimmer-group.com... -
Page 16: Declaration Of Incorporation
Machinery and an EC Declaration of Conformity has been drawn up in accordance with Annex II 1 A. Kurt Ross Rheinau, Germany, 2024-02-14 Authorized representative for the (Place and date of issuance) Martin Zimmer compilation of relevant technical (Legally binding signature) documents Managing Partner Zimmer GmbH • Im Salmenkopf 5 • 77866 Rheinau, Germany • +49 7844 9138 0 • www.zimmer-group.com... -
Page 17: Declaration Of Conformity
A full list of applied standards can be obtained from the manufacturer. Kurt Ross Rheinau, Germany, 2024-02-14 Authorized representative for the (Place and date of issuance) Martin Zimmer compilation of relevant technical (Legally binding signature) documents Managing Partner Zimmer GmbH • Im Salmenkopf 5 • 77866 Rheinau, Germany • +49 7844 9138 0 • www.zimmer-group.com...
