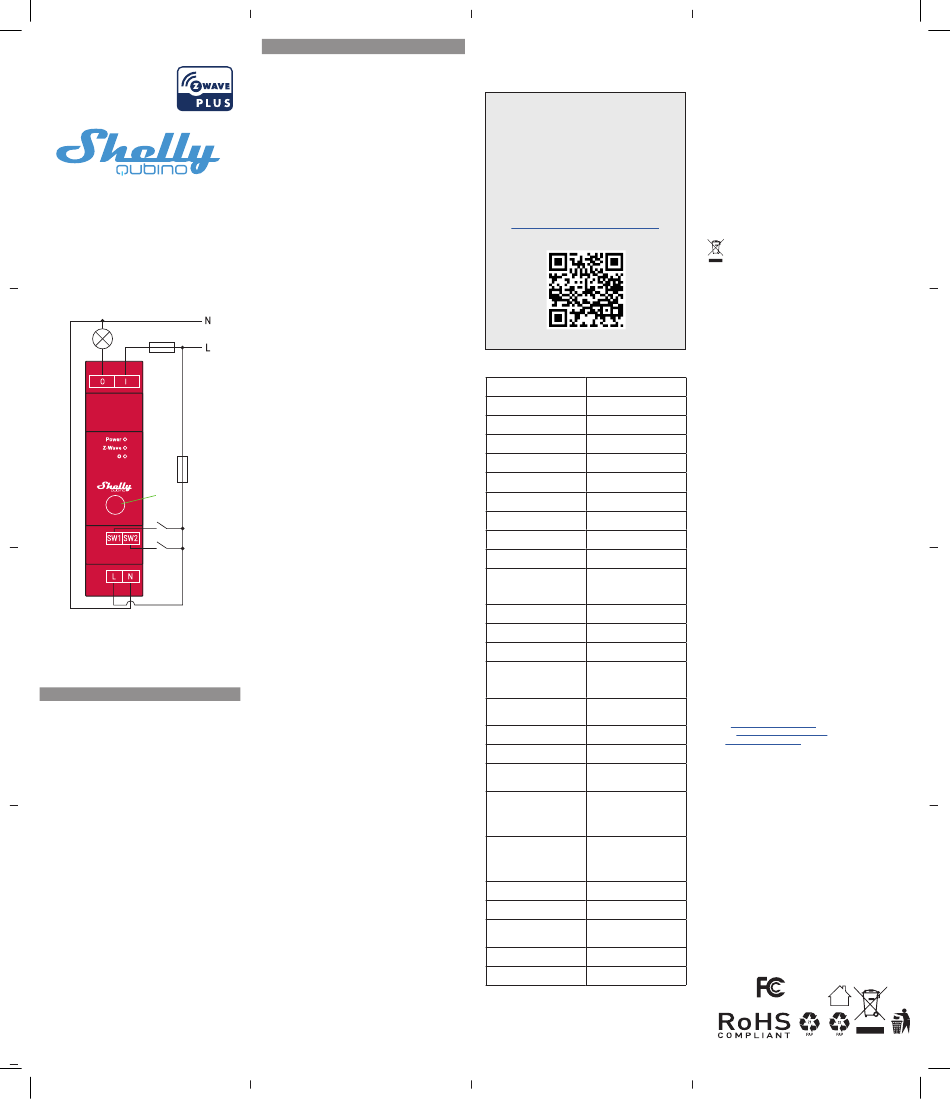

Wave Pro 1PM
S
S
Fig.1/
EN
LEGEND
Device terminals:
• N: Neutral terminal
• L: Live terminal (110–240 V AC)
• SW (SW1): Switch/push-button input terminal (controlling
O (O1))
• SW2: Switch/push-button input terminal
• I: Load circuit input terminal
• O (O1): Load circuit output terminal (1)
Wires:
• N: Neutral wire
• L: Live wire (110-240 V AC)
Button:
• S: S button
B2433
V 0.0.1
EN
USER AND SAFETY GUIDE
DIN-mountable Z-Wave
smart switch with
®
power measurement
READ BEFORE USE
This document contains important technical and safety infor-
mation about the Device, its safe use and installation.
Before beginning the installation, please read care-
⚠CAUTION!
fully and entirely this guide and any other documents accompany-
ing the Device. Failure to follow the installation procedures could
lead to malfunction, danger to your health and life, violation of law
or refusal of legal and/or commercial guarantee (if any). Shelly
Europe Ltd. is not responsible for any loss or damage in case of
incorrect installation or improper operation of this device due to
failure of following the user and safety instructions in this guide.
TERMINOLOGY
Gateway – A Z-Wave
gateway, also referred to as a Z-Wave
®
controller, Z-Wave
main controller, Z-Wave
primary controller,
®
®
or Z-Wave
®
hub, etc., is a device that serves as a central hub for
a Z-Wave
smart home network. The term "gateway" is used in
®
this document.
S button - The Z-Wave
®
Service button, which is located on
Z-Wave
devices and is used for various functions such as in-
®
clusion (adding), exclusion (removing), and resetting the device
to its factory default settings. The term "S button" is used in this
document.
Device – In this document, the term "Device" is used to refer to
the Shelly Qubino device that is a subject of this guide.
ABOUT SHELLY QUBINO
Shelly Qubino is a line of innovative microprocessor-managed
devices, which allow remote control of electric circuits with a
smartphone, tablet, PC, or home automation system. They work
on Z-Wave
wireless communication protocol, using a gateway,
®
which is required for the configuration of devices. When the
gateway is connected to the internet, you can control Shelly
Qubino devices remotely from anywhere. Shelly Qubino devic-
es can be operated in any Z-Wave
®
network with other Z-Wave
certified devices from other manufacturers. All mains operated
nodes within the network will act as repeaters regardless of
vendor to increase reliability of the network. Devices are de-
signed to work with older generations of Z-Wave
devices and
®
gateways.
WAVE PRO SERIES
Wave Pro series is a line of devices suitable for homes, offices,
retail stores, manufacturing facilities, and other buildings. Pro
devices are DIN-mountable inside the breaker box, and highly
suitable for new building construction. All Wave Pro devices
can be controlled and monitored through the Z-Wave
network.
®
ABOUT THE DEVICE
The Device is a DIN rail mountable smart switch with power
measurement. It controls the on/off function for one electrical
device with a load up to 15 A. It is compatible with switches
(default) and push-buttons.
INSTALLATION INSTRUCTIONS
The Device can be DIN-mounted inside the breaker box.
For the installation instructions, refer to the wiring scheme (Fig.
1) in this user guide.
⚠CAUTION!
Danger of electrocution. Mounting/installation of
the Device to the power grid has to be performed with caution,
by a qualified electrician.
⚠CAUTION!
Danger of electrocution. Every change in the
connections has to be done after ensuring there is no voltage
present at the Device terminals.
Use the Device only with a power grid and appli-
⚠CAUTION!
ances that comply with all applicable regulations. A short circuit
in the power grid or any appliance connected to the Device may
damage it.
Do not connect the Device to appliances exceed-
⚠CAUTION!
ing the given max. load!
Allow at least 10 mm of space around each Pro
⚠CAUTION!
device if you expect currents higher than 5 A per channel.
⚠CAUTION!
Connect the Device only in the way shown in
these instructions. Any other method could cause damage and/
or injury.
Do not install the Device where it can get wet.
⚠CAUTION!
Do not use the Device if it has been damaged!
⚠CAUTION!
⚠CAUTION!
Do not attempt to service or repair the Device
yourself!
Before starting the mounting/installation of the
⚠CAUTION!
Device, check that the breakers are turned off and there is no
voltage on their terminals. This can be done with a mains volt-
age tester or multimeter. When you are sure that there is no volt-
age, you can proceed to connecting the wires.
Do not shorten the antenna.
⚠CAUTION!
Place the antenna as far away as
⚠RECOMMENDATION:
possible from metal elements as they can cause signal inter-
ference.
⚠RECOMMENDATION:
Connect the Device using solid sin-
gle-core cables or stranded cables with ferrules. The cables
should have insulation with increased heat resistance, not less
than PVC T105°C (221°F).
For inductive appliances that cause
⚠RECOMMENDATION:
voltage spikes during switching on/off, such as electrical mo-
tors, fans, vacuum cleaners and similar ones, RC snubber (0.1
µF / 100 Ω / 1/2 W / 600 V AC) should be connected parallel
to the appliance.
⚠CAUTION!
Do not allow children to play with the push-but-
tons/switches connected to the Device. Keep the devices for
remote control of Shelly Qubino (mobile phones, tablets, PCs)
away from children.
Connect the load to the O terminal of the Device and the Neutral
wire, as shown on Fig. 1. Connect the Live wire to an I terminal
of the Device. Connect the Neutral wire to a N terminal of the
Device. Connect a switch or a push-button to the Device SW1
(SW2) terminal and the Live wire.
EXTENDED USER GUIDE
For more detailed installation instructions,
use cases, and comprehensive guidance
on adding/removing the Device to/from
a Z-Wave
network, factory reset, LED
®
signalization, Z-Wave
command classes,
®
parameters, and much more, refer to the
extended user guide at:
https://shelly.link/WavePro1PM-KB-US
®
SPECIFICATIONS
Power supply
110-240 V AC, 50/60 Hz
Power consumption
< 0.3 W
®
Max. switching voltage AC
240 V
Max. switching current AC
15 A
Max. switching voltage DC
N/A
Max. switching current DC
N/A
Overheating protection
Yes
Power measurement (W)
Yes
Overload protection
Yes
Overvoltage protection
Yes
Distance
Up to 40 m indoors (131
ft.) (depends on local
condition)
Z-Wave
repeater
Yes
®
CPU
Z-Wave
®
S800
Z-Wave
®
frequency bands
908.4 MHz
Maximum radio frequency
< 25 mW
power transmitted in
frequency band(s)
Size (H x W x D)
94x19x69 ±0.5 mm /
3.70x0.75x2.71 ±0.02 in
Weight
61 g / 2.15 oz.
Mounting
DIN rail
Screw terminals max.
0.4 Nm / 3.54 lbin
torque
Conductor cross section
0.5 to 2.5 mm² / 20 to 14
AWG (green connector)
0.5 to 1.5 mm² / 20 to 16
AWG (white connectors)
Conductor stripped length
6 to 7 mm / 0.24 to 0.28 in
(green connector)
5 to 6 mm / 0.20 to 0.24 in
(white connectors)
Shell material
Plastic
Color
Red
Ambient temperature
-20°C to 40°C / -5°F to
105°F
Humidity
30% to 70% RH
Max. altitude
2000 m / 6562 ft.
OPERATIONAL INSTRUCTIONS
SW1: If the SW (SW1) is configured as a switch (default), each
toggle of the switch will change the output O (O1) state to the
opposite state - on, off, on, etc. If the SW (SW1) is configured as
a push-button in the Device settings, each press of the push-but-
ton will change the output O (O1) state to the opposite state
- on, off, on, etc.
SW2: NO relay control - used only for associations.
SUPPORTED LOAD TYPES
Resistive (incandescent bulbs, heating devices)
Inductive with RC Snubber (LED light drivers, transformers, fans,
refrigerators, air-conditioners)
Capacitive (capacitor banks, electronic equipment, motor start
capacitors)
IMPORTANT DISCLAMER
Z-Wave
wireless communication may not always be 100%
®
reliable. This Device should not be used in situations in which
life and/or valuables are solely dependent on its functioning. If
the Device is not recognized by your gateway or appears incor-
rectly, you may need to change the Device type manually and
ensure that your gateway supports Z-Wave Plus
®
multi-channel
devices.
DISPOSAL & RECYCLING
This refers to the waste of electrical and electronic equipment.
It is applicable in the US and other countries to collect waste
separately.
This symbol on the product or in the accompanying literature
indicates that the product should not be disposed of in the
daily waste. Wave Pro 1PM must be recycled to avoid possi-
ble damage to the environment or human health from uncon-
trolled waste disposal and to promote the reuse of materials
and resources. It is your responsibility to dispose of the device
separately from general household waste when it is already
unusable.
FCC NOTES
• This device complies with Part 15 of the FCC Rules.
• Operation is subject to the following two conditions: (1) this
device may not cause harmful interference, and (2) this device
must accept any interference received, including interference
that may cause undesired operation.
• The manufacturer is not responsible for any radio or TV inter-
ference caused by unauthorized modification or change to this
equipment. Such modifications or change could void the user's
authority to operate the equipment.
• This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to part 15 of
the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential instal-
lation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio
communications.
However, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be de-
termined by turning the equipment off and on, the user is en-
couraged to try to correct the interference by one or more of the
following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for
help.
• RF exposure statement:
-This equipment complies with FCC radiation exposure limits
set forth for an uncontrolled environment. The device has been
evaluated to meet general RF exposure requirement. The device
can be used in portable exposure condition without restriction.
ORDERING CODE: QPSW-0A1P16US
MANUFACTURER
Shelly Europe Ltd.
Address: 103 Cherni vrah Blvd., 1407 Sofia, Bulgaria
Tel.: +359 2 988 7435
E-mail:
zwave-shelly@shelly.cloud
Support:
https://support.shelly.cloud/
Web:
https://www.shelly.com
Changes in the contact data are published by the Manufacturer
at the official website.
FCC ID: 2BDC6-WAVEPRO2PM
1/2
Need help?
Do you have a question about the Wave Pro 1PM and is the answer not in the manual?
Questions and answers
