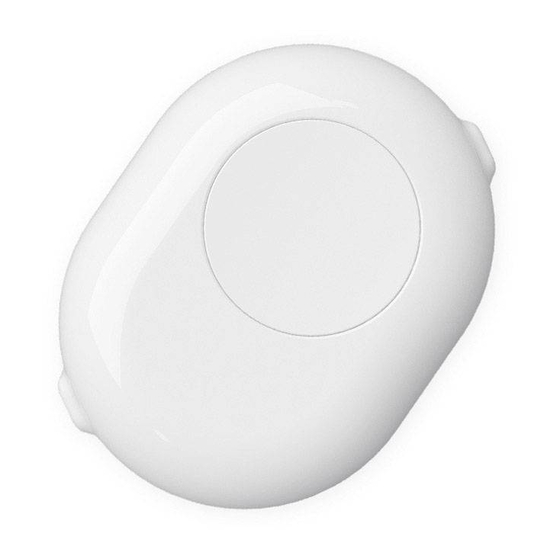

Button With Shelly 1
| Max Voltage | 260V AC |
| Max load | 11A |
| Working temp | -20 up to 40C° |
| Protection | IP47 |
Step 1
Connect the wires, as shown on the picture
Step 2
Place the button extension lead, as shown on the picture.
Step 3
Connect the power (input and output) cables, as shown on the picture above.
Step 4
Inside the case of Shelly Button there are guiding arrows, which show how to organise the power cables. After placing the cables, they should look as shown on the picture above.
Step 5
Put the screws in the holes, shown on the picture and tighten the top and botton parts of Shelly Button
Button With Shelly 1PM
Step 1
Connect the wires, as shown on the picture
Step 2
Place the button extension lead, as shown on the picture
Step 3
Connect the power (input and output) cables, as shown on the picture
Step 4
Inside the case of Shelly Button there are guiding arrows, which show how to organise the power cables. After placing the cables, they should look as shown on the picture
Step 5
Put the screws in the holes, shown on the picture and tighten the top and botton parts of Shelly Button.
Videoshow to use the Shelly Button Video
Documents / ResourcesDownload manual
Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.
