Shelly Wave 1PM Mini Extended User Manual

Z-wave smart switch with power measurement
Hide thumbs Also See for Wave 1PM Mini:
Table of Contents

Advertisement

Quick Links

Download this manual
Wave 1PM Mini
Z-Wave® smart switch with power
measurement
Extended User Guide (EN)
Device: Wave 1PM Mini
EU Part number/Ordering Code: QMSW-0A1P8EU
Z-Wave Product type ID: 0x0002
Z-Wave Product ID: 0x008F
Z-Wave Manufacturer: Shelly Europe
Z-Wave Manufacturer ID: 0x0460

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Wave 1PM Mini and is the answer not in the manual?

Questions and answers

Related Manuals for Shelly Wave 1PM Mini

Summary of Contents for Shelly Wave 1PM Mini

  • Page 1 Wave 1PM Mini Z-Wave® smart switch with power measurement Extended User Guide (EN) Device: Wave 1PM Mini EU Part number/Ordering Code: QMSW-0A1P8EU Z-Wave Product type ID: 0x0002 Z-Wave Product ID: 0x008F Z-Wave Manufacturer: Shelly Europe Z-Wave Manufacturer ID: 0x0460...

  • Page 2: Table Of Contents

    Table of contents 1. Terminology .........................5 2. About Shelly Qubino......................5 3. About the Device ........................6 4. Electrical diagrams 110-240 V AC ..................6 5. Installation instruction ......................7 6. About Z-Wave® ........................8 7. Z-Wave® Adding / Removing / Factory reset ................9 7.1. Adding the Device to a Z-Wave® network (inclusion) ............9 7.1.1.
  • Page 3 Adding / Removing menu selected ..................15 Adding / Removing menu - while pressing S- button - Add/Remove process selected ..15 Factory reset menu selected .....................15 Factory reset - while pressing S - button - Factory reset process selected ......15 Alarm Mode ........................15 10.
  • Page 4 13.1 Root device........................27 Root device - Association Group 1 - Lifeline ...............27 Root device - Association Group 2 ..................27 Root device - Association Group 3 ..................28 14. Supported load types ......................28 15. Technical Specifications ......................29 16. Important disclaimer ......................30 17. Declaration of Conformity ....................30 18.

  • Page 5: Terminology

    1. Terminology • Device - In this document, the term “Device” is used to refer to the Shelly Qubino device that is a subject of this guide. • Gateway (GW) - A Z-Wave® gateway, also referred to as a Z-Wave® controller, Z-Wave®...

  • Page 6: About The Device

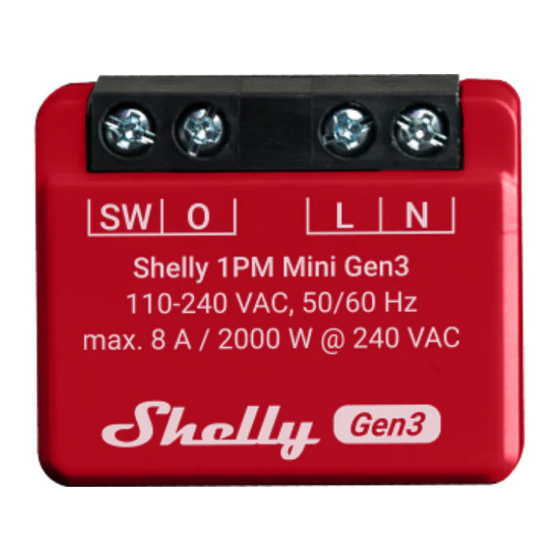

    3. About the Device The Device is a small form factor smart switch with power measurement. It controls the on/off function for one electrical appliance with a load of up to 8 A AC, such as a bulb, ceiling fan, or IR heater.

  • Page 7: Installation Instruction

    Device terminals: • N: Neutral terminal • L: Live terminal (110-240 V AC) • SW (SW1): Switch/push-button input terminal (controlling O (O1)) • O (O1): Load circuit output terminal (1) Wires: • N: Neutral wire • L: Live wire (110-240 V AC) Button: •...

  • Page 8: About Z-Wave

    ⚠CAUTION! Do not allow children to play with the push-buttons/ switches connected to the Device. Keep the devices for remote control of Shelly Qubino (mobile phones, tablets, PCs) away from children. ⚠RECOMMENDATION: Connect the Device using solid single-core cables or stranded cables with ferrules.

  • Page 9: Z-Wave® Adding / Removing / Factory Reset

    7. Z-Wave® Adding / Removing / Factory reset 7.1. Adding the Device to a Z-Wave® network (inclusion) Note! All Device outputs (O, O1, O2, etc. - depending on the Device type) will turn the load 1s on/1s off /1s on/1s off if the Device is successfully added to/removed from a Z-Wave® network. Note! In case of Security 2 (S2) adding (inclusion), a dialog will appear asking you to enter the corresponding PIN Code (5 underlined digits) that are written on the Z-Wave®...

  • Page 10: Adding (Inclusion) With A Switch/Push-Button

    6. The blue LED will be blinking in Mode 2 during the adding process. 7. The green LED will be blinking in Mode 1 if the Device is successfully added to a Z-Wave® network. Note! In Setting mode, the Device has a timeout of 10s before entering again into Normal mode. 7.1.3.

  • Page 11: Removing (Exclusion) With A Switch/Push-Button

    Note! In Setting mode, the Device has a timeout of 10s before entering again into Normal mode. 7.2.2. Removing (exclusion) with a switch/push-button 1. Connect the Device to a power supply. 2. Check if the green LED is blinking in Mode 1. If so, the Device is added to a Z-Wave® network.

  • Page 12: Z-Wave® Security 2 And Device Specific Key (Dsk)

    2. Toggle the switch/push-button connected to any of the SW terminals (SW, SW1, SW2,…) 5 times within 3 seconds. The Device must receive on/off signal 5 times, which means pressing the push-button 5 times, or toggling the switch on and off 5 times. 3.

  • Page 13: Led Signalization

    The first five digits of the key are highlighted or underlined to help the user identify the PIN Code part of the DSK text. The DSK is additionally represented with a QR Code as shown on the image. Z-Wave DSK label and QR code (example) A joining node requesting to join the S2 Access Control Class or the S2 Authenticated Class will obfuscate its Public Key by setting the bytes 1..2 to zeros (0x00) before transferring its key via The DSK may be used for out-of-band (OOB) authentication.

  • Page 14: Removed/Excluded

    LED type: RGB dimmable Normal mode Removed/Excluded The LED will be blinking blue in Mode 1 for 30 min after every power cycle and 10 min after S button pressed. Added/Included The LED will be blinking green in Mode 1 for 30 min after every power cycle and 10 min after S button pressed.

  • Page 15: Settings Mode With S Button

    Settings mode with S button Adding / Removing menu selected When the menu is selected the LED will be on blue, for maximum of 10 seconds. Adding / Removing menu - while pressing S- button - Add/Remove process selected When the menu is executing the LED will be blinking blue in Mode 3. Factory reset menu selected When the menu is selected the LED will be on red, for maximum of 10 seconds.

  • Page 16: Z-Wave® Parameters

    Overheat detected The LED will be blinking red in Mode 4 (4x) Power supply fault (power supply 230 V AC frequency or 24 V DC voltage fault) The LED will be blinking red in Mode 4 (3x) 10. Z-Wave® Parameters Parameter No.

  • Page 17: Parameter No. 19 - O (O1) Auto Off With Timer

    • 0 - Device saves last on/off status and restores it after a power failure • 1 - Device does not save on/off status and does not restore it after a power failure, it remains off Parameter No. 19 - O (O1) Auto OFF with timer If the load O (O1) is ON, you can schedule it to turn OFF automatically after the period of time defined in this parameter.

  • Page 18: Parameter No. 25 - Set Timer Units To S Or Ms For O (O1)

    Values & descriptions: • 0 - NO • 1 - NC Relay logic: Par-NO/NC Command (switch, Z-Wave…) Device output state NO (0) OFF (0 V) NO (0) ON (230 V) NC (1) ON (230 V) NC (1) OFF (0 V) Parameter No.

  • Page 19: Parameter No. 39 - Minimum Time Between Reports (O) O1

    NOTE: When the Device reports the power consumption (W), it will also automatically report the voltage (V) and current (A). NOTE: Regardless of the power consumption change in percentage, the report will not be sent more frequently than defined by Parameter No. 39. Parameter No.

  • Page 20: Parameter No. 92 - Smoke Alarm

    Values & descriptions: • 0 no action • 1 open relay • 2 close relay Parameter No. 92 - Smoke Alarm This parameter determines how the device should respond to the reports of alarm frames. The parameters consist of 4 bytes, the three most significant bytes are set according to the official Z-Wave protocol specification.

  • Page 21: Parameter No. 94 - Heat Alarm

    • NOTIFICATION_TYPE_CO_ALARM 0x02 Notification Events: • All except ALARM_NO_EVENT 0x00 Values size: 4 Byte Default value: 0 Values & descriptions: • 0 no action • 1 open relay • 2 close relay Parameter No. 94 - Heat Alarm This parameter determines how the device should respond to the reports of alarm frames. The parameters consist of 4 bytes, the three most significant bytes are set according to the official Z-Wave protocol specification.

  • Page 22: Parameter No. 120 - Factory Reset

    • 1 open relay • 2 close relay Parameter No. 120 - Factory Reset Reset to factory default settings and removed from the Z-Wave network. The parameter is Advanced and may be hidden under the Advanced tag. Values size: 1 Byte Default value: 0 Values &...

  • Page 23: Parameter No. 203 - Serial Number 3

    Default value: Device specific Values & descriptions: 0x00000000 - 0x7FFFFFFF Parameter No. 203 - Serial Number 3 This parameter contains a part of device’s serial number. The parameter is Read-Only and cannot be changed. The parameter is Advanced and may be hidden under the Advanced tag. Values size: 4 Byte Default value: Device specific Values &...
  • Page 24 19. ZWAVEPLUS_INFO_V2 [S2]* Security S2 Command Class NOTE: MAPPING OF COMMAND_CLASS_BASIC Supporting Command Class Basic COMMAND_CLASS_BASIC is mapped into COMMAND_CLASS_SWITCH_BINARY, for enabling Switch (O) control: Switch (O) will be turned ON or OFF, after receiving the BASIC_SET command: Basic Command received Mapped Command (binary Switch) Basic Set (0xFF) Switch Binary Switch (0xFF) Basic Set (0x00)

  • Page 25: Z-Wave Notifications Command Class

    12. Z-Wave Notifications Command class Overheat detected Comment Overheat detected Z-Wave Notification Type Name Heat Alarm Z-Wave Notification type - Value 0x04 Z-Wave Notification type - Event State Z-Wave Notification Name Overheat detected Z-Wave Notification Name - Value 0x02 Z-Wave Notification Name - Version Check LED signalisation LED signalisation table...

  • Page 26: Ac Mains Disconnected

    Device reaction - Switch OFF the output O (O1) and send a notification Action to restore - power cycle Action to restore - short press on S button Action to restore - press any switch-push button connected to any SW (SW, SW1, SW2, …) terminal AC mains disconnected AC mains disconnected (valid for AC Comment...

  • Page 27: Z-Wave Associations

    Z-Wave Notification Name Over-voltage detected Z-Wave Notification Name - Value 0x07 Z-Wave Notification Name - Version Check LED signalisation LED signalisation table Device reaction - Switch OFF all outputs and send notification Action to restore - power cycle Action to restore - short press on S button Action to restore - press any switch-push button connected to any SW (SW, SW1, SW2, …) terminal 13.

  • Page 28: Root Device - Association Group 3

    Association Group 2 Allowed nodes: 9 It is assigned to switch connected to the SW (SW1) terminal (uses Basic command class). Triggered by SW (SW1). The device sends according to the state of SW (SW1) (switch or push- button) the command BASIC_SET ON or BASIC_SET OFF to the associated device. This command is reflected to the output of associated device.

  • Page 29: Technical Specifications

    15. Technical Specifications Power supply 110 - 240 V AC, 50/60 Hz Power consumption < 0,3W Power measurement [W] Max. switching voltage AC 240 V Max. switching current AC Max switching power AC: 2000 W Max. switching voltage DC Max. switching current DC Overheating protection Overload protection Up to 40 m indoors (131 ft.)

  • Page 30: Important Disclaimer

    Hereby, Shelly Europe Ltd. (former Allterco Robotics EOOD) declares that the radio equipment type Wave 1PM Mini is in compliance with Directive 2014/53/ EU, 2014/35/EU, 2014/30/EU, 2011/65/EU. The full text of the EU declaration of conformity is available at the following internet address: https://shelly.link/Wave1PMMini-DoC...
