Shelly Plus 1 (3800235265529) Manual

Product Introduction

Before beginning the installation, please read carefully and entirely this guide and any other documents accompanying the device. Failure to follow the installation procedures could lead to malfunction, danger to your health and life, violation of law or refusal of legal and/or commercial guarantee (if any). Shelly Europe Ltd. is not responsible for any loss or damage in case of incorrect installation or improper operation of this device due to failure of following the user and safety instructions in this guide.

Shelly is a line of innovative microprocessor-managed devices, which allow remote control of electric circuits through a mobile phone, tablet, PC, or home automation system. Shelly devices can work standalone in a local Wi-Fi network or they can also be operated through cloud home automation services. Shelly Cloud is a service that can be accessed using either an Android or iOS mobile application or with any internet browser at https://control.shelly.cloud/.

Shelly devices can be accessed, controlled, and monitored remotely from any place where the user has internet connectivity, as long as the devices are connected to a Wi-Fi router and the Internet. Shelly devices have an Embedded Web Interface accessible at http://192.168.33.1 when connected directly to the device access point, or at the device IP address on the local Wi-Fi network. The embedded Web Interface can be used to monitor and control the device, as well as adjust its settings.

Shelly devices can communicate directly with other Wi-Fi devices through HTTP protocol. An API is provided by Shelly Europe Ltd. For more information, please visit: https://shelly-api-docs.shelly.cloud/#shelly-family-overview.

Shelly devices are delivered with factory-installed firmware. If firmware updates are necessary to keep the devices in conformity, including security updates, Shelly Europe Ltd. will provide the updates free of charge through the device Embedded Web Interface or the Shelly mobile application, where the information about the current firmware version is available. The choice to install or not the device firmware updates is the user's sole responsibility. Shelly Europe Ltd. shall not be liable for any lack of conformity of the device caused by failure of the user to install the provided updates in a timely manner.

Schematic

Legend

Device terminals:

• O: Relay output terminal
• I: Relay input terminal
• SW: Switch input terminal
• L: Live (110-240 VAC) terminal
• N: Neutral terminal
• 12V: DC positive terminal (12 V stabilized)
• : DC ground terminal
• DC positive terminal (24-48 V)

Wires:

• N: Neutral wire
• L: Live (110-240 VAC) wire
• GND: DC ground wire
• DC+: DC positive wire (24-48 V)
• 12V+: Positive wire (12 V stabilized)

Installation Instructions

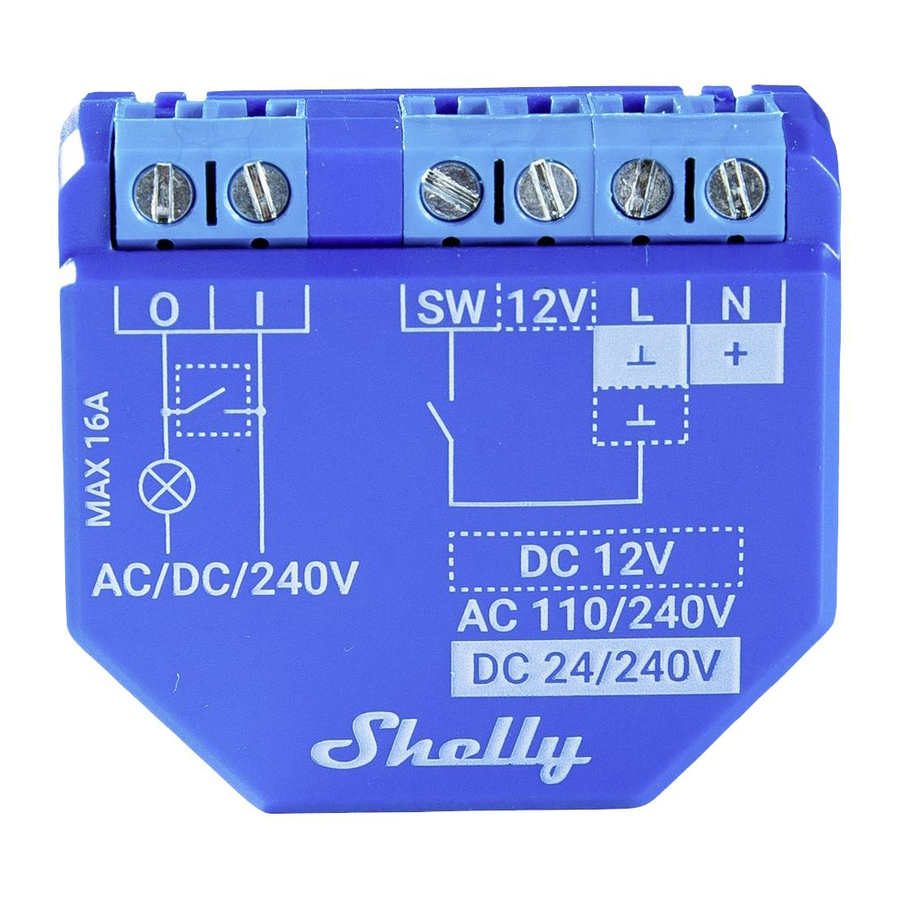

Shelly Plus 1 is a small form factor smart switch with potential-free contacts, which allows remote control of electric appliances.

It can be retrofitted into standard electrical wall boxes, behind power sockets and light switches or other places with limited space.

Danger of electrocution. Mounting/installation of the Device to the power grid has to be performed with caution, by a qualified electrician.

Danger of electrocution. Every change in the connections has to be done after ensuring there is no voltage present at the Device terminals.

Use the Device only with a power grid and appliances which comply with all applicable regulations. A short circuit in the power grid or any appliance connected to the Device may damage it.

Do not connect the Device to appliances exceeding the given max load!

Connect the Device only in the way shown in these instructions. Any other method could cause damage and/or injury.

Do not install the Device where it can get wet.

RECOMMENDATION Connect the Device using solid single-core cables with increased insulation heat resistance not less than PVC T105bC(221T).

Before starting the mounting/installation of the Device, check that the breakers are turned off and there is no voltage on their terminals. This can be done with a phase tester or multimeter.

When you are sure that there is no voltage, you can proceed to connecting the cables. Connect the load circuit to the Device I and O terminals.

If you are using AC power supply for the Device connect the Live wire to the Device L terminal, and the Neutral wire to the N terminal as shown on fig. 1.

Connect a switch or a button to the Device SW terminal and the Live wire.

If you are using 24-48 V DC power supply (fig. 2) connect the DC+ wire to the + and the GND wire to the terminals of the Device.
If you are using stabilized 12 V DC power supply (fig. 3), connect the 12V+ wire to the 12V terminal, instead to the + terminal. Connect the switch to the SW terminal and the GND wire

RECOMMENDATION:For inductive appliances that cause voltage spikes during switching on/off, such as electrical motors, fans, vacuum cleaners and similar ones, RC snubber (O.1 / 100 1/2 W/ 600 VAC) should be connected parallel to the appliance The RC snubber can be purchased at https://www.shelly.cloud/en/products/shop/rc-snubber.

Initial Inclusion

If you choose to use the Device with the Shelly Smart Control mobile application and cloud service, instructions On how to connect the Device to the Cloud and control it through the Shelly Smart Control app can be found in the mobile application guide.

The Shelly mobile application and Shelly Cloud service are not conditions for the Device to function properly. This Device can be used standalone or with various Other home automation platforms and protocols.

Do not allow children to play with the buttons/ switches connected to the Device. Keep the devices for remote control of Shelly (mobile phones, tablets, PCs) away from children.

Specification

• Dimensions (HxWxD): 37x42x16 mm / 1.46x1.65xo.63 in
• Ambient temperature: -20C to 40C / -5F to 105F

• Humidity 30% to 70% RH
• Max. altitude 2000 m / 6562 ft
• Power supply AC: 110-240 V, 50/60 Hz
• Power supply DC: 12 V +/- 10%/ 24-48 V
• Electrical consumption: < 1.2 W
• Max switching voltage AC: 240 V
• Max switching voltage DC: 30 V
• Max switching current AC: 15 A
• Max switching current DC: 10 A
• Potential-free contacts: Yes
• Overtemperature Protection: Yes
• RF band: 2400-2495 MHz
• Max. RF power: < 20 dBm
• Wi-Fi protocol: 802,11 b/g/n
• Wi-Fi operational range (depending on local conditions):
  • up to 50 m / 160 ft outdoors
  • up to 30 m / 100 ft indoors
• Bluetooth protocol: 4.2
• Bluetooth operational range (depending on local conditions):
  • up to 30 m / 100 ft outdoors
  • up to 10 m/ 33 ft indoors
• CPU ESP32
• Flash: 4 MB
• Schedules: 20
• Webhooks (URL actions): 20 with 5 URLs per hook
• Scripting: mJS
• MQTT: Yes

Manufacturer: Shelly Europe Ltd.

Address: 103 Cherni vrah Blvd, 1407 Sofia, Bulgaria

Tel.: +359 2 988 7435

E-mail: support@shelly.cloud

Official website: https://www.shelly.com

Changes in the contact information data are published by the Manufacturer on the official website.
