Shelly Plus 1PM UL
Short description

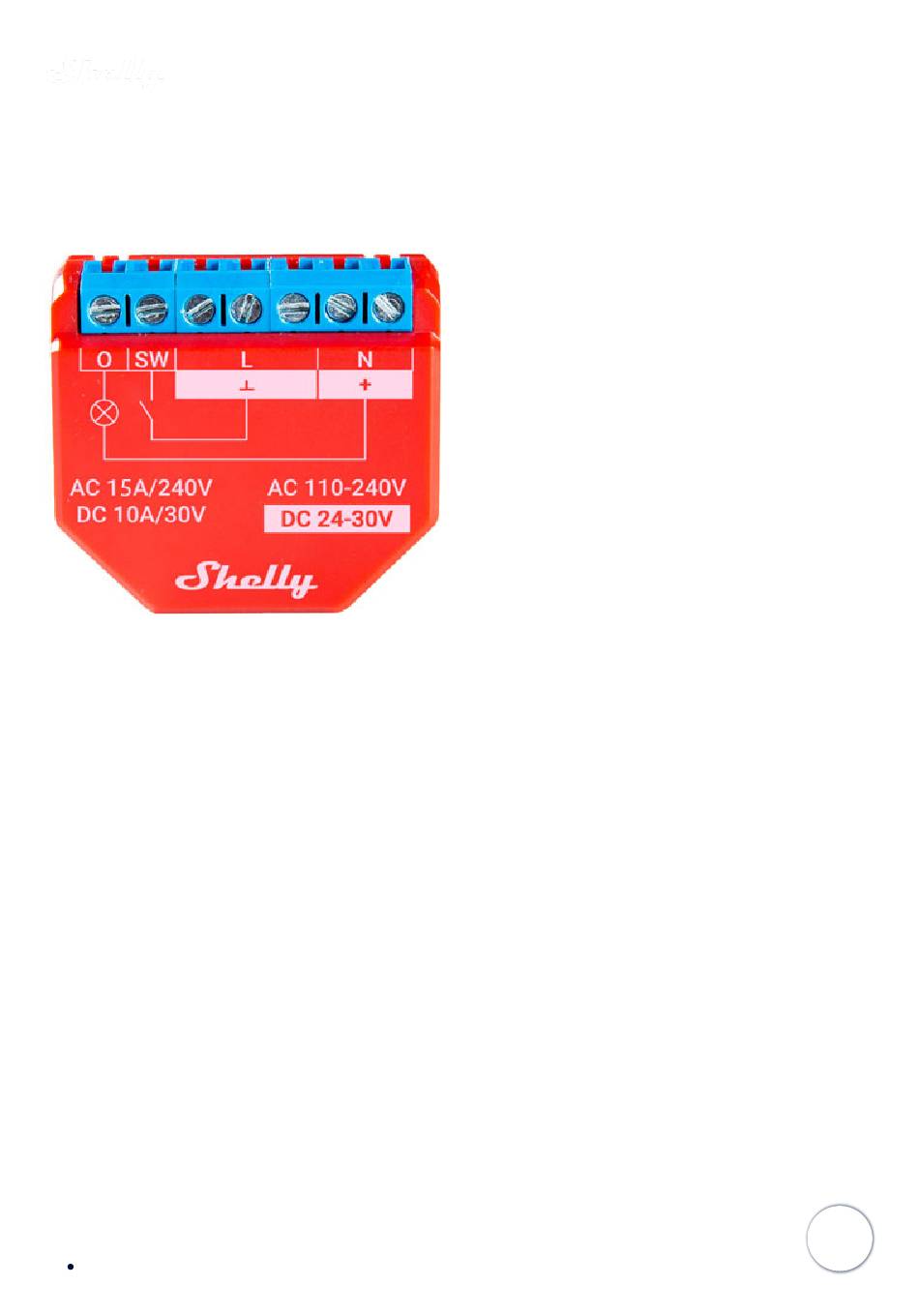

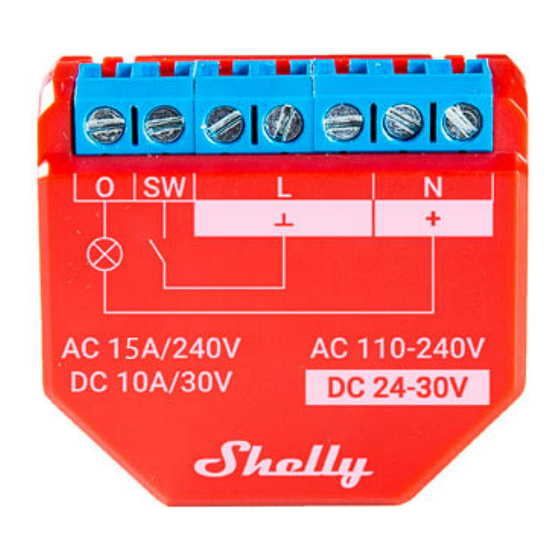

The Shelly Plus 1PM UL is a UL-certified small form factor smart switch with power
measurement, which allows remote control of electric appliances through a mobile phone, tablet,
PC, or home automation system. It can work standalone in a local Wi-Fi network or it can also be
operated through cloud home automation services.
The Shelly Plus 1PM UL can be accessed, controlled and monitored remotely from any place
where the User has internet connectivity, as long as the device is connected to a Wi-Fi router and
the Internet.
It can be retrofitted into standard electrical wall boxes, behind power sockets and light switches
or other places with limited space.
The Shelly Plus 1PM UL has embedded Web Interface which can be used to monitor and control
the device, as well as adjust its settings.
Device identification
Device name: Shelly Plus 1PM UL
https://kb.shelly.cloud/knowledge-base/shelly-plus-1pm-ul
/
Shelly Plus devices
Shelly Plus 1PM UL
1/10
Advertisement
Related Manuals for Shelly Plus 1PM UL
Summary of Contents for Shelly Plus 1PM UL
- Page 1 It can be retrofitted into standard electrical wall boxes, behind power sockets and light switches or other places with limited space. The Shelly Plus 1PM UL has embedded Web Interface which can be used to monitor and control the device, as well as adjust its settings.
-
Page 2: Main Applications
26/08/2024, 14:41 Shelly Plus 1PM UL Device model: SNSW-001P15UL Device SSID: ShellyPlus1PM-XXXXXX Main applications Residential MDU (Multi Dwelling Units - apartments, condominiums, hotels, etc.) Light commercial (small office buildings, small retail/restaurant/gas station, etc.) Government/municipal University/college Integrations Amazon Alexa supported capabilities... - Page 3 26/08/2024, 14:41 Shelly Plus 1PM UL Device electrical interfaces Inputs 1 switch/button input on screw terminal: SW 5 power supply inputs on screw terminals: 2 N (+) and 3 L ( ) Outputs 1 relay output with power measurement on screw terminal: O...
-
Page 4: Safety Features
26/08/2024, 14:41 Shelly Plus 1PM UL ⚠CAUTION! High voltage on the add-on interface when the Device is powered! Connectivity Wi-Fi Bluetooth Safety features Overheating protection Overvoltage protection Overcurrent protection Overpower protection Supported load types Resistive (incandescent bulbs, heating devices) Capacitive (capacitor banks, electronic equipment, motor start capacitors) -
Page 5: User Interface
26/08/2024, 14:41 Shelly Plus 1PM UL User interface Inputs One (Reset) button Press and hold for 5 seconds to enable Device access point and Bluetooth connection. Press and hold for 10 seconds to factory reset the Device. Outputs LED (monocolor) indication... -
Page 6: Specifications
26/08/2024, 14:41 Shelly Plus 1PM UL Specifications Type Value Physical Size (HxWxD): 37x42x16 / 1.46x1.65x0.63 Weight: 27 g / 0.95 oz Mounting: Wall console Screw terminals max torque: 0.4 Nm / 3.5 lbin Conductor cross section: 0.5 to 1.5 mm² / 20 to 14 AWG Conductor stripped length: 5 to 6 mm / 0.20 to 0.24 in... - Page 7 26/08/2024, 14:41 Shelly Plus 1PM UL Output circuits ratings Max switching voltage AC: 240 V (Single wire) Max switching voltage DC: 30 V Max switching current AC: 15 A Max switching current DC: 10 A Sensors, meters Internal-temperature sensor: Voltmeter (AC)
-
Page 8: Basic Wiring Diagrams
26/08/2024, 14:41 Shelly Plus 1PM UL Flash: 4 MB Firmware capabilities Schedules: Webhooks (URL actions): 20 with 5 URLs per hook Scripting: MQTT: CoAP: Basic wiring diagrams 110-240 VAC power supply 110-240 VAC power supply Resistive load Inductive load and RC snubber https://kb.shelly.cloud/knowledge-base/shelly-plus-1pm-ul... - Page 9 26/08/2024, 14:41 Shelly Plus 1PM UL 24-30 VDC power supply 24-30 VDC power supply Resistive load Inductive load and RC snubber Legend Terminals Wires Load circuit output terminal 24 - 30 VDC positive wire Switch (controlling O) input Neutral wire...
-
Page 10: Troubleshooting
Shelly Plus 1PM UL bilingual printed user and safety guide.pdf Privacy policy / Cookie policy / Support / FB community support / Contact us Copyright © 2024 Shelly Cloud. Allterco Robotics OOD • Powered by Scroll Viewport & Atlassian Confluence • Reset cookie settings https://kb.shelly.cloud/knowledge-base/shelly-plus-1pm-ul...
