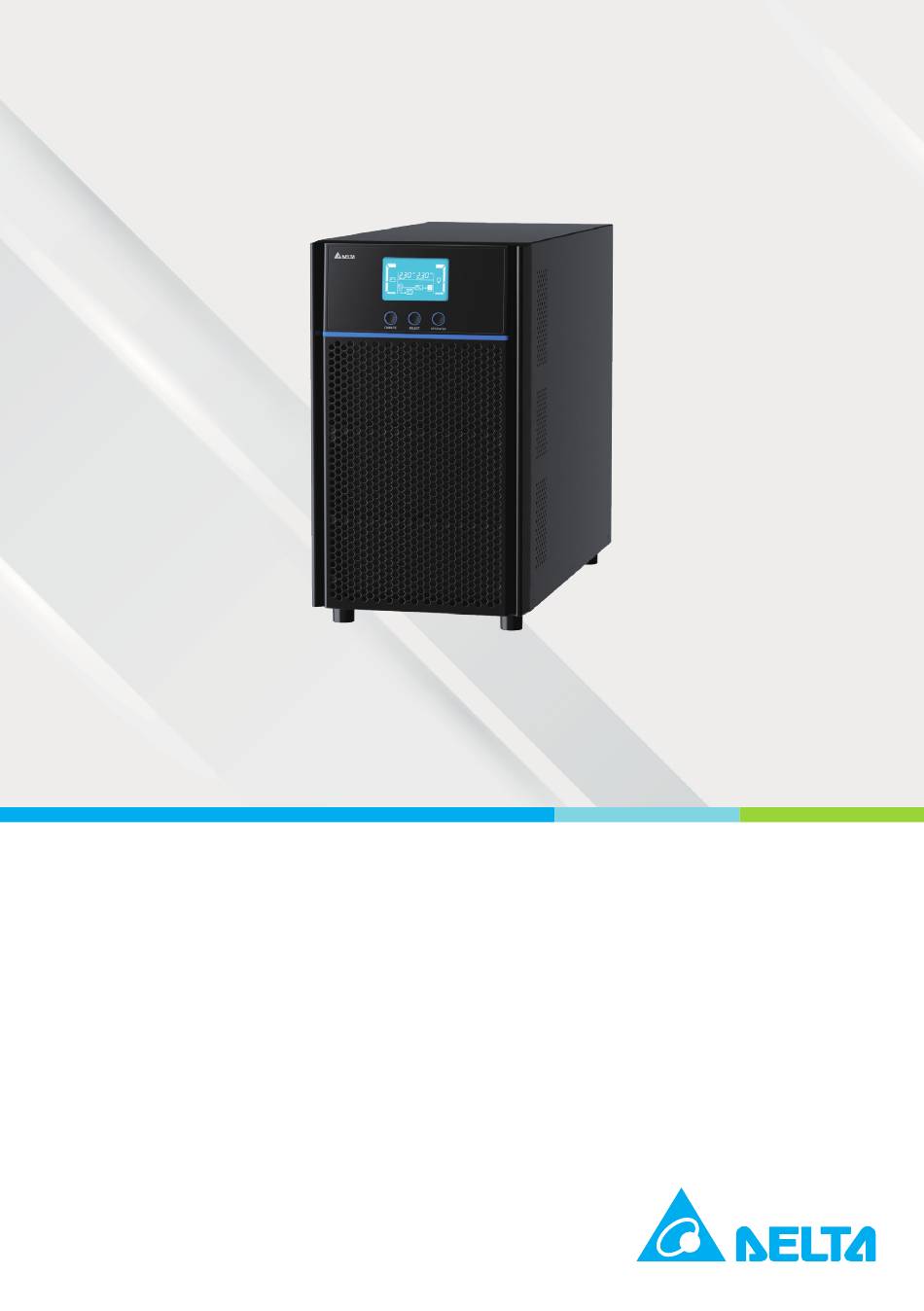

- Page 1 The power behind competitiveness Delta UPS Amplon Family N Gen3 Series, Single Phase 1/ 2/ 3 kVA User Manual www.deltaww.com...
- Page 2 Failure to heed these instructions and warnings will void the warranty. Copyright © 2024 by Delta Electronics Inc. All Rights Reserved. All rights of this User Manual (“Manual”), including but not limited to the contents, information, and figures are solely owned and reserved by Delta Electronics Inc.
-
Page 3: Table Of Contents
Table of Contents Table of Contents Chapter 1 : Important Safety Warnings ---------------------------------- 1 Transportation ------------------------------------------ 1 Preparation --------------------------------------------- 1 Installation ---------------------------------------------- 1 Operation ----------------------------------------------- 2 Maintenance, Service and Faults ------------------------ 2 Packing List --------------------------------------------- 3 Chapter 2 : Installation and Setup ---------------------------------------4 Rear Panel View ----------------------------------------- 4 Operating Principle -------------------------------------- 6 Setup the UPS ------------------------------------------ 6... -
Page 4: Chapter 1 : Important Safety Warnings
(e.g. laser printers) to the UPS output sockets. It is not recommended to connect the UPS with following type of loads. For the load suitability please contact Delta customer service before purchasing. 1. Regenerative loads (e.g. CNC machine and lifts) 2. -
Page 5: Operation
Chapter 1 Important Safety Warnings When installing the equipment, please ensure that the sum of the leakage cur- rent of the UPS and the connected devices does not exceed 3.5mA. Operation Do not disconnect the mains on the UPS system or the building wiring outlet (shockproof socket outlet) during operations since this would cancel the pro- tective earthing of the UPS system and of all connected loads. -
Page 6: Packing List
Screw (for Mini SNMP IPv6 card) 2 PCS NOTE : For more model information, please refer to Appendix I: Technical Specifications . This item may differ according to different models, please refer to Table 1 . Delta UPS N Gen3 1/ 2/ 3 kVA... -
Page 7: Chapter 2 : Installation And Setup
Chapter 2 Installation and Setup Chapter 2 : Installation and Setup NOTE : Before installation, please inspect the unit. Be sure that nothing inside the package is damaged. Please keep the original package in a safe place for future use. Rear Panel View Standard Runtime Model UPA102N2NX0B035/... - Page 8 OUTPUT 10A MAX. Extended Runtime Model UPSNX102CB6N0-V INPUT BREAKER EXTERNAL BATTERY 36VDC,50A MAX. INPUT 10A MAX. OUTPUT 10A MAX. Item AC input Input circuit breaker USB port RS-232 port Mini slot Output socket Delta UPS N Gen3 1/ 2/ 3 kVA...
-
Page 9: Operating Principle
Chapter 2 Installation and Setup Item External battery connector Output terminal REPO Port Operating Principle The operating principle of the UPS is shown as below: Setup the UPS Step 1: Connection of battery wires (optional) NOTE : Only applicable to KC (0BA) model and extended runtime model. - Page 10 Plug the UPS into a two-pole, three-wire, grounded receptacle only. Avoid using extension cords. The power cord will be delivered with the UPS. For the type of power cord, please refer to the table below. Delta UPS N Gen3 1/ 2/ 3 kVA...
- Page 11 Chapter 2 Installation and Setup Table 1: Power Cords for Different UPS Models Type of Power Cord UPA102N2NX0B035 1kVA Plug IEC C14 UPA202N2NX0B035 2kVA Plug IEC C14 UPA302N2NX0B035 3kVA Plug IEC C20 UPA102N2NX0B0BA 1kVA Plug IEC C14 UPA302N2NX0B0BA 3kVA Plug IEC C20 UPA202N2NX0B0BB 2kVA Plug 10A Australia...
- Page 12 UPS shutdown/ start-up and monitor UPS status via your PC. The UPS is equipped with a Mini slot perfect for Delta Mini SNMP IPv6, Mini Relay I/O, or Mini Modbus card (optional). After the Mini card is installed in the UPS, advanced communication and monitoring functions will be available.
-
Page 13: Battery Replacement
Chapter 2 Installation and Setup NOTE : The REPO port can also be used for ROO application, which allows you remotely turn on/ off the inverter. If you need detailed ROO information or ROO setup service, please contact your local dealer or customer service. Step 6: Turn-on of the UPS Press the ON/ MUTE button on the front panel for two seconds to power on the UPS. -
Page 14: Chapter 3 : Operation
UPS will transfer to standby mode without any output. Please 3.5 UPS Setting- 06: Bypass enable/ disable when refer to the UPS is off Delta UPS N Gen3 1/ 2/ 3 kVA... -
Page 15: Lcd Panel
Chapter 3 Operation Button Function OFF/ ENTER Confirm selection key: Press this button to confirm selection Button in setting mode. Switch LCD message: Press this button to change the LCD message for input voltage, input frequency, battery voltage, output voltage and output frequency. It will return to default display when pausing for 10 seconds. - Page 16 Indicates overload. Indicates the load or the UPS output is short circuit. Mode operation information Indicates the UPS connects to the mains. Indicates the battery is working. Indicates the bypass circuit is working. Delta UPS N Gen3 1/ 2/ 3 kVA...
-
Page 17: Audible Alarm
Chapter 3 Operation Display Function Indicates the ECO mode is enabled. Indicates the inverter circuit is working. Indicates the output is working. Battery information Indicates the battery level by 0-25%, 26-50%, 51-75%, and 76-100%. Indicates the battery is fault. Indicates low battery level and low battery voltage. Input &... -
Page 18: Lcd Display Wordings Index
LCD Display Wordings Index Abbreviation Display Content Meaning Enable Disable Escape High loss Low loss Battery Converter Temperature Charger Bypass frequency unstable EEPROM error Delta UPS N Gen3 1/ 2/ 3 kVA... -
Page 19: Ups Setting
Chapter 3 Operation UPS Setting There are three parameters to set up the UPS. Parameter 1 Parameter 2 Parameter 3 Parameter 1: It is for function selection. Refer to the table below. Parameter 2 and Parameter 3 are the setting options or values for each program. 01: Output voltage setting Parameter 3: Output voltage You may choose the following output voltage:... - Page 20 BAT 50: presents output frequency 50Hz BAT 60: presents output frequency 60Hz If the converter mode is enabled, you may choose the following output frequency. CF 50: presents output frequency 50Hz CF 60: presents output frequency 60Hz Delta UPS N Gen3 1/ 2/ 3 kVA...
- Page 21 Chapter 3 Operation 04: ECO enable/ disable Parameter 3: Enable or disable ECO function. You may choose the following two options. ENA: ECO mode enable DIS: ECO mode disable (Default) 05: ECO voltage range setting Parameter 2 & 3: Set an acceptable high voltage point and a low voltage point for ECO mode by pressing the Down key or Up key.
- Page 22 230-264: setting the high voltage point in parameter 3 from 230Vac to 264Vac. (Default: 264Vac) LLS: Bypass low voltage point 170-220: setting the low voltage point in parameter 3 from 170Vac to 220Vac. (Default: 170Vac) Delta UPS N Gen3 1/ 2/ 3 kVA...
- Page 23 Chapter 3 Operation 08: Discharging time limitation Parameter 3: Set the discharging time limitation in battery mode for general outlets. 0 ~ 999: Set up the discharging time limitation in minutes from 0 ~ 999 for general outlets in battery mode. 0: When setting as “0”, the discharging time will be only 10 seconds.
-
Page 24: Operating Mode Description
When the input frequency is be- tween 40 Hz and 70 Hz, the UPS can be set at a constant output frequency, 50 Hz or 60 Hz. The UPS will still charge batteries under this mode. Delta UPS N Gen3 1/ 2/ 3 kVA... -
Page 25: Faults Reference Code
Chapter 3 Operation Battery Mode W h e n t h e i n p u t vo l t a g e i s beyond the acceptable range or a power failure has occurred, the UPS will backup power from batteries and an alarm will be sounding every 4 seconds. -
Page 26: Warning Indicator
Sounding every second Charger failure Sounding every second Battery fault Sounding every second Out of bypass voltage range Sounding every second Bypass frequency unstable Sounding every second EEPROM error Sounding every second Delta UPS N Gen3 1/ 2/ 3 kVA... -
Page 27: Chapter 4 : Optional Accessories
Chapter 4 Optional Accessories Chapter 4 : Optional Accessories Item Function Mini SNMP Monitoring and control for the status of the UPS via IPv6 Card a network system. Mini Relay Increase of the dry contact number. I/O Card Provision of the Modbus communication Mini Modbus Card function for the UPS. -
Page 28: Chapter 5 : Troubleshooting
Remove excess loads the UPS is locked in bypass from the UPS output mode. Connected devices first. Then shut down are fed directly by the the UPS and restart it. mains. Delta UPS N Gen3 1/ 2/ 3 kVA... - Page 29 Chapter 5 Troubleshooting Symptom Possible Cause Remedy Error code 43 is shown The UPS shuts down Remove excess loads and the icon lighting on the LCD automatically because of from the UPS output display and the alarm is overload at the UPS output. and restart it.
-
Page 30: Chapter 6 : Storage And Maintenance
Storage Temperature Recharge Frequency Charging Duration -25°C ~ 40°C Every 3 months 1 ~ 2 hours (-13°F ~104°F) 40°C ~ 45°C Every 2 months 1 ~ 2 hours (104°F ~ 113°F) Delta UPS N Gen3 1/ 2/ 3 kVA... -
Page 31: Appendix 1 : Technical Specifications
Appendix 1 : Technical Specifications Appendix 1 : Technical Specifications Standard Runtime Model Model NX-1K NX-2K NX-3K 3kVA/2.7kW Power Rating kVA/kW 1kVA/0.9kW 2kVA/1.8kW Nominal Voltage 220/230 Vac Phase/Wire 1P2W + PE 180 ~ 285 Vac (100% load) Voltage Range 120 ~ 180 Vac Input (with derating to 60 ~ 100% load) Frequency... - Page 32 Packing Weight (22.71 lb) (41.01 lb) (62.61 lb) 0 ~ 50°C (32 ~ 122°F) Operating (40 ~ 50°C (104 ~ 122°F) Temperature Environment de-rating to 70% load) Humidity 20 ~ 90% (non-condensing) Delta UPS N Gen3 1/ 2/ 3 kVA...
- Page 33 Appendix 1 : Technical Specifications Model NX-1K NX-2K NX-3K Audible Noise < 45 dBA* 0~3000m (0~9842.52 ft) (derating 1% per 100m (328.08 ft) Altitude from 1501m (4924.54 ft) Environment to 3000m (9842.52 ft) ) (Continued) Storage -20 ~ 50°C (-4 ~ 122°F) Temperature Ingress IP20...
- Page 34 IEC C13 × 4 ≤ 105%: continues; 106 ~ 110%: 10 mins; Overload Capability 111 ~ 130%: 1 min; 131 ~ 150%: 3 secs; Current Crest Ratio Online Mode Battery Mode Efficiency ECO Mode Delta UPS N Gen3 1/ 2/ 3 kVA...
- Page 35 Appendix 1 : Technical Specifications Model NX-1K Battery Type VRLA Battery Nominal Battery 36 Vdc Voltage Charge Current Display LCD display with LED indicators Communication Interfaces Ports USB port, RS-232 port, Mini slot Dimensions 145 × 282 × 220 mm W ×...
- Page 36 Audible noise test with UPS < 70% load at 25°C (77°F) in online mode. 3. Please refer to the rating label for the safety certification. 4. All specifications are subject to change without prior notice. Delta UPS N Gen3 1/ 2/ 3 kVA...
-
Page 37: Appendix 2 : Warranty
Appendix 2 Warranty Appendix 2 : Warranty Seller warrants this product, if used in accordance with all applicable instructions, to be free from original defects in material and workmanship within the warranty period. If the product has any failure problem within the warranty period, Seller will repair or replace the product at its sole discretion according to the failure situation. - Page 39 T +81-3-5733-1111 +86 21 5863 9595 E jpstps@deltaww.com E ups.china@deltaww.com Singapore South Korea Delta Electronics Int’l (Singapore) Pte Ltd. Delta Electronics (Korea), Inc. 17 Kallang Junction, #01-01, TRION, 1511, Byucksan Digital Valley 6-cha, Gasan-dong, Geumcheon-gu, Seoul, Korea, 153-704 Singapore 339274...
