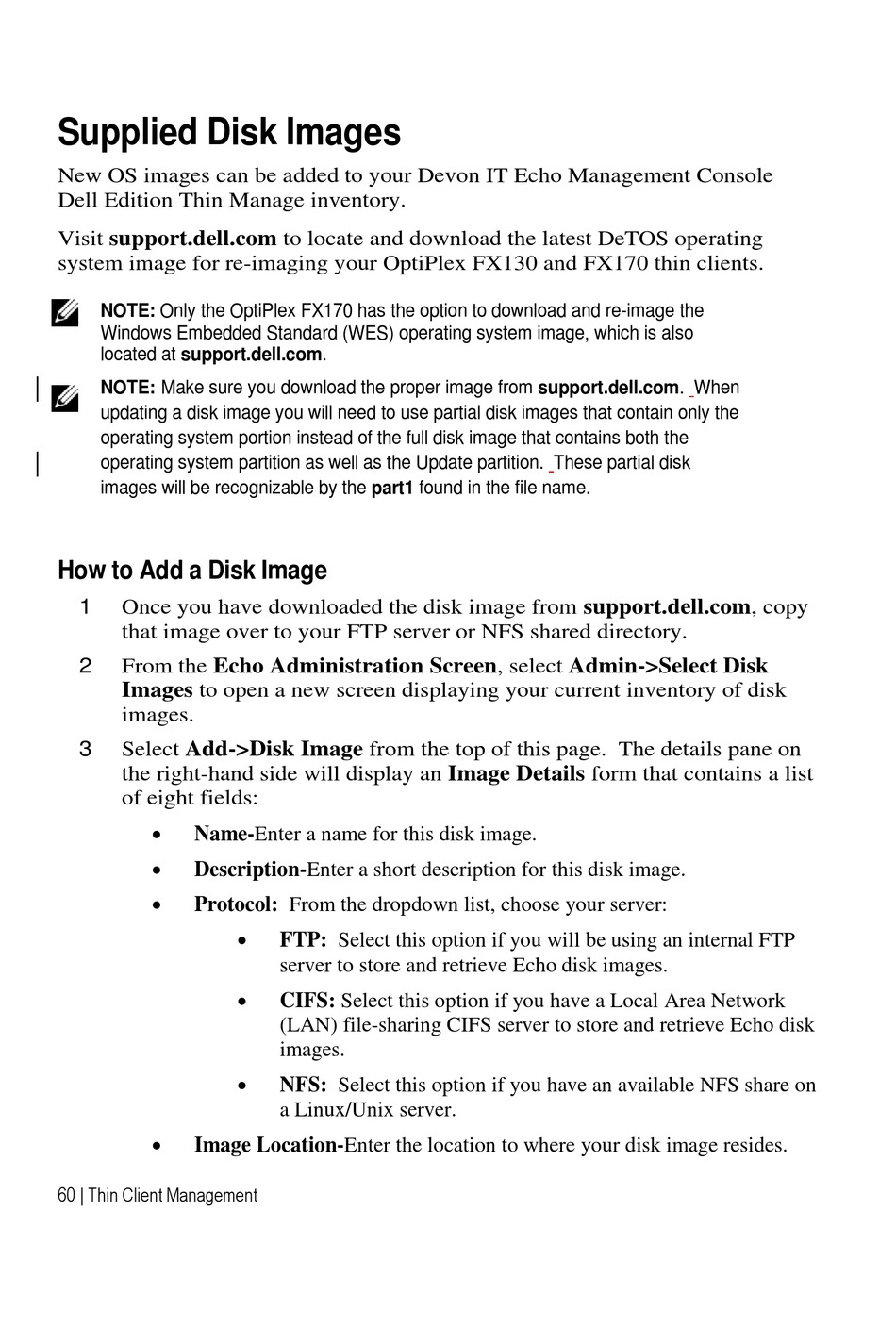

Supplied Disk Images

New OS images can be added to your Devon IT Echo Management Console
Dell Edition Thin Manage inventory.
Visit support.dell.com to locate and download the latest DeTOS operating
system image for re-imaging your OptiPlex FX130 and FX170 thin clients.
NOTE: Only the OptiPlex FX170 has the option to download and re-image the
Windows Embedded Standard (WES) operating system image, which is also
located at support.dell.com.
NOTE: Make sure you download the proper image from support.dell.com. When
updating a disk image you will need to use partial disk images that contain only the
operating system portion instead of the full disk image that contains both the
operating system partition as well as the Update partition. These partial disk
images will be recognizable by the part1 found in the file name.
How to Add a Disk Image
1
Once you have downloaded the disk image from support.dell.com, copy
that image over to your FTP server or NFS shared directory.
2
From the Echo Administration Screen, select Admin->Select Disk
Images to open a new screen displaying your current inventory of disk
images.
3
Select Add->Disk Image from the top of this page. The details pane on
the right-hand side will display an Image Details form that contains a list
of eight fields:

Name-Enter a name for this disk image.

Description-Enter a short description for this disk image.

Protocol: From the dropdown list, choose your server:

Image Location-Enter the location to where your disk image resides.
60 | Thin Client Management

FTP: Select this option if you will be using an internal FTP
server to store and retrieve Echo disk images.

CIFS: Select this option if you have a Local Area Network
(LAN) file-sharing CIFS server to store and retrieve Echo disk
images.

NFS: Select this option if you have an available NFS share on
a Linux/Unix server.
