Clicking the Change eth0 option will allow you to make changes to your Echo‟s IP
configuration. If no changes are necessary, and no further configuration is required,
select No Changes and press <Enter> to continue.
Static IP Configuration
If DHCP is not available on your LAN, then you must manually set a static IP
address for the Echo server. Select the option Change eth0... from the
Networking menu.
1

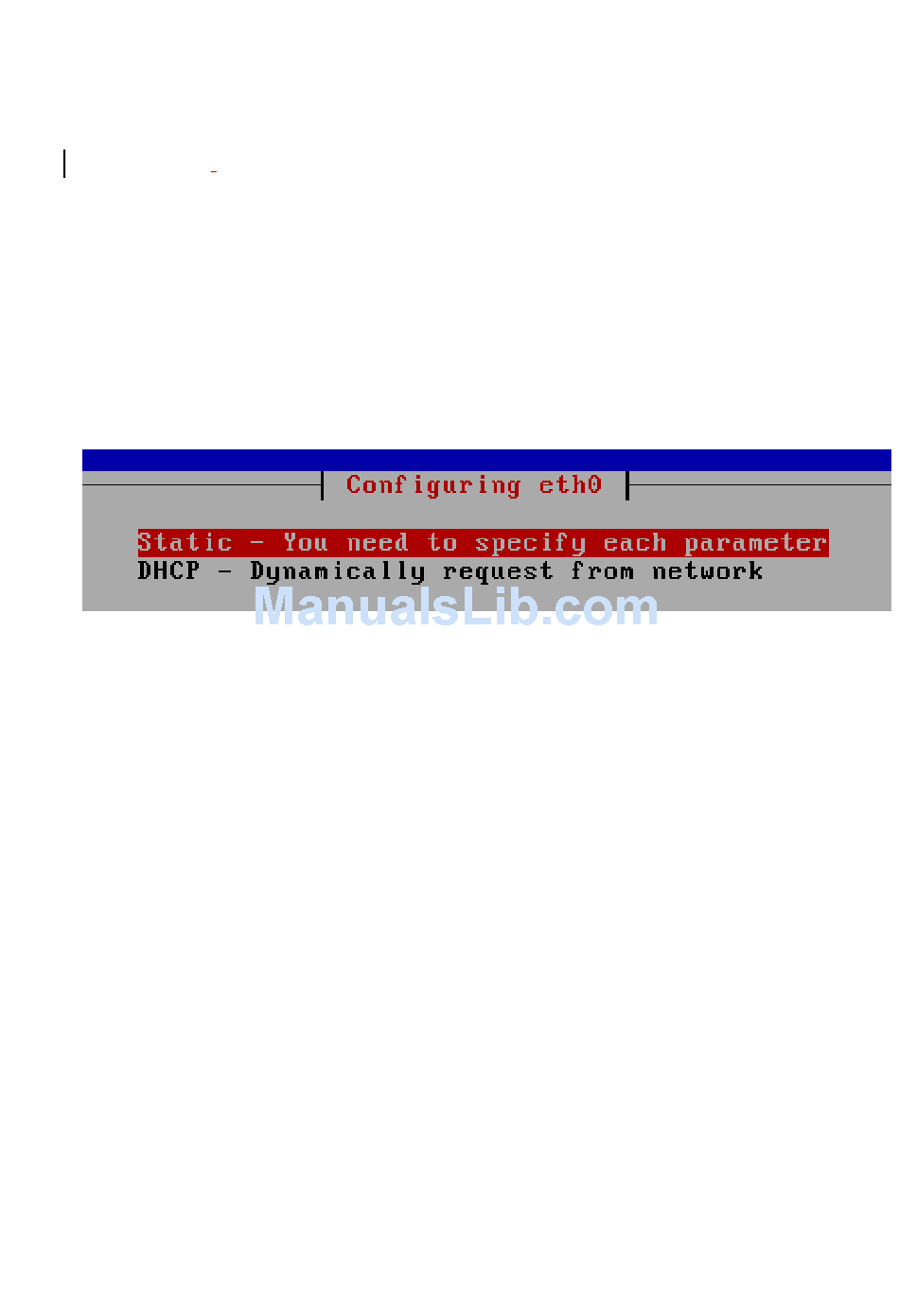

On the next screen named Configuring eth0... select the Static option
and press the OK button.
2 Enter the IP address to use as Echo's static IP. Press OK to continue.
3
Enter the subnet mask and then press OK to continue.
4
Enter the gateway IP address and press OK again.
5
Once these three values have been entered, you will be asked to confirm
the new static settings. Select Yes to apply the new settings. Otherwise,
select No to discard these changes.
6
After selecting Yes, the network interface will restart and you will be
presented Echo's Main Menu.
