SIMPLIHOME brooklyn + max WyndenHall AXCHRP-21 Manual

Harper / pearson / thompson 9 cube storage
Hide thumbs

Advertisement

Quick Links

Download this manual

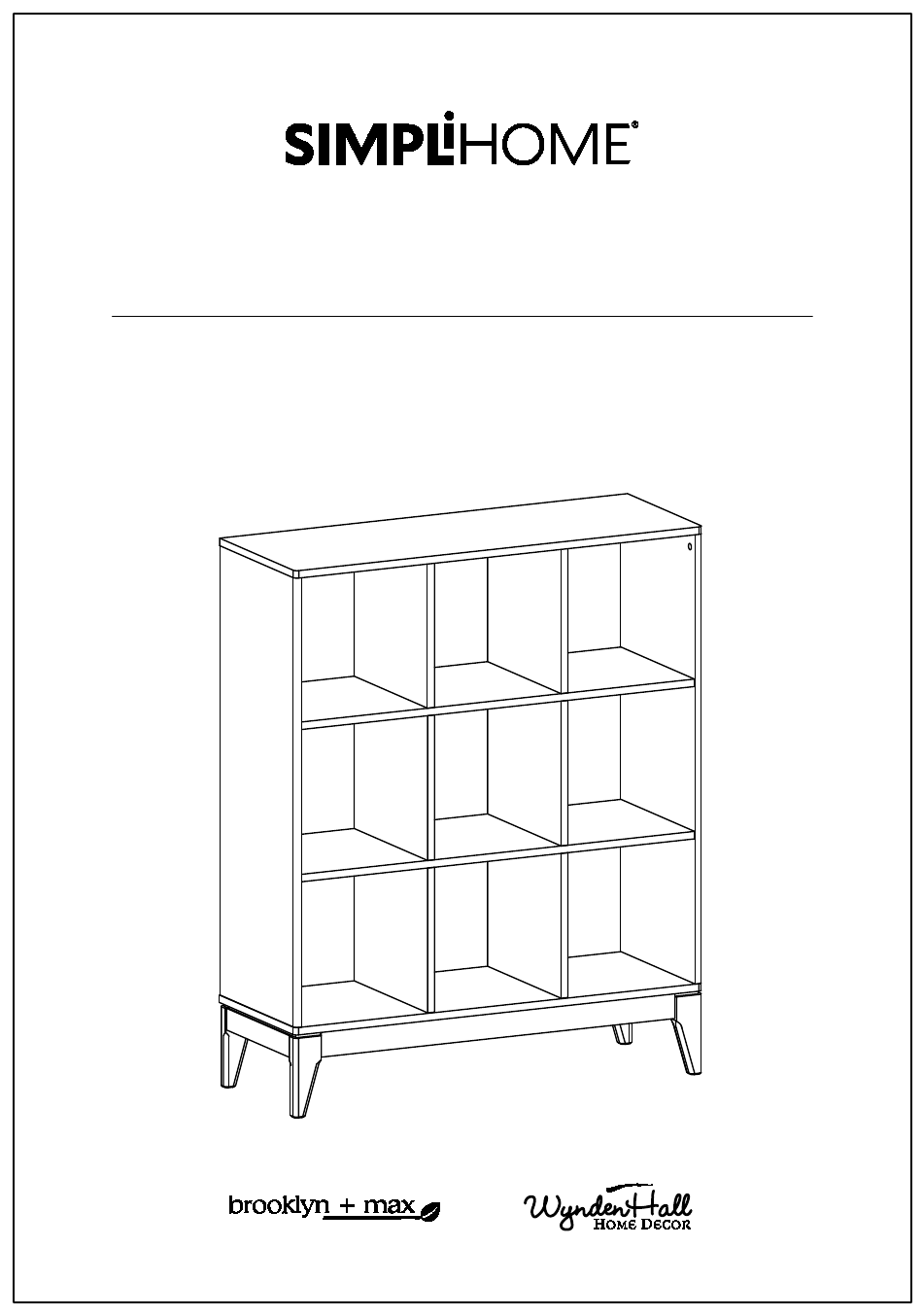

Harper / Pearson / Thompson
9 Cube Storage
Model # AXCHRP-21
TM
TM
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the brooklyn + max WyndenHall AXCHRP-21 and is the answer not in the manual?

Questions and answers

Related Manuals for SIMPLIHOME brooklyn + max WyndenHall AXCHRP-21

Summary of Contents for SIMPLIHOME brooklyn + max WyndenHall AXCHRP-21

  • Page 1 Harper / Pearson / Thompson 9 Cube Storage Model # AXCHRP-21...
  • Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Activate your 1-year warranty ü...
  • Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards.
  • Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order information and issue. Submit form.

  • Page 5: Safety Information

    IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information CAUTION: Injuries and damage can occur from furniture tip over if product is not properly anchored to the wall. Use the Furniture Anti-Tipping Restraint provided with the product.

  • Page 6: Care And Maintenance

    Care & Maintenance This furniture is designed for indoor use. Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. Making matters worse, it expands and contracts unequally along different grain directions.
  • Page 7 Pre-Assembly Information Model # AXCHRP-21 Part Description LEFT SIDE RIGHT SIDE QTY 1 QTY 1 QTY 1 DIVIDER BOTTOM SHELF MIDDLE SHELF QTY 6 QTY 1 QTY 2 Warning Label LEFT BACK PANEL RIGHT BACK PANEL QTY 2 QTY 1 QTY 1 MIDDLE BACK PANEL QTY 1...
  • Page 8 Pre-Assembly Information Model # AXCHRP-21 Hardware Description ALLEN KEY SCREW CAM LOCK PIN ALLEN KEY M6 X 30mm CAM LOCK QTY 1 QTY 24 QTY 36 SETS PHILLIPS SCREW WOOD DOWEL ROUND HEAD Ø8 X 30mm M4 X 15mm QTY 20 QTY 40 M4 X 25mm - QTY 2 ( 1 is extra )
  • Page 9 Components - Key Diagram Model # AXCHRP-21...
  • Page 10 Assembly Model # AXCHRP-21 Step 1 1. Attach Cam Lock Pins 2 into pre-drilled holes on Top A , Middle Shelves D and Sides BL , BR . 2. Use Phillips screwdriver to secure Cam Lock Pins. Do not over-tighten.
  • Page 11 Assembly Model # AXCHRP-21 Step 2 1. Insert Dowels 4 into guide holes on Sides BL , BR and Dividers E . 2. Use rubber mallet to tap Dowels 4 into bottom of holes securely. 1/3 length of Dowels should be exposed.
  • Page 12 Assembly Model # AXCHRP-21 Step 3 1. Align Wood Dowels with guide holes on Middle Shelf D and attach Dividers E to Middle Shelf D . 2. Use two Allen Key Screws 1 to attach each Divider E to Middle Shelf D through guide holes. 3.
  • Page 13 Assembly Model # AXCHRP-21 Step 4 1. Repeat Step 3 for the second Middle Shelf D . 2. Repeat Step 3 for Dividers E .
  • Page 14 Assembly Model # AXCHRP-21 Step 5 1. Align Cam Lock Pins with guide holes on Middle Shelves D and attach Sides BL , BR to Middle Shelves D . 2. Insert six Cam Locks 2 into guide holes on each Middle Shelf D . 3.
  • Page 15 Assembly Model # AXCHRP-21 Step 6 1. Align Wood Dowels with guide holes on Bottom Shelf C and attach Bottom Shelf C to Sides BL , BR and Dividers E . 2. Use ten Allen Key Screws 1 to attach Bottom Shelf C to Sides BL , BR and Dividers E through guide holes.
  • Page 16 Assembly Model # AXCHRP-21 Step 7 1. Attach Legs F to Bottom Shelf C . 2. Use eight sets Allen Key Bolts, Lock Washers and Washers 6 to secure Bottom Shelf C and Legs F (four sets on each Leg). 3.
  • Page 17 Assembly Model # AXCHRP-21 Step 8 1. Align Cam Lock Pins and Wood Dowels with guide holes and attach Top A to Sides BL , BR and Dividers E . 2. Insert three Cam Locks 2 into guide holes on each Side BL , BR and Dividers E . 3.
  • Page 18 Assembly Model # AXCHRP-21 Step 9 Note: Warning Label 1. Attach Back Panels GL , GR , G to back frame of cube storage using Phillips Screws Round Head 5 through guide holes. 2. Use Phillips Screwdriver to tighten screws. Do not over-tighten.
  • Page 19 Assembly Model # AXCHRP-21 Step 10 1. Insert three Plastic Caps 7 into holes Cam Locks on each Side BL , BR and each Divider E .
  • Page 20 Furniture Tip Over Restraint Assembly WARNING Serious or fatal crushing injuries can occur from furniture tip-over. If the furniture tip over restraint kit is not in the box, please contact our customer service department in order to obtain another kit before using the furniture. Step 11 NOTE: The screwdriver is not included in the hardware pack.
  • Page 21 Furniture Anti-Tipping Restraint Instructions Attach one of the mounting brackets securely to the back edge of the furniture. Use the shorter screw. Determine where furniture is to be placed and mark location on the wall for mounting bracket screw hole approximately 2 inches below the bracket mounted to the furniture.
