SIMPLIHOME brooklyn + max WyndenHall AXCHRP-8A Manual

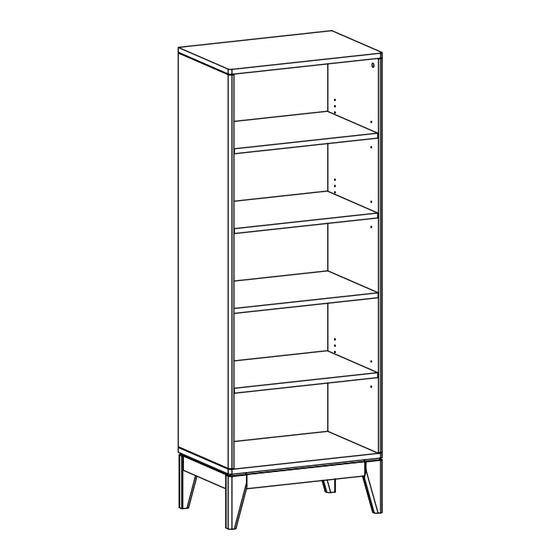

Harper / pearson / thompson 5 shelf bookcase
Hide thumbs

Advertisement

Table of Contents

Harper / Pearson / Thompson
5 Shelf Bookcase
Model # AXCHRP-8A
TM
TM
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the brooklyn + max WyndenHall AXCHRP-8A and is the answer not in the manual?

Questions and answers

Related Manuals for SIMPLIHOME brooklyn + max WyndenHall AXCHRP-8A

Summary of Contents for SIMPLIHOME brooklyn + max WyndenHall AXCHRP-8A

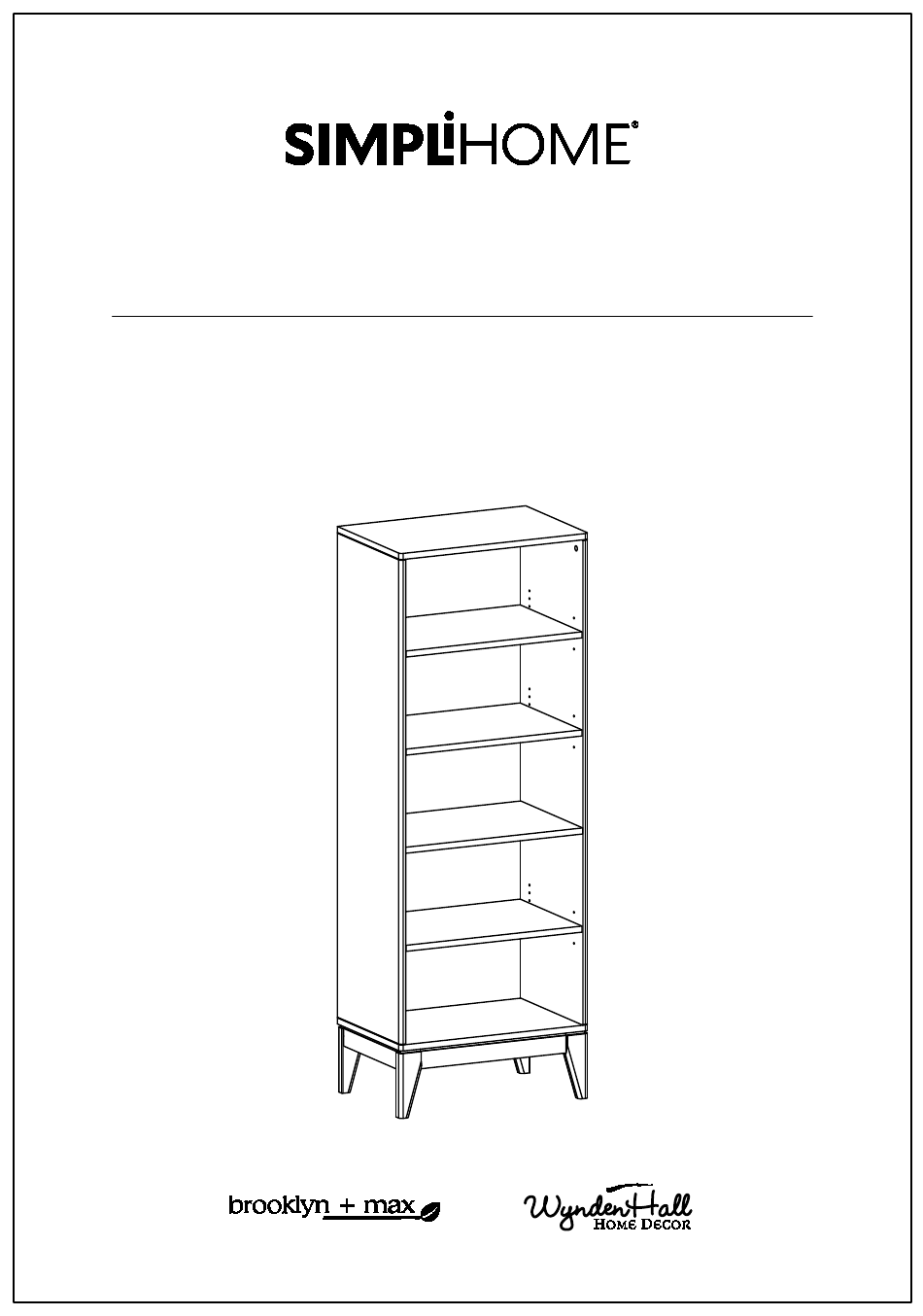

  • Page 1 Harper / Pearson / Thompson 5 Shelf Bookcase Model # AXCHRP-8A...
  • Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Activate your 1-year warranty ü...
  • Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards.
  • Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order information and issue. Submit form.

  • Page 5: Safety Information

    IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information CAUTION: Injuries and damage can occur from furniture tip over if product is not properly anchored to the wall. Use the Furniture Anti-Tipping Restraint provided with the product.

  • Page 6: Care And Maintenance

    Care & Maintenance This furniture is designed for indoor use. Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. Making matters worse, it expands and contracts unequally along different grain directions.
  • Page 7 Pre-Assembly Information Model # AXCHRP-8A Part Description Part Description RIGHT SIDE LEFT SIDE QTY 1 QTY 1 QTY 1 Warning Label BACK PANEL BOTTOM FIX SHELF QTY 1 QTY 1 QTY 1 LEG (L&R Same) CABINET SHELF QTY 2 QTY 3...

  • Page 8: Pre-Assembly Information

    Pre-Assembly Information Model # AXCHRP-152D Hardware Description ALLEN KEY SCREW CAM LOCK PIN ALLEN KEY M6 X 30mm CAM LOCK QTY 1 QTY 10 QTY 12 SETS PHILLIPS SCREW ROUND HEAD M4 X 15mm SHELF SUPPORT QTY 19 QTY 18 M4 X 25mm - QTY 2 ( 1 is extra ) M4 X 15mm - QTY 1...
  • Page 9 Components - Key Diagram Model # AXCHRP-8A...
  • Page 10 Assembly Model # AXCHRP-8A Step 1 1. Attach Cam Lock Pins 2 into pre-drilled holes at Top A and Side BL , BR . 2. Use Phillips screwdriver to secure Cam Lock Pins. Do not over-tighten. 3. Insert two Dowels 7 into guide holes on each Side BL , BR . 4.
  • Page 11 Assembly Assembly Model # AXCELA11-SMB Model # AXCHRP-8A Step 2 1. Align Cam Lock Pins with guide holes on Shelf D and attach Shelf D to Left Side BL . 2. Insert three Cam Locks 2 into guide holes on Shelf D . 3.
  • Page 12 Assembly Assembly Model # AXCELA11-SMB Model # AXCHRP-8A Step 3 Repeat Step 2 for Right Side BR .
  • Page 13 Assembly Model # AXCHRP-8A Step 4 1. Align Wood Dowels with guide holes and attach Sides BL , BR to Bottom C . 2. Use three Allen Key Screws 1 to attach each Side BL , BR through guide holes from Bottom C to pre-drilled holes of Sides BL , BR .
  • Page 14 Assembly Model # AXCHRP-8A Step 5 1. Attach Legs G to Bottom C . 2. Use four Allen Key Screws 1 to secure Bottom C and Legs G (two Screws on each Leg) 3. Use eight sets Allen Key Bolts, Lock Washers and Washers 6 to secure Bottom C and Legs G (four sets on each Leg).
  • Page 15 Assembly Model # AXCHRP-8A Step 6 1. Align Cam Lock Pins with guide holes on Sides BL , BR and attach Top A to Sides BL , BR . 2. Insert three Cam Locks 2 into guide holes on each Side BL , BR . 3.
  • Page 16 Assembly Model # AXCHRP-8A Note: Step 7 Warning Label 1. Attach the Back Panel E to back frame using Phillips Screws Round Head 5 through guide holes. 2. Use Phillips Screwdriver to tighten screws. Do not over-tighten.
  • Page 17 Assembly Model # AXCHRP-8A Step 8 shelf support shelf level 1 anti - tipping shelf level 2 shelf level 3 1. Use four Shelf Supports 4 for each Cabinet Shelf F in desired location. 2. Two Shelf Supports 4 may be used on back top of each Cabinet Shelf F as a tipping restraint.
  • Page 18 Assembly Model # AXCHRP-8A Step 9 1. Insert Plastic Caps 8 into holes Cam Locks on Sides BL , BR .
  • Page 19 Furniture Tip Over Restraint Assembly WARNING Serious or fatal crushing injuries can occur from furniture tip-over. If the furniture tip over restraint kit is not in the box, please contact our customer service department in order to obtain another kit before using the furniture. Step 10 NOTE: The screwdriver is not included in the hardware pack.
  • Page 20 Furniture Anti-Tipping Restraint Instructions Attach one of the mounting brackets securely to the back edge of the furniture. Use the shorter screw. Determine where furniture is to be placed and mark location on the wall for mounting bracket screw hole approximately 2 inches below the bracket mounted to the furniture.
