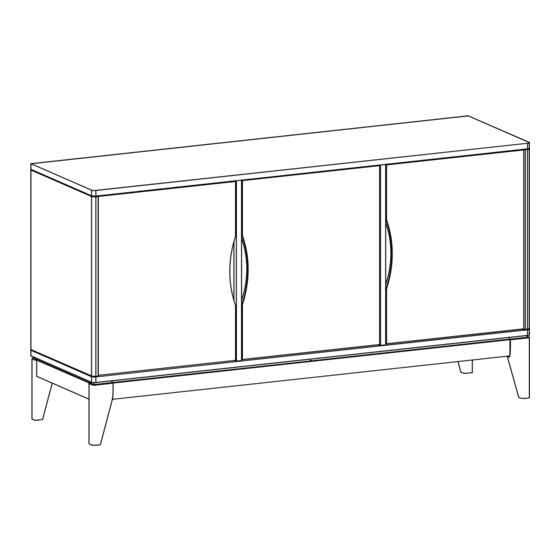

- Page 1 Harper / Pearson / Thompson 3 Door Sideboard Buffet Model # AXCHRP-153D...
- Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Activate your 1-year warranty ü...
- Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards.
- Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order information and issue. Submit form.
-
Page 5: Safety Information
IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information CAUTION: Injuries and damage can occur from furniture tip over if product is not properly anchored to the wall. Use the Furniture Anti-Tipping Restraint provided with the product. -
Page 6: Care And Maintenance
Care & Maintenance This furniture is designed for indoor use. Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. Making matters worse, it expands and contracts unequally along different grain directions. - Page 7 Pre-Assembly Information Model # AXCHRP-153D Part Description Part Description LEFT SIDE RIGHT SIDE QTY 1 QTY 1 QTY 1 RIGHT DIVIDER BOTTOM LEFT DIVIDER QTY 1 QTY 1 QTY 1 DOOR LEG (L&R Same) SHELF QTY 3 QTY 3 QTY 2 Warning Label JONNING STRIP TOP BACK PANEL...
-
Page 8: Pre-Assembly Information
Pre-Assembly Information Model # AXCHRP-152D Hardware Description ALLEN KEY SCREW ALLEN KEY M6 X 30mm QTY 1 QTY 30 WOOD DOWEL PHILLIPS SCREW Ø8 X 30mm MAGNET AND PLATE M3 X 15mm QTY 12 QTY 3 SETS QTY 12 PHILLIPS SCREW ADJUSTABLE HINGE PHILLIPS SCREW ROUND HEAD... - Page 9 Components - Key Diagram Model # AXCHRP-153D...
- Page 10 Assembly Model # AXCHRP-153D Step 1 1. Insert Dowels 4 into guide holes on Sides AL , AR and Dividers DL , DR . 2. Use rubber mallet to tap Dowels 4 into bottom of holes securely. 1/3 length of Dowels should be exposed.
- Page 11 Assembly Assembly Model # AXCELA11-SMB Model # AXCHRP-153D Step 2 1. Align Wood Dowels with guide holes and attach Dividers DL , DR to Bottom C . 2. Use six Allen Key Screws 1 to attach Dividers DL , DR through guide holes from Bottom C to pre-drilled holes of Dividers DL , DR.
- Page 12 Assembly Assembly Model # AXCELA11-SMB Model # AXCHRP-153D Step 3 1. Align Wood Dowels with guide holes and attach Sides AL , AR to Bottom C . 2. Use three Allen Key Screws 1 to attach each Side AL , AR through guide holes from Bottom C to pre-drilled holes of Sides AL , AR .
- Page 13 Assembly Model # AXCHRP-153D Step 4 1. Attach Legs G to Bottom C . 2. Use six Allen Key Screws 1 to secure Bottom C and Legs G (three Screws on each Leg) 3. Use eight sets Allen Key Bolts, Lock Washers and Washers 2 to secure Bottom B and Legs G (four sets on each Leg).
- Page 14 Assembly Model # AXCHRP-153D Step 5 1. Align Wood Dowels with guide holes and attach Sides AL , AR and Dividers DL , DR to Top B . 2. Use three Allen Key Screws 1 to attach each Sides AL , AR and Dividers DL , DR through guide holes from each Sides AL , AR and Dividers DL , DR to pre-drilled holes of Top B .
- Page 15 Assembly Model # AXCHRP-153D Note: Step 6 Warning Label 1. Attach the Top Back Panel H to back frame by using Phillips Screws 9 . Only 1st top row of screws ( seven screws ) to be screwed in advance. 2.
- Page 16 Assembly Model # AXCHRP-153D Step 7 1. Attach Adjustable Hinges 7 to Doors E using Phillips Screws 8 into pre-drilled holes on Doors E . 2. Attach Adjustable Hinges 7 on Doors E to Sides AL , AR and Right Divider DR using Phillips Screws 8 into pre-drilled holes on Sides AL , AR .
-
Page 17: Important Note
Assembly Model # AXCHRP-153D Step 8 IMPORTANT NOTE: Tighten the Screw marked II to fasten hinge. The door may need to be adjusted so that all the spaces between the door and the unit sides are equal. To adjust, follow instructions: 1. - Page 18 Assembly Model # AXCHRP-153D Step 9 1. Attach Magnet Plates 5 to bottom corner of Doors E using Phillips Screws 6 into pre-drilled holes on Doors E . 2. Attach Magnets 5 using Phillips Screws 6 into pre-drilled holes Dividers DL , DR . 3.
- Page 19 Assembly Model # AXCHRP-153D Step 10 shelf support shelf level 1 anti - tipping shelf level 2 shelf level 3 1. Use four Shelf Supports 10 for each Cabinet Shelf F in desired location. 2. Two Shelf Supports 10 may be used on back top of each Cabinet Shelf F as a tipping restraint.
- Page 20 Furniture Tip Over Restraint Assembly WARNING Serious or fatal crushing injuries can occur from furniture tip-over. If the furniture tip over restraint kit is not in the box, please contact our customer service department in order to obtain another kit before using the furniture. Step 11 NOTE: The screwdriver is not included in the hardware pack.
- Page 21 Furniture Anti-Tipping Restraint Instructions Attach one of the mounting brackets securely to the back edge of the furniture. Use the shorter screw. Determine where furniture is to be placed and mark location on the wall for mounting bracket screw hole approximately 2 inches below the bracket mounted to the furniture.
