SIMPLIHOME brooklyn + max WyndenHall AXCHRP-15 Manual

Harper / pearson / thompson sideboard buffet
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

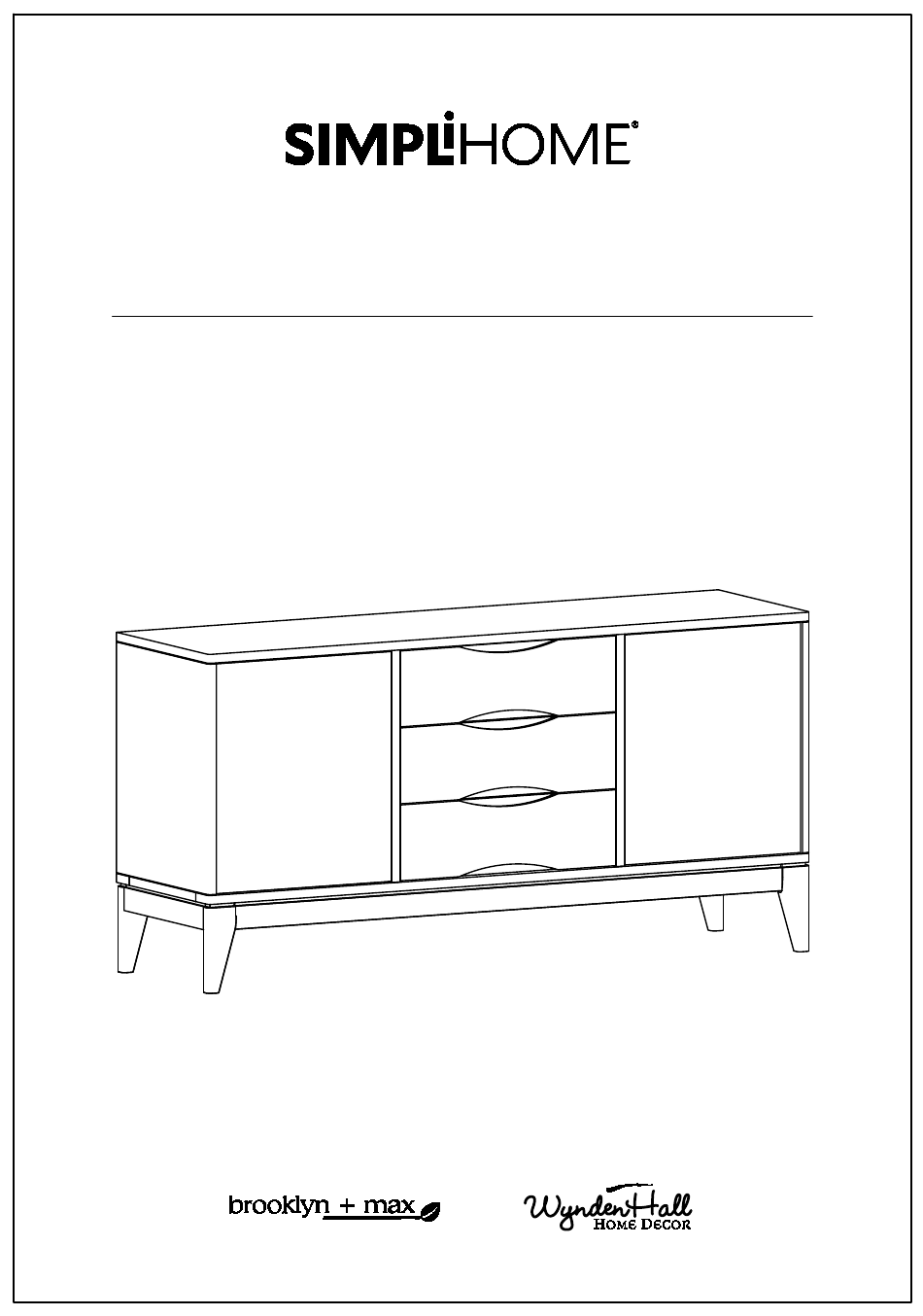

Harper / Pearson / Thompson
Sideboard Buffet
Model # AXCHRP-15
TM
TM
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the brooklyn + max WyndenHall AXCHRP-15 and is the answer not in the manual?

Questions and answers

Related Manuals for SIMPLIHOME brooklyn + max WyndenHall AXCHRP-15

Summary of Contents for SIMPLIHOME brooklyn + max WyndenHall AXCHRP-15

  • Page 1 Harper / Pearson / Thompson Sideboard Buffet Model # AXCHRP-15...
  • Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Activate your 1-year warranty ü...
  • Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards.
  • Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order information and issue. Submit form.

  • Page 5: Safety Information

    IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information CAUTION: Injuries and damage can occur from furniture tip over if product is not properly anchored to the wall. Use the Furniture Anti-Tipping Restraint provided with the product.

  • Page 6: Care And Maintenance

    Care & Maintenance This furniture is designed for indoor use. Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. Making matters worse, it expands and contracts unequally along different grain directions.
  • Page 7 Pre-Assembly Information Model # AXCHRP-15 Part Description SHELF BOTTOM SHELF QTY 1 QTY 1 QTY 2 LEFT DIVIDER LEFT SIDE RIGHT SIDE QTY 1 QTY 1 QTY 1 RIGHT DIVIDER DOOR LEG (L&R Same) QTY 1 QTY 2 QTY 2...

  • Page 8: Drawer Bottom

    Pre-Assembly Information Model # AXCHRP-15 Part Description Warning Label BOTTOM BACK PANEL TOP BACK PANEL JOINING STRIP QTY 1 QTY 1 QTY 1 DRAWER FRONT RIGHT DRAWER SIDE LEFT DRAWER SIDE QTY 3 QTY 3 QTY 3 DRAWER BACK DRAWER BOTTOM QTY 3 QTY 3...
  • Page 9 Pre-Assembly Information Model # AXCHRP-15 Hardware Description ALLEN KEY SCREW CAM LOCK PIN ALLEN KEY WOOD DOWEL M6 X 30mm CAM LOCK QTY 1 Ø8 X 30mm QTY 42 QTY 12 SETS QTY 8 PHILLIPS SCREW PHILLIPS SCREW ROUND HEAD ADJUSTABLE HINGE M4 X 15mm M4 X 15mm...
  • Page 10 Components - Key Diagram Model # AXCHRP-15...
  • Page 11 Assembly Model # AXCHRP-15 Step 1 1. Attach four Cam Lock Pins 2 into pre-drilled holes on back of Drawer Front K . 2. Use Phillips screwdriver to secure Cam Lock Pins. Do not over-tighten. Step 2 1. Align Cam Lock Pins with guide holes and attach Drawer Sides LL , LR . 2.
  • Page 12 Assembly Model # AXCHRP-15 Step 3 1. Slide Drawer Bottom N firmly into slots on Drawer Sides LL , LR and Drawer Front K . 2. Align Drawer Back M with Drawer Bottom N and press firmly into slot . 3.
  • Page 13 Assembly Model # AXCHRP-15 Step 4 1. Use three Allen Key Screws 1 to attach each part EL , ER through guide from holes part B to pre-drilled holes of parts EL , ER. 2. Use Allen Key 4 to tighten Screws. Do not over-tighten. Step 5 1.
  • Page 14 Assembly Model # AXCHRP-15 Step 6 1. Align Wood Dowels with guide holes and attach parts DL , DR to part B . 2. Use three Allen Key Screws 1 to attach each part DL , DR through guide holes from part B to pre-drilled holes of parts DL , DR .
  • Page 15 Assembly Model # AXCHRP-15 Step 7 1. Attach Legs G to Bottom C . 2. Use six Allen Key Screws 1 to secure part B and G (six Screws on each Leg) 3. Use eight sets Allen Key Bolts, Lock Washers and Washers 11 to secure part B and G (four sets on each Leg).
  • Page 16 Assembly Model # AXCHRP-15 Step 8 1. Align Wood Dowels with guide holes and attach parts DL , DR , EL , ER to part A . 2. Use three Allen Key Screws 1 to attach each part DL , DR , EL , ER through guide holes from each part DL , DR , EL , ER to pre-drilled holes of part A .

  • Page 17: Warning Label

    Assembly Model # AXCHRP-15 Note: Step 9 Warning Label 1. Attach the Top Back Panel H to back frame by using Phillips Screws 5 . Only 1st top row of screws ( six screws ) to be screwed in advance. 2.
  • Page 18 Assembly Model # AXCHRP-15 Step 10 1. Attach Adjustable Hinges 6 to Doors F using Phillips Screws 7 into pre-drilled holes on Doors F . 2. Attach Adjustable Hinges 6 on Doors F to parts DL , DR using Phillips Screws 7 into pre-drilled holes on parts DL , DR .

  • Page 19: Important Note

    Assembly Model # AXCHRP-15 Step 11 IMPORTANT NOTE: Tighten the Screw marked II to fasten hinge. The door may need to be adjusted so that all the spaces between the door and the unit sides are equal. To adjust, follow instructions: 1.
  • Page 20 Assembly Model # AXCHRP-15 Step 12 NOTE: The screwdriver is not included in the hardware pack.
  • Page 21 Assembly Model # AXCHRP-15 Step 13 shelf support anti - tipping shelf level 1 shelf level 2 shelf level 3 1. Use four Shelf Supports 10 for each Cabinet Shelf C in desired location . 2. Two Shelf Supports 10 may be used on back top of each Cabinet Shelf C as a tipping restraint.
  • Page 22 Assembly Model # AXCHRP-15 Step 14 1. Insert assembled drawers into glides on assembled sideboard.
  • Page 23 Furniture Tip Over Restraint Assembly WARNING Serious or fatal crushing injuries can occur from furniture tip-over. If the furniture tip over restraint kit is not in the box, please contact our customer service department in order to obtain another kit before using the furniture. Step 15 NOTE: The screwdriver is not included in the hardware pack.
  • Page 24 Furniture Anti-Tipping Restraint Instructions Attach one of the mounting brackets securely to the back edge of the furniture. Use the shorter screw. Determine where furniture is to be placed and mark location on the wall for mounting bracket screw hole approximately 2 inches below the bracket mounted to the furniture.
