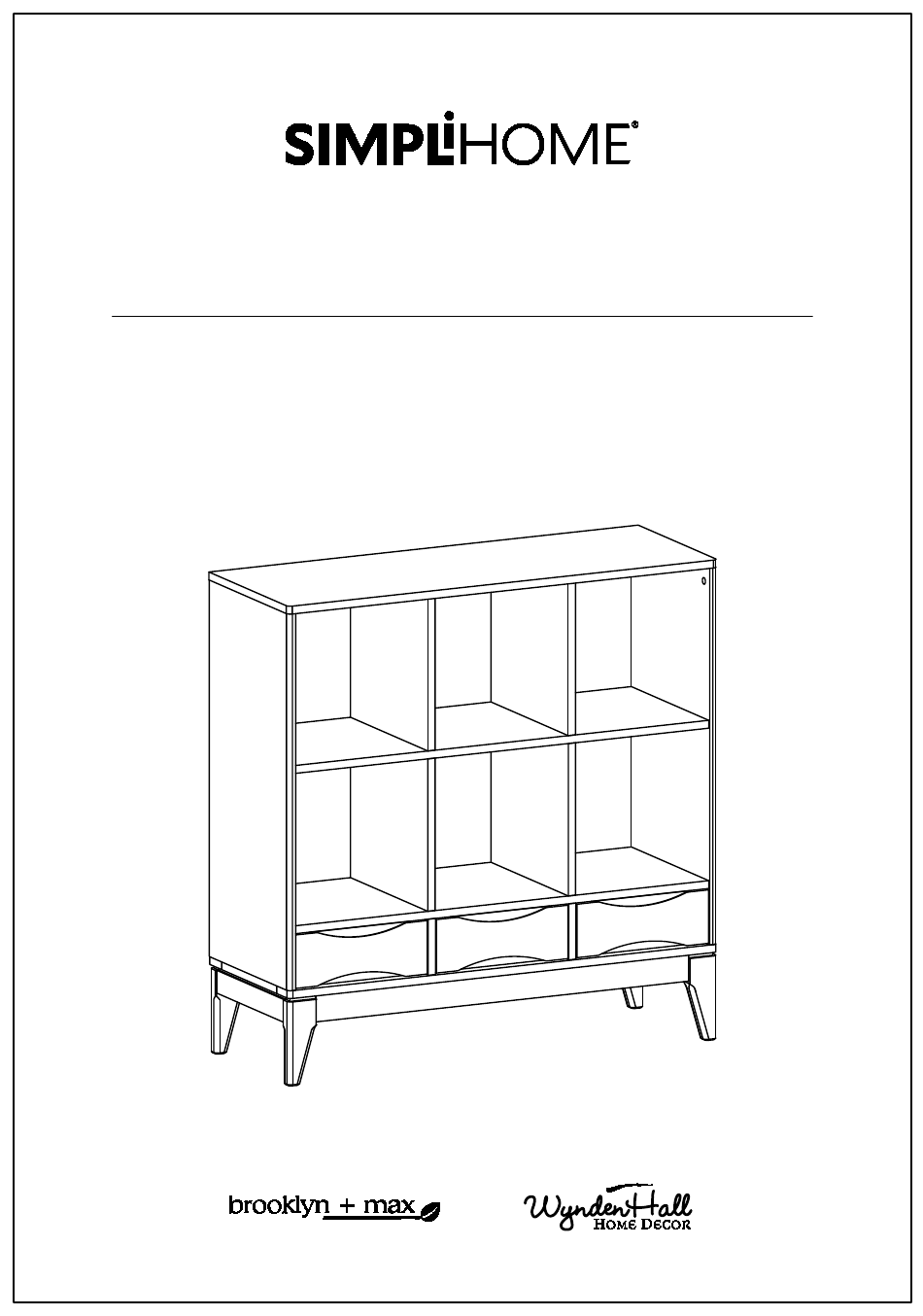

- Page 1 Harper / Pearson / Thompson Low 6 Cube Storage with Drawers Model # AXCHRP-22...
- Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Activate your 1-year warranty ü...
- Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards.
- Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order information and issue. Submit form.
-
Page 5: Safety Information
IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information CAUTION: Injuries and damage can occur from furniture tip over if product is not properly anchored to the wall. Use the Furniture Anti-Tipping Restraint provided with the product. -
Page 6: Care And Maintenance
Care & Maintenance This furniture is designed for indoor use. Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. Making matters worse, it expands and contracts unequally along different grain directions. - Page 7 Pre-Assembly Information Model # AXCHRP-22 Part Description LEFT SIDE RIGHT SIDE QTY 1 QTY 1 QTY 1 DIVIDER BOTTOM FRAME MIDDLE SHELF QTY 4 QTY 1 QTY 2 SMALL DIVIDER LEFT BACK PANEL QTY 2 QTY 2 QTY 1...
- Page 8 Pre-Assembly Information Model # AXCHRP-22 Part Description Warning Label DRAWER FRONT RIGHT BACK PANEL MIDDLE BACK PANEL QTY 3 QTY 1 QTY 1 DRAWER BACK LEFT DRAWER SIDE RIGHT DRAWER SIDE QTY 3 QTY 3 QTY 3 DRAWER BOTTOM QTY 3...
- Page 9 Pre-Assembly Information Model # AXCHRP-22 Hardware Description ALLEN KEY SCREW CAM LOCK PIN ALLEN KEY M6 X 30mm CAM LOCK QTY 1 QTY 36 QTY 48 SETS PHILLIPS SCREW WOOD DOWEL ROUND HEAD Ø8 X 30mm M4 X 15mm QTY 20 QTY 37 M4 X 25mm - QTY 2 ( 1 is extra )
- Page 10 Components - Key Diagram Model # AXCHRP-22...
- Page 11 Assembly Model # AXCHRP-22 Step 1 1. Attach four Cam Lock Pins 2 into pre-drilled holes on back of Drawer Front I . 2. Use Phillips screwdriver to secure Cam Lock Pins. Do not over-tighten. Step 2...
- Page 12 Assembly Model # AXCHRP-22 Step 3 2. Align Drawer Back K with Drawer Bottom L and press firmly into slot. 3. Attach Drawer Back using two Allen Key Screws 1 through guide holes on each Drawer Side JL , JR . 4.
- Page 13 Assembly Model # AXCHRP-22 Step 4 1. Attach Cam Lock Pins 2 into pre-drilled holes on Top A , Middle Shelves D and Sides BL , BR . 2. Use Phillips screwdriver to secure Cam Lock Pins. Do not over-tighten.
- Page 14 Assembly Model # AXCHRP-22 Step 5 1. Insert Dowels 4 into guide holes on Sides BL , BR and Dividers E , F . 2. Use rubber mallet to tap Dowels 4 into bottom of holes securely. 1/3 length of Dowels should be exposed.
- Page 15 Assembly Model # AXCHRP-22 Step 6 1. Align Wood Dowels with guide holes on Middle Shelf D and attach Dividers E to Middle Shelf D . 2. Use two Allen Key Screws 1 to attach each Divider E to Middle Shelf D through guide holes. 3.
- Page 16 Assembly Model # AXCHRP-22 Step 7 1. Repeat Step 6 for the second Middle Shelf D . 2. Repeat Step 6 for Small Dividers F .
- Page 17 Assembly Model # AXCHRP-22 Step 8 1. Align Cam Lock Pins with guide holes on Middle Shelves D and attach Sides BL , BR to Middle Shelves D . 2. Insert six Cam Locks 2 into guide holes on each Middle Shelf D . 3.
- Page 18 Assembly Model # AXCHRP-22 Step 9 1. Align Wood Dowels with guide holes on Bottom Frame C and attach Bottom Frame C to Sides BL , BR and Dividers F . 2. Use ten Allen Key Screws 1 to attach Bottom Frame C to Sides BL , BR and Dividers F through guide holes.
- Page 19 Assembly Model # AXCHRP-22 Step 10 1. Attach Legs G to Bottom Frame C . 2. Use eight sets Allen Key Bolts, Lock Washers and Washers 6 to secure Bottom Frame C and Legs G (four sets on each Leg). 3.
- Page 20 Assembly Model # AXCHRP-22 Step 11 1. Align Cam Lock Pins and Wood Dowels with guide holes and attach Top A to Sides BL , BR and Dividers E . 2. Insert three Cam Locks 2 into guide holes on each Side BL , BR and Dividers E . 3.
- Page 21 Assembly Model # AXCHRP-22 Step 12 Note: Warning Label 1. Attach Back Panels HL , HR , H to back frame of cube storage using Phillips Screws Round Head 5 through guide holes. 2. Use Phillips Screwdriver to tighten screws. Do not over-tighten.
- Page 22 Assembly Model # AXCHRP-22 Step 13 1. Insert three Plastic Caps 7 into holes Cam Locks on each Side BL , BR and each Divider E . 2. Insert assembly drawers into glides on assembly cube.
- Page 23 Furniture Tip Over Restraint Assembly WARNING Serious or fatal crushing injuries can occur from furniture tip-over. If the furniture tip over restraint kit is not in the box, please contact our customer service department in order to obtain another kit before using the furniture. Step 14 NOTE: The screwdriver is not included in the hardware pack.
- Page 24 Furniture Anti-Tipping Restraint Instructions Attach one of the mounting brackets securely to the back edge of the furniture. Use the shorter screw. Determine where furniture is to be placed and mark location on the wall for mounting bracket screw hole approximately 2 inches below the bracket mounted to the furniture.
