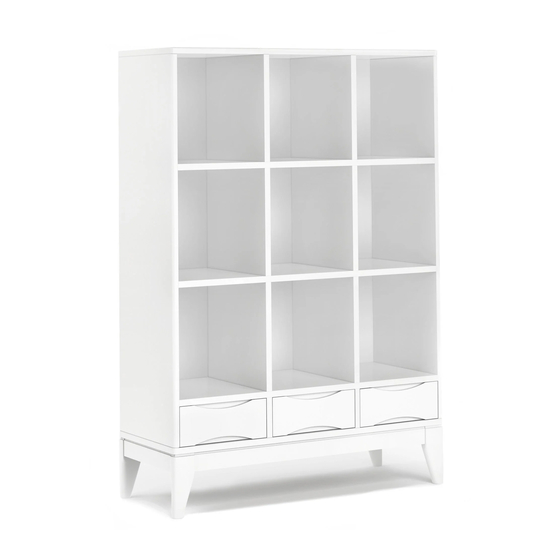

SIMPLIHOME brooklyn+max WyndenHall AXCHRP-07WH Manual

Harper / pearson / thompson cube storage with drawers
Hide thumbs

Advertisement

Quick Links

Download this manual

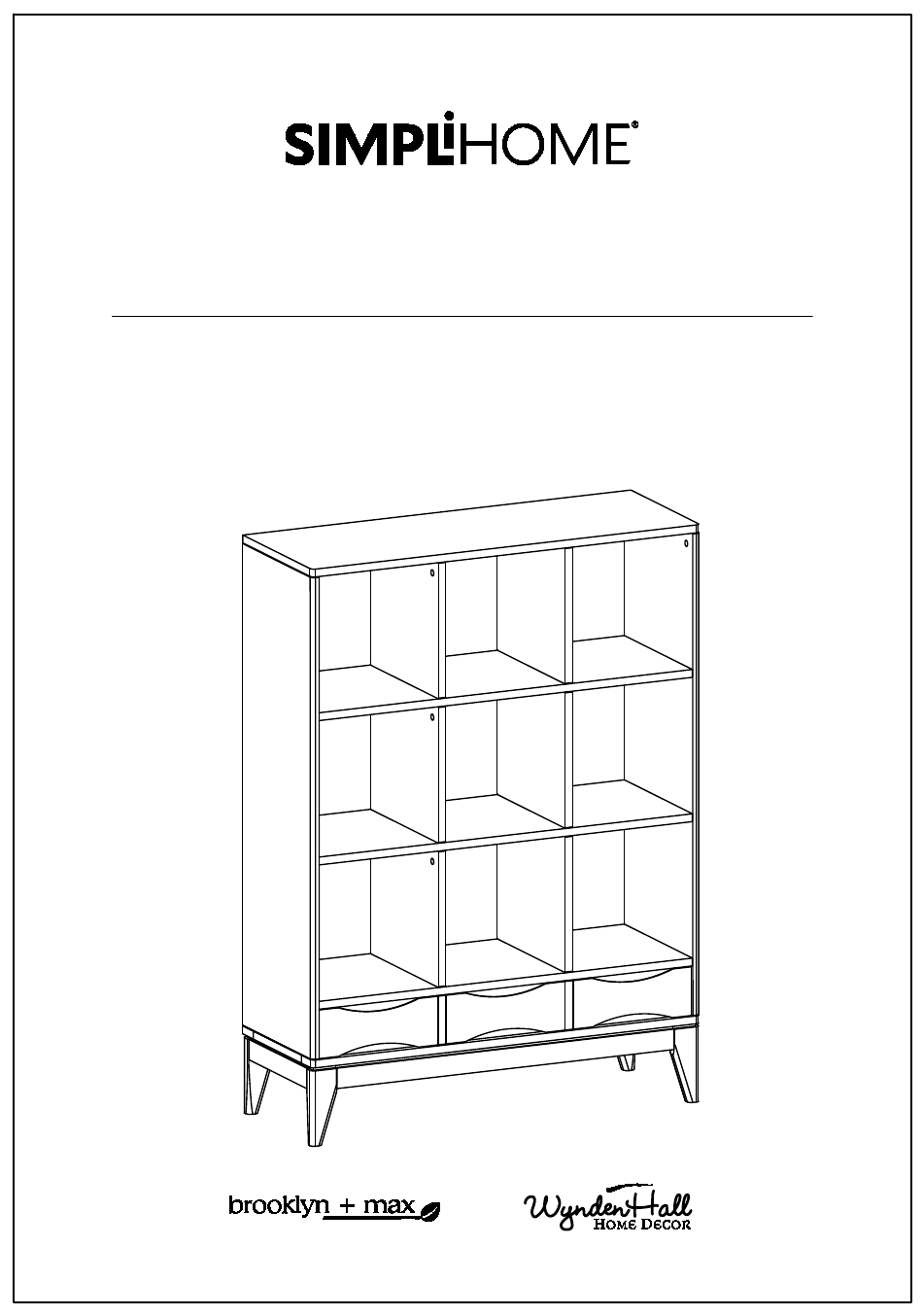

Harper / Pearson / Thompson
Cube Storage with Drawers
Model # AXCHRP-07WH
TM
TM
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the brooklyn+max WyndenHall AXCHRP-07WH and is the answer not in the manual?

Questions and answers

Related Manuals for SIMPLIHOME brooklyn+max WyndenHall AXCHRP-07WH

Summary of Contents for SIMPLIHOME brooklyn+max WyndenHall AXCHRP-07WH

  • Page 1 Harper / Pearson / Thompson Cube Storage with Drawers Model # AXCHRP-07WH...
  • Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Activate your 1-year warranty ü...
  • Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards.
  • Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order information and issue. Submit form.

  • Page 5: Safety Information

    IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information CAUTION: Injuries and damage can occur from furniture tip over if product is not properly anchored to the wall. Use the Furniture Anti-Tipping Restraint provided with the product.

  • Page 6: Care And Maintenance

    Care & Maintenance This furniture is designed for indoor use. Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. Making matters worse, it expands and contracts unequally along different grain directions.
  • Page 7 Pre-Assembly Information Model # AXCHRP-07WH Part Description LEFT SIDE RIGHT SIDE QTY 1 QTY 1 QTY 1 BOTTOM LEFT SMALL DIVIDER DIVIDER QTY 1 QTY 6 QTY 1 MIDDLE SHELF LEG (L&R Same) RIGHT SMALL DIVIDER QTY 3 QTY 2 QTY 1...
  • Page 8 Pre-Assembly Information Model # AXCHRP-07WH Part Description DRAWER FRONT LEFT DRAWER SIDE RIGHT DRAWER SIDE QTY 3 QTY 3 QTY 3 Warning Label DRAWER BOTTOM TOP BACK PANEL DRAWER BACK QTY 3 QTY 1 QTY 3 MIDDLE BACK PANEL BOTTOM BACK PANEL QTY 2 QTY 1...
  • Page 9 Pre-Assembly Information Model # AXCHRP-07WH Hardware Description ALLEN KEY SCREW M6 X 30mm ALLEN KEY QTY 40 QTY 1 PHILLIPS SCREW CAM LOCK PIN ROUND HEAD CAM LOCK M4 X 15mm PLASTIC CAP QTY 60 SETS QTY 39 QTY 24 M4 X 25mm - QTY 2 ( 1 is extra ) M4 X 15mm - QTY 1...
  • Page 10 Components - Key Diagram Model # AXCHRP-07WH...
  • Page 11 Assembly Model # AXCHRP-07WH Step 1 1. Attach four Cam Lock Pins 5 to back of Drawer Front H . 2. Align Cam Lock Pins with guide holes and attach Drawer Sides IL , IR . 3. Insert two Cam Lock 5 into guide holes on each Drawer Side IL , IR . 4.
  • Page 12 Assembly Model # AXCHRP-07WH Step 3 1. Align Drawer Back J with Drawer Bottom K and press firmly into slot. 2. Attach Drawer Back J using two Allen Key Screws 1 through guide holes on each Side IL , IR . 3.
  • Page 13 Assembly Model # AXCHRP-07WH Step 4 1. Attach Dividers D to Middle Shelf F using four Allen Key Screws 1 (two Screws on each Divider). 2. Use Allen Key 3 to tighten Screws. Do not over-tighten. Step 5 1. Attach six Cam Lock Pins 5 to back of Middle Shelf F . 2.
  • Page 14 Assembly Model # AXCHRP-07WH Step 6 1. Attach Middle Shelf F to Dividers D using four Allen Key Screws 1 (two Screws on each Divider). 2. Use Allen Key 3 to tighten Screws. Do not over-tighten. Step 7 1. Attach six Cam Lock Pins 5 to back of Middle Shelf F . 2.
  • Page 15 Assembly Model # AXCHRP-07WH Step 8 1. Attach Middle Shelf F to Dividers D using four Allen Key Screws 1 (two Screws on each Divider). 2. Use Allen Key 3 to tighten Screws. Do not over-tighten. Step 9 1. Attach six Cam Lock Pins 5 to back of Middle Shelf F . 2.
  • Page 16 Assembly Model # AXCHRP-07WH Step 10 1. Attach eighteen Cam Lock Pins 5 to back of Sides AL , AR (nine Cam Locks on each Divider). 2. Align Cam Lock Pins with guide holes and attach Middle Shelfs F . 3.
  • Page 17 Assembly Model # AXCHRP-07WH Step 11 1. Attach Bottom C to Sides AL , AR and Small Dividers E using twelve Allen Key Screws 1 (three Screws on each Side and Small Divider). 2. Use Allen Key 3 to tighten Screws. Do not over-tighten.
  • Page 18 Assembly Model # AXCHRP-07WH Step 12 1. Attach Legs G to Bottom C . 2. Use four Allen Key Screws 1 to secure part C and G (two Screws on each Leg). 3. Use eight sets Allen Key Bolts, Lock Washers and Washers 2 to secure part C and G (four sets on each Leg).
  • Page 19 Assembly Model # AXCHRP-07WH Step 13 1. Attach twelve Cam Lock Pins 5 to underneath of Top B . 2. Align Cam Lock Pins with guide holes and attach Sides AL , AR and Dividers D . 3. Insert three Cam Lock 5 into guide holes on each Side AL , AR and Dividers D . 4.
  • Page 20 Assembly Model # AXCHRP-07WH Step 14 NOTE: The screwdriver is not included in the hardware pack. Warning Label 1. Attach Back Panels L1 , L2 , L3 to back frame of cube storage using thirty nine Phillips Screws Round Head 4 through guide holes.
  • Page 21 Assembly Model # AXCHRP-07WH Step 15 1. Insert six Plastic Caps 6 into holes Cam Locks on top Sides AL , AR and eighteen Plastic Caps 6 into holes Cam Locks on Dividers D . 2. Insert assembly drawers into glides on assembly cube.
  • Page 22 Furniture Tip Over Restraint Assembly WARNING Serious or fatal crushing injuries can occur from furniture tip-over. If the furniture tip over restraint kit is not in the box, please contact our customer service department in order to obtain another kit before using the furniture. Step 16 NOTE: The screwdriver is not included in the hardware pack.
  • Page 23 Furniture Anti-Tipping Restraint Instructions Attach one of the mounting brackets securely to the back edge of the furniture. Use the shorter screw. Determine where furniture is to be placed and mark location on the wall for mounting bracket screw hole approximately 2 inches below the bracket mounted to the furniture.
