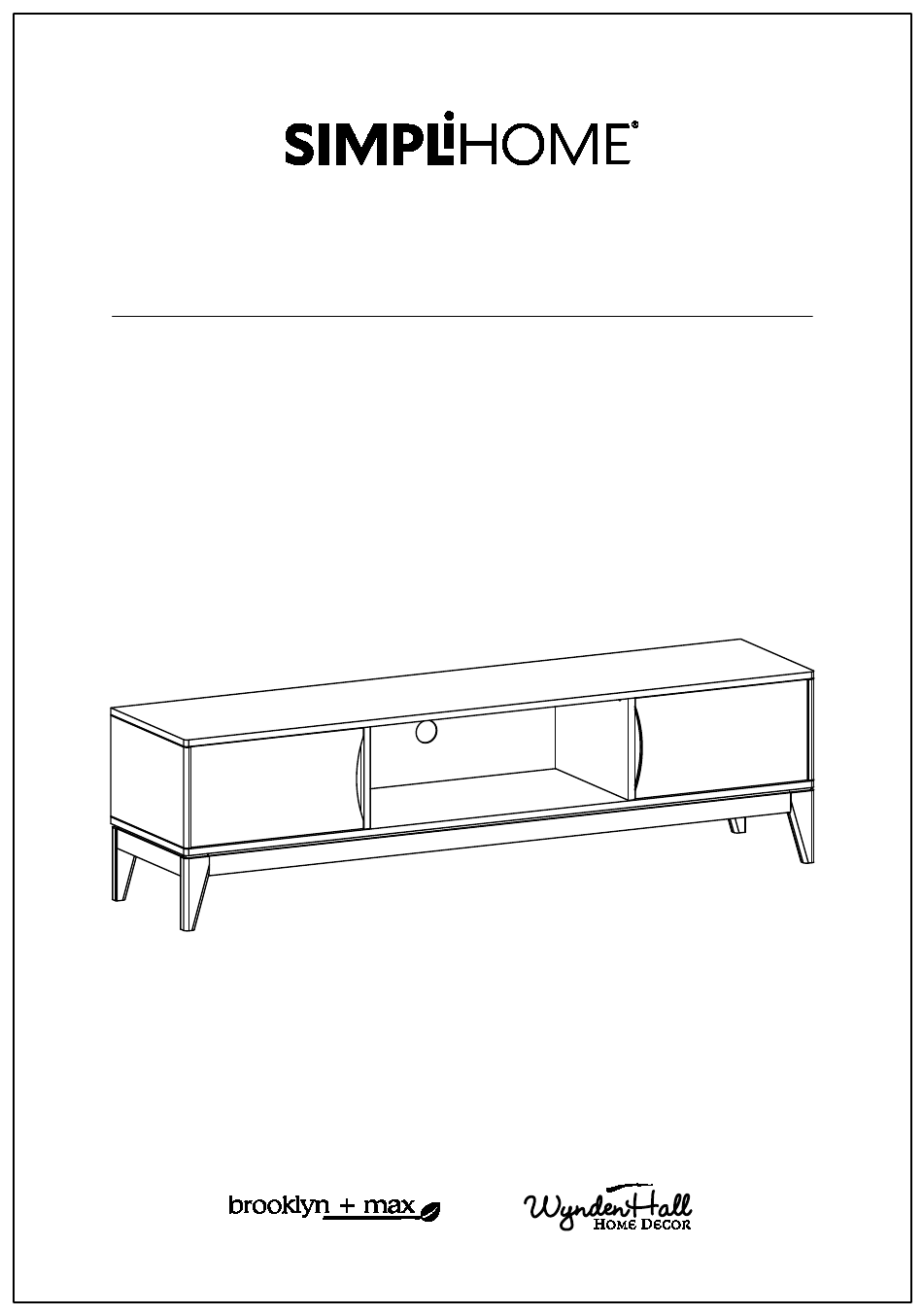

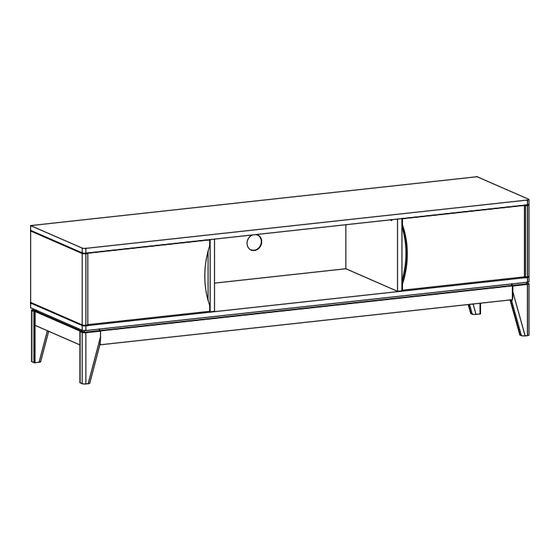

- Page 1 Harper / Pearson / Thompson 72 inch Low TV Media Stand Model # AXCHRPLOW-72...
- Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Activate your 1-year warranty ü...
- Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards.
- Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order information and issue. Submit form.
-
Page 5: Safety Information
IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information CAUTION: Injuries and damage can occur from furniture tip over if product is not properly anchored to the wall. Use the Furniture Anti-Tipping Restraint provided with the product. -
Page 6: Care And Maintenance
Care & Maintenance This furniture is designed for indoor use. Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. Making matters worse, it expands and contracts unequally along different grain directions. - Page 7 WARNING The maximum diagonal CRT television screen size is 25 inch to 27 inch (63.50 cm to 68.58 cm). For use with televisions weighing 130 lbs or less. Using larger or heavier televisions may cause instability or tip over which can lead to serious injury or even death.
-
Page 8: Maximum Load 25 Lbs
WARNING For use with televisions weighing 130 lbs or less. Use with heavier televisions may result in instability causing tip over resulting in death or serious injury. If a customer wants to use this unit as a TV stand, you must install the TV at position 4 inches from the front edge of console to prevent it from tipping over. - Page 9 Pre-Assembly Information Model # AXCHRPLOW-72 Part Description LEFT SIDE RIGHT SIDE QTY 1 QTY 1 QTY 1 DOOR BOTTOM DIVIDER QTY 2 QTY 1 QTY 2 Warning Label BACK PANEL LEG (L&R Same) QTY 1 QTY 2...
- Page 10 Pre-Assembly Information Model # AXCHRPLOW-72 Hardware Description PHILLIPS SCREW ALLEN KEY SCREW MAGNET AND PLATE M3 X 15mm ALLEN KEY M6 X 30mm QTY 2 SETS QTY 8 QTY 1 QTY 30 PHILLIPS SCREW ADJUSTABLE HINGE PHILLIPS SCREW ROUND HEAD WOOD DOWEL M4 X 15mm Ø35...
- Page 11 Components - Key Diagram Model # AXCHRPLOW-72...
- Page 12 Assembly Model # AXCHRPLOW-72 Step 1 1. Insert Dowels 8 into guide holes on Dividers D and Sides BL , BR . 2. Use rubber mallet to tap Dowels 8 into bottom of holes securely. 1/3 length of Dowels should be exposed. 3.
- Page 13 Assembly Model # AXCHRPLOW-72 Step 2 1. Align Wood Dowels with guide holes and attach Dividers D to Bottom C . 2. Use six Allen Key Screws 1 to attach Dividers D through guide holes from Bottom C to pre-drilled holes of Dividers D . 3.
- Page 14 Assembly Model # AXCHRPLOW-72 Step 3 1. Align Wood Dowels with guide holes and attach Sides BL , BR to Bottom C . 2. Use three Allen Key Screws 1 to attach each Side BL , BR through guide holes from Bottom Shelf C to pre-drilled holes of Sides BL , BR . 3.
- Page 15 Assembly Model # AXCHRPLOW-72 Step 4 1. Attach Legs G to Bottom C . 2. Use six Allen Key Screws 1 to secure Bottom C and Legs G (three Screws on each Leg) 3. Use eight sets Allen Key Bolts, Lock Washers and Washers 9 to secure Bottom C and Legs G (four sets on each Leg).
- Page 16 Assembly Model # AXCHRPLOW-72 Step 5 1. Align Wood Dowels with guide holes and attach Sides BL , BR and Dividers D to Top A . 2. Use three Allen Key Screws 1 to attach each Sides BL , BR and Divider D through guide holes from each Sides BL , BR and Divider D to pre-drilled holes of Top A .
- Page 17 Assembly Model # AXCHRPLOW-72 Step 6 Warning Label Note: 1. Attach the Back Panel F to back frame using Phillips Screws Round Head 7 through guide holes from Back Panel. 2. Use Phillips Screwdriver to tighten screws. Do not over-tighten.
- Page 18 Assembly Model # AXCHRPLOW-72 Step 7 1. Attach Adjustable Hinges 5 to Doors E using Phillips Screws 6 into pre-drilled holes on Doors E . 2. Attach Adjustable Hinges 5 on Doors E to parts BL , BR using Phillips Screws 6 into pre-drilled holes on parts BL , BR.
-
Page 19: Important Note
Assembly Model # AXCHRPLOW-72 Step 8 IMPORTANT NOTE: Tighten the Screw marked II to fasten hinge. The door may need to be adjusted so that all the spaces between the door and the unit sides are equal. To adjust, follow instructions: 1. - Page 20 Furniture Tip Over Restraint Assembly WARNING Serious or fatal crushing injuries can occur from furniture tip-over. If the furniture tip over restraint kit is not in the box, please contact our customer service department in order to obtain another kit before using the furniture. Step 9 NOTE: The screwdriver is not included in the hardware pack.
- Page 21 Furniture Anti-Tipping Restraint Instructions Attach one of the mounting brackets securely to the back edge of the furniture. Use the shorter screw. Determine where furniture is to be placed and mark location on the wall for mounting bracket screw hole approximately 2 inches below the bracket mounted to the furniture.
