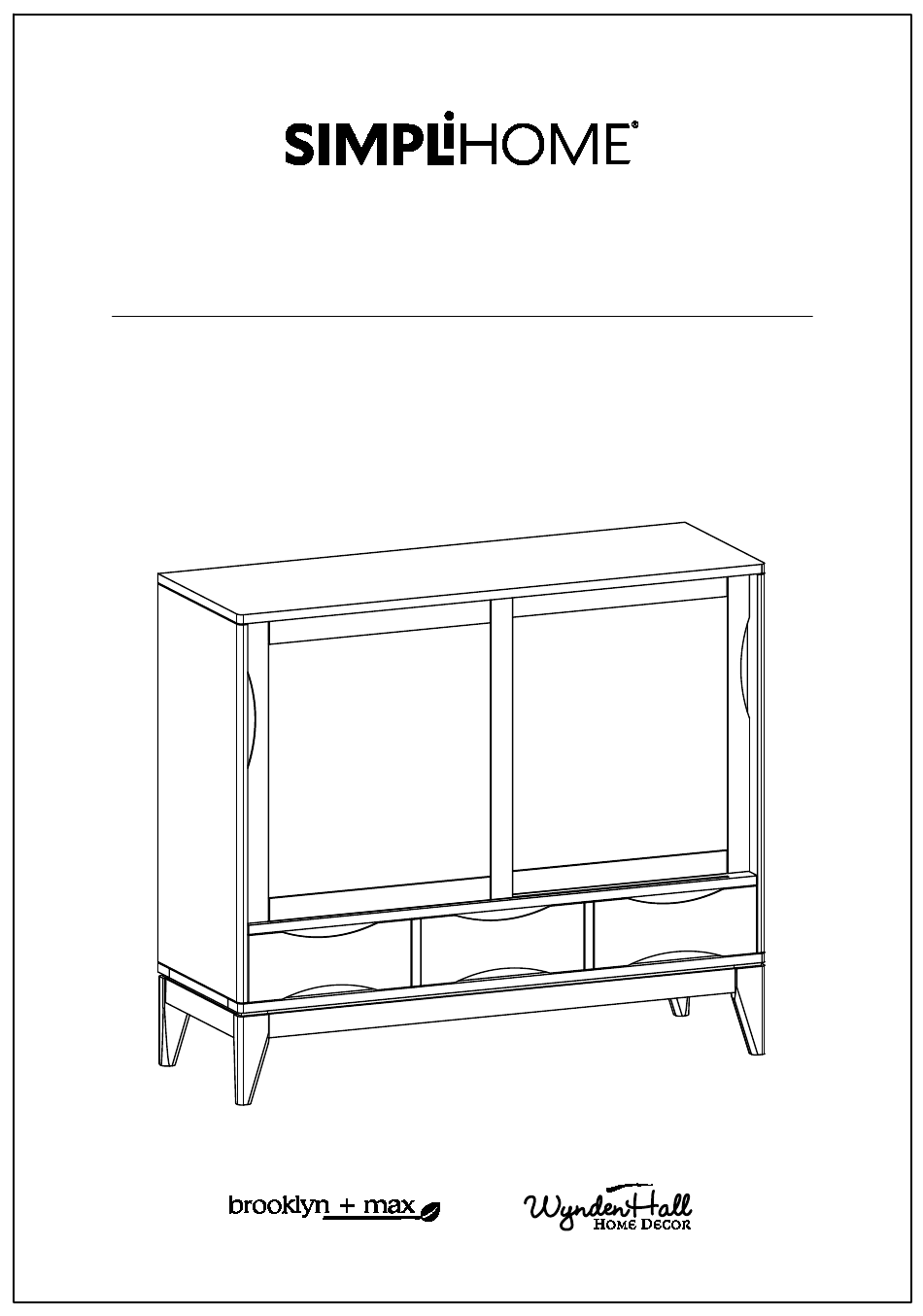

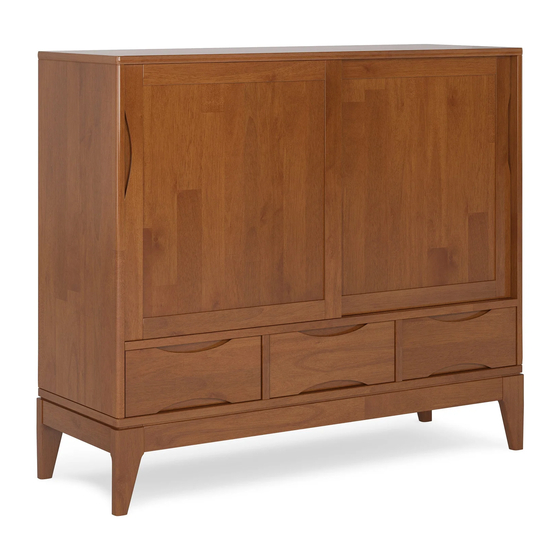

- Page 1 Harper / Pearson / Thompson Medium Storage Cabinet Model # AXCHRP-06WH...
- Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Activate your 1-year warranty ü...
- Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards.
- Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order information and issue. Submit form.
-
Page 5: Safety Information
IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information CAUTION: Injuries and damage can occur from furniture tip over if product is not properly anchored to the wall. Use the Furniture Anti-Tipping Restraint provided with the product. -
Page 6: Care And Maintenance
Care & Maintenance This furniture is designed for indoor use. Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. Making matters worse, it expands and contracts unequally along different grain directions. - Page 7 Pre-Assembly Information Model # AXCHRP-06WH Part Description LEFT SIDE RIGHT SIDE QTY 1 QTY 1 QTY 1 BOTTOM DIVIDER LEFT DOOR QTY 1 QTY 1 QTY 1 LEG (L&R Same) CABINET SHELF RIGHT DOOR QTY 2 QTY 2 QTY 1...
-
Page 8: Drawer Bottom
Pre-Assembly Information Model # AXCHRP-06WH Part Description DRAWER FRONT LEFT DRAWER SIDE RIGHT DRAWER SIDE QTY 3 QTY 3 QTY 3 DRAWER BACK LEFT BACK PANEL DRAWER BOTTOM QTY 3 QTY 3 QTY 1 Warning Label LEFT SMALL DIVIDER RIGHT SMALL DIVIDER RIGHT BACK PANEL QTY 1 QTY 1... - Page 9 Pre-Assembly Information Model # AXCHRP-06WH Hardware Description ALLEN KEY SCREW M6 X 30mm ALLEN KEY QTY 42 QTY 1 PHILLIPS SCREW ROUND HEAD CAM LOCK PIN CAM LOCK SHELF SUPPORT M4 X 15mm QTY 23 QTY 24 SETS QTY 12 WOOD DOWEL Ø8 x 30 mm QTY 4...
- Page 10 Components - Key Diagram Model # AXCHRP-06WH...
- Page 11 Assembly Model # AXCHRP-06WH Step 1 1. Attach four Cam Lock Pins 5 to back of Drawer Front H . 2. Align Cam Lock Pins with guide holes and attach Drawer Sides IL , IR . 3. Insert two Cam Lock 5 into guide holes on each Drawer Side IL , IR . 4.
- Page 12 Assembly Model # AXCHRP-06WH Step 3 1. Align Drawer Back J with Drawer Bottom K and press firmly into slot. 2. Attach Drawer Back J using two Allen Key Screws 1 through guide holes on each Side IL , IR . 3.
- Page 13 Assembly Model # AXCHRP-06WH Step 4 1. Attach Divider D to Middle Shelf N using three Allen Key Screws 1 through guide holes from the Middle Shelf N to pre-drilled holes of Divider D . 2. Use Allen Key 3 to tighten screws. Do not over-tighten. Step 5 1.
- Page 14 Assembly Model # AXCHRP-06WH Step 6 1. Attach three Cam Lock Pins 5 into pre-drilled holes on each Sides AL , AR . 2. Align Cam Lock Pins with guide holes and attach Middle Shelf N . 3. Insert six Cam Lock 5 into guide holes on Middle Shelf N . 4.
- Page 15 Assembly Model # AXCHRP-06WH Step 7 1. Attach Bottom C to Sides AL , AR and Small Divides ML , MR using twelve Allen Key Screws 1 through guide holes from Bottom C to pre-drilled holes underneath of each Sides AL , AR and Small Dividers ML , MR (three Screws on each Side and Small Divider).
- Page 16 Assembly Model # AXCHRP-06WH Step 8 1. Attach Legs G to Bottom C . 2. Use xis Allen Key Screws 1 to secure part C and G through guide holes from frame C (three Screws on each Leg) 3. Use eight sets Allen Key Bolts, Lock Washers and Washers 2 to secure part C and G through guide holes from frame C (four sets on each Leg).
- Page 17 Assembly Model # AXCHRP-06WH Step 9 1. Insert two Wood Dowels 7 into guide holes on each Side AL , AR . 2. Use rubber mallet to tap Wood Dowels 7 into bottom of holes securely. 1/2 length of Dowels should be exposed. 3.
- Page 18 Assembly Model # AXCHRP-06WH Step 10 NOTE: The screwdriver is not included in the hardware pack. Warning Label 1. Attach Back Panels LL , LR to back frame of medium storage using twenty three Phillips Screws Round Head 4 through guide holes. 2.
- Page 19 Assembly Model # AXCHRP-06WH Step 11 shelf level 1 shelf support anti - tipping shelf level 2 shelf level 3 1. Use four Shelf Supports 6 for each Cabinet Shelf F in desired location . 2. Two Shelf Supports 6 may be used on back top of each Cabinet Shelf F as a tipping restraint.
- Page 20 Assembly Model # AXCHRP-06WH Step 12 Second Door First Door 1. Slide the wheels on bottom of each door to the slots on Middle Shelf N . 2. Pull down the pins on top of each door then place the door to be parallel with the medium storage side post.
- Page 21 Assembly Model # AXCHRP-06WH Step 13 1. Insert assembly drawers into glides on assembly medium storage.
- Page 22 Furniture Tip Over Restraint Assembly WARNING Serious or fatal crushing injuries can occur from furniture tip-over. If the furniture tip over restraint kit is not in the box, please contact our customer service department in order to obtain another kit before using the furniture. Step 14 NOTE: The screwdriver is not included in the hardware pack.
- Page 23 Furniture Anti-Tipping Restraint Instructions Attach one of the mounting brackets securely to the back edge of the furniture. Use the shorter screw. Determine where furniture is to be placed and mark location on the wall for mounting bracket screw hole approximately 2 inches below the bracket mounted to the furniture.
