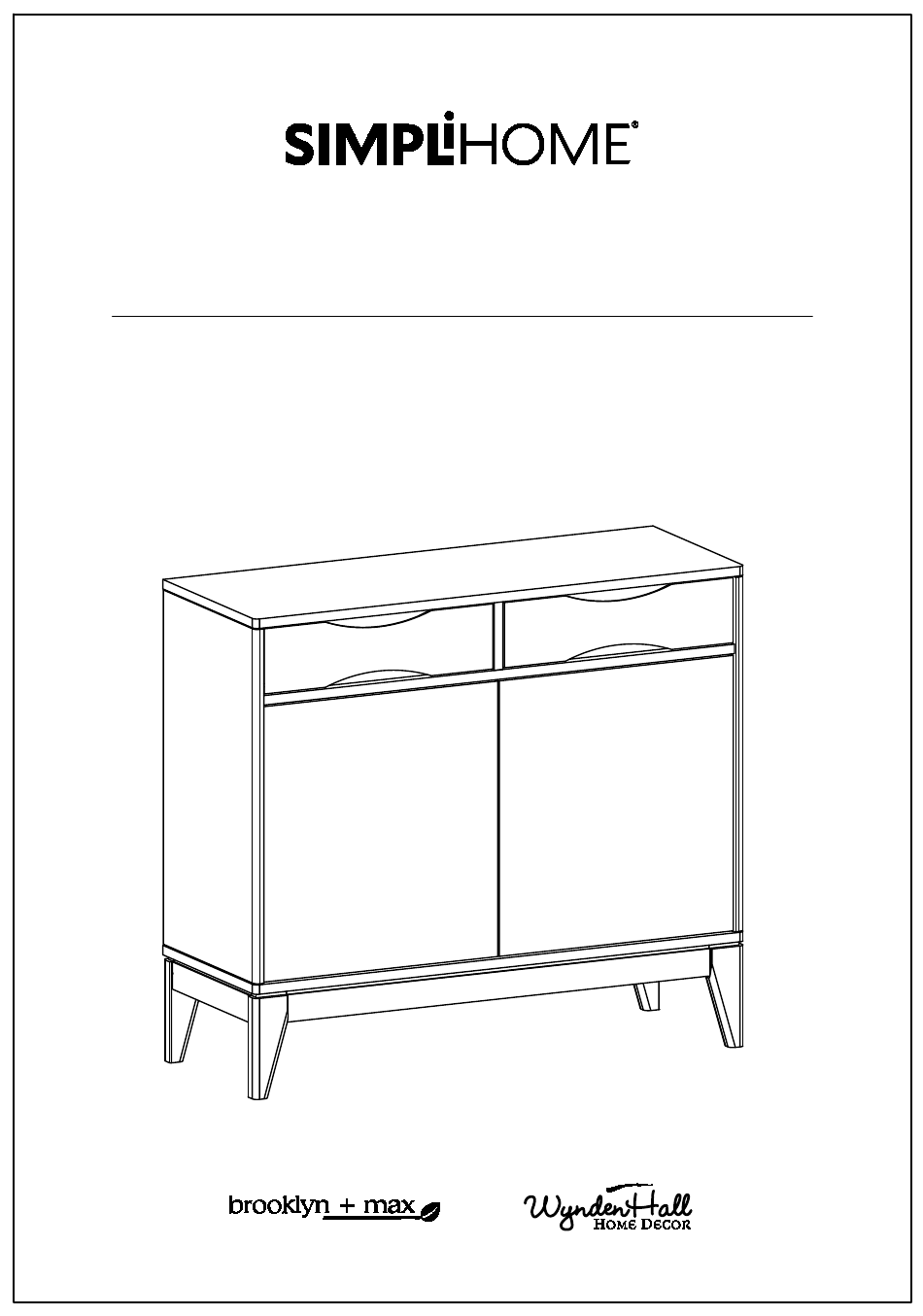

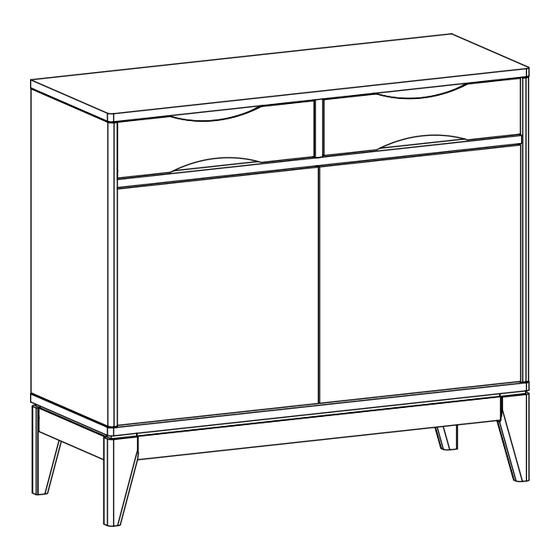

  • Page 1 Harper / Pearson / Thompson Entryway Storage Cabinet Model # AXCHRP-47...
  • Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Activate your 1-year warranty ü...
  • Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards.
  • Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order information and issue. Submit form.

  • Page 5: Safety Information

    IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information CAUTION: Injuries and damage can occur from furniture tip over if product is not properly anchored to the wall. Use the Furniture Anti-Tipping Restraint provided with the product.

  • Page 6: Care And Maintenance

    Care & Maintenance This furniture is designed for indoor use. Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. Making matters worse, it expands and contracts unequally along different grain directions.
  • Page 7 Pre-Assembly Information Model # AXCHRP-47 Part Description LEFT SIDE RIGHT SIDE QTY 1 QTY 1 QTY 1 LARGE DIVIDER SMALL DIVIDER MIDDLE FRAME QTY 1 QTY 1 QTY 1 SHELF DOOR BOTTOM QTY 2 QTY 2 QTY 1...

  • Page 8: Drawer Bottom

    Pre-Assembly Information Model # AXCHRP-47 Part Description Warning Label RIGHT BACK PANEL LEFT BACK PANEL LEG (L&R Same) QTY 1 QTY 1 QTY 2 DRAWER FRONT RIGHT DRAWER SIDE LEFT DRAWER SIDE QTY 2 QTY 2 QTY 2 DRAWER BACK DRAWER BOTTOM QTY 2 QTY 2...
  • Page 9 Pre-Assembly Information Model # AXCHRP-47 Hardware Description ALLEN KEY SCREW CAM LOCK PIN ALLEN KEY WOOD DOWEL M6 X 30mm CAM LOCK QTY 1 Ø8 X 30mm QTY 29 QTY 14 SETS QTY 16 PHILLIPS SCREW ADJUSTABLE HINGE PHILLIPS SCREW ROUND HEAD SHELF SUPPORT M4 X 15mm...
  • Page 10 Components - Key Diagram Model # AXCHRP-47...
  • Page 11 Assembly Model # AXCHRP-47 Step 1 1. Attach four Cam Lock Pins 2 into pre-drilled holes on back of Drawer Front K . 2. Use Phillips screwdriver to secure Cam Lock Pins. Do not over-tighten. Step 2 1. Align Cam Lock Pins with guide holes and attach Drawer Sides LL , LR to Drawer Front K .
  • Page 12 Assembly Model # AXCHRP-47 Step 3 1. Slide Drawer Bottom N firmly into slots on Drawer Sides LL , LR and Drawer Front K . 2. Align Drawer Back M with Drawer Bottom N and press firmly into slot . 3.
  • Page 13 Assembly Model # AXCHRP-47 Step 4...
  • Page 14 Assembly Model # AXCHRP-47 Step 5 1. Align Wood Dowels with guide holes and attach Divider D to Middle Frame E . 2. Use two Allen Key Screws 1 to attach Middle Frame E through guide holes from Middle Frame E to pre-drilled holes of Divider D . 3.
  • Page 15 Assembly Model # AXCHRP-47 Step 6 1. Align Cam Lock Pins with guide holes on Divider C and attach Middle Frame E to Divider C . 2. Insert three Cam Locks 2 into guide holes on Divider C . 3. Use Phillips screwdriver to secure Cam Locks.
  • Page 16 Assembly Model # AXCHRP-47 Step 7 1. Align Wood Dowels with guide holes and attach Sides BL BR to Middle Frame E .
  • Page 17 Assembly Model # AXCHRP-47 Step 8 1. Align Wood Dowels with guide holes and attach Sides BL , BR and Divider C to Bottom F . 2. Use three Allen Key Screws 1 to attach each Side BL , BR and Divider C through guide holes from Bottom F to pre-drilled holes of Sides BL , BR and Divider C .
  • Page 18 Assembly Model # AXCHRP-47 Step 9 1. Attach Legs I to Bottom F . 2. Use six Allen Key Screws 1 to secure part F and I (three Screws on each Leg) 3. Use eight sets Allen Key Bolts, Lock Washers and Washers 10 to secure part F and I (four sets on each Leg).
  • Page 19 Assembly Model # AXCHRP-47 Step 10 1. Align Wood Dowels and Cam Lock Pins with guide holes and attach Sides BL , BR and Divider D top A . 2. Use three Allen Key Screws 1 to attach each Sides BL , BR through guide holes from each Sides BL , BR to pre-drilled holes of Top A .

  • Page 20: Warning Label

    Assembly Model # AXCHRP-47 Step 11 Note: The back of the cabinet frame does not have pre-drilled holes to attach the back panels. Warning Label 1. Attach Back Panels JL , JR to back frame of low storage using Phillips Screws Round Head 5 through guide holes. 2.
  • Page 21 Assembly Model # AXCHRP-47 Step 12 1. Attach Adjustable Hinges 6 to Doors H using Phillips Screws 7 into pre-drilled holes on Doors H . 2. Attach Adjustable Hinges 6 on Doors H to Sides BL , BR using Phillips Screws 7 into pre-drilled holes on Sides BL , BR .

  • Page 22: Important Note

    Assembly Model # AXCHRP-47 Step 13 IMPORTANT NOTE: Tighten the Screw marked II to fasten hinge. The door may need to be adjusted so that all the spaces between the door and the unit sides are equal. To adjust, follow instructions: 1.
  • Page 23 Assembly Model # AXCHRP-47 Step 14 NOTE: The screwdriver is not included in the hardware pack.
  • Page 24 Assembly Model # AXCHRP-47 Step 15 shelf support anti - tipping shelf level 1 shelf level 2 shelf level 3 1. Use four Shelf Supports 9 for each Cabinet Shelf G in desired location. 2. Two Shelf Supports 9 may be used on back top of each Cabinet Shelf G as a tipping restraint.
  • Page 25 Assembly Model # AXCHRP-47 Step 16 1. Insert assembled drawers into glides on assembled cabinet. Press the top corner of the doors then release to open the doors...
  • Page 26 Furniture Tip Over Restraint Assembly WARNING Serious or fatal crushing injuries can occur from furniture tip-over. If the furniture tip over restraint kit is not in the box, please contact our customer service department in order to obtain another kit before using the furniture. Step 17 NOTE: The screwdriver is not included in the hardware pack.
  • Page 27 Furniture Anti-Tipping Restraint Instructions Attach one of the mounting brackets securely to the back edge of the furniture. Use the shorter screw. Determine where furniture is to be placed and mark location on the wall for mounting bracket screw hole approximately 2 inches below the bracket mounted to the furniture.
