Summary of Contents for SIMPLIHOME brooklyn + max WyndenHall AXCHRP16-WH

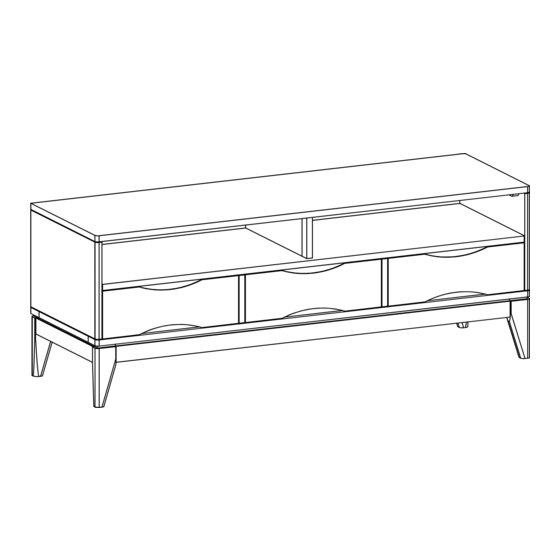

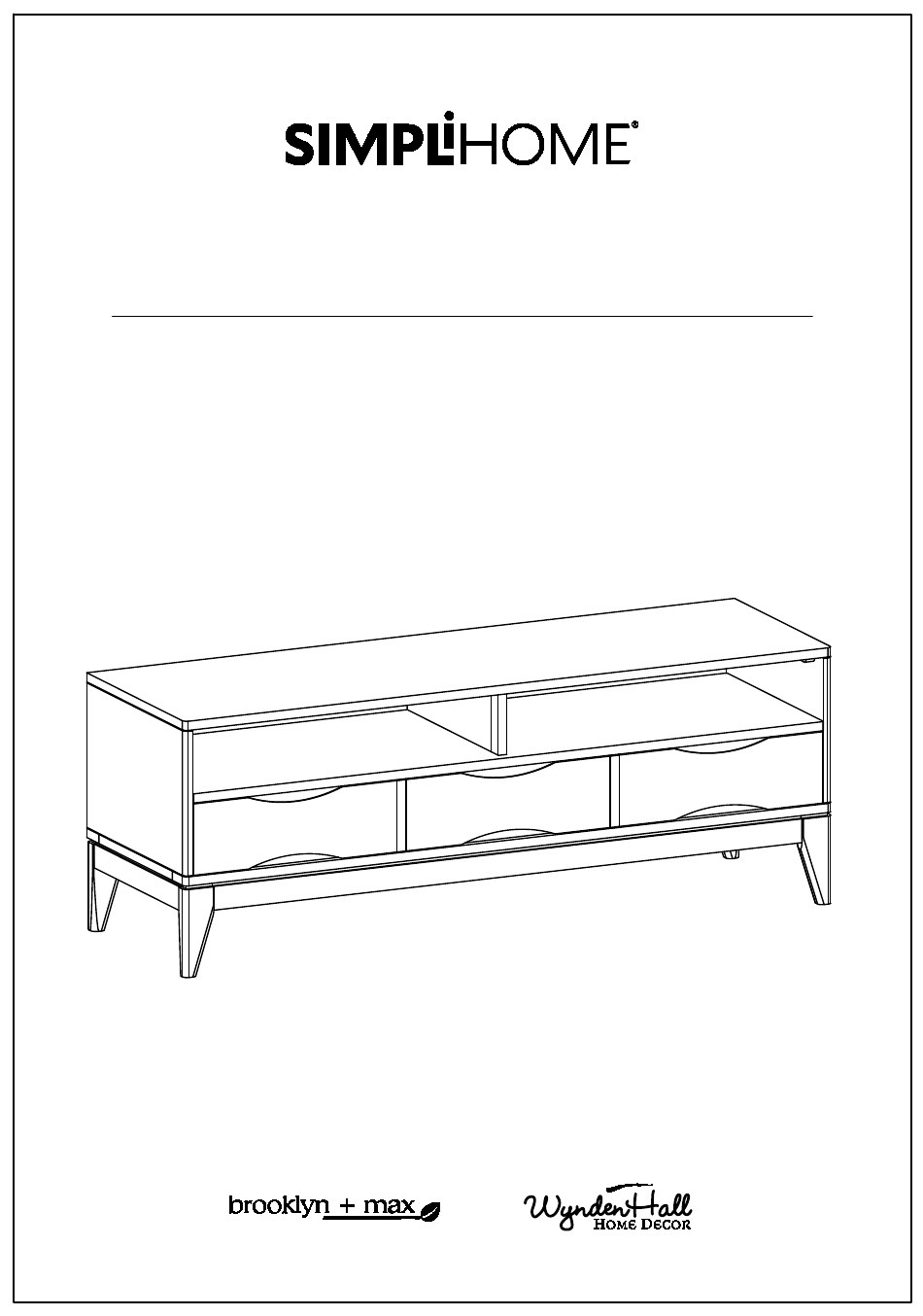

- Page 1 Harper / Pearson / Thompson TV Media Stand Model # AXCHRP16-WH...
- Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Activate your 1-year warranty ü...
- Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards.
- Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order information and issue. Submit form.
-
Page 5: Safety Information
IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information CAUTION: Injuries and damage can occur from furniture tip over if product is not properly anchored to the wall. Use the Furniture Anti-Tipping Restraint provided with the product. -
Page 6: Care And Maintenance
Care & Maintenance This furniture is designed for indoor use. Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. Making matters worse, it expands and contracts unequally along different grain directions. -
Page 7: Maximum Load 25 Lbs
WARNING The maximum diagonal CRT television screen size is 25 inch to 27 inch (63.50 cm to 68.58 cm). For use with televisions weighing 220 lbs or less. Using larger or heavier televisions may cause instability or tip over which can lead to serious injury or even death. - Page 8 Pre-Assembly Information Model # AXCHRP16-WH Part Description LEFT SIDE RIGHT SIDE QTY 1 QTY 1 QTY 1 BOTTOM TOP DIVIDER LEFT BOTTOM DIVIDER QTY 1 QTY 1 QTY 1 MIDDLE SHELF LEG (L&R Same) RIGHT BOTTOM DIVIDER QTY 1 QTY 2 QTY 1 DRAWER FRONT LEFT DRAWER SIDE...
- Page 9 Pre-Assembly Information Model # AXCHRP16-WH Hardware Description ALLEN KEY SCREW M6 X 30mm ALLEN KEY QTY 39 QTY 1 PHILLIPS SCREW WOOD DOWEL CAM LOCK PIN ROUND HEAD Ø8 x 30 mm M4 X 15mm CAM LOCK QTY 4 QTY 17 QTY 27 SETS Required - Flathead screwdriver...
- Page 10 Components - Key Diagram Model # AXCHRP16-WH...
- Page 11 Assembly Model # AXCHRP16-WH Step 1 1. Attach four Cam Lock Pins 5 to back of Drawer Front H . 2. Align Cam Lock Pins with guide holes and attach Drawer Sides IL , IR . 3. Insert two Cam Locks 5 into guide holes on each Drawer Side IL , IR . 4.
- Page 12 Assembly Model # AXCHRP16-WH Step 3 1. Align Drawer Back J with Drawer Bottom K and press firmly into slot. 2. Attach Drawer Back J using two Allen Key Screws 1 through guide holes on each Side IL , IR . 3.
- Page 13 Assembly Model # AXCHRP16-WH Step 4 1. Attach Divider D to Middle Shelf F using three Allen Key Screws 1 . 2. Use Allen Key 3 to tighten Screws. Do not over-tighten. Step 5 1. Attach six Cam Lock Pins 5 into pre-drilled holes at underneath of Middle Shelf F . 2.
- Page 14 Assembly Model # AXCHRP16-WH Step 6 1. Attach three Cam Lock Pins 5 into pre-drilled holes on each Side AL , AR . 2. Align Cam Lock Pins with guide holes and attach Middle Shelf F . 3. Insert six Cam Locks 5 into guide holes on Middle Shelf F . 4.
- Page 15 Assembly Model # AXCHRP16-WH Step 7 1. Attach Bottom C to Sides AL , AR and Bottom Dividers EL , ER using twelve Allen Key Screws 1 (three Screws on each Side and Bottom Divider). 2. Use Allen Key 3 to tighten Screws. Do not over-tighten.
- Page 16 Assembly Model # AXCHRP16-WH Step 8 1. Attach Legs G to Bottom C . 2. Use six Allen Key Screws 1 to secure part C and G (three Screws on each Leg) 3. Use eight sets Allen Key Bolts, Lock Washers and Washers 2 to secure part C and G (four sets on each Leg).
- Page 17 Assembly Model # AXCHRP16-WH Step 9 1. Insert two Wood Dowels 6 into guide holes on each Sides AL , AR . 2. Use rubber mallet to tap Wood Dowels 6 into bottom of holes securely. 1/3 length of Dowels should be exposed. 3.
- Page 18 Assembly Model # AXCHRP16-WH Step 10 NOTE: The screwdriver is not included in the hardware pack. Warning Label 1. Attach Back Panel L to back frame of TV using seventeen Phillips Screws Round Head 4 through guide holes. Step 11 1.
- Page 19 Furniture Tip Over Restraint Assembly WARNING Serious or fatal crushing injuries can occur from furniture tip-over. If the furniture tip over restraint kit is not in the box, please contact our customer service department in order to obtain another kit before using the furniture. Step 12 NOTE: The screwdriver is not included in the hardware pack.
- Page 20 Furniture Anti-Tipping Restraint Instructions Attach one of the mounting brackets securely to the back edge of the furniture. Use the shorter screw. Determine where furniture is to be placed and mark location on the wall for mounting bracket screw hole approximately 2 inches below the bracket mounted to the furniture.
