BCM MX-MTLPS User's Quick Start Card

Intel meteor lake-ps lga 1851

Advertisement

Quick Links

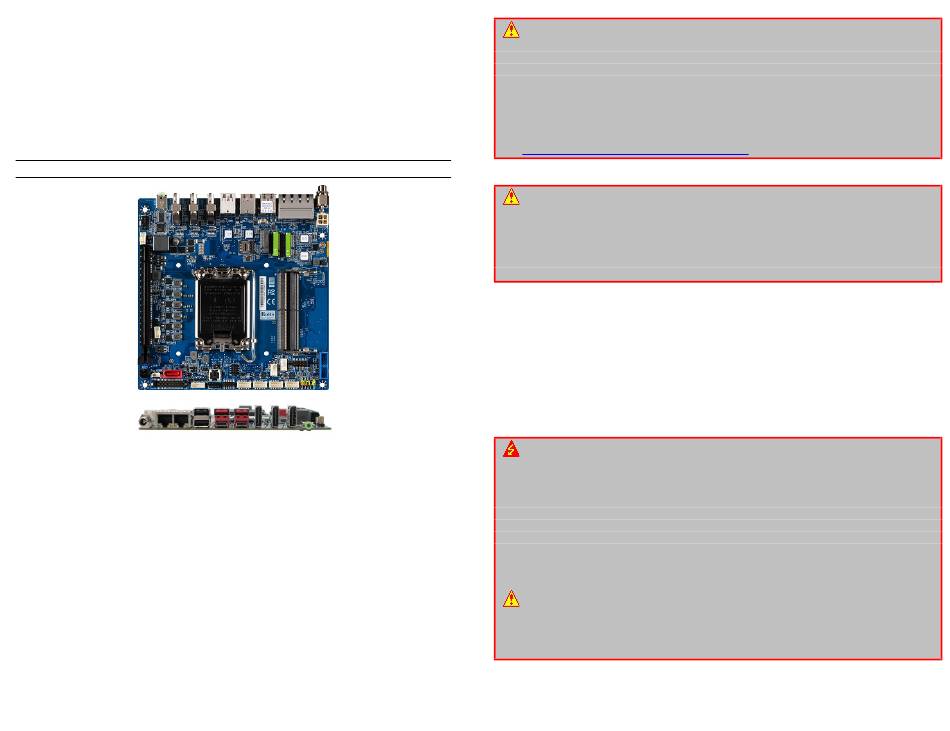

MX-MTLPS
Intel® Meteor Lake-PS LGA 1851
Meteor
Lake-UL
(Series 1 ONLY)
Meteor
Lake-HL
(Series 1 ONLY)
DDR5-5600 SODIMM (non-ECC), 32GB max/slot
Mini-ITX Motherboard
User's Quick Start Card
• Inspect the Package:
MX-MTLPS Motherboard x1
SATA Power Cable x1
IO Shield x1
• Responsibility:
This manual is provided "As-Is" with no warranties of any kind, it will neither expressed or implied,
including, but not limited to the implied warranties or conditions of this product's fitness for any
particular purpose. In no event shall we be liable for any loss of profits, loss of business, loss of
data, interruption of business, or indirect, special, incidental, or consequential damages of any kind,
even the possibility of such damage arising from any defect or error in this manual or product. We
reserve the right to modify and update the user manual without prior notice.
base power
15W
base power
45W
http://www.bcmcom.com
Version 1.02
WARNING: CMOS Battery Damage
Replace your system's CMOS RAM battery only with the identical CR-2032 3V Lithium-Ion coin cell
(or equivalent) battery type to avoid risk of personal injury or physical damage to your equipment.
Always dispose of used batteries according to the manufacturer's instructions, or as required by the
local ordinance (where applicable). The damage due to not following this warning will void your
motherboard's manufacturer warranty.
Perchlorate Material- Special Handling May Apply.
See
http://www.dtsc.ca.gov/hazardouswaste/perchlorate/
ATTENTION: Incorrect BIOS Setup
If you do not know how to handle BIOS setup or how to set it up properly, it is strongly advisable
that you do not modify any of the settings than otherwise instructed in the User's Quick Start Card.
Even a seemingly small incorrect adjustment or modification in the BIOS setup can render your
system unstable or unusable. The incorrect BIOS setup is not covered by your motherboard's
manufacturer warranty.
• Additional Information:
Additional information on setting this board up can be found in the User's Manual in the provided
CD-ROM. The Online User's Manual and FAQ/Knowledge Base can be found on our website by
visiting our website: http://www.bcmcom.com.
FAQ/Knowledge Base, visit our forums and post your messages or submit a new FAQ through FAQ
Submittal form for us to add your question to our FAQ with our answer.
WARNING: Electrostatic Sensitive Device (ESD)
Static electricity can easily damage your motherboard and will void your motherboard warranty.
Keep the motherboard and other system components in their anti-static packaging until you are
ready to install them. Touch a grounded surface before you remove any system component from
its protective anti-static packaging. Unpacking and installation should be done on a grounded, anti-
static mat. The operator should be wearing an anti-static wristband, grounded at the same points
as the anti-static mat. During configuration and installation touch a grounded surface frequently to
discharge any static electrical charge that may have built up in your body. Avoid touching the
components when handling the motherboard or a peripheral card. Handle the motherboard and
peripheral cards either by the edges or by the peripheral card case-mounting bracket.
WARNING: Misplaced Jumper Damage
Incorrect setting jumpers and connectors may lead to damage to your motherboard and will void
your motherboard warranty. Please pay special attention not to connect these headers in wrong
directions. DO NOT change ANY jumpers while the motherboard has power!
