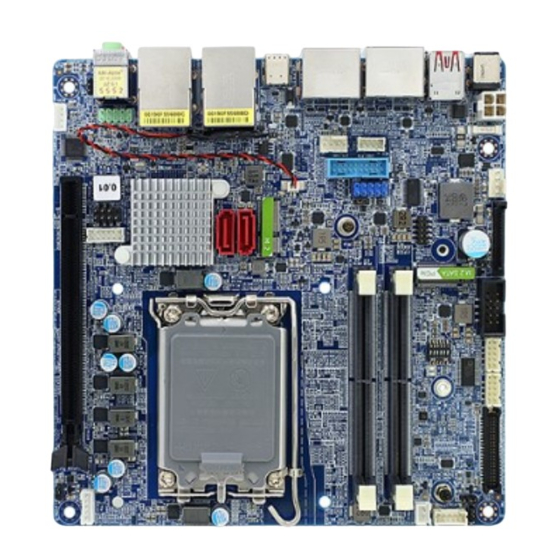

MX680RD
th
Intel® R680E support 12
generation Core™ i9, Core i7, Core
i5, Core i3, Pentium, Celeron
Mini-ITX Motherboard
User's Manual
Ver. 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MX680RD and is the answer not in the manual?

Questions and answers

Related Manuals for BCM MX680RD

Summary of Contents for BCM MX680RD

  • Page 1 MX680RD Intel® R680E support 12 generation Core™ i9, Core i7, Core i5, Core i3, Pentium, Celeron Mini-ITX Motherboard User’s Manual Ver. 1.0...

  • Page 2: Table Of Contents

    1.7.1 Rear panel connectors ........................... 31 1.7.2 CPU and System fan connectors (CPU_FAN1, SYS_FAN1) ..............32 1.7.3 System Panel (F_PANEL) ........................33 1.7.4 ATX power connectors (ATX12V1) ......................34 1.7.5 Serial Port connectors (COM1~2) ......................34 2 MX680RD User’s Manual...
  • Page 3 2.4.11 USB configuration ..........................61 2.4.12 Network Stack Configuration ........................ 62 2.4.13 IP configuration ............................ 63 2.4.14 NVMe Configuration ..........................63 2.4.15 Remote Server Configuration ....................... 65 2.5 Chipset ..........................66 2.5.1 System Agent (SA) Configuration ......................67 MX680RD User’s Manual 3...
  • Page 4 2.5.2.2 SATA Configuration ............................77 2.5.2.3 USB Configuration ............................78 2.5.2.4 HD audio Configuration ..........................79 2.5.2.5 Serial IO Configuration ........................... 80 2.6 Security ........................... 81 2.7 Boot ..........................82 2.8 Save & Exit ........................83 4 MX680RD User’s Manual...

  • Page 5: Safety Information

    If you encounter technical problems with the product, contact a qualified service technician or your retailer. The symbol of the crossed out wheeled bin indicates that the product (electrical and electronic equipment) should not be placed in municipal waste. Check local regulations for disposal of electronic products. MX680RD User’s Manual 5...
  • Page 6 This device complies with the requirements in Part 15 of the FCC rules. Operation is subject to the following two conditions:  This device may not cause harmful interference.  This device must accept any interference received, including interference that may cause undesired operation. 6 MX680RD User’s Manual...

  • Page 7: About This Guide

    CAUTION: Information to prevent damage to the components when trying to complete a task. IMPORTANT: Instructions that you MUST follow to complete a task. NOTE: Tips and additional information to help you complete a task. MX680RD User’s Manual 7...

  • Page 8: Typography

    Means that you must type the command exactly as shown, then supply the required item or value enclosed in brackets Example: At the UEFI command prompt, type the command line: AfuEfix64 [filename] /B /P /N /X AfuEfix64 71841100.ROM /B /P /N /X 8 MX680RD User’s Manual...

  • Page 9: Packing List

    MX680RD User’s Manual Packing List Before you begin installing your single board, please make sure that the following materials have been shipped: 1 x mini-ITX MX680RD Main board  1 x I/O Shield  1 x SATA power cable ...

  • Page 10: Revision History

    MX680RD User’s Manual Revision History Revision Revision History Date V 0.1 First release version June, 2022 V 1.0 Change BIOS Programming command Nov, 2022 10 MX680RD User’s Manual...
  • Page 11 MX680RD User’s Manual This chapter describes the motherboard features and the new technologies it supports. Product Introduction MX680RD User’s Manual 11...

  • Page 12: Specifications Summary

    1 x USB 3.2 Gen 1 Header with Shroud (2 Ports on Header) Internal I/O 1 x LVDS Header 1 x eDP Header (Optional) 1 x Backlight Locking Type Header 1 x SPI Header (2.54mm Pitch) 12 MX680RD User’s Manual...
  • Page 13 1 x Chassis Intrusion Locking Type Header 1 x 4 Pin Mini-Fit Jr DC-In Header Mechanical & Environmental Operating Temperature 0~60°C (32~140°F) Operating Humidity 5%~90% relative humidity, non-condensing Size (L x W) 6.7" (L) x 6.7" (W) (170mm x 170mm) MX680RD User’s Manual 13...
  • Page 14 MX680RD User’s Manual Block Diagram 14 MX680RD User’s Manual...

  • Page 15: Chapter 1 - Product Introduction

    The edge with external ports goes to the rear part of the chassis as indicated in the image below. 1.2.2 Screw Holes Place four screws into the holes indicated by circles to secure the motherboard to the chassis. Do not over tighten the screws! Doing so can damage the motherboard. MX680RD User’s Manual 15...
  • Page 16 MX680RD User’s Manual Place this side towards the rear of the chassis. 16 MX680RD User’s Manual...

  • Page 17: Motherboard Layout

    Dual channel. (1 DIMMs per channel) PCIEX16_1 PCIe x16 Gen5 M2E1 M.2 key E slot PCIEx1+USB interface M2M1 M.2 key M slot PCIEx4+SATA interface M2M2 M.2 key M slot PCIEx4+SATA interface (bottom side) Jumpers Label Function Note MX680RD User’s Manual 17...

  • Page 18: Central Processing Unit (Cpu)

    JAMP1 Amplifier Connector WAFER 1x4P, 2.0mm JCASE1 Chassis Intrusion Header WAFER 1x2P, 2.5mm 1.3 Central Processing Unit (CPU) The motherboard comes with a surface mount LGA1700 socket designed for the Intel® Core™ i7/ i5/ i3 processor. 18 MX680RD User’s Manual...

  • Page 19: Installing The Cpu

    Contact your retailer immediately if the PnP cap is missing, or if you see any damage to the PnP cap/socket pins/motherboard components. BCM will shoulder the cost of repair only if the damage is shipment/transit-related. ...
  • Page 20 PnP cap from the CPU socket to remove (D). 4. Position the CPU over the socket, making sure that the gold triangle is on the top-left corner of the socket then fit the socket alignment key into the CPU notch. 20 MX680RD User’s Manual...

  • Page 21: Installing The Cpu Heatsink And Fan

    If you buy a CPU separately, make sure that you use only Intel® certified multi‑directional heatsink and fan.  Your Intel® Core™ i9/ i7/ i5/ i3 LGA1700 processor LGA1700 heatsink and fan assembly comes in a push-pin design and requires no tool to install. MX680RD User’s Manual 21...
  • Page 22 Make sure each fastener is oriented as shown. 2. Push down two fasteners at a time in a diagonal sequence to secure the heatsink and fan assembly in place. 3. Connect the CPU fan cable to the connector on the motherboard labeled CPU_FAN. 22 MX680RD User’s Manual...

  • Page 23: Uninstalling The Cpu Heatsink And Fan

    These are not jumpers! DO NOT place jumper caps on the fan connectors. 1.3.3 Uninstalling the CPU Heatsink and Fan To uninstall the CPU heatsink and fan: 1. Disconnect the CPU fan cable from the connector on the motherboard. 2. Rotate each fastener counterclockwise MX680RD User’s Manual 23...
  • Page 24 MX680RD User’s Manual 3. Pull up two fasteners at a time in a diagonal sequence to disengage the heatsink and fan assembly from the motherboard. 4. Carefully remove the heatsink and fan assembly from the motherboard. 24 MX680RD User’s Manual...

  • Page 25: System Memory

    The DDR5 specification is bringing the maximum potential capacity for a single DDR5 DIMM to 128GB, a theoretical maximum transfer speed of 6400MT/s which is doubling the rate of DDR4, along with the improved power consumption as 1.1V. 262-Pin DDR5 SODIMM sockets MX680RD User’s Manual 25...

  • Page 26: Installing A Sodimm

    In the future, you may need to install expansion cards. The following sub-sections describe the slots and the expansion cards that they support. Make sure to unplug the power cord before adding or removing expansion cards. Failure to do so may cause you physical injury and damage motherboard components. 26 MX680RD User’s Manual...

  • Page 27: Installing An Expansion Card

    1.5.3 PCI Express x16 slot This motherboard supports 1 PCI Express x16 slot that complies with the PCI Express specifications. Slot1: Gen 4 PCIe x16 Slot1 1.5.4 M.2 connector Support PCIe, SATA and USB interface of this connector. MX680RD User’s Manual 27...

  • Page 28: Jumpers

    The onboard button cell battery powers the RAM data in CMOS, which includes system setup information such as system passwords. To erase the RTC RAM: 1. Turn OFF the computer and unplug the power cord. 2. Remove the onboard battery. 28 MX680RD User’s Manual...

  • Page 29: At/Atx Power Mode Select (Jpson1)

    Removing the cap will cause system boot failure! Normal (Default) Clear CMOS 1.6.2 AT/ATX Power Mode Select (JPSON1) This jumper allows you to select ATX Mode or AT mode AT mode ATX mode (Default) MX680RD User’s Manual 29...

  • Page 30: Com Power Setting (Ri Sel)

    1.6.4 LVDS backlight voltage selection (JBKLVOL) This jumper allows you to select 3V or 5V for LVDS backlight 1.6.5 LVDS brightness control mode selection (JLVDS_BKL1) This jumper allows you to select control mode for LVDS backlight 30 MX680RD User’s Manual...

  • Page 31: Connectors

    Type A Connectors(TypeA) available for connecting USB 3.2 devices. Display Port The display port Connector USB3.2 USB 3.2 These Universal Serial Bus (USB) ports are Type C Connectors(TypeC) available for connecting USB 3.2 type C devices. MX680RD User’s Manual 31...

  • Page 32: Cpu And System Fan Connectors (Cpu_Fan1, Sys_Fan1)

    CPU_FAN1 4. FAN_PWM 3. FAN_SPEED 2. +V12 1. GND SYS_FAN1 4. FAN_PWM 3. FAN_SPEED 2. +V12 1. GND 32 MX680RD User’s Manual...

  • Page 33: System Panel (F_Panel)

    Hard Disk Drive Activity LED (Pin 1-3) This 2-pin connector is for the HDD Activity LED. Connect the HDD Activity LED cable to this connector. The IDE LED lights up or flashes when data is read from or written to the HDD. MX680RD User’s Manual 33...

  • Page 34: Atx Power Connectors (Atx12V1)

    1.7.5 Serial Port connectors (COM1~2) This connector is for a serial (COM) port. Connect the serial port module cable to this connector, then install the module to a slot opening at the back of the system chassis. 34 MX680RD User’s Manual...

  • Page 35: Serial Ata Connector (Sata1~2 )

    This connectors are for USB 2.0 ports. Connect the optional USB module cable to any of this connectors, then install the module to a slot opening at the back of the system chassis. These USB connectors comply with USB 2.0 specification that supports up to 480 Mbps connection speed. MX680RD User’s Manual 35...

  • Page 36: Usb3.2 Connector

    2. USB3_RX- 19. +5V 3. USB3_RX+ 18. USB3_RX- 17. USB3_RX+ 4. GND 16. GND 5. USB3_TX- 15. USB3_TX- 6. USB3_TX+ 14. USB3_TX+ 7. GND 8. USB- 13. GND 9. USB+ 12. USB- 11. USB+ 10. NC 36 MX680RD User’s Manual...

  • Page 37: Bit Gpio Header (Jdio1)

    This connector is for a chassis-mounted front panel audio I/O module that supports either HD Audio or legacy AC ‘97 (optional) audio standard. FP_AUDIO1 9. LINE2L 10. LINE2-JD 8. NC 7. SENSEB 6. MIC2-JD 5. LINE2R 3. MIC2R 4. +3.3 1. MIC2L 2. GND MX680RD User’s Manual 37...

  • Page 38: Amplifier Connector (Jamp1)

    1.7.11 Amplifier Connector (JAMP1) This connector allow user to connect an external audio amplifier. JAMP1 1. AMP_L- 2. AMP_L+ 3. AMP_R- 4. AMP_R+ 1.7.12 SM bus connector (SMB1) 5. 3.3V 4. GND 3. SMB_ALT 2. SMB_DATA 1. SMB_CLK 38 MX680RD User’s Manual...

  • Page 39: I2C Connector (I2C1)

    3. I2C_SDA 2. I2C_SCL 1. +3.3V 1.7.14 Chassis intrusion connector (JCASE1) This connector allow user to connect a sensor in system case. Once the chassis is opened, system will alert user or administrator. 1. SIO_CASEOPEN# 2. GND MX680RD User’s Manual 39...

  • Page 40: Lvds Panel Connector (Lvds1)

    17. LVDS_A3- 18. LVDS_A2- 15. LVDS_A3+ 16. LVDS_A2+ 13. GND 14. GND 11. LVDS_A1- 12. LVDS_A0- 9. LVDS_A1+ 10. LVDS_A0+ 7. GND 8. GND 5. DDC_CLK 6. DDC_DATA 3. VDD_+3.3V 4. VDD_+5V 1. VDD_+3.3V 2. VDD_+5V 40 MX680RD User’s Manual...
  • Page 41 MX680RD User’s Manual This chapter tells how to change the system settings through the BIOS Setup menus. Detailed descriptions of the BIOS parameters are also provided. BIOS Setup MX680RD User’s Manual 41...

  • Page 42: Chapter 2 - Bios Setup

    The BIOS setup screens shown in this section are for reference purposes only, and may not exactly match what you see on your screen.  Visit the system builder’s website to download the latest BIOS file for this motherboard 42 MX680RD User’s Manual...

  • Page 43: Legend Box

    <F3> to load the optimal default values. While moving around through the Setup program, note that explanations appear in the Item Specific Help window located to the right of each menu. This window displays the help text for the currently highlighted field. MX680RD User’s Manual 43...

  • Page 44: Bios Menu Screen

    To access the menu items, press the up/down/right/left arrow key on the keyboard until the desired item is highlighted, then press [Enter] to open the specific menu. 44 MX680RD User’s Manual...

  • Page 45: Main Setup

    Use this menu for basic system configurations, such as time, date etc. BIOS Information Displays the auto-detected BIOS information.  System Date The date format is <Date>,<Month>,<Day>,<Year>.  System Time The time format is <Hour>,<Minute>,<Second>. MX680RD User’s Manual 45...

  • Page 46: Advanced Bios Setup

    The Advanced BIOS Setup screen is shown below. The sub menus are described on the following pages. Take caution when changing the settings of the Advanced menu items. Incorrect field values can cause the system to malfunction. 46 MX680RD User’s Manual...

  • Page 47: Cpu Configuration

    Number of E-core to enable in each processor package  Hyper-Threading Enable or disable Hyper-Threading technology Configuration options: [Enable] [Disable]  Intel Trusted Execution Technology Enabled utilization of additional hardware capabilities provided by Intel Trusted execution technology Configuration options: [Enable] [Disable] MX680RD User’s Manual 47...

  • Page 48: Power & Performance

    When enabled, CPU will switch to minimum speed when all cores enter C state Configuration options: [Enable] [Disable]  Package C state limit Maximum package C state limit setting. CPU default : Leaves to factory default value Configuration options: [C0/C1] [C2] [C3] 48 MX680RD User’s Manual...

  • Page 49: Pch-Fw Configuration

    ME State [Enabled] When disabled ME will be put into ME temporarily disabled mode Configuration options: [Enable] [Disable]  ME unlock control [Lock] When Set unlock, system will shut down for active function Configuration options: [Lock] [Unlock] MX680RD User’s Manual 49...

  • Page 50: Trusted Computing

    MX680RD User’s Manual 2.4.4 Trusted Computing Security device settings  TPM Device Selection [dTPM] Select TPM device Configuration options: [dTPM] [PTT]  Security Device support [Disabled] Enable or Disable BIOS support security device Configuration options: [Enable] [Disable] 50 MX680RD User’s Manual...

  • Page 51: Acpi Settings

    PCIE# wake from S5 [Disabled] Enable or disable PCIE wake the system from S5. Configuration options: [Disabled] [Enabled]  Wake on Ring [Disabled] Enable or disable wake on ring function under ACPI S3/S4/S5. Configuration options: [Disabled] [Enabled] MX680RD User’s Manual 51...

  • Page 52: Nct6126D Super Io Configuration

    Configuration options: [Second] [Minute]  WatchDog Timeout value Fill watchdog timeout value, 0 means disables  Chassis opened warning [Disabled] Select chassis intrusion enabled to Disabled Configuration options: [Disabled] [Enabled]  ErP/EuP S5 Support [Disabled] Configuration options: [Disabled] [Enabled] 52 MX680RD User’s Manual...

  • Page 53: Serial Port 1 Configuration

    Configuration options: [Disabled] [Enabled]  Change Setting [Auto] Select an optimal settings for super IO device Configuration options: as below  COM Mode Select [RS232] Configure the COM port Mode Configuration options: [RS232][RS485 Half Duplex][RS422 Full Duplex] MX680RD User’s Manual 53...

  • Page 54: Serial Port 2 Configuration

    MX680RD User’s Manual 2.4.6.2 Serial Port 2 Configuration  Serial Port [Enabled] Enable or Disable serial Port (COM) Configuration options: [Disabled] [Enabled]  Change Settings [Auto] Select an optimal settings for super IO device Configuration options: as below 54 MX680RD User’s Manual...

  • Page 55: Hardware Monitor

    MX680RD User’s Manual 2.4.7 Hardware monitor Display Hardware monitor information 2.4.7.1 Smart FAN  Smart FAN Function [Enabled] MX680RD User’s Manual 55...

  • Page 56: Smart Fan Mode Configuration

    Setting different FAN on this motherboard  CPU_FAN/SYS_FAN FAN Target Smart FAN target temperature Configuration options: Please see below picture  CPU_FAN/SYS_FAN MIN.FAN Speed (%) CPU or Chassis Smart FAN minimum settings Configuration options: Please see below picture 56 MX680RD User’s Manual...

  • Page 57: S5 Rtc Wake Settings

    MX680RD User’s Manual 2.4.8 S5 RTC wake settings  Wake system from S5 [Disabled] Enabled or Disabled system wake on alarm event Configuration options: [Enabled] [Disabled] MX680RD User’s Manual 57...

  • Page 58: Serial Port Console Redirection

    MX680RD User’s Manual 2.4.9 Serial Port Console Redirection Display CPU configuration  Console Redirection [Disabled] Enabled or Disabled COM1 Console redirection Configuration options: [Disabled][Enabled] 2.4.9.1 Console Redirection settings 58 MX680RD User’s Manual...
  • Page 59 Stop Bits[1] Stop bits indicate the end of a serial data package Configuration options: [1][2]  Flow Control[None] Flow control can prevent data loss from buffer overflow. Configuration options: [None][Hardware RTS/CTS]  VT-UTF8 Combo key Support [Enabled] MX680RD User’s Manual 59...

  • Page 60: Intel Txt Information

    Enables or disables extended terminal resolution Configuration options: [Enabled] [Disabled]  Putty Keypad [VT100] Selects function key and keypad on putty Configuration options: [VT1000] [LINUX][XTERMR6][SCO][ESCN][VT400] 2.4.10 Intel TXT information Display Intel TXT information. This depends on CPU sku. 60 MX680RD User’s Manual...

  • Page 61: Usb Configuration

     USB Mass Storage Driver Support [Enabled] Enable or Disable USB Mass Storage Driver Support Configuration options: [Enabled][Disabled]  Mass Storage Devices [Auto] Mass Storage device emulation Type. “Auto” enumerates device according to its media format. MX680RD User’s Manual 61...

  • Page 62: Network Stack Configuration

    Enabled or disabled IPv6 PXE boot Support Configuration options: [Enabled][Disabled]  PXE boot wait time Wait time in seconds to press ESC key to abort the PXE boot.  Media detect count Number of time the presence of media will be checked 62 MX680RD User’s Manual...

  • Page 63: Ip Configuration

    2.4.13 IP configuration  Auto Configuration[Disabled] Allow user to set IP. DisabledIP won’t set Every BootSets IP on every boot On demandUser has to set IP using IPConfig interface. 2.4.14 NVMe Configuration Display NVMe controller or Drive information MX680RD User’s Manual 63...
  • Page 64 MX680RD User’s Manual 64 MX680RD User’s Manual...

  • Page 65: Remote Server Configuration

    Management server address to be used if Auto server searching is either disabled or failed. If changed, need to do clear Enrollment if already enrolled with previous IP.  Server Port Numbet Provide the management server Port Number MX680RD User’s Manual 65...

  • Page 66: Chipset

    MX680RD User’s Manual 2.5 Chipset 66 MX680RD User’s Manual...

  • Page 67: System Agent (Sa) Configuration

    2.5.1 System Agent (SA) Configuration  VT-d [Enabled] VT-d capability Configuration options: [Disabled] [Enabled] 2.5.1.1 Memory Configuration Maximum Value of TOLUD. Dynamic assignment would adjust TOLUD automatically based on largest MMIO length of installed graphic controller. MX680RD User’s Manual 67...

  • Page 68: Graphic Configuration

    MX680RD User’s Manual 2.5.1.2 Graphic Configuration Graphic configuration settings  Primary Display[Auto] Select which of IGFX/PEG/PCIE graphic device should be primary display or select HG for Hybrid Gfx. Configuration options: [Auto] [IGFX][PEG slot][PCIE]  Internal Graphics [Auto] 68 MX680RD User’s Manual...

  • Page 69: Lcd Control

    Configuration options: [Auto] [disabled][enabled]  PSMI Support [Disabled] PSMI enabled/Disabled Configuration options: [Disabled][Enabled]  DVMT Pre-allocated [60M] Select DVMT 5.0 Pre-allocated (Fixed) Graphics memory size used by the internal graphics device. Configuration options: As below picture 2.5.1.2.1 LCD Control MX680RD User’s Manual 69...

  • Page 70: Vmd Setup Menu

    MX680RD User’s Manual  LCD Control [Disabled] Enable/Disable LCD. LCD is LVDS or eDP panel Configuration options: [Disabled][Enabled] 2.5.1.3 VMD setup menu  Enable VMD controller [Disabled] Enable/Disable to VMD controller Configuration options: [Disabled][Enabled] 70 MX680RD User’s Manual...

  • Page 71: Pci Express Configuration

    MX680RD User’s Manual 2.5.1.4 PCI Express Configuration  Detect Non-compliance Device [Disabled] Detect Non-compliance Device in PEG Configuration options: [Disabled][Enabled] 2.5.1.4.1 PCI Express Root Port 1 (x4 Key M) MX680RD User’s Manual 71...

  • Page 72: Pci Express Root Port 2 (X16 Peg Slot)

    Control the PCI express Root Port Configuration options: [Enabled] [Disabled]  ASPM [Disabled] Set the ASPM level Configuration options: [Disaled] [L0S][L1][L0sL1]  PCIe Speed [Auto] Configure PCIe Speed Configuration options: [Auto][Gen1][Gen2][Gen3][Gen4] 2.5.1.4.2 PCI Express Root Port 2 (x16 PEG slot) 72 MX680RD User’s Manual...
  • Page 73 PCI Express Root Port 2 [Enabled] Control the PCI express Root Port Configuration options: [Enabled] [Disabled]  ASPM [Disabled] Set the ASPM level Configuration options: [Disaled] [L0S][L1][L0sL1]  PCIe Speed [Auto] Configure PCIe Speed Configuration options: [Auto][Gen1][Gen2][Gen3][Gen4] [Gen5] MX680RD User’s Manual 73...

  • Page 74: Pch-Io Configuration

    Specify what state to go to when power is re-applied after a power failure (G3 state) Configuration options: [Power on][Power off] [Last State]  Flash Protection Range Registers(FPRR) [Disabled] Enabled Flash Protection Range Registers Configuration options: [Disabled][Enabled] 74 MX680RD User’s Manual...

  • Page 75: Pci Express Configuration

     GPIO Group Control [Disabled] Configure the digital GPIO pins Configuration options: [Disabled][Enabled]  Amplifier GAIN(db) [15.3db] Select Amplifier GAIN value Configuration options: [15.3db][21.2db][27.2db][31.8db] 2.5.2.1 PCI Express Configuration 2.5.2.1.1 PCI Express Root Port 1(x1 Key E) MX680RD User’s Manual 75...
  • Page 76  PCIe Speed [Auto] Select PCI Express Port speed Configuration options: [Auto][Gen1][Gen2][Gen3] [Gen4]  Detect Non-compliance device [Disabled] Detect non-compliance PCI express Device, If enabled, it will take more time at Post time. Configuration options: [Disabled][Enabled] 76 MX680RD User’s Manual...

  • Page 77: Sata Configuration

    Port 1 [Enabled] Enable or Disable SATA port 1 Configuration options: [Enabled][Disabled]  Port 2 [Enabled] Enable or Disable SATA port 2 Configuration options: [Enable ][Disabled]  M.2 Port [Enabled] Enable or Disable M.2 port Configuration options: [Enabled][Disabled] MX680RD User’s Manual 77...

  • Page 78: Usb Configuration

    Enable or Disable USB standby power Configuration options: [Disabled] [Enabled]  USB56 Standby Power[Enabled] Enable or Disable USB standby power Configuration options: [Disabled] [Enabled]  USB910 Standby Power[Enabled] Enable or Disable USB standby power Configuration options: [Disabled] [Enabled] 78 MX680RD User’s Manual...

  • Page 79: Hd Audio Configuration

    MX680RD User’s Manual 2.5.2.4 HD audio Configuration  HD audio[Enabled] Control Detection of the HD-Audio device. Configuration options: [Disabled] [Enabled] MX680RD User’s Manual 79...

  • Page 80: Serial Io Configuration

    MX680RD User’s Manual 2.5.2.5 Serial IO Configuration  I2C0 Controller[Enabled] Enabled/Disabled Serial IO Controller Configuration options: [Disabled] [Enabled]  I2C2 Controller[Enabled] Enabled/Disabled Serial IO Controller Configuration options: [Disabled] [Enabled] 80 MX680RD User’s Manual...

  • Page 81: Security

    MX680RD User’s Manual 2.6 Security  Administrator Password Set Administrator Password  User Password Set User Password MX680RD User’s Manual 81...

  • Page 82: Boot

    Configuration options: [UEFI]  UEFI USB Key Drive BBS Priorities Specifies the boot device priority sequence from available UEFI USB key Drives.  UEFI Application Boot Priorities Specifies the boot device priority sequence from available UEFI Application. 82 MX680RD User’s Manual...

  • Page 83: Save & Exit

     Load optimized Deault Restore/Load default values for all the setup option.  Launch EFI Shell from filesystem device Attempts to launch EFI shell application from one of the available filesystem devices.  AMIFWUpdate Launches AMIFWUpdate MX680RD User’s Manual 83...
