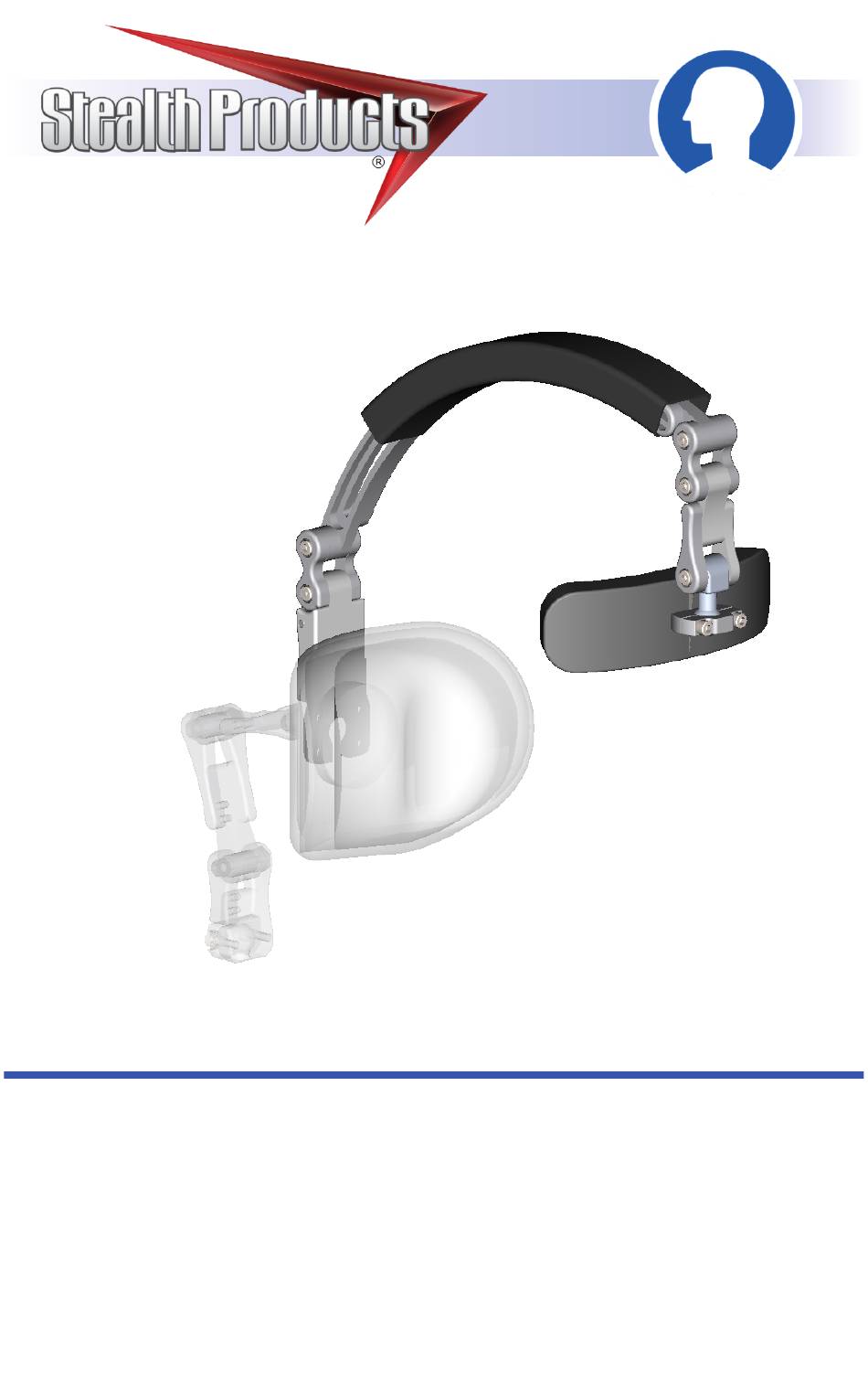

- Page 1 Head Support Anterior Head Support Owner’s Manual - Maintenance Guide Anterior Head Support Pad...
-
Page 2: Table Of Contents
Table of Contents Customer Satisfaction ..............i General ......................i Important Information............... ii-iii Warranty .......................ii Warning Labels..................iii Limited Liability..................iii Testing ......................iii Installation Instructions .............. 1-2 Operating Laterals ................... 1 Adjusting Laterals ..................1 Standard Cane Mounting..............2 First Time Use ................... 3 Dealer Assistance .................. -
Page 3: Customer Satisfaction
Customer Satisfaction Stealth Products is committed to 100% customer satisfaction. Your complete satisfaction is important to us. Please contact us with feedback or suggestions to help us improve the quality and usability of our products. You may reach us at:... -
Page 4: Important Information
Warranty Our products are designed, manufactured, and produced to the highest of standards. If any defect in material or workmanship is found, Stealth Products will repair or replace the product at our discretion. Any implied warranty, including the implied warranties of merchantability and fitness for a particular purpose, shall not extend beyond the duration of this warranty. -
Page 5: Warning Labels
Stealth Products does not hold responsibility for final integration of final assembly of product to end user. Stealth Products is not liable for user death or injury. Testing Initial setup and driving should be done in an open area free of obstacles until the... -
Page 6: Intended Use
Stealth 17mm headrest pad and allows the anterior forehead pad to be adjusted in height, angle, and depth. The Anterior Head Support hardware can be independently flipped back during transfers and other ADLs, but will remain firmly in place when used in conjunction with other swing-away systems. -
Page 7: Tools Required
The screw can be loosened to adjust the angle of the link. Tightening the screw will secure the adjustment. CAUTION Incorrect installation of the anterior head support can lead to irritation or injury for the user. -
Page 8: Installation Instructions
Installation Instructions Installing the Anterior Head Support The Anterior Head Support mounts to any 17mm ball headrest hardware. Step 1 - If the headrest pad is already installed on the headrest hardware, remove the split ring that connects the headrest to the... - Page 9 Installation Instructions Installing the Anterior Pad The anterior support pad (forehead pad) is connected to the anterior head support by means of a set of clamps on a 17mm ball. Step 1 - Position the inner clamp and the outer clamp on the 17mm ball.
- Page 10 Adjustment Instructions Flip-Back Operation PRESS The red lever, located just above the Depress the lever and pull back on mount point, is used to activate the the head support, as shown below. flip back function of the head The head support will only flip support.
- Page 11 Adjustment Instructions Forehead Pad Adjustment To adjust the forehead pad for depth, loosen the socket head screws at the junction(s) you wish to adjust. Move the links to the desired positions and secure them by tightening the socket head screws.
-
Page 12: Operating Laterals
Adjustment Instructions Forehead Pad Adjustment The pad can be adjusted for angle, if needed, by loosening the screws holding the clamp to the 17mm ball. Rotate and deflect the pad to the desired position and tighten the screws to secure Support Arm Adjustment The support arm can be adjusted for length to accommodate differences in head size, angle, etc. -
Page 13: Standard Cane Mounting
Adjustment Instructions Screw needs to cross divider. The support arm has two ranges: short to medium, and medium to long. The screws must be removed to place the halves in the other range. If the support arm is not in the proper range for your installation, just remove the screws holding the... -
Page 14: First Time Use
Can the user safely operate the chair in the position in which they are seated? • Is the placement of Anterior Head Support in an optimal position for the client? Conditions of Use The Anterior Head Support is intended for use as installed by the dealer, in accordance to the installation instructions in this manual. -
Page 15: Maintenance
Maintenance Cleaning If the cover on the anterior head support pad becomes dirty, gently remove it from the head support by stretching one side of the pad and slipping the edge past the metal plate and gel pad. Machine wash cover in cold water, delicate cycle, and let it drip dry. -
Page 16: Notes
© 2023, Stealth Products, LLC Warranty Information Home Page Online User Manual Stealth Products, LLC · info@stealthproducts.com · www.stealthproducts.com (800) 965-9229 | (512) 715-9995 | 104 John Kelly Drive, Burnet, TX 78611 P151D751 UniLink Anterior Head Support Owner's Aug 1, 2023...
