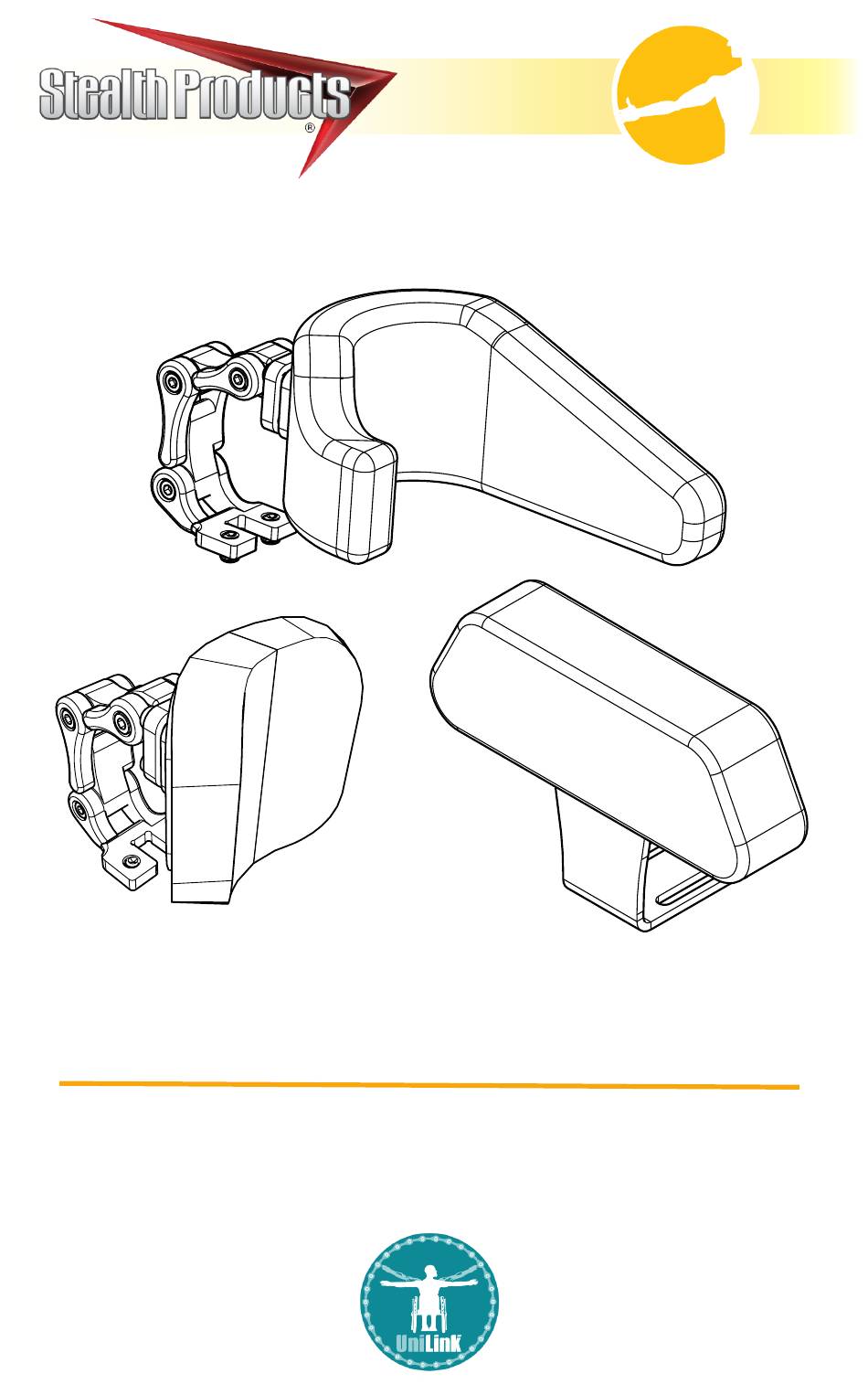

- Page 1 tooltip Upper Extremity Support tooltip UniLink Elbow Support Hardware Owner’s Manual...
-
Page 2: Customer Satisfaction
General Information Stealth Products is committed to 100% customer satisfaction. Your complete satisfaction is important to us. Please contact us with feedback or suggestions to help us improve the quality and usability of our products. You may reach us at:... -
Page 3: Warranty
Warranty Our products are designed, manufactured, and produced to the highest of standards. If any defect in material or workmanship is found, Stealth Products will repair or replace the product at our discretion. Any implied warranty, including the implied warranties of merchantability and fitness for a particular purpose, shall not extend beyond the duration of this warranty. -
Page 4: Warning Labels
Stealth Products does not hold responsibility for final integration of final assembly of product to end user. Stealth Products is not liable for user death or injury. Testing Initial setup and driving should be done in an open area free of obstacles until the... -
Page 5: Table Of Contents
Installation Plan ..................7 Optional Swing-Away Hardware ............7 Assembling and Adjusting the Elbow Block Pad ......8 Installing the UniLink Elbow Block Hardware........ 9 Adjusting the UniLink Elbow Block ..........10 Installing the Optional Arm Stop .............11 First Time Use ......................12 Cleaning &... -
Page 6: Design & Function
TB4 arm from Quantum. The hardware has a ball mount which can work with a foam or gel pad. Preparations Only a qualified service technician should install the UniLink Elbow Block and its accessories. WARNING An incorrect installation of UniLink Elbow Block may cause damage to the hardware and/or injury to the user. -
Page 7: Mounting
Design & Function Parts and Accessories Breakdown A typical UniLink Elbow Block package will contain: 1. Mounting Hardware ▪ The mounting hardware is designed to slide into the track of the armrest. 2. UniLink Elbow Block Hardware ▪ The hardware for the Elbow Blocks are black anodized aluminum with multiple adjustment points to achieve direct contact support. -
Page 8: Included Fasteners
Installation Included Fasteners The UniLink Elbow Block will be packaged with the following fasteners: • M5x0.8x20mm Socket Head Screws (SHS); and, • M8x1.25x12mm Socket Cup Point Set Screws (SCPSS). This selection of screws should accommodate your installation needs. If you have... -
Page 9: Assembling And Adjusting The Elbow Block Pad
Installation Assembling and Adjusting the Elbow Block Pad Step One: Slide the split ring over the 17mm ball, ensuring that the ring is facing the correct direction so that the screw cap heads rest in the recesses. Step Two: Place the Elbow Block pad mount plate over the 17mm ball and loosely install the screws. -
Page 10: Installing The Unilink Elbow Block Hardware
Installation Installing the UniLink Elbow Block Hardware Step One: Ensure that the rail has a minimum of 3/4” of exposed track to allow the Elbow Block mount to insert fully. Mount the Elbow Block with the link adjustment screws facing out for accessibility. -
Page 11: Adjusting The Unilink Elbow Block
Headrests Adjusting the UniLink Elbow Block Step One: Loosen the M5x0.8x20mm socket head screws until each joint is movable. Step Two: Adjust to the desired position (Each link rotates up to approximately 258°). Step Three: Tighten the M5x0.8x20mm Socket Head Screws. -
Page 12: Installing The Optional Arm Stop
Headrests Installing the Optional Arm Stop The Arm Pad Stops are adjustable supports that help prevent a user’s arms from sliding off the side of the armrest, particularly during tilt and recline and while repositioning. By preventing the arms from sliding off the armrest, the Arm Pad Stops allow those with reduced arm function to reposition themselves independently, drive on bumpy terrain, and maintain control of their wheelchair. -
Page 13: First Time Use
As a dealer, explain and show the customer how you have executed the installation and explain the function. Have the user test the position of the UniLink Elbow Block and/or the Arm Stops. •... -
Page 14: Cleaning & Maintenance
Maintenance Cleaning • Use a soft cloth to clean the hardware. • Ensure all cleaners are approved for use on finished steel, aluminum, plastic, and upholstered surfaces. • Hand or machine wash foam pad cover on delicate cycle with mild detergent, cool water and let dry. -
Page 15: Notes
Notes... - Page 16 © 2020, Stealth Products, LLC Stealth Products, LLC · info@stealthproducts.com · www.stealthproducts.com (800) 965-9229 | (512) 715-9995 | 104 John Kelly Drive, Burnet, TX 78611 P143D573 -- UL Elbow Block Owner's Manual.pdf Revision Date - Jul 9, 2020...
