Seating and Positioning
USER MANUAL
Q-Back
Installation & Operations Manual for all AL & AFT
Series Q-Back's

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ADI Q-Back AL Series and is the answer not in the manual?

Questions and answers

Related Manuals for Stealth Products ADI Q-Back AL Series

Summary of Contents for Stealth Products ADI Q-Back AL Series

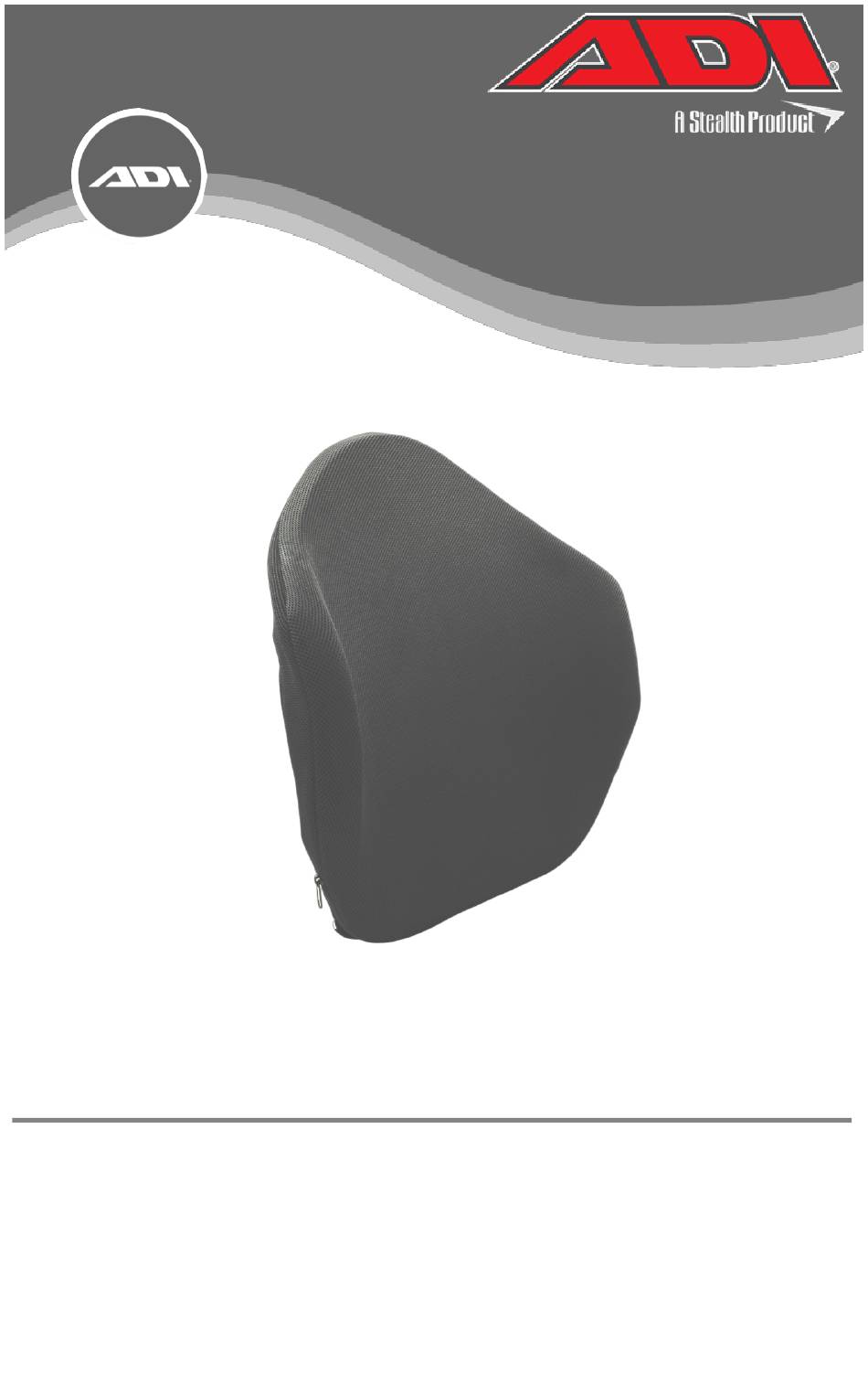

  • Page 1 Seating and Positioning USER MANUAL Q-Back Installation & Operations Manual for all AL & AFT Series Q-Back’s...

  • Page 2: Customer Satisfaction

    Customer Satisfaction Stealth Products strives for 100% customer satisfaction. Your complete satisfaction is important. Please contact us with feedback or suggested changes that will help improve the quality and usability of these products. You may reach us at: Stealth Products, LLC...
  • Page 3 Important Information Important Information! All persons responsible for fitting, adjustment, and daily use of the devices dis-cussed in these instructions must be familiar with and understand all safety aspects of the devices mentioned. In order for our products to be used successfully, you must: ...

  • Page 4: Introduction

    For further assistance, or more advanced applications, please contact your supplier or Stealth Products at (512) 715-9995 or toll free at 1-800-965-9229. Always keep the operating instructions in a safe place so they may be referenced as necessary.
  • Page 5 Introduction Installation Date: Dealer: Dealer Stamp: Serial Number:...

  • Page 6: Warranty

    2 years Covers: Hardware: 5 years Electronics: 3 years Limitations Stealth Products, LLC does not warrant damage due to, but not limited to:  Misuse, abuse, or misapplication of products.  Modification of products without written approval from Stealth Products, LLC.

  • Page 7: Table Of Contents

    Table Of Contents 1.0 Customer Satisfaction ................i 2.0 Important Information ................ii 3.0 Introduction ................... iii 4.0 Warranty ....................v 4.1 Limitations ....................... v 5.0 Table Of Contents .................. vi 6.0 Warning Labels..................vii 6.1 Warning Labels ....................vii 6.2 Limited Liability ....................
  • Page 8 Table Of Contents 11.0 First Time Use ..................3 11.1 Dealer Assistance ..................... 3 11.2 User Testing ....................... 3 11.3 Conditions of Use .................... 3 12.0 Maintenance ..................4 12.1 Cleaning ....................... 4 12.2 Disinfection......................4...

  • Page 9: Warning Labels

    SAFETY be necessary. Limited Liability Stealth Products, LLC accepts no liability for personal injury or damage to property that may arise from the failure of the user or other persons to follow the recommendations, warnings, and instructions in this manual.

  • Page 10: Parts And Accessories

    Parts And Accessories Tools Required for Installation & Adjustment  4mm allen wrench Parts List  Fabric Cover (A)  Foam Cushion (B)  Back Support Shell (C) (Aluminum)  Button Head Screw (D) (4 each)  Fender Washer (E) (4 each) ...

  • Page 11: Design And Function

    Design And Function Intended Use The purpose of the ADI Q-Back is to provide an aggressively contoured higher end seating system for the Quantum TB3 Power Positioning System. This positioning wheelchair back cushion will allow for proper back support, height, width, depth, profile options, and maximum stabilization for the customer.

  • Page 12: Part Numbers

    Part Numbers AL Series Q-Back    ALBR16SAQ ALBR18SAQ ALBR20SAQ    ALBR16SDQ ALBR18SDQ ALBR20SDQ    ALBR16S6Q ALBR18S6Q ALBR20S6Q    ALBR16TAQ ALBR18TAQ ALBR20TAQ    ALBR16TDQ ALBR18TDQ ALBR20TDQ    ALBR16T6Q ALBR18T6Q ALBR20S6Q ...

  • Page 13: Installation Instructions

    Installation Instructions 10.0 Installation Instructions 10.1 Remove OEM back support. Obtain desired mounting height of Q-Back. Insert and slightly tighten the four provided m6 screws with washers into adapter plate. Properly align back and fully tighten fastener. (Torque Spec: 77in-lbs/8.7N-m) Install Q-Back cushion/cover top first.
  • Page 14 First Time Use 11.0 Dealer Assistance 11.1 During first time use by the client, it is advised that the dealer or service technician assists and explains the setup to the customer (the user and/or the attendant). If needed, the dealer can make final adjustments. CAUTION ADI backs may not fit ever chair.
  • Page 15 Maintenance 12.0 Cleaning 12.1  Use a soft cloth to clean the back shell.  Hand wash the foam pad cover with mild, soapy water or detergent and let dry.  Foam pad should NOT get wet. CAUTION Institutions MUST clean and disinfect product between multiple patient uses. WARNING Do not wash or machine dry.
  • Page 16 Stealth Products, LLC. • info@stealthproducts.com • www.stealthproducts.com +1(800) 965-9229 | +1(512) 715-9995 | 104 John Kelly Drive, Burnet TX 78611 P116D253 Revision Date 2016-08-17...
