Summary of Contents for HOMCOM 821-032V70

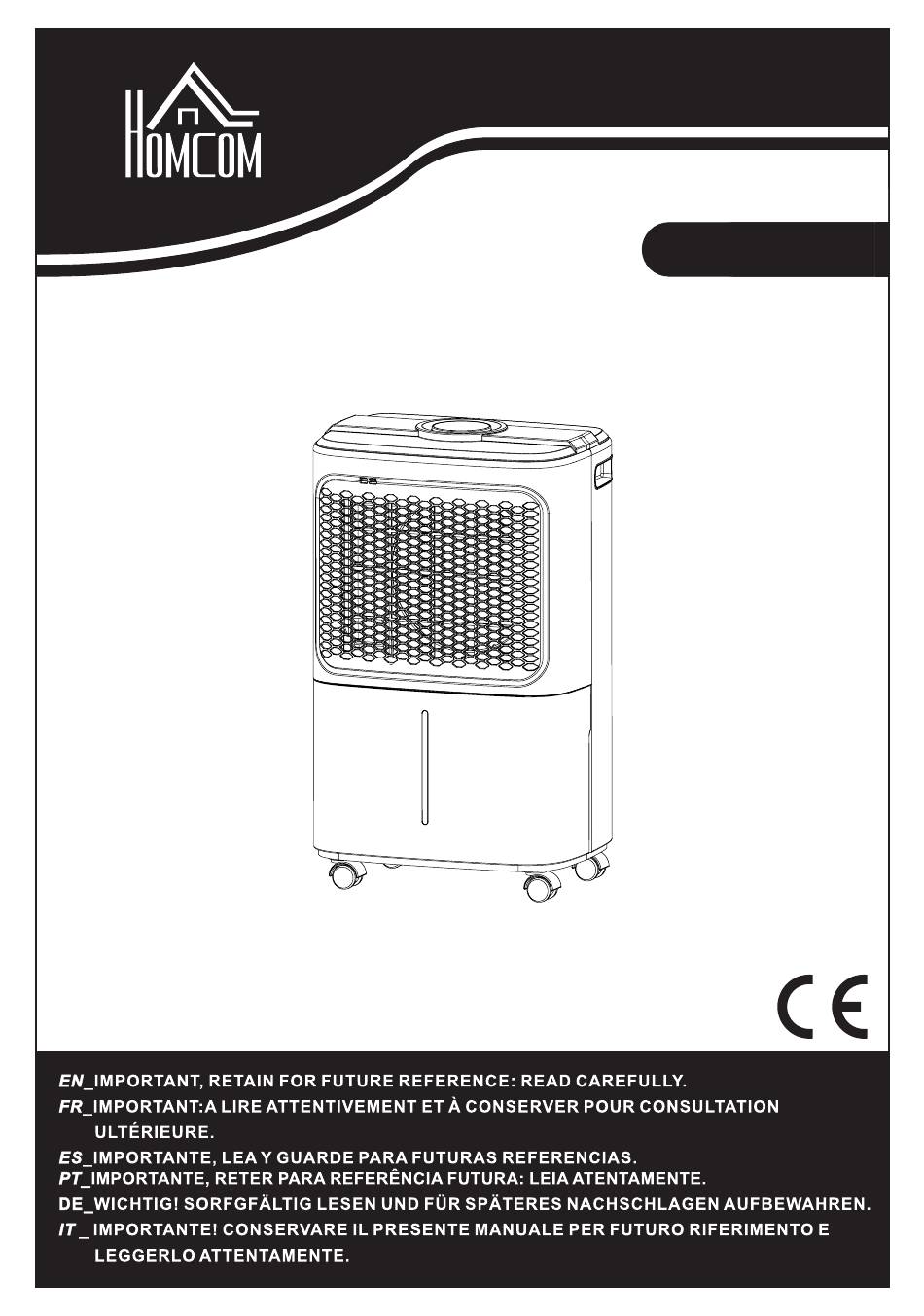

- Page 1 IN240400307V01_UK_821- IN240400307V01_UK_821-032V70 US_CA...
- Page 2 WARNING Manufacturer recommendations. The equipment should be stored in a room without ignition source(include fire, Working gas equipment, Working electric heater). Please don't puncture or burn it. Note that refrigerants may not contain odors. Refrigerant must be added at the specified location. This product can not be disposed of with other household garbage, Please classify it correctly, And put it in places where it can be recycled to promote sustainable use of resources.
- Page 3 CONTENTS IMPORTANT SAFETY INSTRUCTIONS---------------------------------------------------- 3 Warning-------------------------------------------------------------------------------------------3 How to Use a Dehumidifier Effectively-------------------------------------------------------4 MACHINE CONSTRUCTION------------------------------------------------------------------6 Mainframe--------------------------------------------------------------------------------------- 6 OPERATION INSTRUCTION----------------------------------------------------------------- 7 Key Description--------------------------------------------------------------------------------- 7 Function Set------------------------------------------------------------------------------------- 8 Precautions------------------------------------------------------------------------------------- 9 Drain Indication-------------------------------------------------------------------------------- 9 Use of the Water Tank------------------------------------------------------------------------- 9 Continuous Drainage-------------------------------------------------------------------------10 Empty the Water Tank-------------------------------------------------------------------------10 Filter Cleaning--------------------------------------------------------------------------------- 11 Fault Phenomenon---------------------------------------------------------------------------- 12 SAFETY PRECAUTIONS-------------------------------------------------------------------- 13...
- Page 4 01 IMPORTANT SAFETY INSTRUCTIONS To prevent injury and property damage, follow these instructions when using the dehumidifier: Warning Keep this dehumidifier away from heaters. Do not use the dehumidifier near flammable gases or combustible materials, such as gasoline, benzene, thinner, etc Always ensure proper grounding when plugging into an outlet.
- Page 5 • How to use a dehumidifier effectively 1. Before first use • When receiving the dehumidifier, it may have been tilted or placed upside down during shipping. To allow the oil in the compressor to settle properly, let the dehumidifier stand upright for 24 hours, preventing any negative impact on performance or lifespan.
- Page 6 3. Do not place your dehumidifier too close to any furniture. This can further restrict the airflow around the unit. IMPORTANT: The effectiveness of a dehumidifier can be affected by factors such as the rate of new moisture entering the room and air conditioning. For example, if a door is constantly opened, the dehumidification process will take longer.

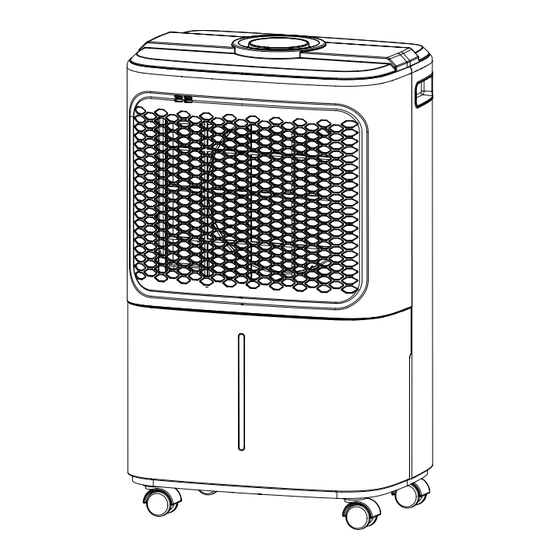

- Page 7 02 MACHINE CONSTRUCTION Mainframe Front Display window Control panel Handle Air inlet Water tank Rear) Air outlet Continuous drain Winding bracket Power cord storage socket NOTE: Do not cover or block the air inlet or outlet.
- Page 8 03 OPERATION INSTRUCTIONS Button descriptions Child lock button Press this button to activate and deactivate the child lock function. Wind speed button Press to switch between the different wind speeds. Timer button Press to set the timer between 1-24h. Mode button Press to choose the working mode.
- Page 9 • Function description • Power button: Turns the machine on and off. The indicator light displays ' ON ' or ' OFF ' to indicate the chosen mode. When the indoor humidity reaches the set value, the compressor stops running and the running indicator flashes. •...
- Page 10 Drying mode indicator ' o ': When the drying mode is selected, this indicator will be on. It will be off if the drying mode is not activated. Continuous dehumidification mode indicator ' o ': When the continuous dehumidification working mode is selected, this indicator will be on. It will be off if the continuous dehumidification mode is not activated.
- Page 11 Continuous drainage To enable continuous drainage, unplug the power supply and insert the water pipe into the continuous drain outlet after removing the rubber stopper. Ensure the water pipe is lower than the continuous drainage outlet and avoid bending it for proper and smooth drainage.
- Page 12 • Filter cleaning • Remove the water tank. • Hold the filter screen as shown in the image and pull it down to remove it. • Clean the filter: Use a vacuum cleaner to remove dust from the surface. If the filter is heavily soiled, wash it with warm water and a mild detergent, then ensure it is completely dry.
- Page 13 Trouble shootIng Fault Reason Solution The power cord is not Ensure the plug is firmly connected to a connected properly . power socket. The water tank is not properly in Drain the water from the tank, then place place. it back into its correct position. The machine is The appliance is not suitable for e x treme The room temperature is above...
- Page 14 04 SAFETY PRECAUTIONS 1. During use, do not 2. Do not use thin rods 3. When using, please place the appliance on or hard objects to insert keep the machine away soft and uneven ground into the fuselage to from heat sources such to avoid vibration or avoid malfunction and as heaters and electric...
- Page 15 DEHUMIDIFIER MODEL PD14BS Rated number 220-240V~ Frequency 50Hz Dehumidification capacity (30°℃/80%RH) 12litres/day Dehumidification capacity (35C/90%RH) 15.5litres/day Power input (30°C/80%RH) 240W Rated power input (35℃/90%RH) 270W Rated Current 1.1A Maximum allowable pressure 4.0MPa Permissible excessive operating pressure Suction: 1.0MPa Permissible excessive operating pressure Discharge: 2.6MPa Tank capacity 1.8L Refrigerant...
