HOMCOM 820-359V80 Owner's Manual

Infrared zone heating system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
IN230500099V01_US
820-359V80
INFRARED ZONE
HEATING SYSTEM
IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY
OWNER'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 820-359V80 and is the answer not in the manual?

Questions and answers

Related Manuals for HOMCOM 820-359V80

Summary of Contents for HOMCOM 820-359V80

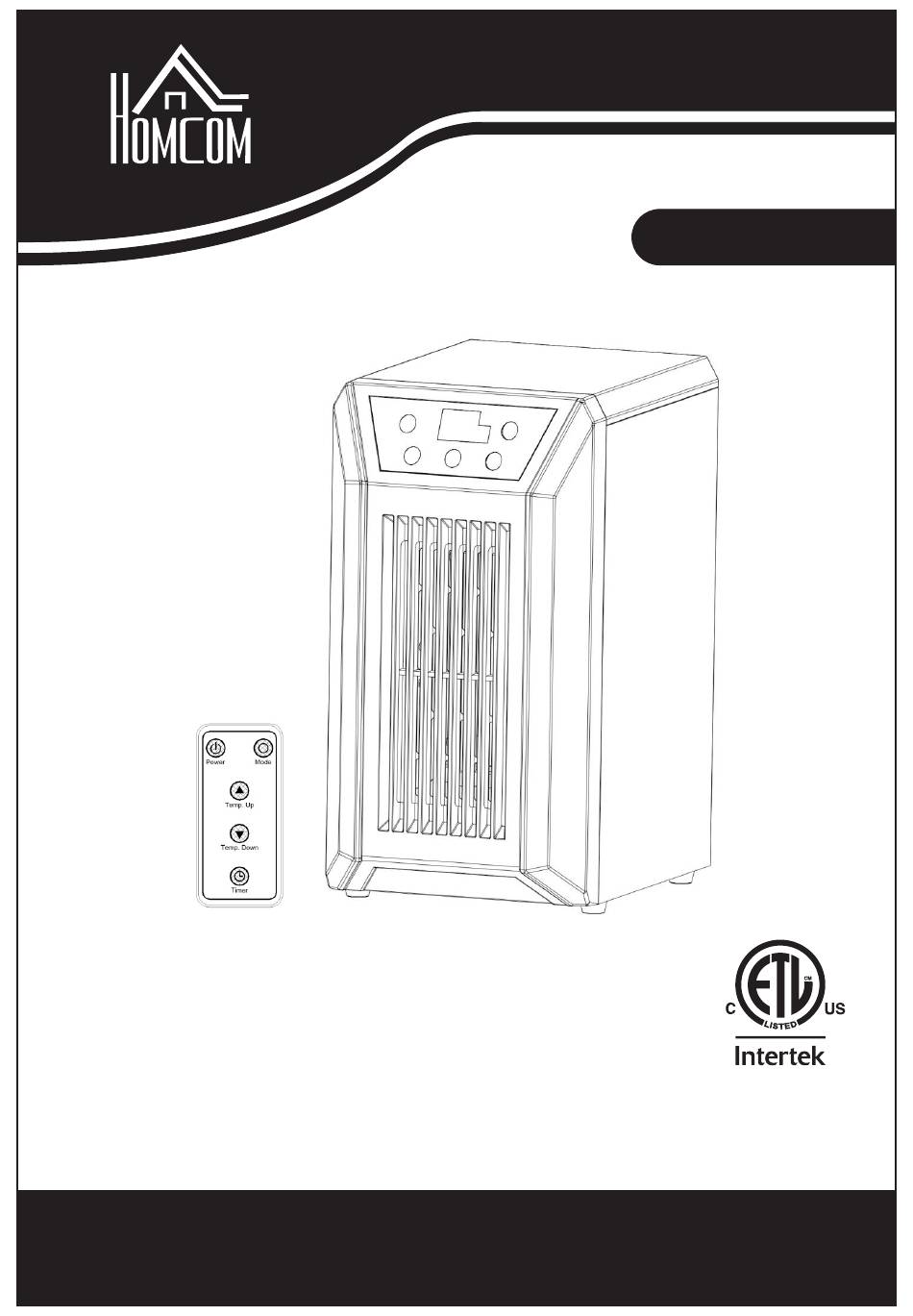

  • Page 1 IN230500099V01_US 820-359V80 INFRARED ZONE HEATING SYSTEM IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY OWNER’S MANUAL...

  • Page 2: Important Instructions

    Thank you for choosing a the Infrared Zone Heating System. This owner’s manual will provide you with valuable information necessary for the proper care and maintenance of your new product. Please take a few moments to thoroughly read the instructions and familiarize yourself with all the operational aspects of your new heater.

  • Page 3: Specifications

    18. Always use on a dry, level surface. Use on floor only. 19. DO NOT use outdoors. 20. WARNING: To reduce the risk of fire or electric shock, DO NOT use this unit with any solid-state speed control device. 21. DO NOT attempt to repair or adjust any electrical or mechanical functions on this unit.

  • Page 4: Product Diagram

    THIS APPLIANCE HAS A POLARIZED PLUG (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician to install the proper outlet.
  • Page 5 Control panel 1. Temp up button: To increase desired temperature. 2. ON/OFF button: Powers the display on and off. 3. Temp down button: To decrease desired temperature. 4. Mode button: To select between High、Low and Eco modes. 5. Digital display: Indicate set room temperature or time or heating mode or lock. 6.
  • Page 6 PREPARATION Place the heater on a firm, level surface and plug into a grounded 120V 60Hz power outlet. and turn on the power switch in the rear of the unit. Only operate heater in upright position. Insert 1 CR2025 batteries into the remote control before using (Batteries Not Included) Remote control Battery cover Battery...
  • Page 7 2. Setting Desired Temperature Adjust the desired temperature by pressing the Up/Down arrows on the control panel or remote control. Desired temperature options vary from 59℉ to 86℉. Once you have chosen the desired temperature, the heater will remain on until the room temperature increases to the temperature on the digital display.

  • Page 8: Maintenance

    5. Setting electro lock The Electro Lock can help avoid the heater from being accidentally engaged by children. The locking mechanism can be set in both the ON and OFF modes. Press Temp Up and Temp Down buttons at the same time for 3 seconds.

  • Page 9: Basic Troubleshooting

    BASIC TROUBLESHOOTING If the heater will not operate, please check the following before seeking repair advice: 1. Check if the power cord is plugged into an electrical outlet, if not, plug in. 2. Check if electricity to the main fuse is working. 3.
