Summary of Contents for Ecler eMOTUS5O16

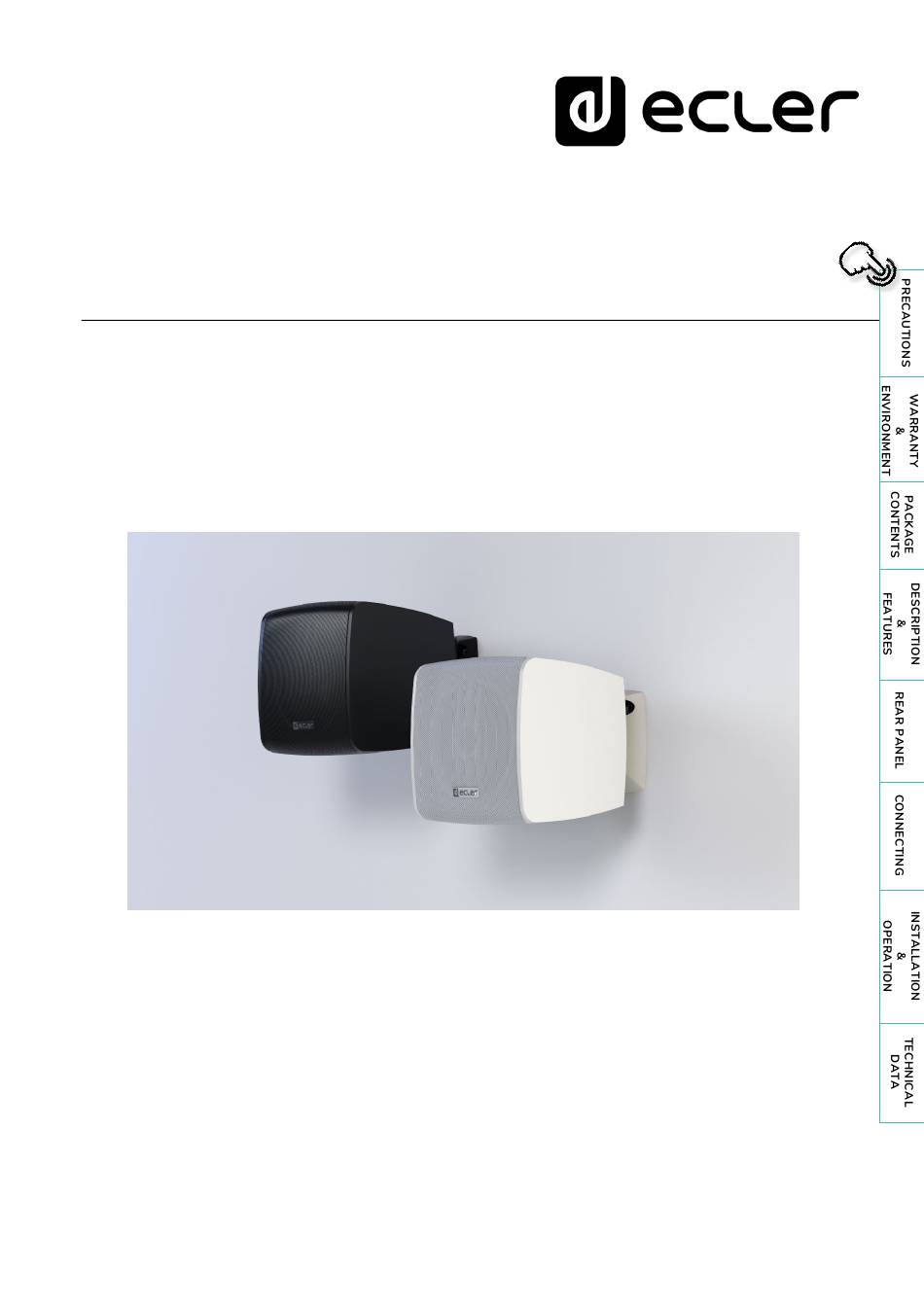

- Page 1 COMMERCIAL LOUDSPEAKERS Outdoor loudspeaker USER MANUAL 50-0460-0100 eMOTUS5O16...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. PRECAUTIONS..........................3 1.1 Important Notice ......................... 3 1.2 Key Safety Directions ........................ 4 1.3 Cleaning Directions ........................4 2. WARRANTY & ENVIRONMENT ....................5 3. PACKAGE CONTENTS ....................... 5 4. DESCRIPTION & FEATURES ....................6 4.1 Main Features ..........................6 5. -
Page 3: Precautions
WARNING: Ecler products have a long lifetime of more than 10 years. This product must never be discarded as unsorted urban waste, but must be taken to the nearest electrical and electronic waste treatment centre. -
Page 4: Key Safety Directions
1.2 Key Safety Directions Read the following directions. 11. Only use attachments/accessories specified by the manufacturer. Keep the following directions. 12. Unplug the device during lightening Heed all warnings. sorts or when unused for long periods of Follow all directions. time. -
Page 5: Warranty & Environment
Recycling materials and using non-contaminant components are also top priorities in our green crusade. Ecler has deeply evaluated and analyzed the environmental impacts of all the processes involved in the production of this product, including packaging, and has alleviated, reduced and/or compensated for them. -
Page 6: Description & Features
4. DESCRIPTION & FEATURES eMOTUS5O16 is a low impedance (16 ohm) loudspeaker cabinet, 5” woofer with eMOTUS unique design. Ready for indoor and outdoor applications, thanks to its aluminium grill and UV protection treatment (IP65-rated). A professional and compact loudspeaker, cost-effective and with a... -
Page 7: Rear Panel
5. REAR PANEL 2-terminal Euroblock connector Attachment point for the safety cable... -
Page 8: Connecting
6. CONNECTING When connecting a 16-ohm speaker to an audio system, proper wiring and impedance matching are essential to ensure optimal performance and avoid potential damage to your amplifier. Follow these guidelines for a safe and efficient setup: Check Your Amplifier’s Compatibility Before connecting the speaker, verify that your amplifier supports a 16-ohm load. -
Page 9: Installation & Operation
• For good sound reproduction, there should be no hindrance between the units and the audience. • Adjust the levels of sound pressure to reproduction requirements. Despite its small size, the eMOTUS5O16 has a performance far higher than that of domestic loudspeakers. Procedure for installing on a surface: Make three 6 mm drill holes in the wall, lining them up with the position of the holes in the bracket. - Page 10 Connect the loudspeaker cable to the connector on the rear part of the box, using the Euroblock connector supplied. Ensure the correct polarity of the terminals and that the cable goes through the square hole in the bracket. It is advisable to place the protective housing supplied when the loudspeaker is installed outdoors.
-
Page 11: Technical Data
8. TECHNICAL DATA 8.1 Technical Specifications eMOTUS5O16 System Effective frequency range 80Hz-20kHz (-10dB) Coverage angle 150° x 150° (HxV) Power handling 40 W RMS / 160 W Peak Sensitivity 86dB (1W/1m) Maximum SPL 102dB continuous / 108dB peak Power options 16 Ω... -
Page 12: Mechanical Diagram
8.2 Mechanical Diagram All measurements are in mm. Ecler eMOTUS5OD Mechanical Diagram 1 73 1 80 61-1073-0100 www.ecler.com... - Page 13 NEEC AUDIO BARCELONA S.L. reserves the right to make changes or improvements in the design or manufacturing that may affect these product specifications. For technical queries contact your supplier, distributor or complete the contact form on our website, Support / Technical requests. Motors, 166‐168 08038 Barcelona, Spain Tel. (+34) 932238403 information@ecler.com www.ecler.com...
