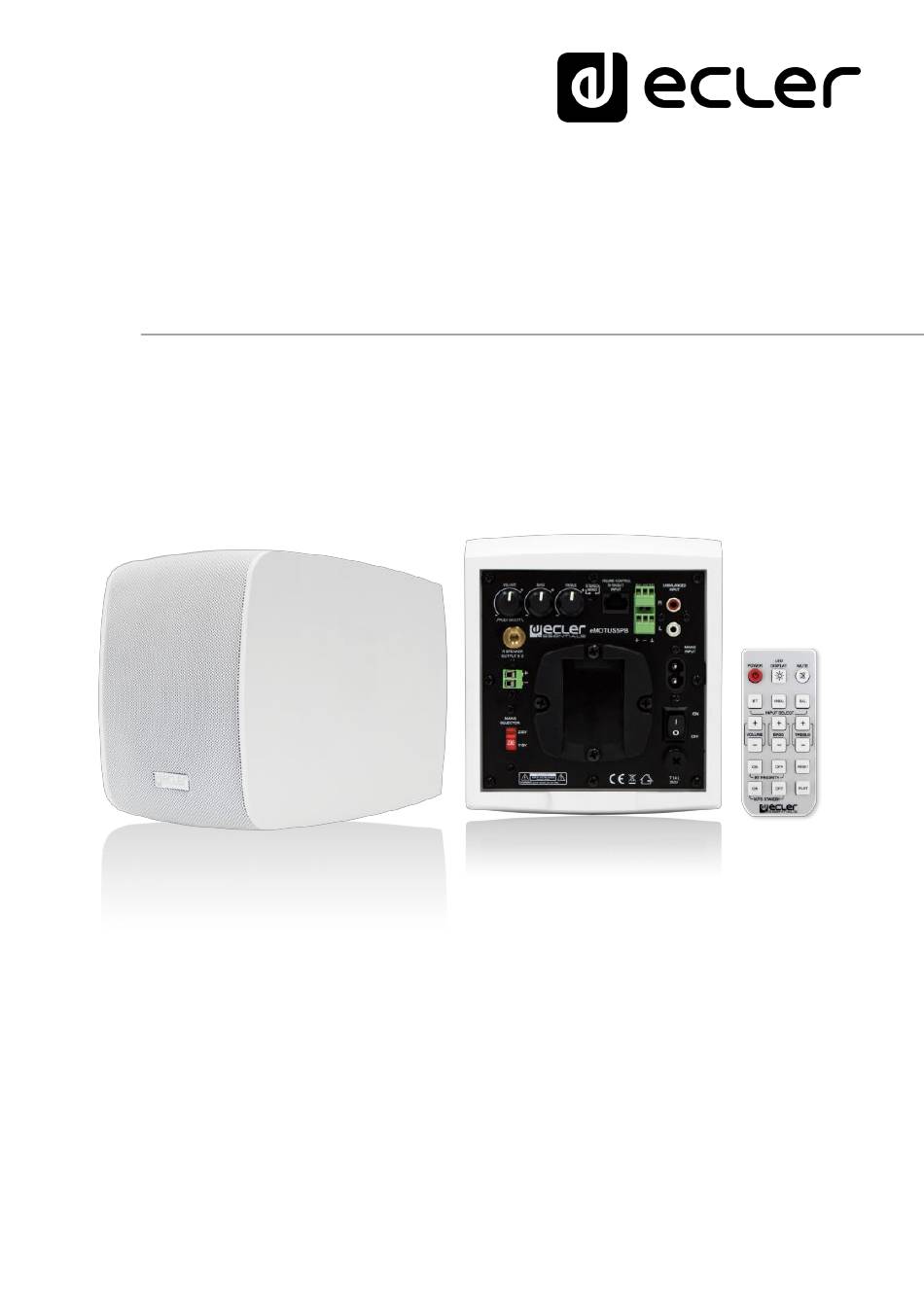

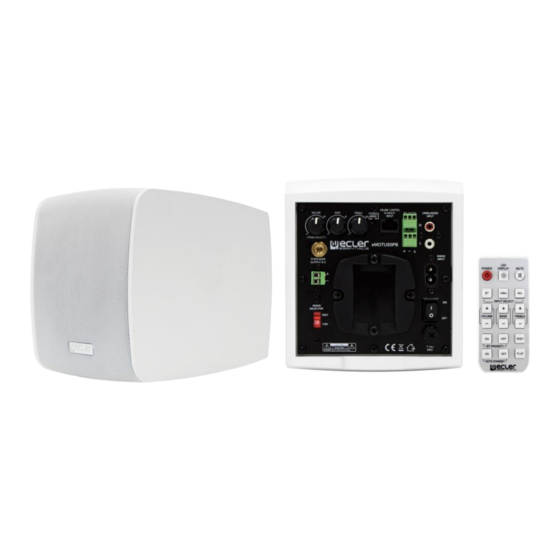

- Page 1 eMOTUS5P / eMOTUS5PB SURFACE MOUNT CABINETS Powered Loudspeakers - Stereo kit USER MANUAL 50-0323-0109 eMOTUS5P-PB...
- Page 2 INDEX IMPORTANT REMARK ......................3 IMPORTANT SAFETY INSTRUCTIONS ................3 IMPORTANT NOTE ........................5 INTRODUCTION ........................5 KEY FEATURES.......................... 5 POSITIONING AND FITTING ....................6 START UP ........................... 8 7.1. eMOTUS5P ..........................8 7.2. eMOTUS5PB ..........................8 7.2.1. Wireless connection ......................8 7.2.2.
- Page 3 IMPORTANT REMARK The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
- Page 4 8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9. Do not defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong.
- Page 5 IMPORTANT NOTE Thank you for choosing our Ecler eMOTUS5P / eMOTUS5PB Powered Loudspeakers - Stereo kit! VERY IMPORTANT It is to carefully read this manual and to fully understand its contents before any connection in order to maximize your use and get the best performance from this equipment.
- Page 6 • LED activity display • Reinforced ABS construction • BT wireless connection, remote control port (0-10 VDC – RJ45 connector) and remote control (eMOTUS5PB) • Available in white (RAL9003) POSITIONING AND FITTING In the packing of the eMOTUS systems, you will find all you need to complete installation of the two units.
- Page 7 Fit the bracket in place, after threading the line and loudspeaker wire through the square hole in the bracket. Secure the bracket to the wall: Connect the power supply cables, signal input and link between the two units to the connectors on the rear part of the housing. Ensure correct polarity in the Euroblock terminals.
- Page 8 START UP 7.1. eMOTUS5P To start up the system, turn on the MASTER (L) unit with the switch on the rear panel and adjust the volume and equalizer to the required settings. You can select the audio source (balanced or non-balanced input) by pressing the rotating volume encoder.
- Page 9 7.2.2. Remote control (Only applies to the eMOTUS5PB model) º Turn on: on/off. The green LED display lights up when the unit is on. When off, no LED is displayed. LED display: turn on/off the LEDs while the unit is operating. When restarting the unit, this function returns to its default value: LEDs on.
- Page 10 Reset: keep pressed (for 5 secs.) to reset the system to its default values: BT priority ON, volume = 30 bass; treble = 0. Flat: keep pressed (for 5 secs.) to reset the system to its default equalizer values: bass = 0; treble = 0. Note: Reset and Flat buttons only act if the default values have been changed 7.2.3.
- Page 11 REAR PANEL Output volume control Bass control Treble control Stereo-mono switch Remote input RJ-45. (Only applies to the eMOTUS5PB model) Balanced audio input - Euroblock connectors Non-balanced audio input – RCA connectors Attachment point for the safety cable Socket base Amplified output right channel R Mains selector (115V / 230V) Start up switch...
- Page 12 TECHNICAL SPECIFICATIONS eMOTUS5PB / eMOTUS5P Power 2 x 25W RMS Impedance 8 Ω Frequency response (±10dB) 85Hz – 20kHz Maximum SPL @ 1m 91dB THD + Noise @ 1kHz Full PWR ≤0.5% Inputs sensitivity nom/impedance 525mV/22k Ω CMRR - Line Bal ≥80dB Tone control response ±14dB...
- Page 13 PACKING CONTENT • eMOTUS5P / eMOTUS5PB loudspeaker kit (one active unit + one passive unit) • 2 x articulated brackets for wall mounting • 5mm Allen key • 2 x metal safety lines against any possible flaking off, with corresponding screws and lock washers.
- Page 14 NEEC AUDIO BARCELONA S.L. reserves the right to make changes or improvements in the design or manufacturing that may affect these product specifications. For technical queries contact your supplier, distributor or complete the contact form on our website, Support / Technical requests. Motors, 166‐168 08038 Barcelona ‐ Spain ‐ (+34) 932238403 | information@ecler.com www.ecler.com...
