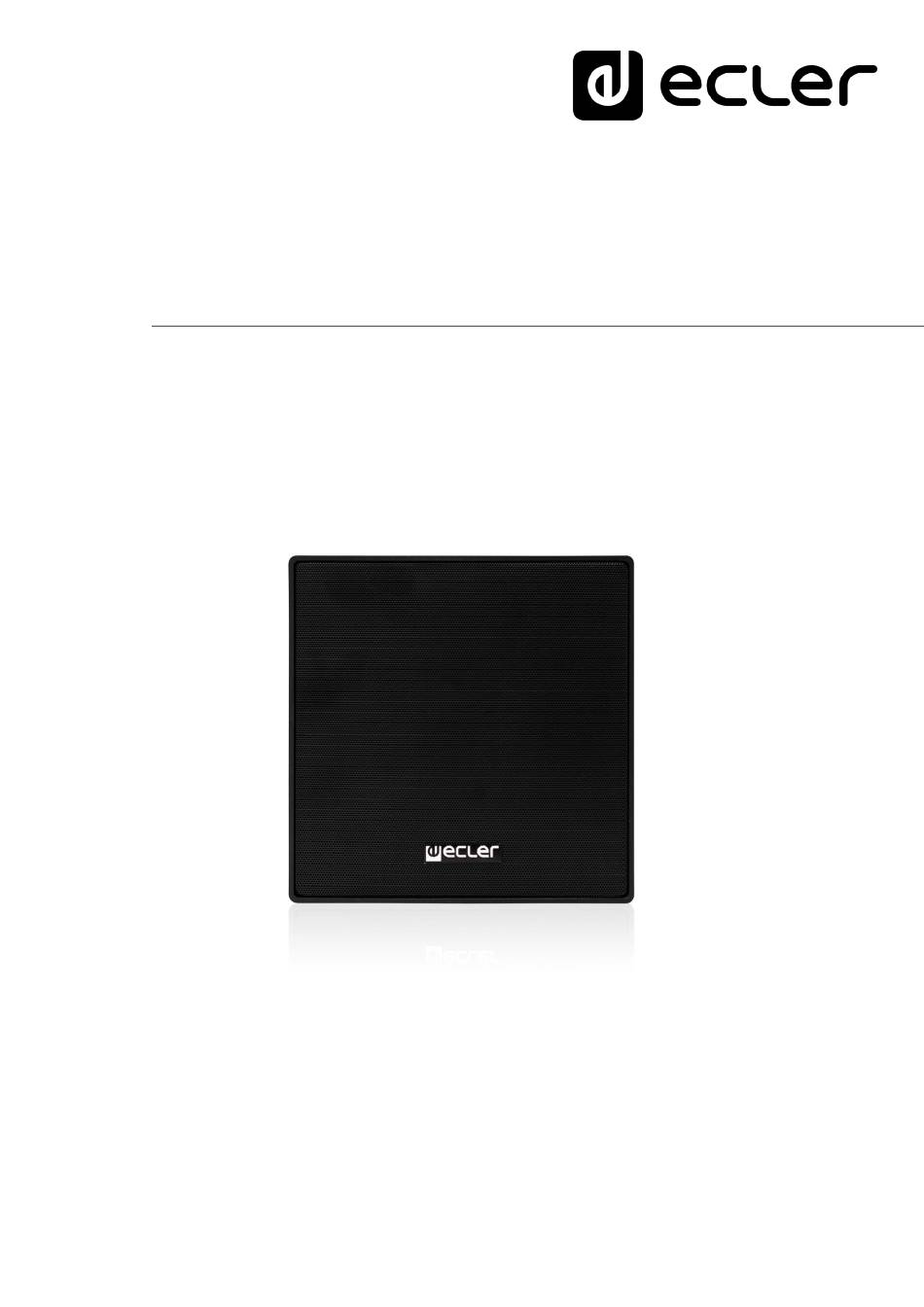

- Page 1 eAMBIT106 LOUDSPEAKERS Surface Mount Loudspeaker USER MANUAL 50-0099-0105 eAMBIT106...
-
Page 2: Table Of Contents
INDEX IMPORTANT REMARK ....................3 IMPORTANT SAFETY INSTRUCTIONS ..............3 IMPORTANT NOTE ......................5 INTRODUCTION ......................5 CONNECTIONS ....................... 6 PLACEMENT AND MOUNTING .................. 7 Edge / Corner: ........................... 8 Wall / Ceiling: ........................... 8 Other installation possibilities: ................... 9 TECHNICAL CHARACTERISTICS ................ -
Page 3: Important Remark
1. IMPORTANT REMARK The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. - Page 4 8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9. Do not defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong.
-
Page 5: Important Note
• A unique product. No other similar box exists. The design is an exclusive Ecler design that is out of the ordinary, distinctive and, what is even more important, extremely adaptable to all kinds of situations. -
Page 6: Connections
• The AMBIT packaging contains everything you need to anchor the boxes in the required position. Each cabinet has two built-in guides on each of its 4 back sides (AMBIT106), which, in combination with the U-shaped “lira” support that is included, enables it to be placed in any position and direction. Allen wrenches, safety sling, safety screw;... -
Page 7: Placement And Mounting
The fifth switch position corresponds to low impedance operation with a maximum power capacity of 50W. When operating at low impedance you should always consider the limitations of the power amp when connecting several low-impedance speakers together. Impedances lower than 4 should be avoided. At low impedance operation and with long cable runs, the cables between the amplifier and the speakers should be as short as possible and have good quality. -
Page 8: Edge / Corner
• One angled Allen key The two rails found on each of the four back sides of the AMBIT106 allow several installation positions. Speaker cables can be hidden from view by choosing an adequate mounting orientation. Although the inconspicuous AMBIT logo suggests mounting the unit with the input connectors on the upside and the selector switch on the downside, the enclosure can be mounted in any orientation because the high frequency driver is concentric and the adhesive logo can be positioned anywhere. -
Page 9: Other Installation Possibilities
60mm, which not only serve as safety point for the steel sling, but also allow attachment to standard wall mounting supports. Ecler offers a wide range of mechanical accessories that can be used to group several AMBIT106, thus enhancing their versatility even more. Please refer to your Ecler distributor or visit www.ecler.com... -
Page 10: Technical Characteristics
7. TECHNICAL CHARACTERISTICS eAMBIT106 System Effective frequency range 110Hz - 20kHz Coverage angle 120°x120° (HxV) Power handling 50 W RMS / 200 W Peak Sensitivity 93 dB (1W/1m) Maximum SPL 110 dB continuous / 116 dB peak Power options 70/100V: 30W / 15W / 7,5W / 5W / 8Ω Recommended amplifier power 100 W RMS Transducers Ways 2... - Page 11 NEEC AUDIO BARCELONA S.L. reserves the right to make changes or improvements in the design or manufacturing that may affect these product specifications. For technical queries contact your supplier, distributor or complete the contact form on our website, Support / Technical requests. Motors, 166‐168 08038 Barcelona ‐ Spain ‐ (+34) 932238403 | information@ecler.com www.ecler.com...
