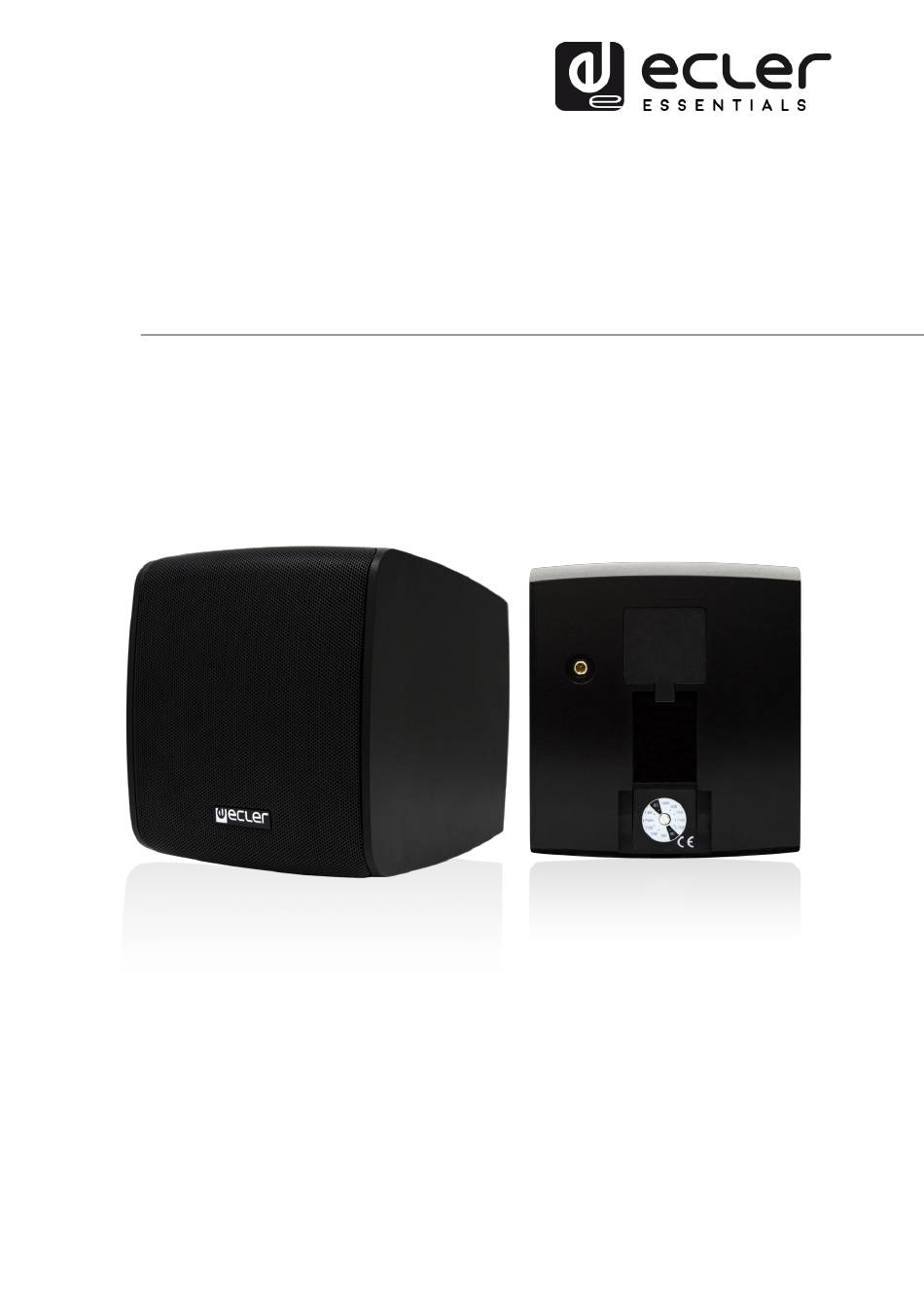

- Page 1 WALL-MOUNT LOUDSPEAKERS Outdoor loudspeaker USER MANUAL v.20120413...
-
Page 2: Table Of Contents
INDEX IMPORTANT REMARK ......................3 IMPORTANT SAFETY INSTRUCTIONS ................3 IMPORTANT NOTE ........................ 5 INTRODUCTION ........................5 KEY FEATURES ........................5 CONNECTING .......................... 6 POSITIONING, FITTING AND START-UP ................. 7 REAR PANEL ........................... 9 TECHNICAL SPECIFICATIONS ..................10 10. PACKING CONTENT ......................11... -
Page 3: Important Remark
1. IMPORTANT REMARK The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. - Page 4 8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9. Do not defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong.
-
Page 5: Important Note
Ecler eMOTUS5OD comes with a 3-year warranty. 4. INTRODUCTION eMOTUS5OD is a 5” loudspeaker designed for installing outdoor. A compact, professional loudspeaker with great performance at a highly attractive price. Its fantastic performance and unique design mean that it can easily be integrated into a wide range of applications: theme parks, urban spaces, gardens, etc. -
Page 6: Connecting
6. CONNECTING eMOTUS5OD accepts high or low impedance. In this regard, on the rear panel, there is a 5-position switch for selecting your work mode. The first 4 positions allow for the system to operate in high impedance, and the fifth, in low impedance. -
Page 7: Positioning, Fitting And Start-Up
• For good sound reproduction, there should be no hindrance between the units and the audience. • Adjust the levels of sound pressure to reproduction requirements. Despite its small size, the eMOTUS5OD has a performance far higher than that of domestic loudspeakers. Procedure for installing on a surface: 1. - Page 8 4. Place the bracket in position, after first passing the line and the loudspeaker cable through the square hole on the bracket. Fix the bracket to the wall. Connect the loudspeaker cable to the connector on the rear part of the box, using the Euroblock connector supplied.
-
Page 9: Rear Panel
8. REAR PANEL 1. 2-terminal Euroblock connector 2. Attachment point for the safety cable 3. Power selector... -
Page 10: Technical Specifications
9. TECHNICAL SPECIFICATIONS eMOTUS5OD System Effective frequency range 75 Hz - 20 kHz (-10dB) Coverage angle 150° x 150° (HxV) Power handling 40W RMS / 160W Peak Sensitivity 85dB (1W/1m) Maximum SPL 101dB continuous / 107dB peak Power options 100V: 30 / 15 / 7,5 / 3,75W & 8Ω... -
Page 11: Packing Content
10. PACKING CONTENT • 2 x eMOTUS5OD loudspeakers • 2 x articulated brackets for wall mounting • 5mm Allen key • 2 x metal safety lines against any possible flaking off, with corresponding screws and lock washers. • 8 x adhesive legs for positioning the loudspeakers on a desktop •... - Page 12 NEEC AUDIO BARCELONA S.L. reserves the right to make changes or improvements in the design or manufacturing that may affect these product specifications. For technical queries contact your supplier, distributor or complete the contact form on our website, Support / Technical requests. Motors, 166‐168 08038 Barcelona ‐ Spain ‐ (+34) 932238403 | information@ecler.com www.ecler.com...
