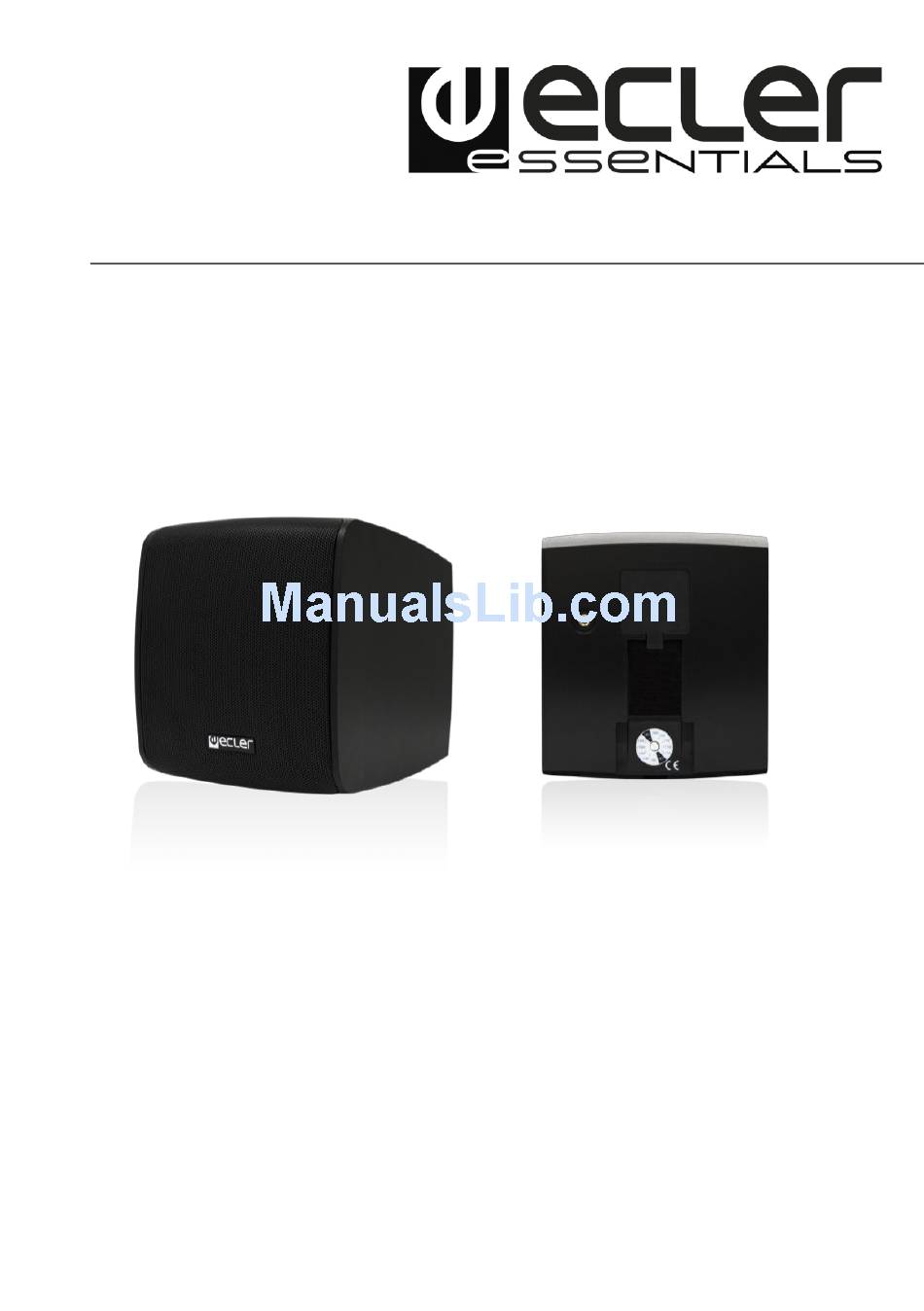

- Page 1 WALL MOUNT LOUDSPEAKERS Outdoor loudspeaker USER MANUAL...
-
Page 2: Table Of Contents
CONTENT Important note Precautions Introduction Key features Connecting Positioning, fitting and start-up Technical specifications Rear panel Packing content... -
Page 3: Important Note
IM P O R TA NT N OTE Congratulations. You now own the result of a well-designed, carefully produced manufacture. We thank you for your trust by having chosen our eMOTUS5OD outdoor loudspeaker. To achieve its maximum working order and performance, it is VERY IMPORTANT, before connecting, to read this manual carefully. -
Page 4: Introduction
• Available in black and white colour C O NNE C TI N G eMOTUS5OD accepts high or low impedance. In this regard, on the rear panel, there is a 5-position switch for selecting your work mode. The first 4 positions allow for the system to operate in high impedance, and the fifth, in low impedance. -
Page 5: Positioning, Fitting And Start-Up
CAUTION! eMOTUS5OD is delivered by default with the switch in the 100V/30W position. If the system is accidentally connected to an amplifier with a low impedance output, no damage will be done to the loudspeaker, but it will perform well below its capacity. - Page 6 Place the bracket in position, after first passing the line and the loudspeaker cable through the square hole on the bracket. Fix the bracket to the wall. Connect the loudspeaker cable to the connector on the rear part of the box, using the Euroblock connector supplied.
-
Page 7: Technical Specifications
1. 2-terminal Euroblock connector 2. Attachment point for the safety cable 3. Power selector TE C H N IC A L S P E C I F IC A TI O NS eMOTUS5OD Power 40 WRMS / 80 W Program Impedance 8 Ω... -
Page 8: Packing Content
All product characteristics are subject to variation due to production tolerances. NEEC AUDIO BARCELONA S.L. reserves the right to make changes or improvements in the design or manufacturing that may affect these product specifications. Motors, 166‐168 08038 Barcelona ‐ Spain ‐ (+34) 932238403 information@ecler.es www.ecler.com...
