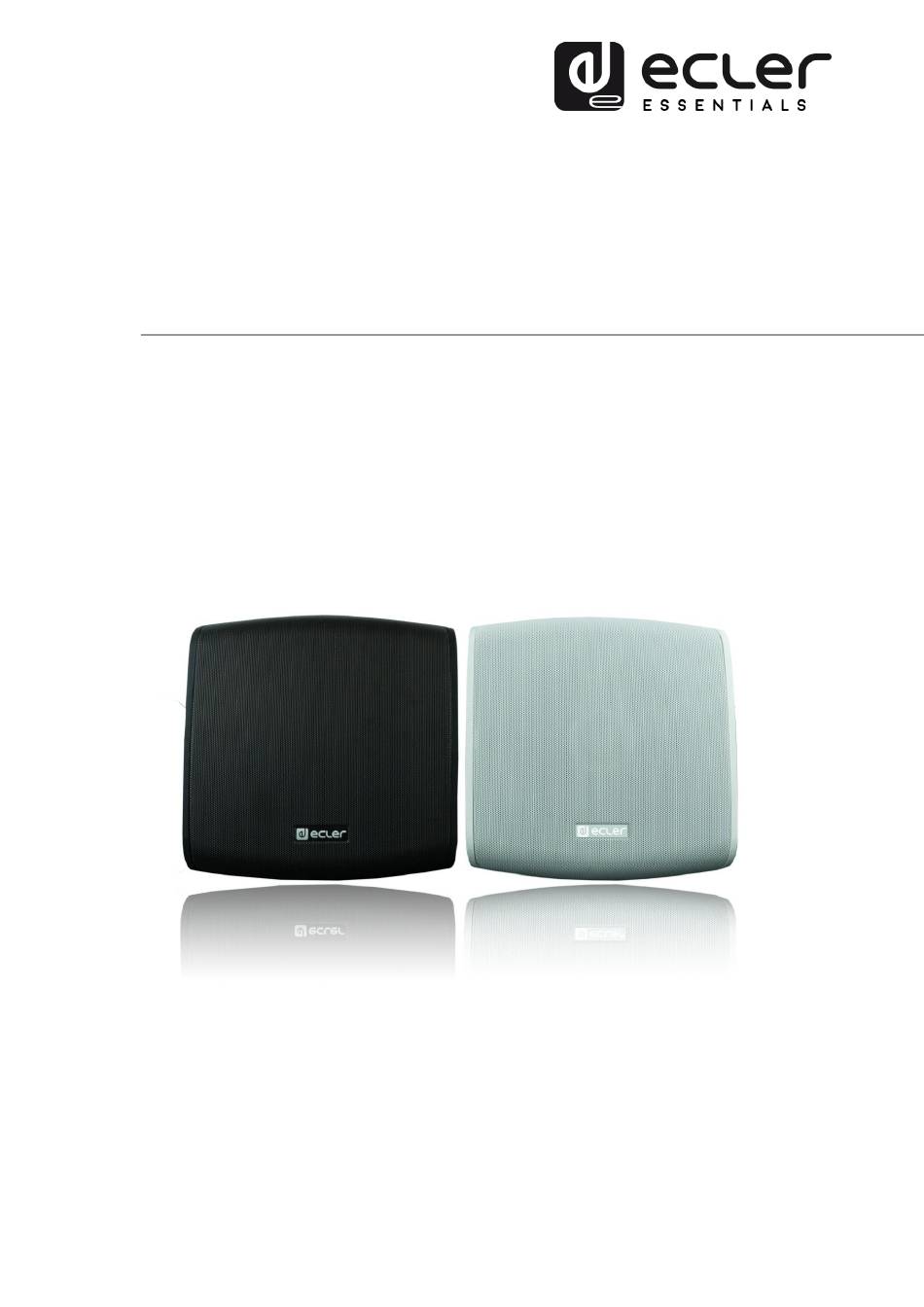

- Page 1 WALL SPEAKERS Outdoor Passive Speaker USER MANUAL v. 20190715...
-
Page 2: Table Of Contents
INDEX IMPORTANT REMARK ......................3 IMPORTANT SAFETY INSTRUCTIONS ................3 IMPORTANT NOTE ........................ 5 INTRODUCTION ........................5 MAIN FEATURES ........................5 CABLE CONNECTIONS ......................6 LOCATION, ASSEMBLY AND START-UP ................. 7 REAR PANEL ........................... 9 ESPECIFICACIONES TÉCNICAS ..................9 10. PACKAGE CONTENTS ......................10... -
Page 3: Important Remark
1. IMPORTANT REMARK The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. - Page 4 8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9. Do not defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong.
-
Page 5: Important Note
Ecler eMOTUS8OD comes with a 1 year warranty. 4. INTRODUCTION eMOTUS8OD is an 8" loudspeaker designed for outdoor installation. A compact and professional loudspeaker, with high performance and at a very attractive cost. Its fantastic performance and exclusive design means that it can be easily integrated into a large number of applications: theme parks, urban spaces, gardens, etc. -
Page 6: Cable Connections
6. CABLE CONNECTIONS The eMOTUS8OD supports high or low impedance operation. In this sense, its rear panel has a 5-position switch to select its working mode. The first 4 positions allow the system to work in high impedance and the fifth in low impedance. -
Page 7: Location, Assembly And Start-Up
WARNING!: eMOTUS8OD is supplied as standard with the switch in the 100V/60W position. If you accidentally connect the system to a low impedance amplifier, it will not cause any damage to the loudspeaker but it will perform well below its performance. - Page 8 Wall installation procedure: 1. Drill three 6 mm holes in the wall, matching the position of the holes in the bracket. 2. Insert three 6 mm wall plugs into them. 3. Fasten the safety sling on the speaker using the provided screw and hook up the sling’s carabiner-ended side a to a secure anchor point.
-
Page 9: Rear Panel
8. REAR PANEL 1. 2-pin Euroblock connector 2. Anchorage point of the safety cable 3. Power selector 9. ESPECIFICACIONES TÉCNICAS eMOTUS5OD Power 100 WRMS / 200 W Program Impedance 8 Ω / 100V Power selector 60W / 30W / 15 / 7.5W / 3.75W & 8Ω Frequency response (±10dB) 30Hz –... -
Page 10: Package Contents
10. PACKAGE CONTENTS 2 x eMOTUS8OD speakers 2 x articulated wall mounting brackets 5mm Allen key 2 x metal security hoses against possible detachment, with their corresponding screws and fixing washers 8 x Adhesive feet for desktop speaker placement ... - Page 11 NEEC AUDIO BARCELONA S.L. reserves the right to make changes or improvements in the design or manufacturing that may affect these product specifications. Motors, 166‐168 08038 Barcelona ‐ Spain ‐ (+34) 932238403 | information@ecler.com www.ecler.com...
