System Board Drive Connections
Refer to the following illustration and table to identify the system board drive connectors.

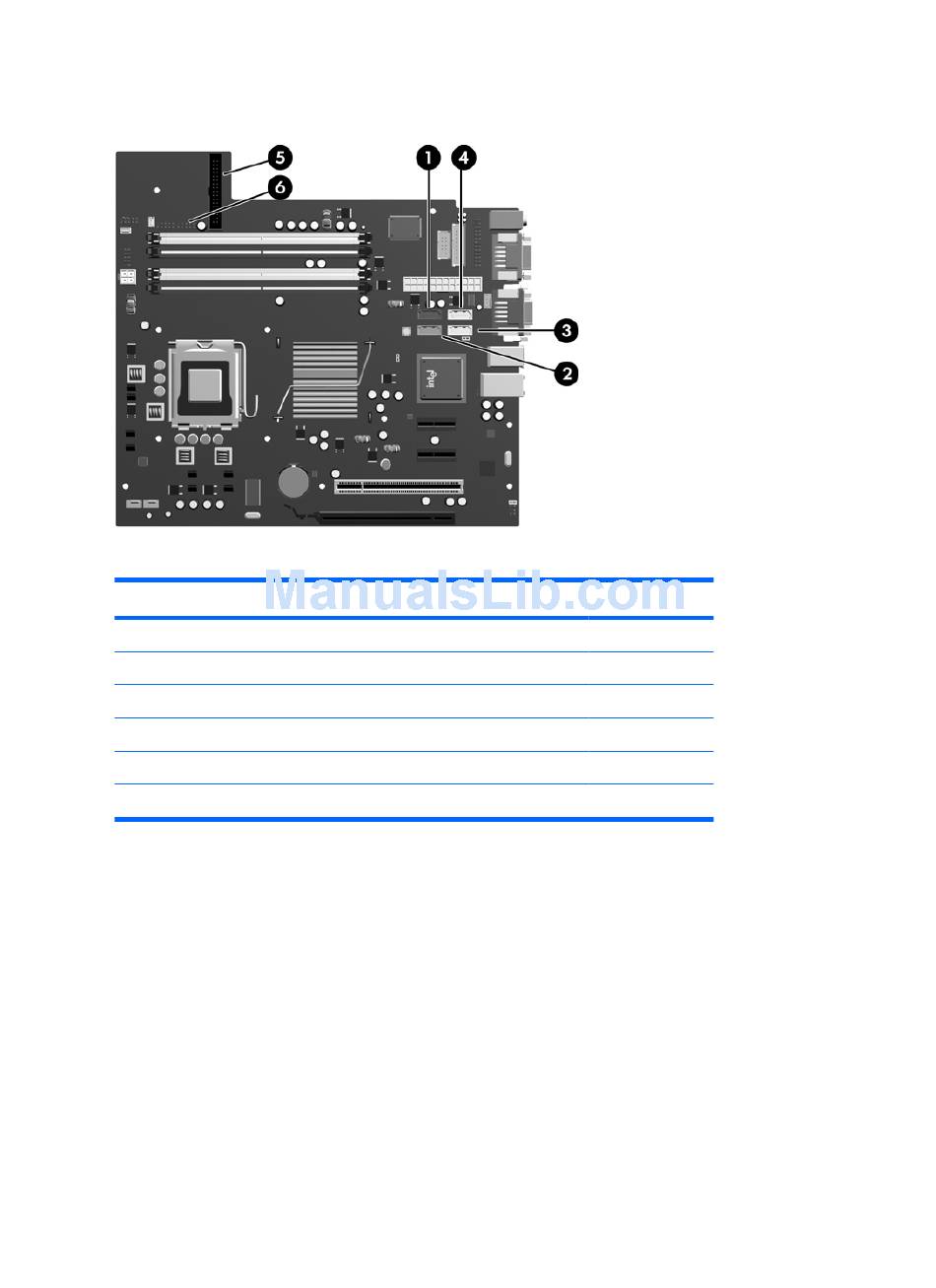

Figure 2-16
Table 2-4
System Board Drive Connections
No.
System Board Connector
1
SATA0
2
SATA1
3
SATA4
4
SATA5
5
Diskette Drive
6
Media Card Reader
ENWW
System Board Drive Connections
System Board Label
SATA0
SATA1
SATA4
SATA5
FLOPPY
MEDIA
Color
dark blue
white
light blue
orange
black
black
Installing Additional Drives
25
