QuickSpecs

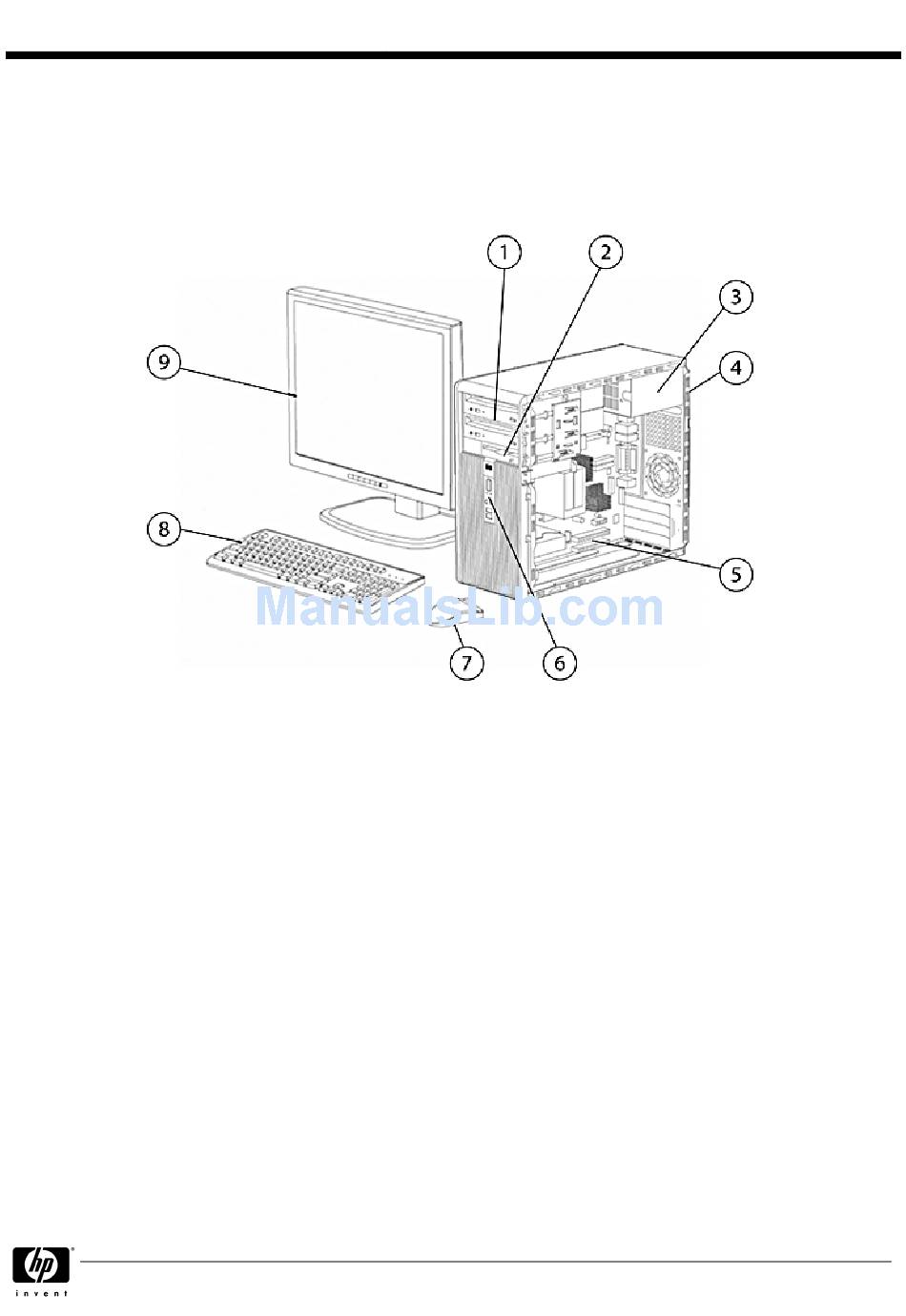

Overview
1. (2) 5.25" external bays and (2) 3.5" internal bays
2. (1) 3.5" external bay for optional HP 16-in-1 Media Card
Reader, diskette drive, or other 3.5" device
3. 300-watt power supply
4. Rear I/O: (6) USB 2.0, (1) standard serial port, (1) optional
serial port, (1) parallel port, (2) PS/2, (1) RJ-45, (1) VGA,
audio in/out
DA - 12546 Worldwide QuickSpecs — Version 10 — 1.30.2007
HP Compaq dc5750 Business PC
HP recommends
Windows Vista™ Business
Microtower
5. (2) full-height PCI slots, (1) full-height PCIe x1 slot, (1) full-
height PCIe x16 slot
6. Front I/O: (2) USB 2.0, headphone and microphone
7. 2-Button Scroll Mouse (PS/2) or Optical Scroll Mouse
(PS/2 or USB)
8. HP Standard Keyboard (PS/2 or USB) or HP USB
Smartcard Keyboard
9. Monitor (sold separately)
Page 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the dc5750 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Compaq dc5750

Summary of Contents for Compaq dc5750

  • Page 1 4. Rear I/O: (6) USB 2.0, (1) standard serial port, (1) optional serial port, (1) parallel port, (2) PS/2, (1) RJ-45, (1) VGA, audio in/out DA - 12546 Worldwide QuickSpecs — Version 10 — 1.30.2007 HP Compaq dc5750 Business PC HP recommends Windows Vista™ Business Microtower 5.
  • Page 2 5. (2) low profile PCI slots, (1) low profile PCIe x1 slot, (1) low profile PCIe x16 slot DA - 12546 Worldwide QuickSpecs — Version 10 — 1.30.2007 HP Compaq dc5750 Business PC Small Form Factor 6. Front I/O: (2) USB 2.0, headphone and microphone 7.
  • Page 3 * TPM module disabled where use is restricted by law; for example, Russia. NOTE: All models and features may not be available in all DA - 12546 Worldwide QuickSpecs — Version 10 — 1.30.2007 HP Compaq dc5750 Business PC countries. Page 3...

  • Page 4: Configurable Components - Select Models (Localized By Regions)

    DA - 12546 Worldwide QuickSpecs — Version 10 — 1.30.2007 HP Compaq dc5750 Business PC Page 4...

  • Page 5: Standard Features And Configurable Components

    Toll-free calling and 24 x 7 support may not be available in some countries. DA - 12546 Worldwide QuickSpecs — Version 10 — 1.30.2007 HP Compaq dc5750 Business PC Genuine Windows XP Professional SP2 Genuine Windows XP Home SP2...
  • Page 6 Integrated DVI-D output Front – mic and headphone Rear* – line in, line out HP Compaq dc5750 Business PC Small Form Factor 4.5 x 15.5 x 13.5 in (114 x 394 x 343 mm) 17.86 lb (8.10 kg) 941.63 cu in (15,430.6 cu cm)
  • Page 7 (dual-channel) DA - 12546 Worldwide QuickSpecs — Version 10 — 1.30.2007 WHITE 2 (Channel B) 512-MB 512-MB 512-MB 512-MB 1-GB 1-GB HP Compaq dc5750 Business PC Slot BLACK 3 (Channel A) 4 (Channel B) 256-MB 512-MB 512-MB 1-GB 1-GB 256-MB...
  • Page 8 DA - 12546 Worldwide QuickSpecs — Version 10 — 1.30.2007 Microtower 2 Full Length 5V 32 bit PCI slots 1 Full Height card SATA SATA 3.0Gb/s HP Compaq dc5750 Business PC Small Form Factor 2 LP 5V 32 bit PCI slots 1 LP profile card SATA SATA 3.0Gb/s...
  • Page 9 DA - 12546 Worldwide QuickSpecs — Version 10 — 1.30.2007 Microtower 5.25" Serial 3.5" Serial ATA Devices ATA Devices SATA SATA HP Compaq dc5750 Business PC Small Form Factor Small Form Factor Media Card 5.25" Serial Reader or ATA Devices Diskette Drive...
  • Page 10 Aux Input connection on system board Internal Speaker *NOTE: Rear audio ports are re-taskable as Line-in, Line-out, or Microphone-in. External speakers must be powered externally. DA - 12546 Worldwide QuickSpecs — Version 10 — 1.30.2007 HP Compaq dc5750 Business PC Page 10...
  • Page 11 HP FireWire / IEEE 1394 PCI Card (full height) HP FireWire / IEEE 1394 PCI Card (low profile) 2nd serial port adapter 2nd serial port adapter (low profile) Tower stand DA - 12546 Worldwide QuickSpecs — Version 10 — 1.30.2007 HP Compaq dc5750 Business PC Page 11...

  • Page 12: After-Market Options (Availability May Vary By Region)

    PC2-5300 (DDR2, 667 MHz) DIMMs Non-ECC HP 1 GB PC2-5300 (DDR2-667) DIMM HP 512 MB PC2-5300 (DDR2-667) DIMM HP 256 MB PC2-5300 (DDR2-667) DIMM DA - 12546 Worldwide QuickSpecs — Version 10 — 1.30.2007 HP Compaq dc5750 Business PC Part Number EA118AA PZ928AA EA833AA...
  • Page 13 Multimedia HP 16-in-1 Media Card Reader Security Kensington Lock HP Business PC Security Lock HP USB Smartcard Keyboard DA - 12546 Worldwide QuickSpecs — Version 10 — 1.30.2007 HP Compaq dc5750 Business PC PX848AA#xxx PX849AA#xxx PL766AA#xxx PL777AA#xxx PX850AA#xxx EM869AA#xxx PD974AA#xxx...
  • Page 14 HP 2nd Serial Port adapter Accessories Belken USB to Serial Adapter HP FireWire / IEEE 1394 PCI Card DA - 12546 Worldwide QuickSpecs — Version 10 — 1.30.2007 HP Compaq dc5750 Business PC (use T3489AA EF117AA (use EF118AA for 1000+...

  • Page 15: Technical Specifications

    Unit Environment and Operating Conditions General Unit Operating Guidelines (Need this updated for dc5750) Keep the computer away from excessive moisture, direct moisture and the extremes of heat and cold, to ensure that unit is operated within the specified operating range.
  • Page 16 Advanced Configuration and Power Interface (ACPI) – Represents a significant innovation in power and configuration management, allowing operating systems and applications to manage power based on activity and usage. HP Compaq dc5750 models use ACPI to provide power conservation features under Windows XP. Other Features ACPI-Ready Hardware SMBIOS Ver.
  • Page 17 By avoiding actual hard drive failures, SMART hard drives act as "insurance" against unplanned user downtime and potential data loss from hard drive failure HP Compaq dc5750 Business PC CMOS Battery Holder for easy Replacement Processor ZIF Socket for easy...

  • Page 18: Technical Specifications - Audio

    Power Rating Internal Speaker External Speaker Jack (Line-Out) DA - 12546 Worldwide QuickSpecs — Version 10 — 1.30.2007 HP Compaq dc5750 Business PC Integrated Yes – Realtek ALC260 Microphone-In (64-K ohm Input Impedance) Line-In (64-K ohm Input Impedance) Line-Out * (200 ohms Output Impedance, expects at least a 10-K ohm...

  • Page 19: Technical Specifications - Communications

    Power consumption Output power (approximately) Receive sensitivity DA - 12546 Worldwide QuickSpecs — Version 10 — 1.30.2007 HP Compaq dc5750 Business PC RJ-45 Broadcom 5755 PCI-Express LAN Controller Integrated 96Kb on chip buffer memory 10/100/1000 Mbps IEEE 802.1P, 802.1Q, 802.2, 802.3, 802.3AB and 802.3u compliant, 802.3x flow control...
  • Page 20 OS Driver Support Power DA - 12546 Worldwide QuickSpecs — Version 10 — 1.30.2007 HP Compaq dc5750 Business PC Standard rates of 1, 2, 5.5, 11, 6, 9, 12, 18, 24, 48, 54 and Super AG Mode108-Mbps DSSS (Direct Sequence Spread Spectrum) 64(40h) bit, 128(104h) bit, WPA, IEEE802.1X, AES-OCB, AES-CCM,...
  • Page 21 Health Other DA - 12546 Worldwide QuickSpecs — Version 10 — 1.30.2007 HP Compaq dc5750 Business PC Uses only one PCI load (i.e., one grant/request pair), one shared IRQ, one electrical load Agere Systems SV92PL – Integrated PCI interface with 5-V tolerant buffers and CardBus support Complies with PCI low profile specifications–6.7 x 2.3 in (17.0 x 5.8 cm)

  • Page 22: Technical Specifications - Graphics

    Dot Clock Display Modes DA - 12546 Worldwide QuickSpecs — Version 10 — 1.30.2007 HP Compaq dc5750 Business PC Full Microsoft DirectX® 9 based with Shader 2.0 support, full precision floating point pixel pipeline, 2x, 4x, or 6x Anti-Aliasing, hidden surface removal using 16, 24, or 32-bit Z-Buffering, and support for 12-bit per pixel formats.
  • Page 23 Canadian Standard ICES-003 is equivalent to CISPR22 d) Taiwanese Standard BSMI e) Japanese VCCI f) Australian C-Tick EMC Immunity: CISPR 24:1997/EN 55024:1998 – Information Technology Equipment - Immunity Characteristics – Limits and Methods of Measurement. HP Compaq dc5750 Business PC 75-Hz 85-Hz Page 23...
  • Page 24 Operating Systems Support Core Power DA - 12546 Worldwide QuickSpecs — Version 10 — 1.30.2007 HP Compaq dc5750 Business PC Safety: UL 60950 (USA) & EN 60950 (EU): Safety of Information Technology Equipment, Including Electrical Business Equipment. All boards meet UL PCB flammability requirements.

  • Page 25: Technical Specifications - Hard Drives

    Full-Stroke settling) Rotational Speed 7,200 rpm Logical Blocks 156,301,488 Operating Temperature41° to 131° F (5° to 55° C) HP Compaq dc5750 Business PC 1.0 ms 8.5 ms 18 ms 0.9 ms 9.3 ms 18 ms 2.0 ms 9.3 ms...

  • Page 26: Technical Specifications - Input/Output Devices

    Approvals Ergonomic compliance ANSI HFS 100, ISO 9241-4, and TUVGS Kit contents DA - 12546 Worldwide QuickSpecs — Version 10 — 1.30.2007 HP Compaq dc5750 Business PC Keys 104, 105, 106, 107, 109 layout (depending upon country) Dimensions (L x W x H) 18.0 x 6.4 x 0.98 in (45.8 x 16.3 x 2.5 cm) Weight 2 lb (0.9 kg) minimum...
  • Page 27 Physical Keyboard characteristics DA - 12546 Worldwide QuickSpecs — Version 10 — 1.30.2007 HP Compaq dc5750 Business PC Keys 104, 105, 106, 107, 109 layout (depending upon country) Dimensions (L x W x H) 18.0 x 6.4 x 0.98 in (45.8 x 16.3 x 2.5 cm) Weight 2 lb (0.9 kg) minimum...
  • Page 28 Technical Specifications - Input/Output Devices Electrical Mechanical Environmental SMARTCARD function Support DA - 12546 Worldwide QuickSpecs — Version 10 — 1.30.2007 HP Compaq dc5750 Business PC Operating voltage + 5VDC ± 5% Power consumption 100-mA maximum (with four LEDs ON) System interface...
  • Page 29 Technical Specifications - Input/Output Devices USB Standard BG1650 Physical Keyboard (gray) characteristics Electrical Mechanical Environmental DA - 12546 Worldwide QuickSpecs — Version 10 — 1.30.2007 HP Compaq dc5750 Business PC Communication From card From computer Landing mechanism Contact device Card insertions rating Interface modes...
  • Page 30 Electrical Mechanical Scroll wheel DA - 12546 Worldwide QuickSpecs — Version 10 — 1.30.2007 HP Compaq dc5750 Business PC Drop (in box) 42 in (107 cm) on concrete, 16-drop sequence Microsoft Windows 2000 (Service Pack 4 or greater), Windows XP...
  • Page 31 Environmental Electrical Mechanical Scroll wheel Regulatory approvals DA - 12546 Worldwide QuickSpecs — Version 10 — 1.30.2007 HP Compaq dc5750 Business PC Switch life 1 million operations Mechanical life Minimum 200,000 revolutions Compliant UL, CSA, FCC, CE Mark, TUV, TUV GS,...
  • Page 32 Dimensions (H x L x W) 1.5 x 4.5 x 2.5 in (3.8 x 11.6 x 6.3 cm) Mouse Weight Cable length System requirements DA - 12546 Worldwide QuickSpecs — Version 10 — 1.30.2007 HP Compaq dc5750 Business PC Operating system Microsoft Windows 2000 (Service Pack 4 or support greater), Windows XP Home, Windows XP Professional 0.27 lb (0.12 kg)

  • Page 33: Technical Specifications - Optical Storage

    (operating – non-condensing) Operating systems support DA - 12546 Worldwide QuickSpecs — Version 10 — 1.30.2007 HP Compaq dc5750 Business PC 5.25-inch, half-height, tray-load Either horizontal or vertical SATA/ATAPI 8.5 GB DL or 4.7 GB standard 2.6 lb (1.2 kg)
  • Page 34 Removable Storage – Media Compatibility – DVD-ROM DA - 12546 Worldwide QuickSpecs — Version 10 — 1.30.2007 HP Compaq dc5750 Business PC 5.25-inch, half-height, tray-load Either horizontal or vertical SATA/ATAPI Single layer: Up to 4.7 GB (6 times capacity of CD-ROM) Double layer: Up to 8.5 GB (12 times capacity of CD-ROM)
  • Page 35 Access times (typical reads, including setting) Power Environmental (all conditions non-condensing) Operating systems support DA - 12546 Worldwide QuickSpecs — Version 10 — 1.30.2007 HP Compaq dc5750 Business PC CD-RW DVD-ROM DVD-ROM DL DVD-RAM DVD+R DVD+R DL DVD+RW DVD-R DVD-RW...

  • Page 36: Technical Specifications - Removable Storage

    Operating system support Approvals DA - 12546 Worldwide QuickSpecs — Version 10 — 1.30.2007 HP Compaq dc5750 Business PC USB 2.0 High-speed device Supports hardware ECC (Error Correction Code) function Supports hardware CRC (Cyclic Redundancy Check) function Supports MS 4-bit parallel transfer mode...

  • Page 37: Technical Specifications - Environmental Data

    115 VAC 198.9 BTU/hr 195.2 BTU/hr 9.3 BTU/hr 6.2 BTU/hr Sound Power Sound Pressure (LWAd, bels) (LpAm, decibels) HP Compaq dc5750 Business PC 230 VAC 57.2 W 2.70 W 1.80 W 230 VAC 199.6 BTU/hr 9.2 BTU/hr 9.3 BTU/hr 6.1 BTU/hr 6.1 BTU/hr...
  • Page 38 System Configuration The configuration used for the Energy Consumption and Declared Noise Emissions data for the Microtower Desktop model is based on a typically configured product. DA - 12546 Worldwide QuickSpecs — Version 10 — 1.30.2007 HP Compaq dc5750 Business PC Corrugated Paper 1400 g...
  • Page 39 115 VAC 215.5 BTU/hr 216.5 BTU/hr 9.4 BTU/hr 8.4 BTU/hr Sound Power Sound Pressure (LWAd, bels) (LpAm, decibels) HP Compaq dc5750 Business PC 230 VAC 63.5 W 2.81 W 2.63 W 230 VAC 212.3 BTU/hr 9.6 BTU/hr 9.6 BTU/hr 9.0 BTU/hr 7.2 BTU/hr...
  • Page 40 Eliminate the use of heavy metals such as lead, chromium, mercury and cadmium in packaging materials. DA - 12546 Worldwide QuickSpecs — Version 10 — 1.30.2007 Corrugated Paper EPE Foam LDPE Bag http://www.hp.com/hpinfo/globalcitizenship/environment/ HP Compaq dc5750 Business PC 19410 g 254 g 63 g Page 40...
  • Page 41 HP shall not be liable for technical or editorial errors or omissions contained herein. DA - 12546 Worldwide QuickSpecs — Version 10 — 1.30.2007 HP Compaq dc5750 Business PC http://www.hp.com/recycle or contact your nearest...
