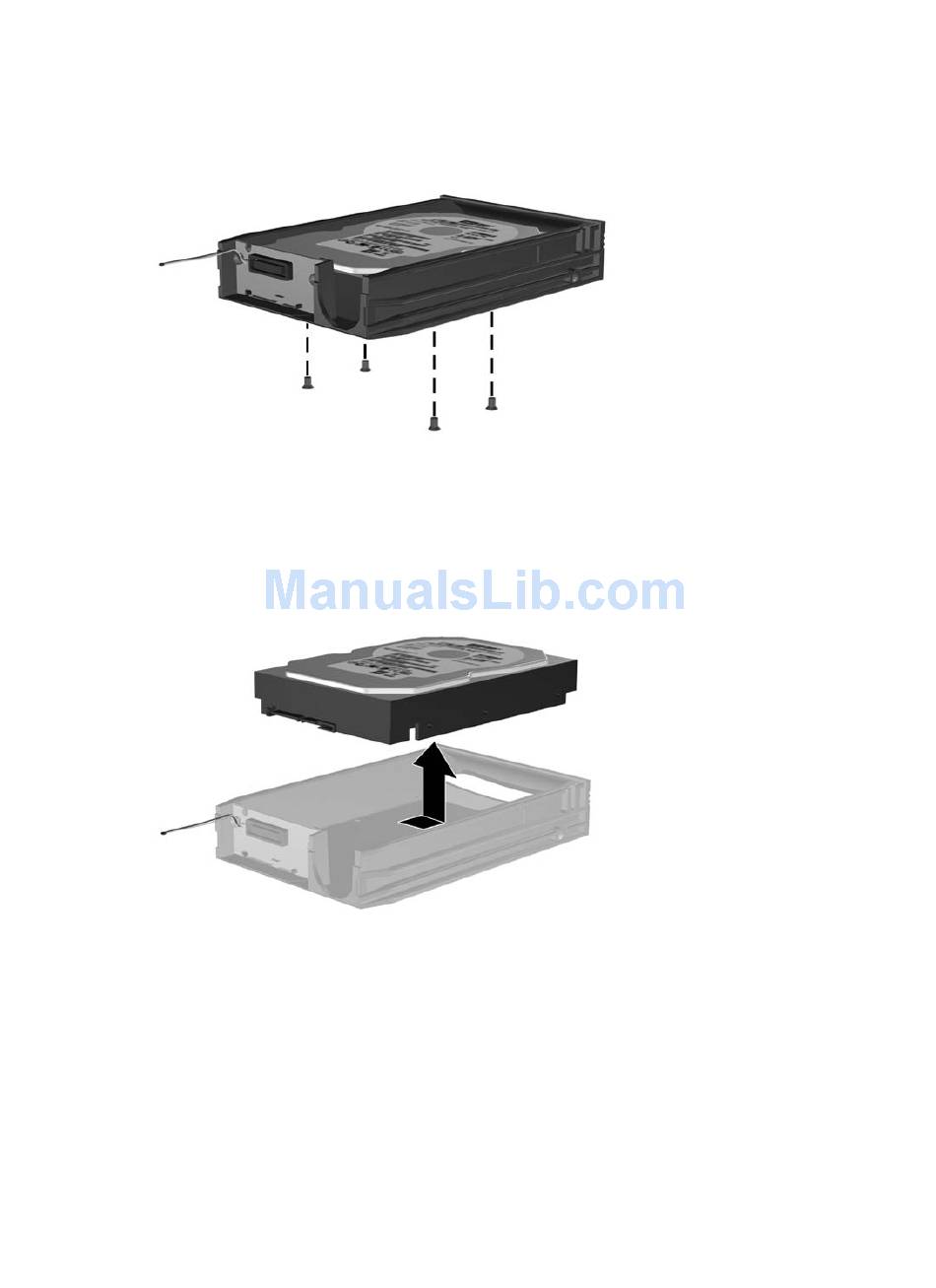

Remove the four screws from the bottom of the hard drive carrier.

Figure 2-33

Slide the hard drive back to disconnect it from the carrier then lift it up and out of the carrier.

Figure 2-34

ENWW

Removing the Security Screws

Removing the Hard Drive

Installing Additional Drives
